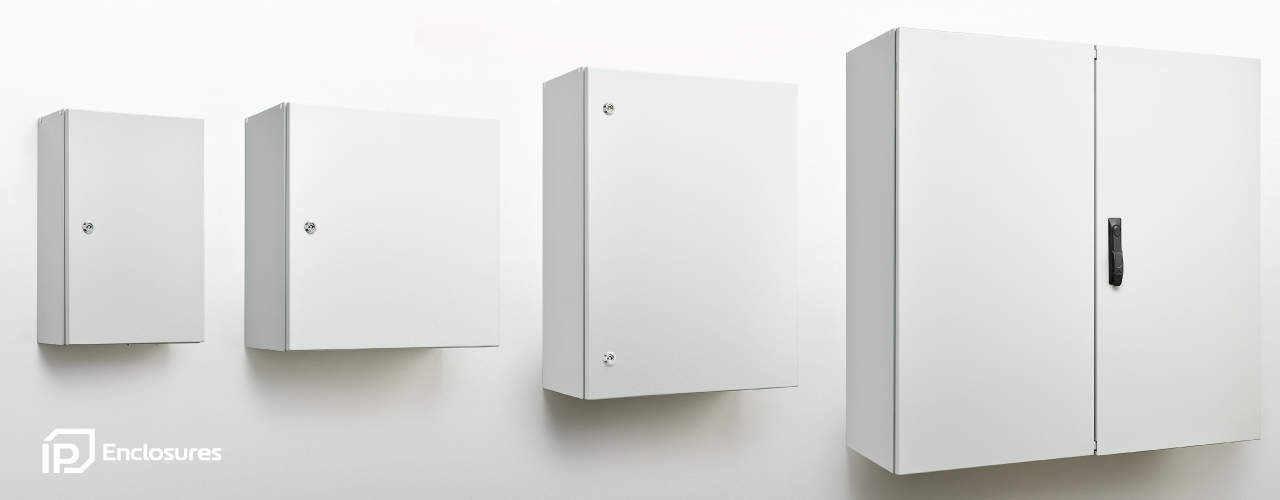

Electrical Enclosures

Electrical Enclosures

Electrical Enclosures are designed to house low voltage electrical equipment including switchgear and controlgear assemblies. Our electrical enclosures are manufactured to the highest standards using world-class international manufacturing facilities in Europe. The steel range is fabricated using galvanised steel and are powder coated. They comply to IEC62208 and IEC/EN/AS60529 up to IP66 IK10 NEMA 4. IP Enclosures electrical enclosures incorporate many advanced design features as standard inclusions and have been chosen by many organisations as their standard electrical enclosure system.

IP66 Electrical Enclosures

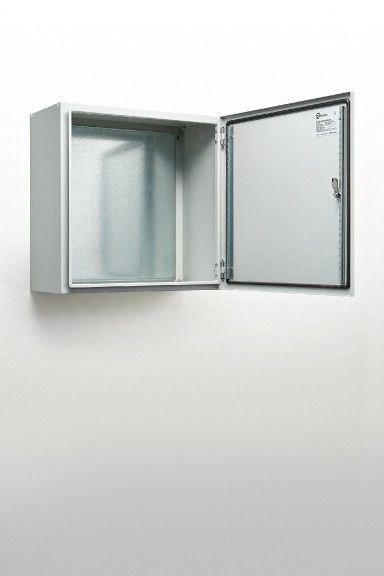

The S1 range of electrical enclosures are rated for protection up to IP66. This range is wall-mounted, powder-coated galvanised steel, single door construction suitable for heavy duty applications.

Features & Specifications

Protection: Complies with IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Electrical Enclosure Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional).

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

– Body: 1.2mm galvanised steel sheet (up to 700x500x250) 1.5mm galvanised steel sheet (800x600x200 and above)
– Gland Plate: 1.5mm galvanised steel sheet
– Door: 1.5mm galvanised steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Enclosure Body:

The robust monoblock body is fabricated using galvanised steel sheet (1.2mm-1.5mm). Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. A galvanised steel gland plate is incorporated into the bottom face. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

Enclosure Door:

The robust surface mounted door is fabricated using 1.5mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

Chrome 5mm double bit insert quarter turn lock with key. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Quick Quote

11 + 1 =

Electrical Enclosure

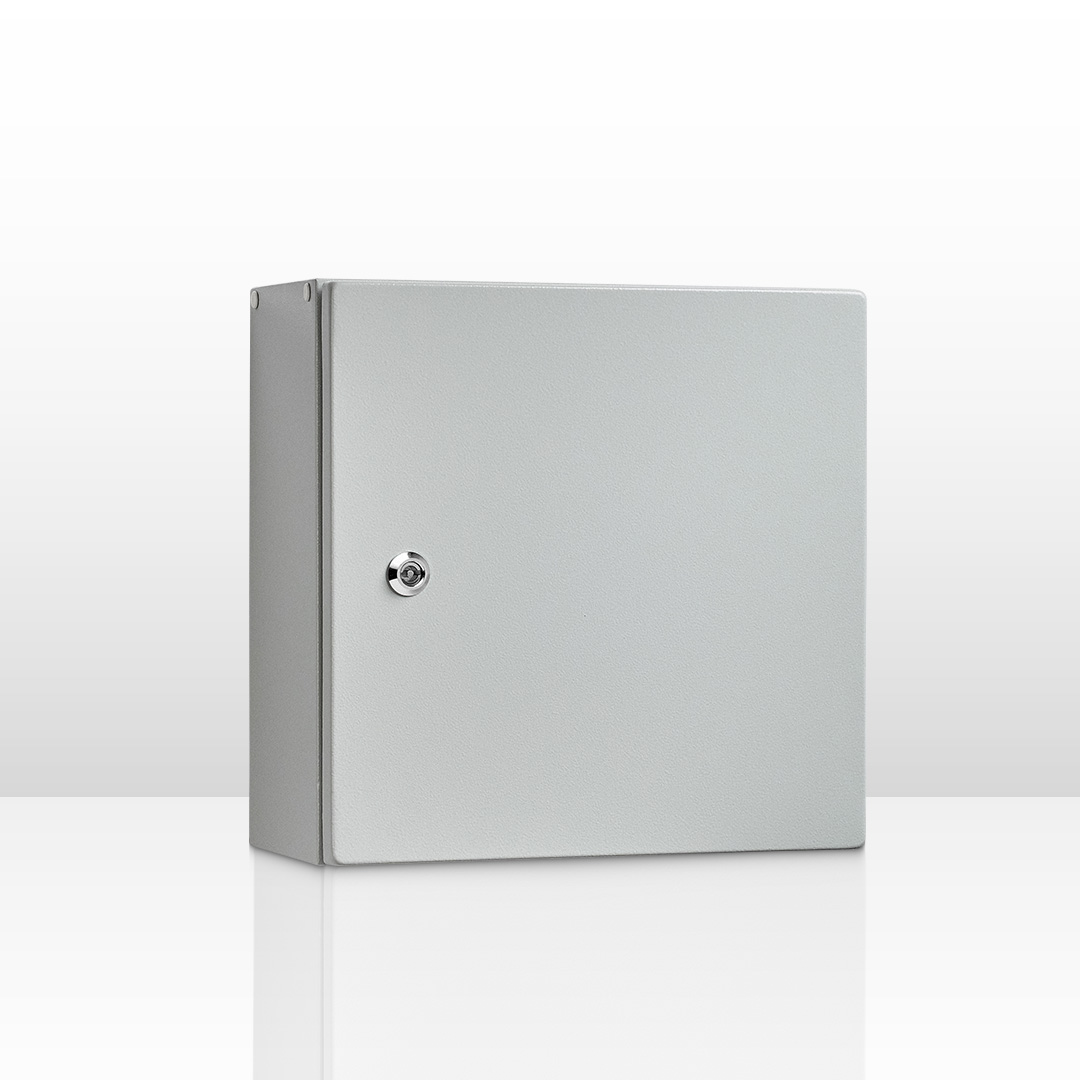

IP66 Electrical Enclosure

IP66 Electrical Enclosure Sizes

Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DQuantityData SheetDrawing*.dwgInner DoorRain Hood
IP-302015300 x 200 x 1501PDFPDF.dwgIP-PSID3020IP-PSRH2015
IP-302515300 x 250 x 1501PDFPDF.dwgIP-PSID3025IP-PSRH2515
IP-303015300 x 300 x 1501PDFPDF.dwgIP-PSID3030IP-PSRH3015
IP-303020300 x 300 x 2001PDFPDF.dwgIP-PSID3030IP-PSRH3020
IP-403015400 x 300 x 1501PDFPDF.dwgIP-PSID4030IP-PSRH3015
IP-403020400 x 300 x 2001PDFPDF.dwgIP-PSID4030IP-PSRH3020
IP-404020400 x 400 x 2001PDFPDF.dwgIP-PSID4040IP-PSRH4020
IP-404030400 x 400 x 300RequestRequestRequestIP-PSID4040IP-PSRH4030
IP-503015500 x 300 x 1501PDFPDF.dwgIP-PSID5030IP-PSRH3015
IP-503020500 x 300 x 2001PDFPDF.dwgIP-PSID5030IP-PSRH3020
IP-504020500 x 400 x 2001PDFPDF.dwgIP-PSID5040IP-PSRH4020
IP-504025500 x 400 x 2501PDFPDF.dwgIP-PSID5040IP-PSRH4025
IP-505020500 x 500 x 2001PDFPDF.dwgIP-PSID5050IP-PSRH5020
IP-505025500 x 500 x 2501PDFPDF.dwgIP-PSID5050IP-PSRH5025
IP-505030500 x 500 x 300RequestRequestRequestIP-PSID5050IP-PSRH5030
IP-604020600 x 400 x 2002PDFPDF.dwgIP-PSID6040IP-PSRH4020
IP-604025600 x 400 x 2502PDFPDF.dwgIP-PSID6040IP-PSRH4025
IP-604025600 x 400 x 300RequestRequestRequestIP-PSID6040IP-PSRH4030
IP-606020600 x 600 x 2002PDFPDF.dwgIP-PSID6060IP-PSRH6020
IP-606030600 x 600 x 3002PDFPDF.dwgIP-PSID6060IP-PSRH6030
IP-606040600 x 600 x 4002PDFPDF.dwgIP-PSID6060IP-PSRH6040
IP-705020700 x 500 x 2002PDFPDF.dwgIP-PSID7050IP-PSRH5020
IP-705025700 x 500 x 2502PDFPDF.dwgIP-PSID7050IP-PSRH5025
IP-804030800 x 400 x 3002PDFPDF.dwgIP-PSID8040IP-PSRH4030
IP-806020800 x 600 x 2002PDFPDF.dwgIP-PSID8060IP-PSRH6020
IP-806025800 x 600 x 2502PDFPDF.dwgIP-PSID8060IP-PSRH6025
IP-806030800 x 600 x 3002PDFPDF.dwgIP-PSID8060IP-PSRH6030
IP-808020800 x 800 x 2002PDFPDF.dwgIP-PSID8080IP-PSRH8020
IP-808030800 x 800 x 3002PDFPDF.dwgIP-PSID8080IP-PSRH8030
IP-808040800 x 800 x 4002PDFPDF.dwgIP-PSID8080IP-PSRH8040
IP-10060251000 x 600 x 2502PDFPDF.dwgIP-PSID10060IP-PSRH6025
IP-10060301000 x 600 x 3002PDFPDF.dwgIP-PSID10060IP-PSRH6030
IP-10080301000 x 800 x 3002PDFPDF.dwgIP-PSID10080IP-PSRH8030
IP-10080401000 x 800 x 4002PDFPDF.dwgIP-PSID10080IP-PSRH8040
IP-12060301200 x 600 x 3002PDFPDF.dwgIP-PSID12060IP-PSRH6030
IP-12080301200 x 800 x 3002PDFPDF.dwgIP-PSID12080IP-PSRH8030
IP-12080401200 x 800 x 4002PDFPDF.dwgIP-PSID12080IP-PSRH8040

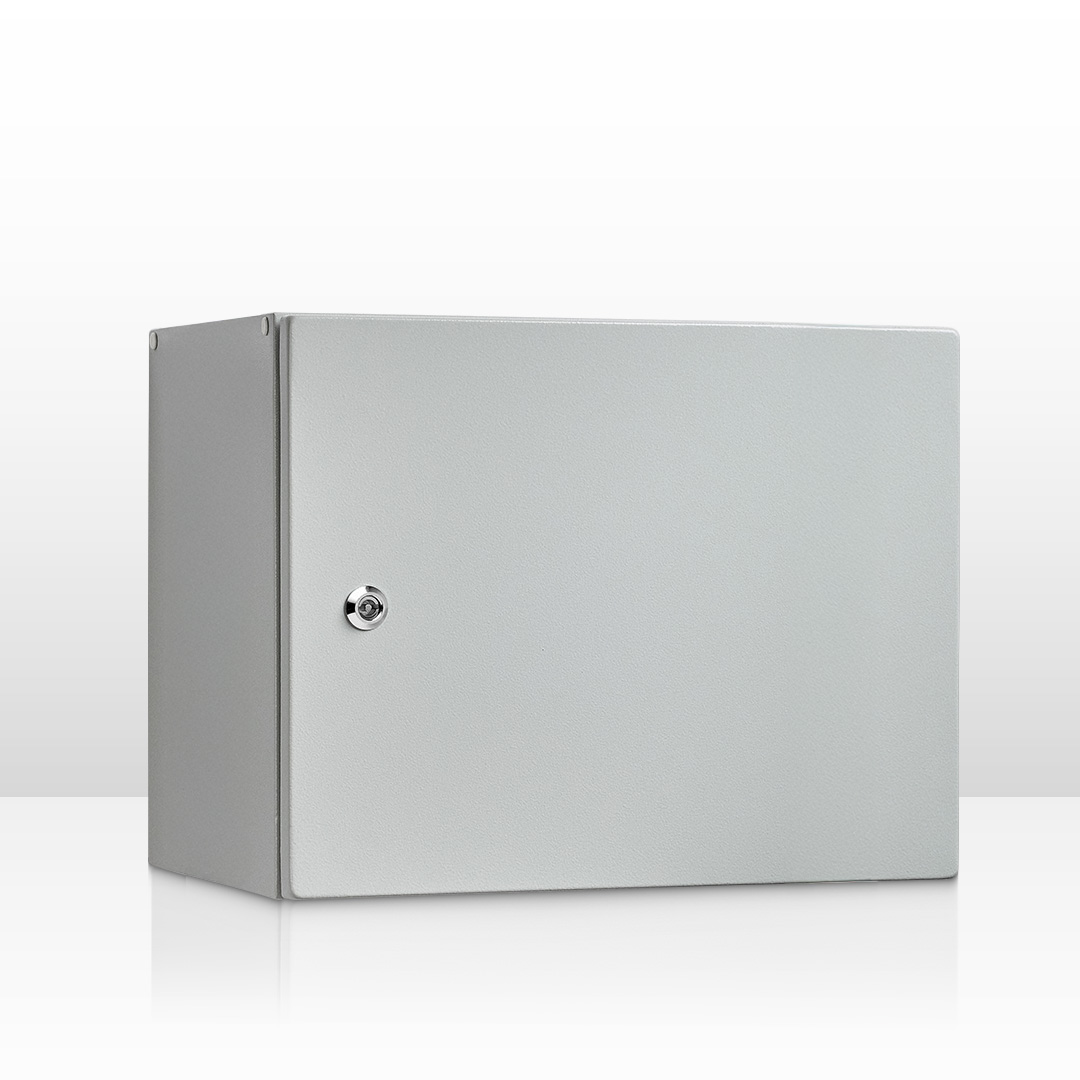

IP66 Electrical Enclosure Sizes – Landscape Orientation



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DQuantityData SheetDrawing*.dwgInner DoorRain Hood
IP-L304015300 x 400 x 1501PDFPDF.dwgIP-PSID3040IP-PSRH4015
IP-L304020300 x 400 x 2001PDFPDF.dwgIP-PSID3040IP-PSRH4020
IP-L406020400 x 600 x 2001PDFPDF.dwgIP-PSID4060IP-PSRH6020
IP-L406030400 x 600 x 3001PDFPDF.dwgIP-PSID4060IP-PSRH6030
IP-L608030600 x 800 x 3002PDFPDF.dwgIP-PSID6080IP-PSRH8030

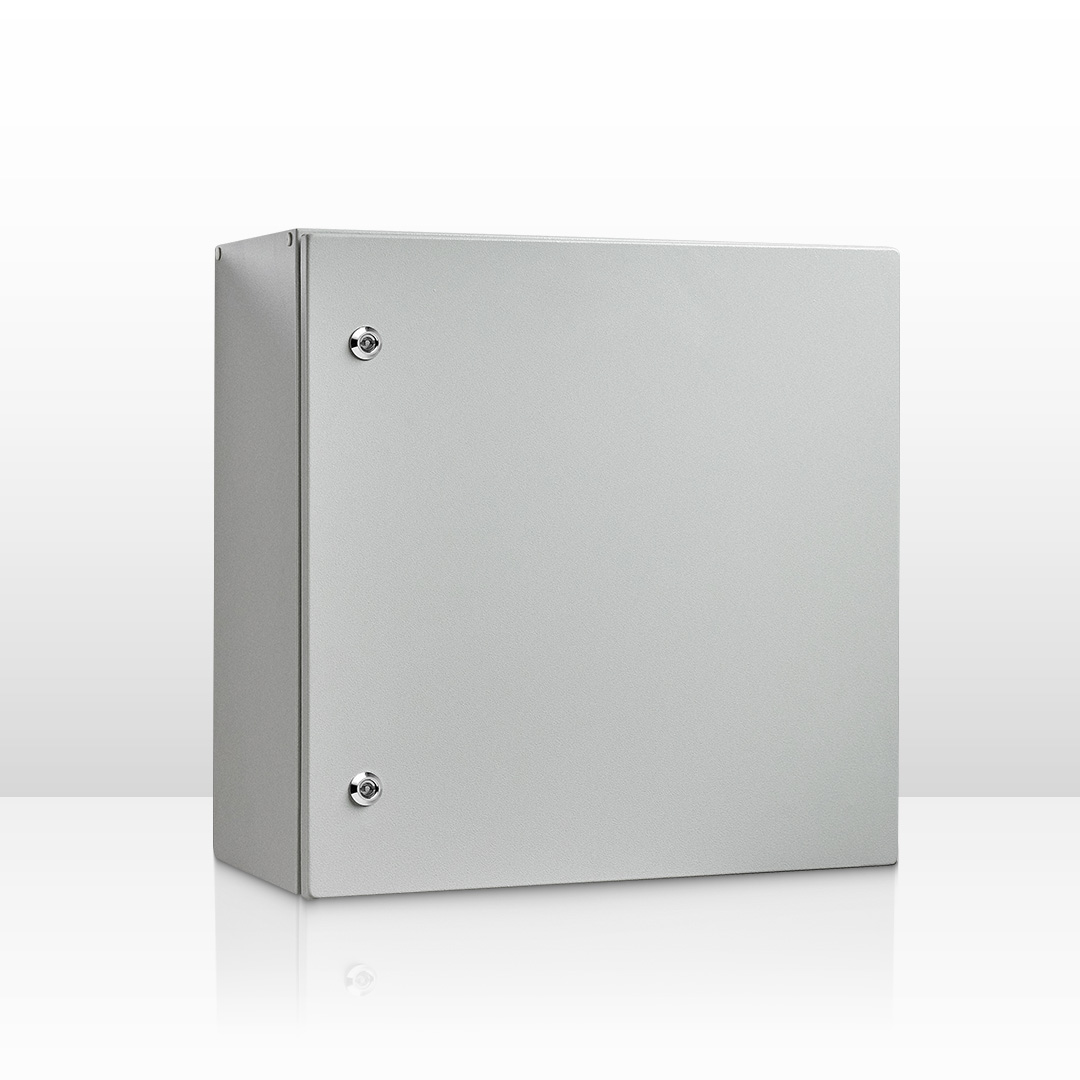

IP66 Electrical Enclosure 2

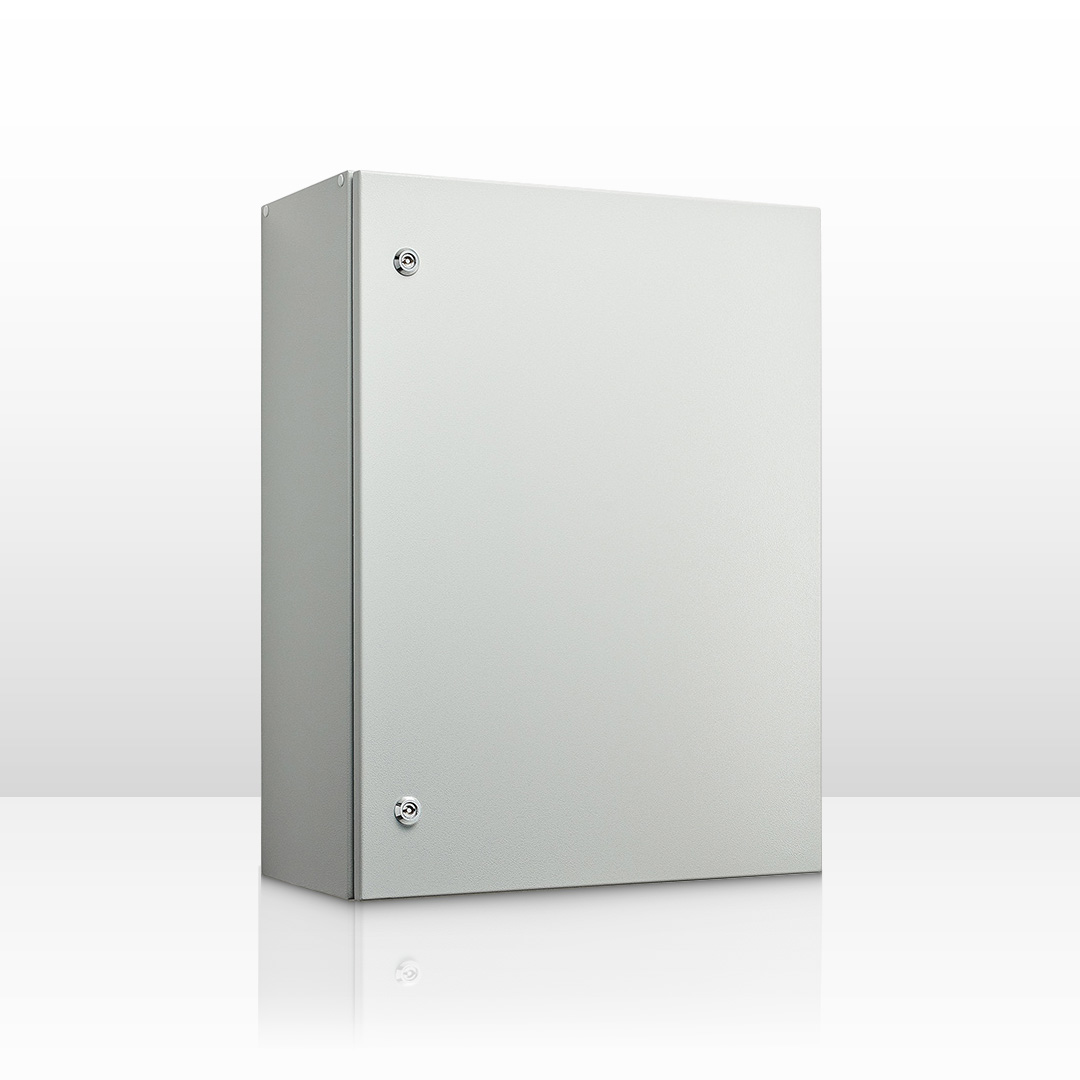

IP66 Electrical Enclosure 1
IP66 Electrical Enclosure Detail

IP55 Electrical Enclosures

The S2 range of electrical enclosures are rated for protection up to IP55. This range is wall-mounted, powder-coated galvanised steel, double door construction suitable for heavy duty applications.

Features & Specifications

Protection: Complies with IP55 IK10, NEMA 4 (Independent accredited test laboratory).

Electrical Enclosure Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional).

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

– Body: 1.5mm galvanised steel sheet
– Gland Plate: 1.5mm galvanised steel sheet
– Door: 1.5mm galvanised steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Finish:

Powdercoated RAL7035 (Other colours available upon request)

Enclosure Body:

The robust monoblock body is fabricated using 1.5mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Gland plates are incorporated into the bottom face. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

Enclosure Double Doors:

The robust surface mounted doors are fabricated using 1.5mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The doors are designed to eliminate the central mullion to improve accessibility into the enclosure. The doors are designed for a 110° opening. Each door contains integral cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

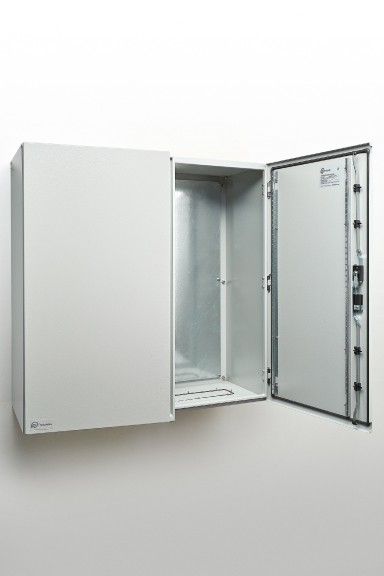

IP55 Electrical Enclosure

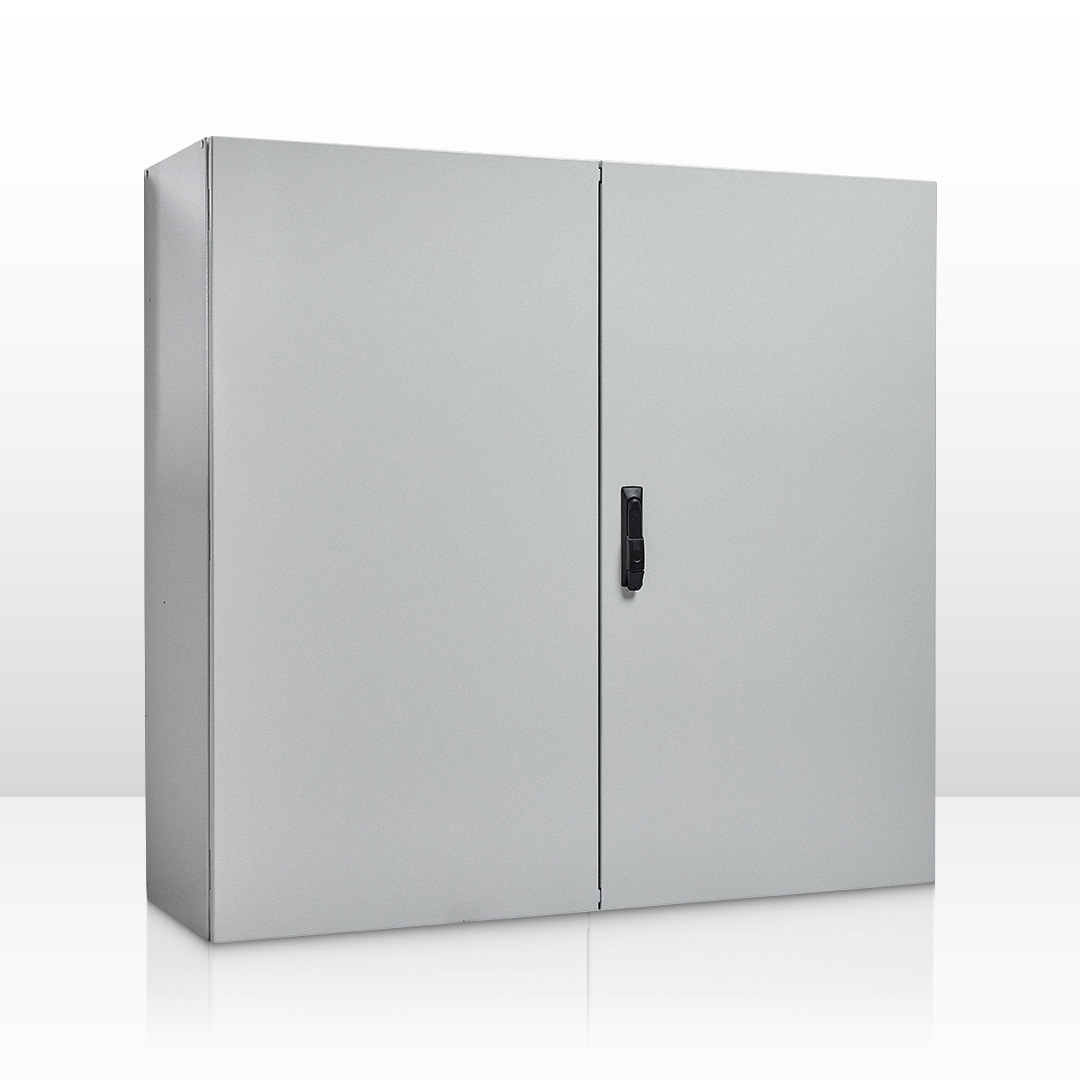

IP55 Double Door Electrical Enclosure

IP55 Electrical Enclosure Sizes



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DTypeData SheetDrawing*.dwgInner DoorRain Hood
IP-100100301000 x 1000 x 3003-PointPDFPDF.dwgIP-PSID100100IP-PSRH10030
IP-100100401000 x 1000 x 4003-PointPDFPDF.dwgIP-PSID100100IP-PSRH10040
IP-120100301200 x 1000 x 3003-PointPDFPDF.dwgIP-PSID120100IP-PSRH10030
IP-120100401200 x 1000 x 4003-PointPDFPDF.dwgIP-PSID120100IP-PSRH10040
IP-120120301200 x 1200 x 3003-PointPDFPDF.dwgIP-PSID120120IP-PSRH12030
IP-120120401200 x 1200 x 4003-PointPDFPDF.dwgIP-PSID120120IP-PSRH12040

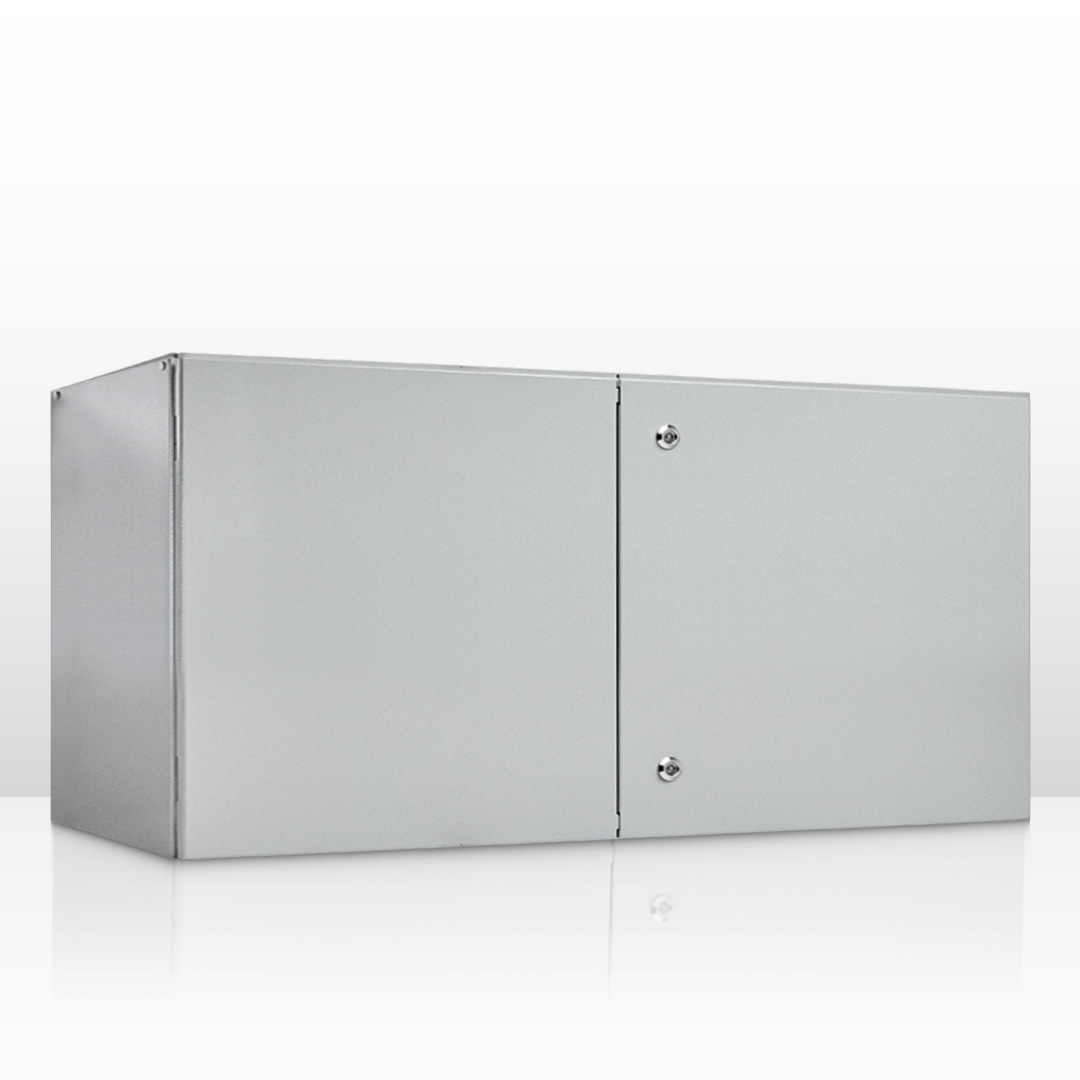

IP55 Electrical Enclosure Sizes – Landscape Orientation



Part NumberEnclosure Size (mm)LockDownloadDownloadDownloadAccessories
SKUH x W x DTypeData SheetDrawing*.dwgInner DoorRain Hood
IP-L4010030 400 x 1000 x 3003-PointPDFPDF.dwgIP-PSID40100IP-PSRH10030
IP-L4010040 400 x 1000 x 4003-PointPDFPDF.dwgIP-PSID40100IP-PSRH10040
IP-L6010030 600 x 1000 x 3003-PointPDFPDF.dwgIP-PSID60100IP-PSRH10030
IP-L6010040 600 x 1000 x 4003-PointPDFPDF.dwgIP-PSID60100IP-PSRH10040
IP-L4012030 400 x 1200 x 3003-PointPDFPDF.dwg-IP-PSRH12030
IP-L4012040 400 x 1200 x 4003-PointPDFPDF.dwg-IP-PSRH12040
IP-L6012030 600 x 1200 x 3003-PointPDFPDF.dwg-IP-PSRH12030
IP-L6012040 600 x 1200 x 4003-PointPDFPDF.dwg-IP-PSRH12040
IP55 Electrical Enclosure 1
IP55 Electrical Enclosure 2
IP55 Electrical Enclosure 3

Colours

Electrical Enclosures are available in a range of standard colours. All enclosures are supplied as RAL7035 Light Grey unless requested otherwise. To order colours, simply add the SKU colour suffix to the part number.

White Electrical Enclosure

RAL9016
Traffic White
SKU Suffix: -WT

RAL7035 Grey Enclosure

RAL7035
Light Grey
(Standard)

Black Enclosure

RAL9005
Jet Black
SKU Suffix: -BLK

T33 Smoke Blue Enclosure

T33
Smoke Blue
SKU Suffix: -T33

Orange RAL2000 Enclosure

RAL2000
Orange
SKU Suffix: -OR

Red Enclosure

R13
Signal Red
SKU Suffix: -RED

Electrical Enclosure Accessories
