DIN Rail Kits

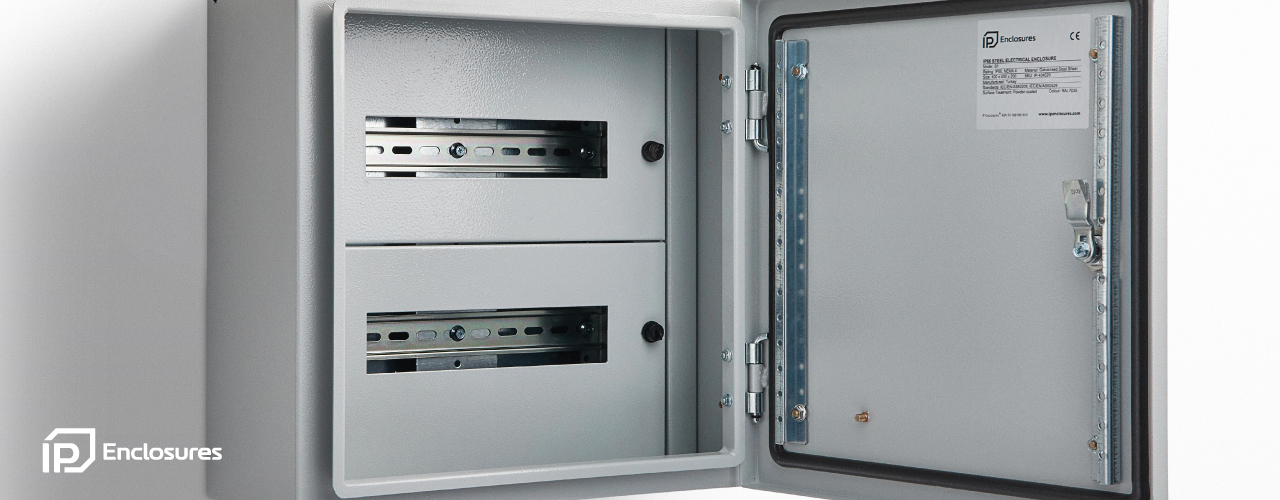

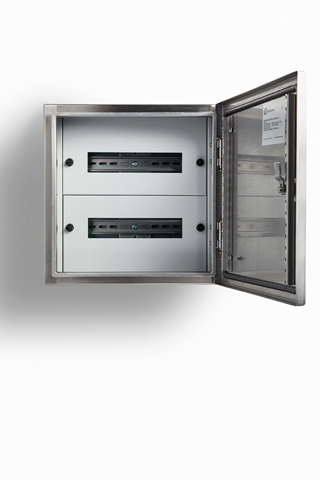

IP Enclosures DIN Rail Kits are designed to be easily fitted to IP Enclosures steel and stainless steel electrical enclosures without drilling. The separate internal chassis frame can be fitted with components and wired prior to assembly into the enclosure. The removable escutcheon plates provide protection to the full perimeter of the enclosure.

Chassis Material: Galv Sheet Steel

Escutcheon Plates: UL approved AkzoNobel epoxy polyester powder coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request.

Slotted Din Rail Material: Electrogalvanised Steel 7.5x35x2m RoHS, CE, UKCA Compliant. High quality DIN Rail manufactured from electrogalvanized steel for increased corrosion resistance. Standard 35mm wide symmetrical TS35 DIN Rail compatible with EN50022 and DIN46277-3.
Plating: ALKALI ZINC Cr+3 TOP COAT (10-12 Microns).
Standards: DIN5022, DIN5033, EN60715. RoHS, CE, UKCA Compliant.
Dimensions: 7.5 mm deepx35 mm widex2000mm long.
Colour: Silver.
Type: TS35 Slotted

(Includes DIN Rail Kit only. Does not include electrical enclosure.)
