Stainless Steel Pushbutton Enclosures

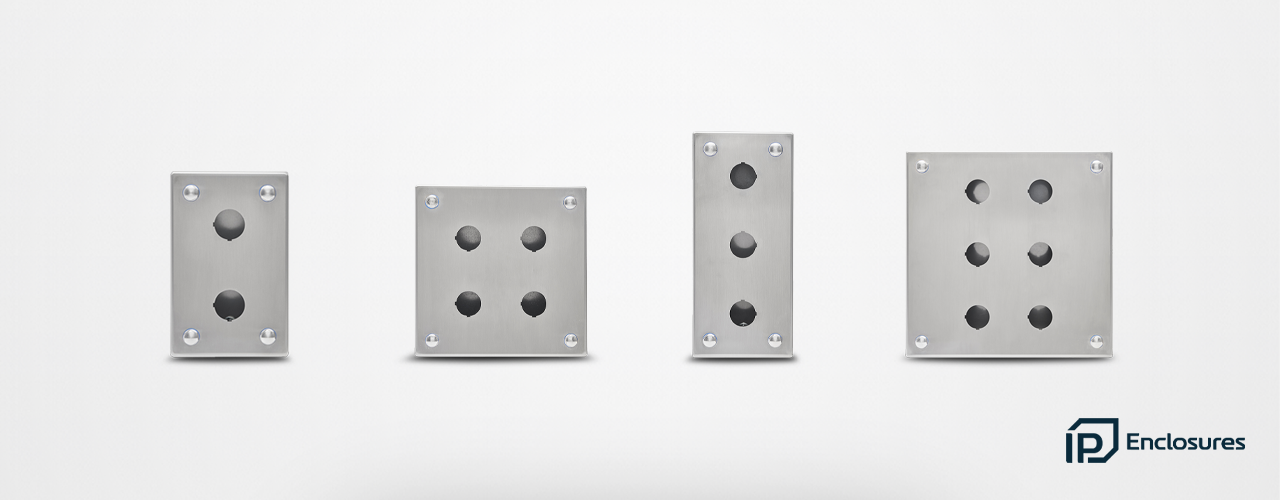

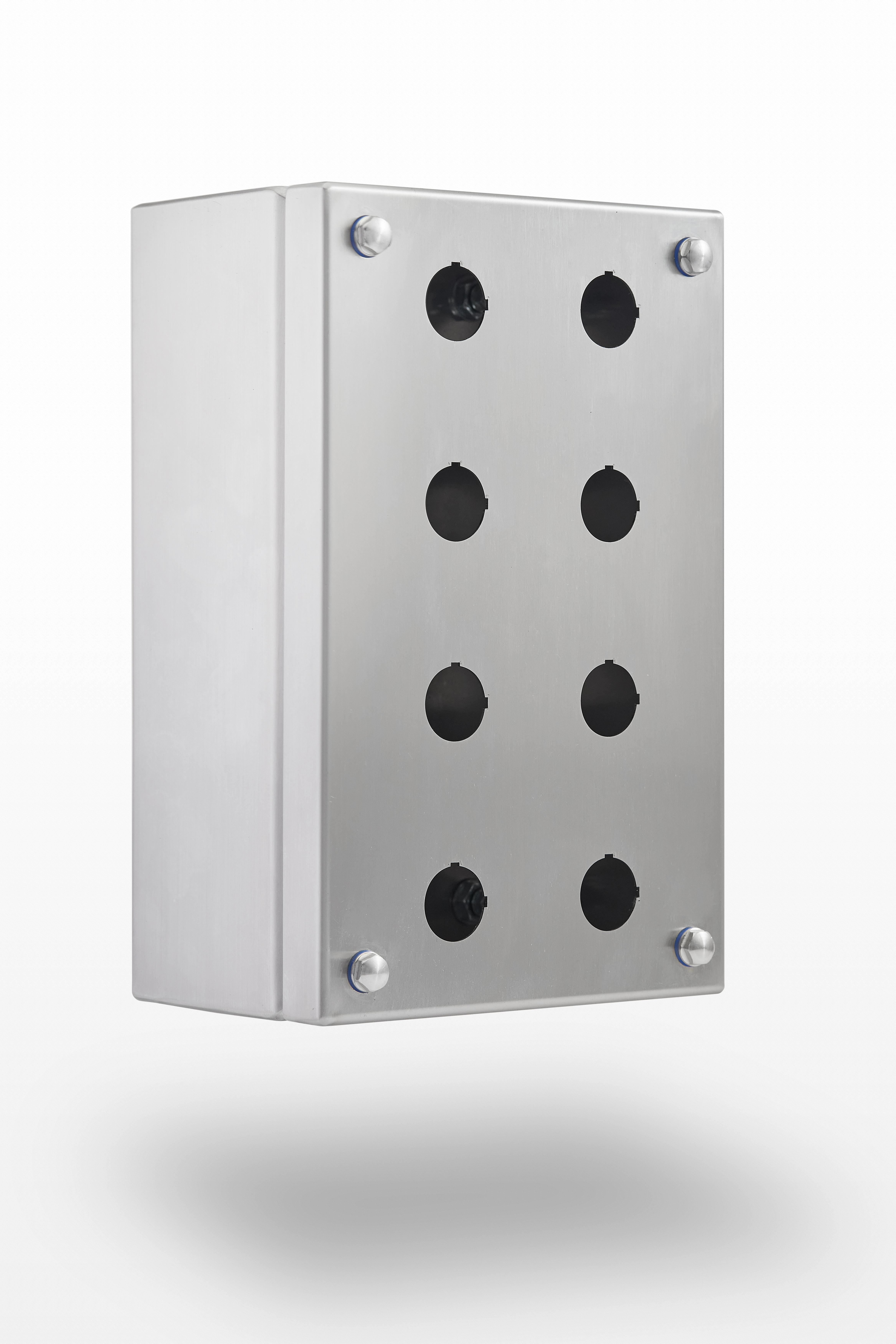

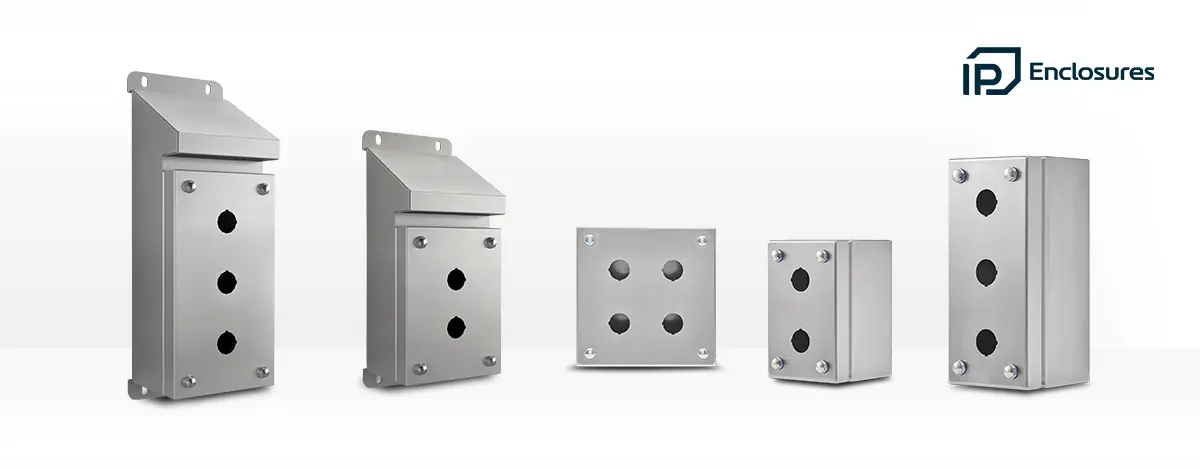

IP Enclosures Stainless Steel Pushbutton Enclosures are designed for use in the harshest environments. Our Pushbutton Enclosure range is available with a standard flat roof or a sloping roof. The flat roof range is provided with 22.5mm holes. The sloped roof range is available with either 22.5mm holes or 30.5mm holes. They are available in 1 hole, 2 hole, 3 hole, 4 hole, 6 hole, and 8 hole configurations. They are provided with a silicon seal that is resistant to harsh chemicals. Our full range of Pushbutton Enclosures are made in Italy using the highest quality materials and processes.
Features & Specifications
Protection: IP66, IP67, NEMA 4x
Standard: IEC/EN/AS60529, RoHS, CE, UKCA NEMA 4x
Material:
– Body: 1.0mm Stainless Steel (304 and 316 available)
– Lid/Door: 1.0mm Stainless Steel (304 and 316 available)
– Seal: Silicone
– Washers: NBR 70 (Nitrile Butadiene Rubber)
Body:
The robust monoblock body is fabricated using 1.0 mm stainless steel. The flat roof option includes encapsul;ated mounting nutserts for concealed mounting. The sloped roof option consists of a sloped roof design that protrudes past pushbuttons and incorporates top and bottom external mounting flanges specifically designed for the mining industry.
Lid/Door:
The robust pre-drilled lid/door is fabricated using 1.00mm stainless steel and is fastened using screws. The screws are provided with NBR 70 (Nitrile Butadiene Rubber) washers for use in harsh environments where hydrocarbons are present.
Holes:
Ø 22.5 or Ø 30.5
Surface Finish:
0.4 micron Ra surface brushed finish
Seal:
A high quality Silicone seal.
Flat Roof – Grade 304 Stainless Steel
| Part Number | Description | Enclosure Size (mm) | Data Sheet | Drawing | AutoCAD | Step File |
|---|---|---|---|---|---|---|
| SKU | Hole & Columns | HxWxD | .dwg | .stp | ||
| IP-304-P1 | 1 Hole Pushbutton Enclosure | 90x90x90 | 2D | 3D | ||
| IP-304-P2 | 2 Hole Pushbutton Enclosure | 140x90x90 | 2D | 3D | ||
| IP-304-P2X2 | 4 Hole Pushbutton Enclosure (2 columns of 2) | 160x160x100 | 2D | 3D | ||
| IP-304-P3 | 3 Hole Pushbutton Enclosure | 140x90x90 | 2D | 3D | ||
| IP-304-P3X2 | 6 Hole Pushbutton Enclosure (2 columns of 3) | 200x200x100 | 2D | 3D | ||
| IP-304-P4 | 4 Hole Pushbutton Enclosure | 280x90x90 | 2D | 3D | ||
| IP-304-P4X2 | 8 Hole Pushbutton Enclosure (2 columns of 4) | 250x160x100 | 2D | 3D |
Flat Roof – Grade 316 Stainless Steel
| Part Number | Description | Enclosure Size (mm) | Download | Drawing | Drawing | Step File |
|---|---|---|---|---|---|---|
| SKU | Hole & Columns | HxWxD | Data Sheet | .dwg | .stp | |
| IP-SSP1 | 1 Hole 316SS Pushbutton Enclosure | 90x90x90 | 2D | 3D | ||
| IP-SSP2 | 2 Hole 316SS Pushbutton Enclosure | 140x90x90 | 2D | 3D | ||
| IP-SSP2X2 | 4 Hole 316SS Pushbutton Enclosure (2 columns of 2) | 160x160x100 | 2D | 3D | ||
| IP-SSP3 | 3 Hole 316SS Pushbutton Enclosure | 140x90x90 | 2D | 3D | ||
| IP-SSP3X2 | 6 Hole 316SS Pushbutton Enclosure (2 columns of 3) | 200x200x100 | 2D | 3D | ||
| IP-SSP4 | 4 Hole 316SS Pushbutton Enclosure | 280x90x90 | 2D | 3D | ||
| IP-SSP4X2 | 8 Hole 316SS Pushbutton Enclosure (2 columns of 4) | 250x160x100 | 2D | 3D |
Sloped Roof – Grade 316 Stainless Steel
| Part Number | Description | Download | Download | Download |
|---|---|---|---|---|
| SKU | Data Sheet | Drawing | *.dwg | |
| IP-SSSRP1 | 1 Hole Sloped Roof Pushbutton Enclosure, 22.5mm Hole | .dwg | ||
| IP-SSSRP2 | 2 Hole Sloped Roof Pushbutton Enclosure, 22.5mm Holes | .dwg | ||
| IP-SSSRP3 | 3 Hole Sloped Roof Pushbutton Enclosure, 22.5mm Holes | .dwg | ||
| IP-SSSRP4 | 4 Hole Sloped Roof Pushbutton Enclosure, 22.5mm Holes | .dwg | ||
| IP-SSSRP6 | 6 Hole Sloped Roof Pushbutton Enclosure (2 columns of 3), 22.5mm Holes | .dwg | ||
| IP-SSSRP1-30 | 1 Hole Sloped Roof Pushbutton Enclosure, 30.5mm Hole | .dwg | ||
| IP-SSSRP2-30 | 2 Hole Sloped Roof Pushbutton Enclosure, 30.5mm Holes | .dwg | ||
| IP-SSSRP3-30 | 3 Hole Sloped Roof Pushbutton Enclosure, 30.5mm Holes | .dwg | ||
| IP-SSSRP4-30 | 4 Hole Sloped Roof Pushbutton Enclosure, 30.5mm Holes | .dwg | ||
| IP-SSSRP6-30 | 6 Hole Sloped Roof Pushbutton Enclosure (2 columns of 3), 30.5mm Holes | .dwg |
