IP67 Stainless Steel Terminal Boxes

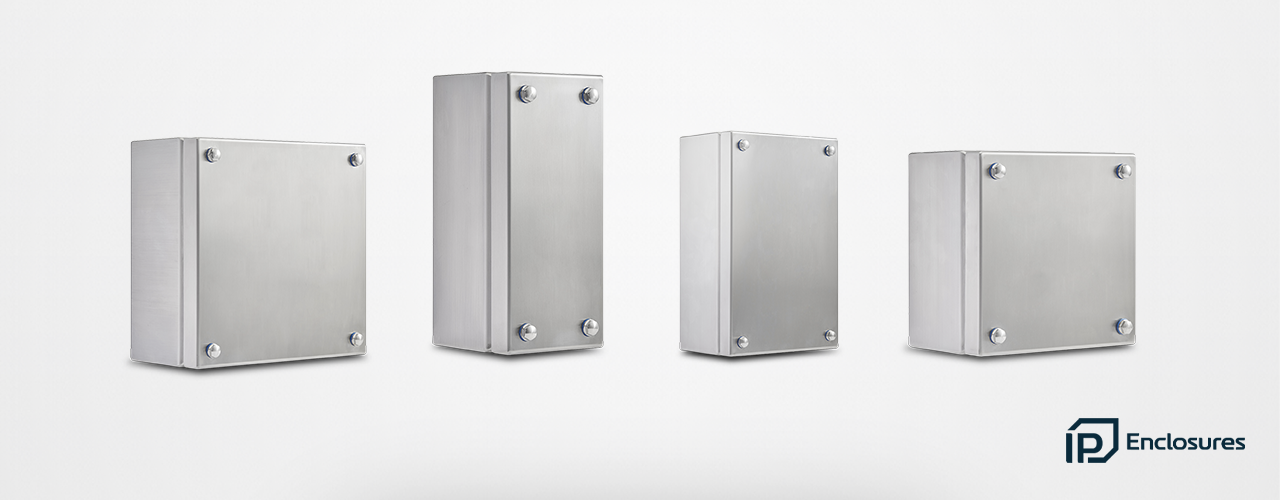

Stainless Steel Terminal Boxes

IP Enclosures Stainless Steel Terminal Boxes are designed for use in the harshest environments. This range has obtained the prestigious IECEx certification, an international recognition for reliability in hazardous environments. The IECEx certification ensures that stainless steel terminal boxes and enclosures are suitable for containing electrical, electronic or pneumatic components in hazardous environments. This range has been tested to ensure maximum operational safety in zones 1, 21, 2 and 22.  Our full range of Stainless Steel Terminal Boxes are made in Italy using the highest quality materials and processes.

Feature and Specifications

Protection: IP66, IP67, IP69K, NEMA 4x. Optional: IECEx Ex eb IIC Gb (for gas), Ex tb IIIC Db (for dust)
Standard: UL508A, IEC60079

Material:

– Body: 1.0mm. Stainless Steel (304 and 316 available)
– Door: 1.0mm. Stainless Steel (304 and 316 available)
– Seal: Silicone
– Washers: NBR 70 (Nitrile Butadiene Rubber); and optional Blue FDA is also provided loose

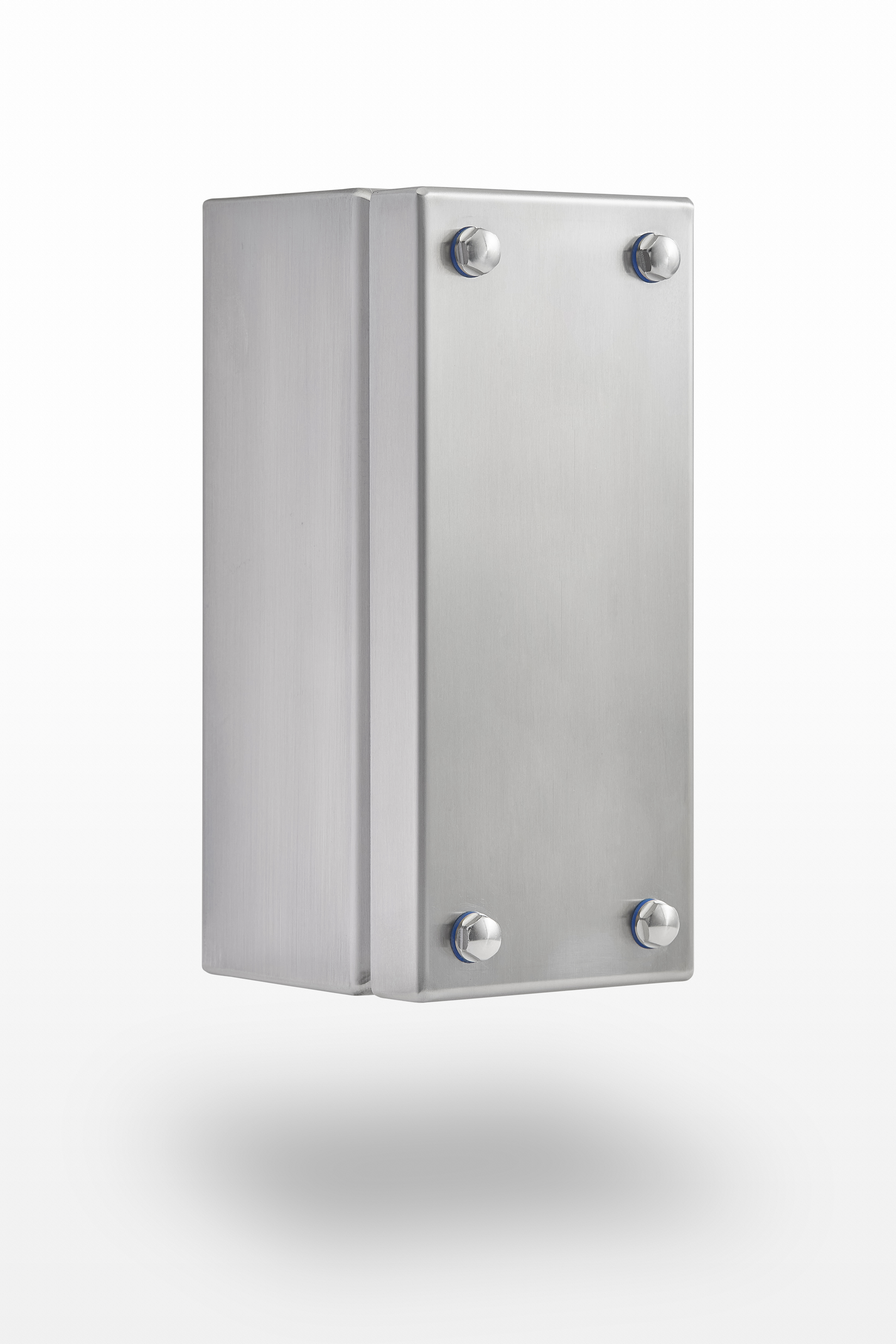

Body:

The robust body is fabricated using 1.0mm Grade (304 and 316 available)
Stainless Steel and incorporates a high-quality silicone seal.

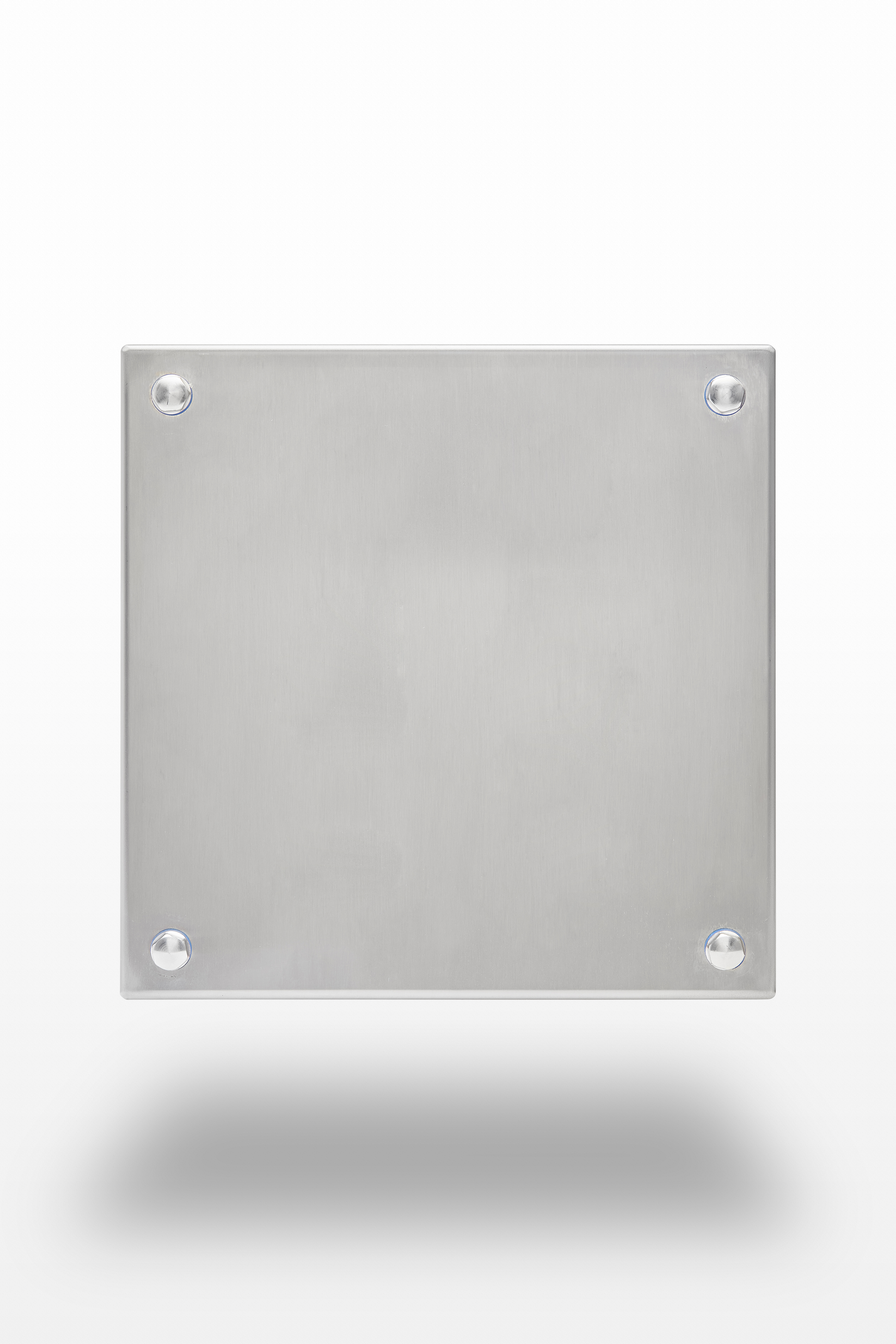

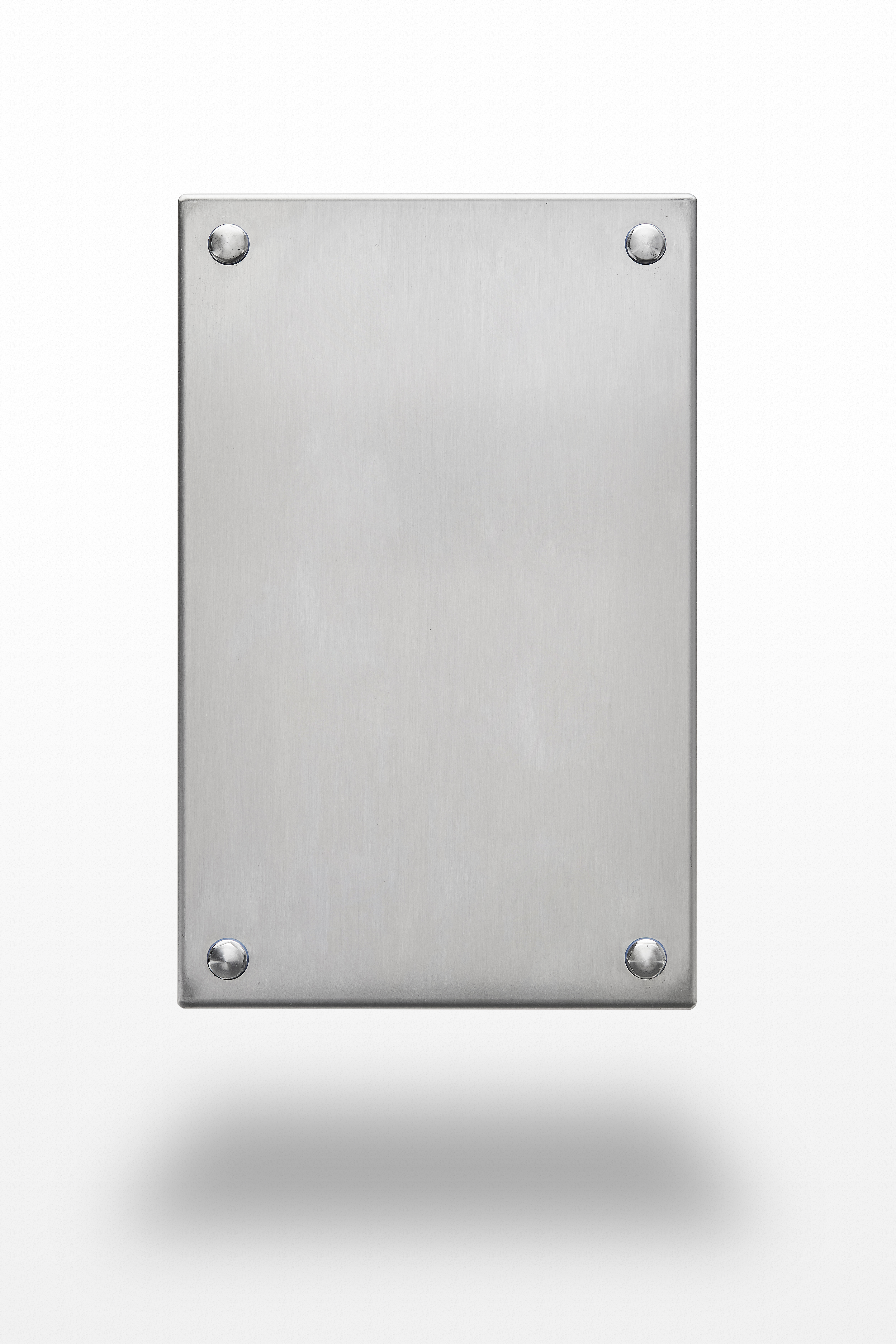

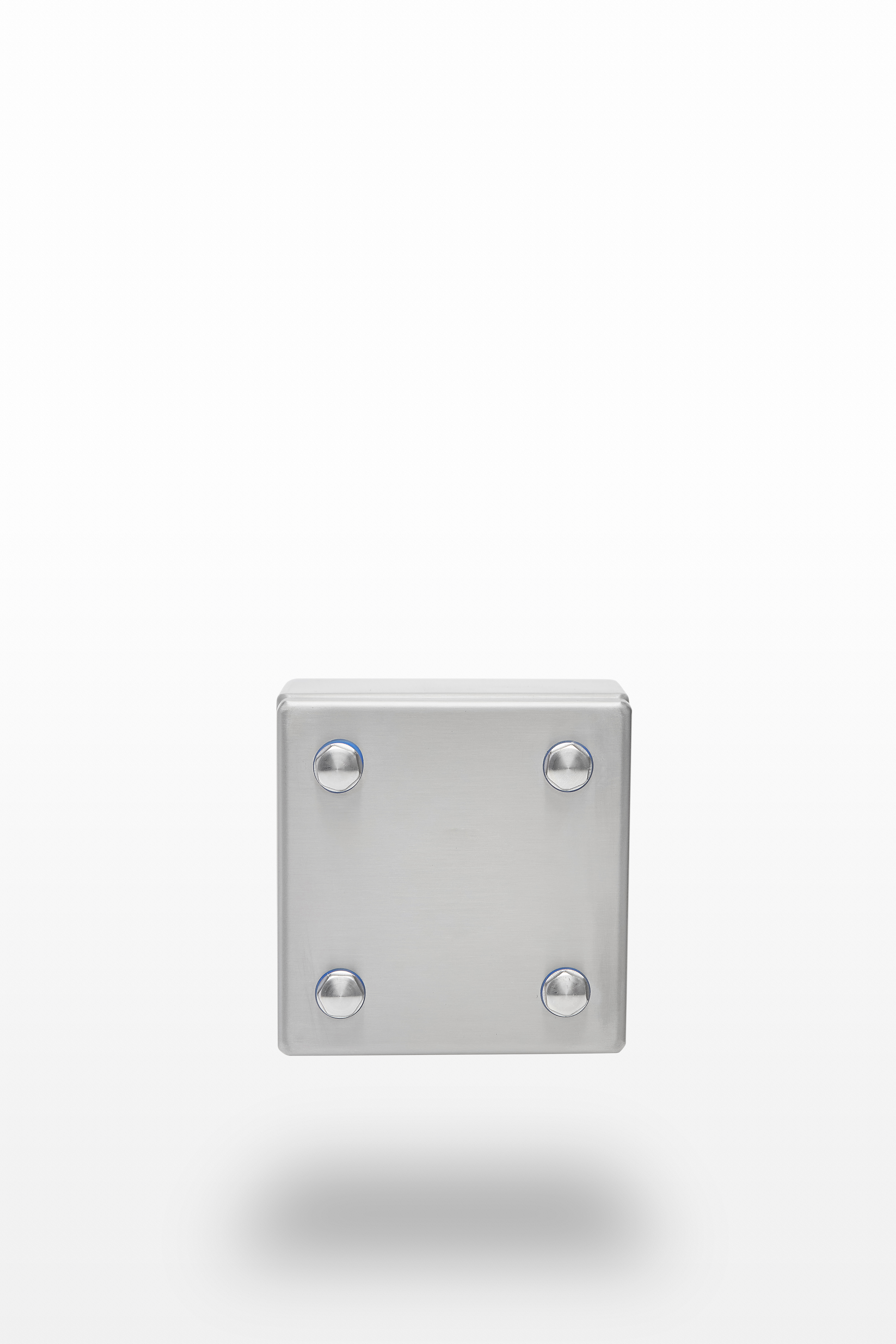

Lid/Door:

The robust pre-drilled lid/door is fabricated using 1.00mm. Grade 304 Stainless Steel and is fastened using screws. The screws are provided with NBR 70 (Nitrile Butadiene Rubber) washers for use in harsh environments where hydrocarbons are present.

Surface Finish:

0.2 micron Ra surface brushed finish

Seal:

A high quality silicone seal. The silicon seal is resistant to harsh chemicals.

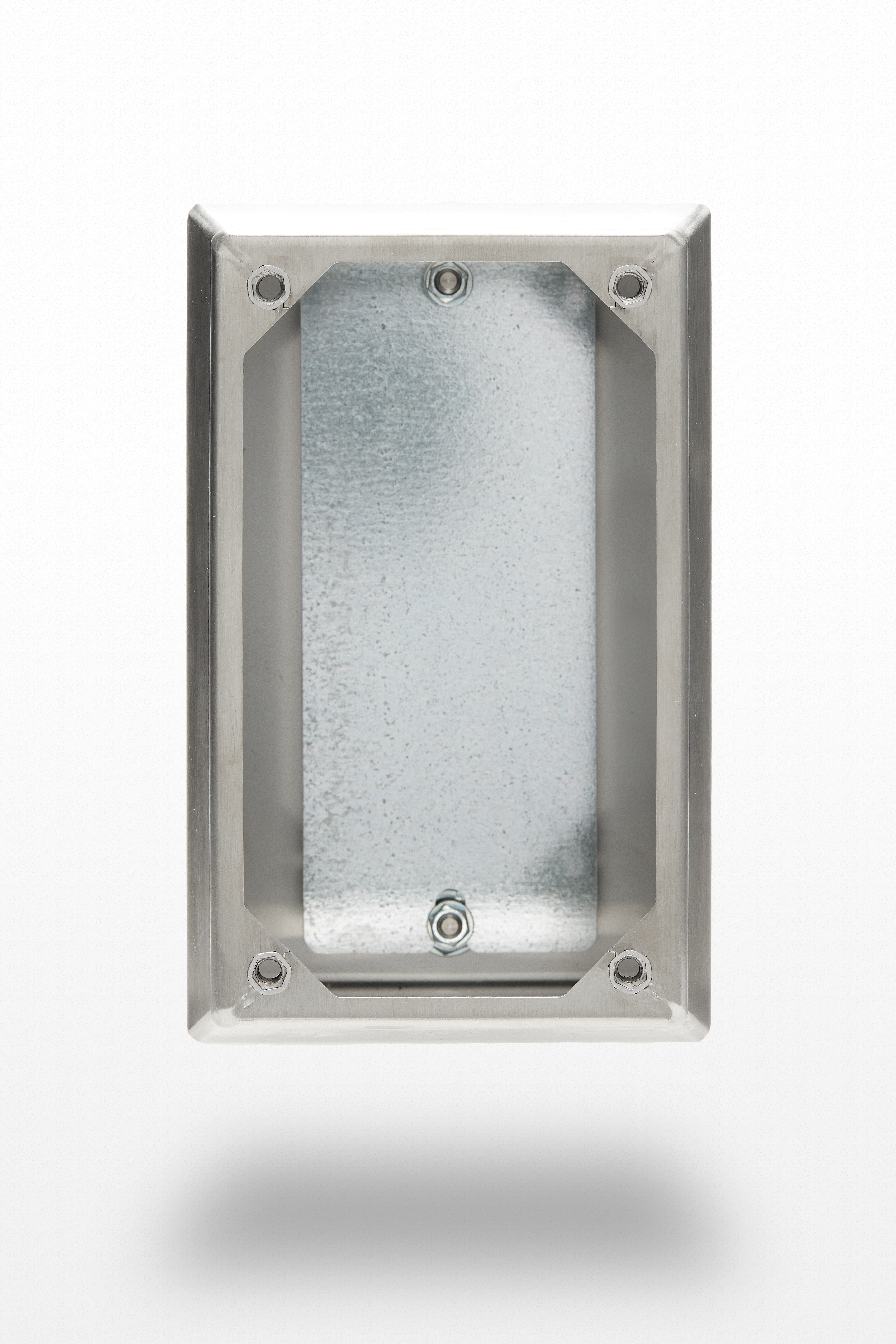

Internal Plate:

The inner plate is fabricated using 2.5mm sheet steel, supplied pre-fitted into the terminal box as standard.

304 Stainless Steel

Part NumberEnclosure Size (mm)Data SheetsDrawingsAutoCADStep File
SKUHxWxDPDFPDF.dwg.stp
IP-304-T09090990x90x90PDFPDF2D3D
IP-304-T140909140x90x90PDFPDF2D3D
IP-304-T200909200x90x90PDFPDF2D3D
IP-304-T280909280x90x90PDFPDF2D3D
IP-304-T101010100x100x100PDFPDF2D3D
IP-304-T161010160x100x100PDFPDF2D3D
IP-304-T161610160x160x100PDFPDF2D3D
IP-304-T251610250x160x100PDFPDF2D3D
IP-304-T202010200x200x100PDFPDF2D3D
IP-304-T402012400x200x120PDFPDF2D3D
IP-304-T403012400x300x120PDFPDF2D3D
IP-304-T404012400x400x120PDFPDF2D3D

316 Stainless Steel

Part NumberEnclosure Size (mm)Data SheetDrawingsAutoCADStep File
SKUHxWxDPDFPDF.dwg.stp
IP-SST09090990x90x90PDFPDF2D3D
IP-SST140909140x90x90PDFPDF2D3D
IP-SST200909200x90x90PDFPDF2D3D
IP-SST280909280x90x90PDFPDF2D3D
IP-SST101010100x100x100PDFPDF2D3D
IP-SST161010160x100x100PDFPDF2D3D
IP-SST161610160x160x100PDFPDF2D3D
IP-SST251610250x160x100PDFPDF2D3D
IP-SST202010200x200x100PDFPDF2D3D
IP-SST402012400x200x120PDFPDF2D3D
IP-SST403012400x300x120PDFPDF2D3D
IP-SST404012400x400x120PDFPDF2D3D
