Fan Tray for 19" Data Rack

Fan Trays for 19″ Data Racks

IP Enclosures provide a range of Fan Trays to suit 19″data racks including two-fan and three-fan units ranging from 300m3/hr to 450m3/hr.

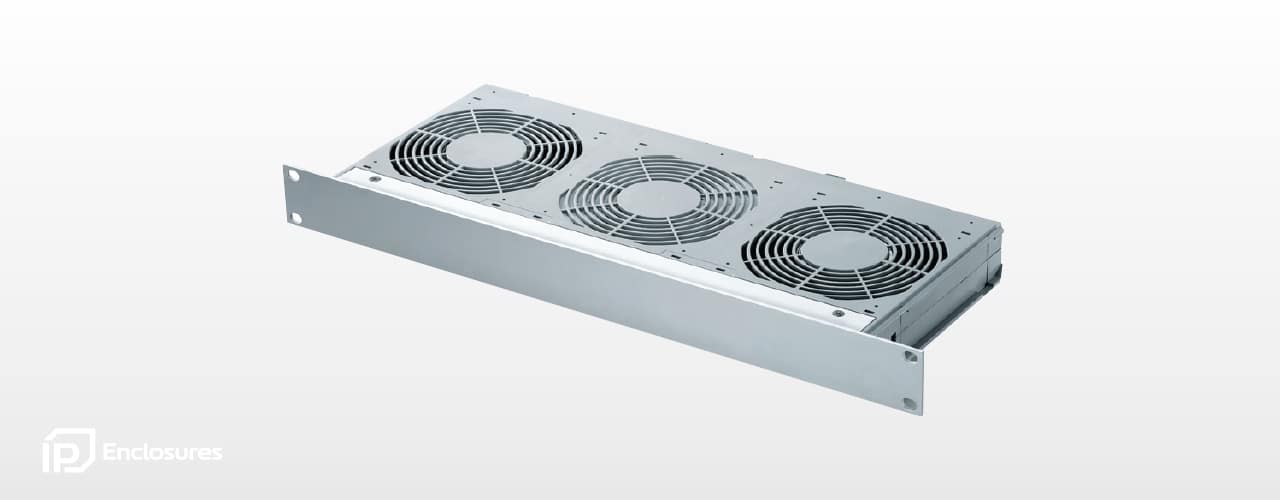

IP-RACKFAN3 Fan Tray

IP-RACKFAN2 – Two Fan Unit 300m3/hr

Features Unit IP-RACKFAN2
Air flow rate (free blow) m³/h 300(360)
Power supply V/Hz 230/50-60
Dimensions HxWxD mm 482x44x208
Power consumption W 36(34)
Current consumption A 0.26(0.22)
Overcurrent protection impedance
Electric connection 3-pole terminal 2.5 mm²
Duty cycle 100%
Operating temperature °C -10/+70
Protection degree/class IP30/Class I
Noise level dB(A) 51(52)
Flow direction bottom to top
Bearing ball
Service life (at 40°C) hr 50.000
Material PC-ABS UL94V-0 Color RAL7035
Weight (with packaging) kg 2.10(2.30)
Package dimensions mm 510x220x65
Mounting Screws
Conformity/Approvals CE



Features Unit IP-RACKFAN2-24
Air flow rate (free blow) m³/h 300
Power supply V/Hz 24DC
Dimensions HxWxD mm 482x44x208
Power consumption W 18
Current consumption A 0.75
Overcurrent protection impedance
Electric connection 3-pole terminal 2.5 mm²
Duty cycle 100%
Operating temperature °C -10/+70
Protection degree/class IP30/Class I
Noise level dB(A) 51(52)
Flow direction bottom to top
Bearing ball
Service life (at 40°C) hr 50.000
Material PC-ABS UL94V-0 Color RAL7035
Weight (with packaging) kg 1.60(1.80)
Package dimensions mm 510x220x65
Mounting Screws
Conformity/Approvals CE



Features Unit IP-RACKFAN2-48
Air flow rate (free blow) m³/h 300
Power supply V/Hz 48DC
Dimensions HxWxD mm 482x44x208
Power consumption W 28
Current consumption A 0.58
Overcurrent protection impedance
Electric connection 3-pole terminal 2.5 mm²
Duty cycle 100%
Operating temperature °C -10/+70
Protection degree/class IP30/Class I
Noise level dB(A) 51(52)
Flow direction bottom to top
Bearing ball
Service life (at 40°C) hr 50.000
Material PC-ABS UL94V-0 Color RAL7035
Weight (with packaging) kg 1.60(1.80)
Package dimensions mm 510x220x65
Mounting Screws
Conformity/Approvals CE



IP-RACKFAN3 Fan Tray

IP-RACKFAN3 – Three Fan Unit 300m3/hr



Features Unit IP-RACKFAN3
Air flow rate (free blow) m³/h 450(540)
Power supply V/Hz 230/50-60
Dimensions HxWxD mm 482x44x208
Power consumption W 54(51)
Current consumption A 0.39(0.33)
Overcurrent protection impedance
Electric connection 3-pole terminal 2.5 mm²
Duty cycle 100%
Operating temperature °C -10/+70
Protection degree/class IP30/Class I
Noise level dB(A) 51(52)
Flow direction bottom to top
Bearing ball
Service life (at 40°C) hr 50.000
Material PC-ABS UL94V-0 Color RAL7035
Weight (with packaging) kg 2.60(2.80)
Package dimensions mm 510x220x65
Mounting Screws
Conformity/Approvals CE



Features Unit IP-RACKFAN3-24
Air flow rate (free blow) m³/h 450
Power supply V/Hz 24DC
Dimensions HxWxD mm 482x44x208
Power consumption W 27
Current consumption A 0.12
Overcurrent protection impedance
Electric connection 3-pole terminal 2.5 mm²
Duty cycle 100%
Operating temperature °C -10/+70
Protection degree/class IP30/Class I
Noise level dB(A) 51(52)
Flow direction bottom to top
Bearing ball
Service life (at 40°C) hr 50.000
Material PC-ABS UL94V-0 Color RAL7035
Weight (with packaging) kg 1.85(2.05)
Package dimensions mm 510x220x65
Mounting Screws
Conformity/Approvals CE



Features Unit IP-RACKFAN3-48
Air flow rate (free blow) m³/h 450
Power supply V/Hz 48DC
Dimensions HxWxD mm 482x44x208
Power consumption W 42
Current consumption A 0.88
Overcurrent protection impedance
Electric connection 3-pole terminal 2.5 mm²
Duty cycle 100%
Operating temperature °C -10/+70
Protection degree/class IP30/Class I
Noise level dB(A) 51(52)
Flow direction bottom to top
Bearing ball
Service life (at 40°C) hr 50.000
Material PC-ABS UL94V-0 Color RAL7035
Weight (with packaging) kg 1.85(2.05)
Package dimensions mm 510x220x65
Mounting Screws
Conformity/Approvals CE

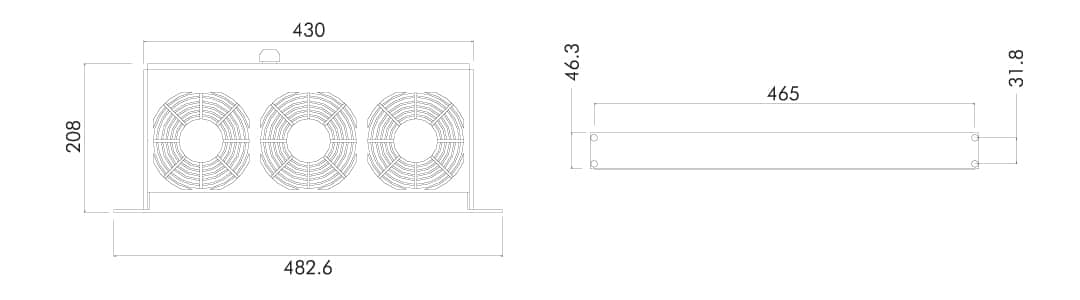

Fan Tray Dimensions
