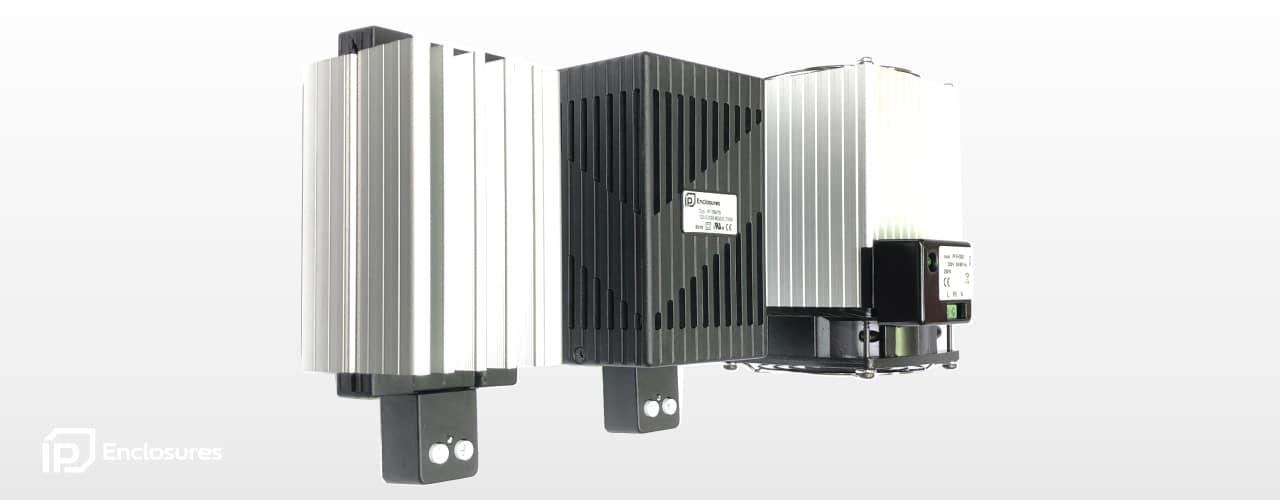

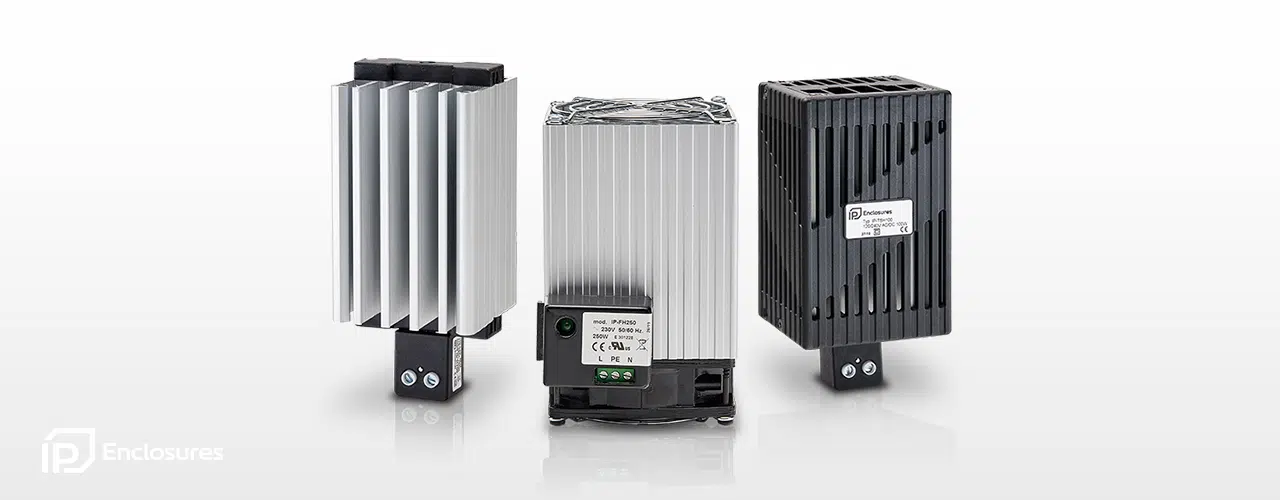

Anti-condensation Heaters
The largest risk to electronics is a short-circuit due to water droplets. Condensation may form due to fluctuating temperature, low temperature, and high humidity. Condensation may result in corrosion and failure of electrical equipment and sensitive components. Heaters prevent condensation forming inside the enclosure. The air in an environment will contain a percentage of water vapour. If the temperature falls, the air will hold less water vapour at the same humidity. The water vapour will condensate onto the coldest parts of the electrical enclosure and contents. As metallic surfaces conduct heat more efficiently than non-metallics, metallic surfaces will be cooler because heat dissipates on them faster therefore condensation will form on these metallic surfaces. Electrical enclosure heating ensures that the air temperature inside the enclosure does not fall below the set point to help prevent condensation forming. Locating the heater correctly within the enclosure is important. Optimal performance requires the heater to be located approximately 100mm from the bottom of the enclosure and 50mm from the sides of the enclosure to allow natural convection for heat distribution. Large enclosures may require fan heaters to distribute heat throughout the large enclosure. The heater is controlled with a thermostat or hygrostsat to determine internal temperature or relative humidity to prevent condensation.
| Heating Capacity | Dimensions | Ordering Information | Download | Download | ||
|---|---|---|---|---|---|---|
| Watts | (mm) | 230V | 24V DC | Integrated Thermostat | Data Sheet | Step File |
| Compact Heaters | ||||||
| 25W | 128x59x61 | IP-H25 | IP-H25.001 | .stp | ||
| 50W | 100x40x40 | IP-H50 | IP-H50.24 | IP-H50.001 | .stp | |
| 75W | 140x59x61 | IP-H75 | IP-H75.001 | .stp | ||
| 100W | 140x59x61 | IP-H100 | IP-100.24 | IP-H100.001 | .stp | |
| 150W | 220x59x61 | IP-H150 | IP-H150.001 | .stp | ||
| Heaters with Touch Shield | ||||||
| 25W | 125x41x41 | IP-TSH25 | IP-TSH25.001 | .stp | ||
| 50W | 125x41x41 | IP-TSH50 | IP-TSH50.001 | .stp | ||
| 75W | 140x63x70 | IP-TSH75 | IP-TSH75.001 | .stp | ||
| 100W | 140x63x70 | IP-TSH100 | IP-TSH100.001 | .stp | ||
| 150W | 220x63x70 | IP-TSH150 | IP-TSH150.001 | .stp | ||
| Fan-Assisted Heaters | ||||||
| 250W | 135x112x82 | IP-FH250 | - | |||
| 400W | 165x112x82 | IP-FH400 | .stp | |||
| 500W | 165x112x82 | IP-FH500 | .stp | |||
| 750W | 225x112x82 | IP-FH750 | .stp | |||

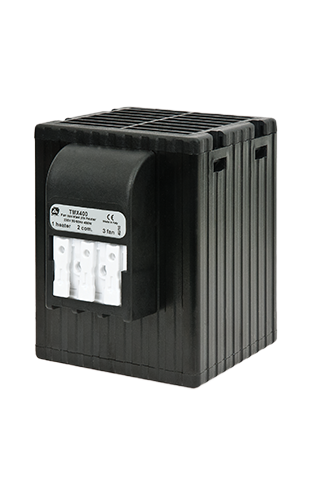

| Fan-Assisted (Small Footprint) Heaters | ||||||
| 150W | 88x66x97 | IP-TMX150 | .stp | |||
| 250W | 88x66x97 | IP-TMX250 | .stp | |||
| 300W | 88x66x97 | IP-TMX300 | .stp | |||
| 400W | 88x66x97 | IP-TMX400 | .stp | |||
Compact Heaters
IP-25- 25W Heater 128x59x61 (mm)
| Features | Unit | IP-H25 | |
|---|---|---|---|
| Heating Capacity* | W | 25 | |
| Power supply | V | 120-240V AC or DC | |
| Inrush current | A | 2.5 | |
| Delayed fuse (advised) | A | 4 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 128x59x61 | |
| Weight | kg | 0.24(0.26) | |
| Conformity | – | CE | |
| *at 10°C (50°F) ambient temperature |
IP-50- 50W Heater 100x40x40 (mm)
| Features | Unit | HT50.000 | |
|---|---|---|---|
| Heating Capacity* | W | 50 | |
| Power supply | V | 120-240V AC or DC | |
| Inrush current | A | 3.5 | |
| Delayed fuse (advised) | A | 4 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 110x59x61 | |
| Weight | kg | 0.24(0.28) | |
| Conformity | – | CE – UL File n. E301228 | |
| *at 10°C (50°F) ambient temperature |
IP-H75 – 75W Heater 140x59x61 (mm)
| Features | Unit | IP-H75 | |
|---|---|---|---|
| Heating Capacity* | W | 75 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 4 | |
| Delayed fuse (advised) | A | 6.3 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 140x59x61 | |
| Weight | kg | 0.34 | |
| Conformity | – | CE – UL
|
|
| *at 20°C (68°F) ambient temperature |
IP-H100 – 100W Heater 140x59x61 (mm)
| Features | Unit | IP-H100 | |
|---|---|---|---|
| Heating Capacity* | W | 100 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 5 | |
| Delayed fuse (advised) | A | 8 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 140x59x61 | |
| Weight | kg | 0.34 | |
| Conformity | – | CE – UL
|
|
| *at 20°C (68°F) ambient temperature |
IP-H150 – 150W Heater 220x59x61 (mm)
| Features | Unit | IP-H150 | |
|---|---|---|---|
| Heating Capacity* | W | 150 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 9.5 | |
| Delayed fuse (advised) | A | 10 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 220x59x61 | |
| Weight | kg | 0.57 | |
| Conformity | – | CE – UL
|
|
| *at 20°C (68°F) ambient temperature |
Heaters with Touch Shield
IP-TSH25 – 25W Heater 125x41x41 (mm)
| Features | Unit | IP-TSH25 | |
|---|---|---|---|
| Heating Capacity* | W | 25 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 2.5 | |
| Delayed fuse (advised) | A | 4 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 125x41x41 | |
| Weight | kg | 0.16 | |
| Conformity | – | CE – UL
|
|
| *at 20°C (68°F) ambient temperature |
IP-TSH50 – 50W Heater 125x41x41 (mm)
| Features | Unit | IP-TSH50 | |
|---|---|---|---|
| Heating Capacity* | W | 50 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 3.5 | |
| Delayed fuse (advised) | A | 4 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 125x41x41 | |
| Weight | kg | 0.16 | |
| Conformity | – | CE – UL
|
|
| *at 20°C (68°F) ambient temperature |
IP-TSH75 – 75W Heater 140x63x70 (mm)
| Features | Unit | IP-TSH75 | |
|---|---|---|---|
| Heating Capacity* | W | 75 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 4 | |
| Delayed fuse (advised) | A | 6.3 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 140x63x70 | |
| Weight | kg | 0.39 | |
| Conformity | – | CE – UL
|
|
| *at 20°C (68°F) ambient temperature |
IP-TSH100 – 100W Heater 140x63x70 (mm)
| Features | Unit | IP-TSH100 | |
|---|---|---|---|
| Heating Capacity* | W | 100 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 5 | |
| Delayed fuse (advised) | A | 8 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 140x63x70 | |
| Weight | kg | 0.39 | |
| Conformity | – | CE – UL
|
|
| *at 20°C (68°F) ambient temperature |
IP-TSH150 – 150W Heater 220x63x70 (mm)
| Features | Unit | IP-TSH150 | |
|---|---|---|---|
| Heating Capacity* | W | 150 | |
| Power supply | V | 110-250V AC or DC | |
| Inrush current | A | 9.5 | |
| Delayed fuse (advised) | A | 10 | |
| Heating element type | – | PTC resistor self regulating | |
| Electrical connections | – | 2 screw terminals for stranded or rigid wire 2.5 mm² | |
| Protection class IEC | – | Class II | |
| Protection degree EN60529 | – | IP20 | |
| Operating temperature | °C (°F) | -45/+70 (-49/+158) | |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) | |
| Radiator | – | Extruded aluminium profile with plastic cover | |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 | |
| Installation position | – | Best efficiency in vertical position | |
| Dimensions HxWxD | mm | 220x63x70 | |
| Weight | kg | 0.66 | |
| Conformity | – | CE – UL
|
|
| *at 20°C (68°F) ambient temperature |
Fan Assisted Heaters

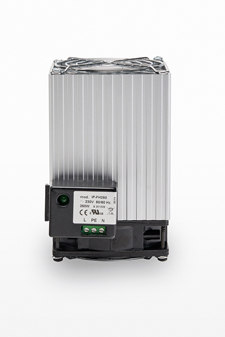

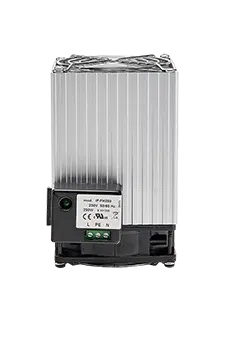

IP-FH250 – 250W Heater 135x112x82 (mm)
| Features | Unit | IP-FH250 |
|---|---|---|
| Heating Capacity | W | 250 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 1.2 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Ball bearing; service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h; free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class I earthed |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 135x112x82 |
| Weight (with packaging) | kg | 0.88(0.94) |
| Conformity | – | CE – UL
|
IP-FH400 – 400W Heater 165x112x82 (mm)
| Features | Unit | IP-FH400 |
|---|---|---|
| Heating Capacity | W | 400 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 1.9 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class I earthed |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 165x112x82 |
| Weight (with packaging) | kg | 0.97(1.04) |
| Conformity | – | CE – UL
|
IP-FH500 – 500W Heater 165x112x82 (mm)
| Features | Unit | IP-FH500 |
|---|---|---|
| Heating Capacity | W | 500 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 2.4 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile anodized |
| Axial fan | – | Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 35 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class I; earthed |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 165x112x82 |
| Weight (with packaging) | kg | 0.97(1.04) |
| Conformity | – | CE – UL
|
IP-FH750 – 750W Heater 225x112x82 (mm)
| Features | Unit | IP-FH750 |
|---|---|---|
| Heating Capacity | W | 750 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 3.6 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 44 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class I; earthed |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 225x112x82 |
| Weight (with packaging) | kg | 1.35(1.42) |
| Conformity | – | CE – UL
|
Fan Assisted (Small Footprint)
IP-TMX150 – 150W Heater 88x66x97 (mm)
| Features | Unit | IP-TMX150 |
|---|---|---|
| Heating Capacity | W | 150 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 6.3 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Ball bearing service life 50.000 hrs at 25°C (77°F) air flow rate 44 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | Spring terminals |
| Protection class IEC | – | Class II |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -40/+70 (-40/+158) |
| Storage temperature | °C (°F) | -40/+70 (-40/+158) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 88x66x97 |
| Weight (with packaging) | kg | 0.35 |
| Conformity | – | CE – UL |
IP-TMX250 – 500W Heater 88x66x97 (mm)
| Features | Unit | IP-TMX250 |
|---|---|---|
| Heating Capacity | W | 500 |
| Power supply | V/Hz | 230/50-60 |
| Max. current | A | 6.3 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Air flow rate 30 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | Spring terminals |
| Protection class IEC | – | Class II |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -40/+70 (-40/+158) |
| Storage temperature | °C (°F) | -40/+70 (-40/+158) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 88x66x97 |
| Weight (with packaging) | kg | 0.35 |
| Conformity | – | CE – UL |
IP-TMX300- 500W Heater 88x66x97 (mm)
| Features | Unit | IP-TMX300 |
|---|---|---|
| Heating Capacity | W | 750 |
| Power supply | V/Hz | 115/50-60 |
| Max. current | A | 6.3 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Air flow rate 30 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class II |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -40/+70 (-40/+158) |
| Storage temperature | °C (°F) | -40/+70 (-40/+158) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 88x66x97 |
| Weight (with packaging) | kg | 0.35 |
| Conformity | – | CE – UL |
IP-TMX400- 750W Heater 88x66x97 (mm)
| Features | Unit | IP-TMX300 |
|---|---|---|
| Heating Capacity | W | 750 |
| Power supply | V/Hz | 115/50-60 |
| Max. current | A | 6.3 |
| Heating element type | – | Resistor |
| Thermal protection | – | Thermal cut out fuse in case of fan failure |
| Radiator | – | Extruded aluminium profile; anodized |
| Axial fan | – | Air flow rate 30 m³/h free flow |
| Signalling | Green LED power ON | |
| Electrical connections | – | 3 screw terminals for stranded or rigid wire 2.5 mm² |
| Protection class IEC | – | Class II |
| Protection degree EN60529 | – | IP20 |
| Operating temperature | °C (°F) | -25/+70 (-13/+158) |
| Storage temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | Best performance with vertical installation |
| Dimensions HxWxD | mm | 88x66x97 |
| Weight (with packaging) | kg | 0.35 |
| Conformity | – | CE – UL |
Select the Right Anti-Condensation Heater
Use the Electrical Enclosure & Cabinet Thermal Calculator
