Stainless Steel Sloping Roof Electrical Enclosures
Why use a sloping roof enclosure?
Choose a sloping roof enclosure to prevent build-up of dust, debris and waste material. Stainless Steel 30° Sloping Roof Enclosures are designed to house a variety of electrical switch and control equipment while preventing build-up of dust, debris and waste material.
They are suitable for internal and external electrical installations for industrial, infrastructure, commercial, communications, defence, marine, food and beverage applications (IP69K Stainless Steel Hygienic Locks are also available). All IP Enclosures are built to precision in Europe to ensure consistent high quality standards.

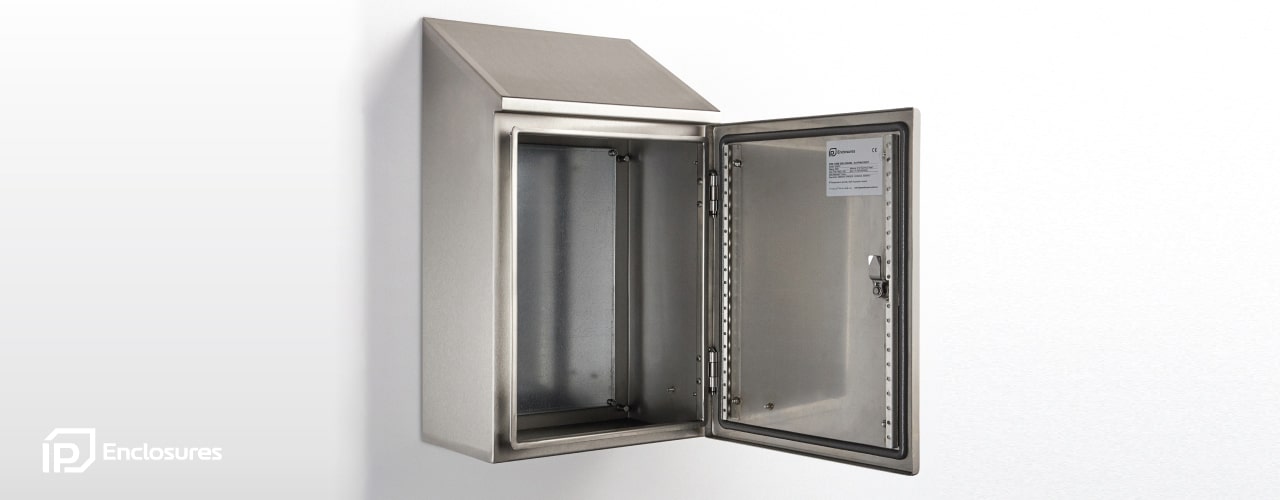

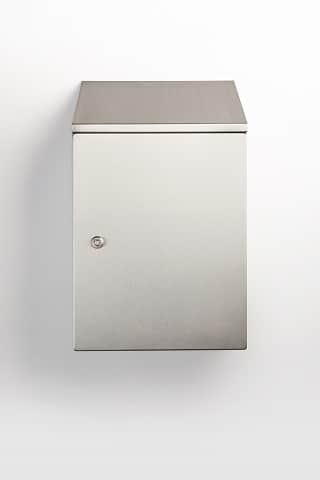

SINGLE DOOR, Stainless Steel IP66 Sloping Roof Enclosures – SSSR-1
The SSSR range of grade 316/316L stainless steel 30° sloping roof single door enclosures are designed for extreme duty applications.
Features & Specifications of Stainless Steel Sloping Roof Enclosures
Protection: Complies with IP66 IK10, NEMA 4x (Independent accredited test laboratory).
Standard: IEC 62208, IEC/EN/AS60529, (UL 508A Optional).
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switchgear and controlgear assemblies’.
– Enclosure Body: 1.5mm Grade 316/316L Stainless Steel
– Enclosure Gland Plate: 1.5mm Grade 316/316L Stainless Steel
– Enclosure Door: 1.5mm Grade 316/316L Stainless Steel
– Enclosure Seal: Polyurethane
0.4 micron Ra surface brushed finish
The robust monoblock body with 30° sloping roof is fabricated using 1.5mm Grade 316/316L Stainless Steel. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment to ensure accuracy and consistent high quality. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. The roof consist of a 30° sloped roof design that protrudes past the seal, flush with the front of the door face. Integral device plate mounts and M6 earth stud is provided.
The robust surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains integral cable management rail studs, M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.
A high quality machine-applied continuous foamed in place (FIP) Polyurethane seal provides excellent sealing over a long life.
A full range of locking solutions are available upon request. Standard locks are as follows:
– 8mm square drive quarter turn lock with key.
Device Mounting Plate:
The device mounting plate is fabricated using galvanised steel sheet, pressed to provide additional strength and supplied pre-fitted into enclosure as standard.
IP66 Sloping Roof Enclosure Sizes
|IP-SSSR302015||300x200x150 IP66 316ss Sloping Roof Electrical Enclosure||1||.dwg|
|IP-SSSR303015||300x300x150 IP66 316ss Sloping Roof Electrical Enclosure||1||.dwg|
|IP-SSSR403020||400x300x200 IP66 316ss Sloping Roof Electrical Enclosure||1||.dwg|
|IP-SSSR404020||400x400x200 IP66 316ss Sloping Roof Electrical Enclosure||1||.dwg|
|IP-SSSR504025||500x400x250 IP66 316ss Sloping Roof Electrical Enclosure||1||.dwg|
|IP-SSSR505025||500x500x250 IP66 316ss Sloping Roof Electrical Enclosure||1||.dwg|
|IP-SSSR604025||600x400x250 IP66 316ss Sloping Roof Electrical Enclosure||2||.dwg|
|IP-SSSR606030||600x600x300 IP66 316ss Sloping Roof Electrical Enclosure||2||.dwg|
|IP-SSSR806030||800x600x300 IP66 316ss Sloping Roof Electrical Enclosure||2||-||-||-|
|IP-SSSR808030||800x800x300 IP66 316ss Sloping Roof Electrical Enclosure||2||-||-||-|
|IP-SSSR1007040||1000x700x400 IP66 316ss Sloping Roof Electrical Enclosure||2||-||-||-|
|IP-SSSR1008030||1000x800x300 IP66 316ss Sloping Roof Electrical Enclosure||2||-||-||-|
