Ventilation Filter Fans and Filter Vents
IP Enclosures provide a wide range of ventilation products for electrical enclosures to dissipate heat loads efficiently. Fans are designed to provide filtered ambient air into the enclosure while ventilating hot exhaust air. The air circulation assists with heat dissipation and assists to prevent formation of heat pockets. Fans should be located at the bottom of the enclosure with vents located at the top, ideally diagonally opposite, to assist natural airflow and to maximise effectiveness. Care should be taken when positioning equipment and components to ensure airflow is not impacted. Fans and vents include filters to prevent contaminants entering the enclosure while allowing clean air flow. To minimise dust and moisture entering the enclosure, the fan and vent should be configured to force air in to pressurise the enclosure rather than suck it out causing a vacuum. The range consists of a modern Italian grill design with minimal external projection and allows for easy filter maintenance due to a front-opening grill. The configuration of the grill, seal gasket and filter mat provide an IP54 protection with an optional upgrade to high performance filters providing IP55 protection. IP Enclosures ventilation products are manufactured to the highest quality in Europe. Optional RAL 9005 Black Fans and Filters are available on request. Contact our electrical enclosures specialists for assistance to calculate the required volumetric flow (m³/h).
Technical Details and Downloads
IP-V1000 Filter – 114 x 114 x 27 (mm)
Downloads
| Features | Unit | IP-V1000 |
|---|---|---|
| Air flow rate (free blow) | m³/h | – |
| Flow rate with exit filter | m³/h | – |
| Power supply | V/Hz | – |
| Dimensions HxLxP | mm | 114x114x27 |
| Power consumption | W | – |
| Current consumption | A | – |
| Overcurrent consumption | – | – |
| Electric connection | – | – |
| Duty cycle | – | – |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54 |
| Noise level | dB(A) | – |
| Flow direction | – | – |
| Bearing | – | – |
| Filter mat (Eurovent) | – | G2 |
| Service life (at 40°C) | hr | – |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.09 (0.11) |
| Package dimensions | mm | 125x125x35 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 92×92 |
| Conformity/Approvals | – | CE |
IP-V2000 Filter – 150 x 150 x 27 (mm)
Downloads
| Features | Unit | IP-V2000 |
|---|---|---|
| Air flow rate (free blow) | m³/h | – |
| Flow rate with exit filter | m³/h | – |
| Power supply | V/Hz | – |
| Dimensions HxLxP | mm | 150x150x37 |
| Power consumption | W | – |
| Current consumption | A | – |
| Overcurrent consumption | – | – |
| Electric connection | – | – |
| Duty cycle | – | – |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54 |
| Noise level | dB(A) | – |
| Flow direction | – | – |
| Bearing | – | – |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | – |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.18 (0.23) |
| Package dimensions | mm | 165x165x45 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 124×124 |
| Conformity/Approvals | – | CE |
IP-V3000 Filter – 204 x 204 x 37 (mm)
Downloads
| Features | Unit | IP-V3000 |
|---|---|---|
| Air flow rate (free blow) | m³/h | – |
| Flow rate with exit filter | m³/h | – |
| Power supply | V/Hz | – |
| Dimensions HxLxP | mm | 204x204x37 |
| Power consumption | W | – |
| Current consumption | A | – |
| Overcurrent consumption | – | – |
| Electric connection | – | – |
| Duty cycle | – | – |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54 |
| Noise level | dB(A) | – |
| Flow direction | – | – |
| Bearing | – | – |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | – |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.32(0.42) |
| Package dimensions | mm | 220x220x43 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 177×177 |
| Conformity/Approvals | – | CE |
IP-V4000 Filter – 250 x 250 x 38 (mm)
Downloads
| Features | Unit | IP-V4000 |
|---|---|---|
| Air flow rate (free blow) | m³/h | – |
| Flow rate with exit filter | m³/h | – |
| Power supply | V/Hz | – |
| Dimensions HxLxP | mm | 250x250x38 |
| Power consumption | W | – |
| Current consumption | A | – |
| Overcurrent consumption | – | – |
| Electric connection | – | – |
| Duty cycle | – | – |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54 |
| Noise level | dB(A) | – |
| Flow direction | – | – |
| Bearing | – | – |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | – |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.52(0.62) |
| Package dimensions | mm | 270x270x45 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 224×224 |
| Conformity/Approvals | – | CE |
IP-V5000 Filter – 325 x 325 x 42 (mm)
Downloads
| Features | Unit | IP-V5000 |
|---|---|---|
| Air flow rate (free blow) | m³/h | – |
| Flow rate with exit filter | m³/h | – |
| Power supply | V/Hz | – |
| Dimensions HxLxP | mm | 325x325x42 |
| Power consumption | W | – |
| Current consumption | A | – |
| Overcurrent consumption | – | – |
| Electric connection | – | – |
| Duty cycle | – | – |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54 |
| Noise level | dB(A) | – |
| Flow direction | – | – |
| Bearing | – | – |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | – |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.90 (1.04) |
| Package dimensions | mm | 340x340x50 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 291×291 |
| Conformity/Approvals | – | CE |
Filter Fans
| Size | Air Flow Rate | FILTER FAN | Data Sheet | Drawing | AutoCAD | SolidWorks |
|---|---|---|---|---|---|---|
| mm | m3/hr | SKU | .dwg | .STP | ||
| 114mm x 114mm | 25 m3/hr | IP-V1100 | .dwg | .STP | ||
| 150mm x 150mm | 58 m3/hr | IP-V2200 | .dwg | .STP | ||
| 204mm x 204mm | 115 m3/hr | IP-V3200 | .dwg | .STP | ||
| 250mm x 250mm | 125 m3/hr | IP-V4200 | .dwg | .STP | ||
| 250mm x 250mm | 255 m3/hr | IP-V4300 | .dwg | .STP | ||
| 250mm x 250mm | 410 m3/hr | IP-V4400 | .dwg | .STP | ||
| 325mm x 325mm | 550 m3/hr | IP-V5400 | .dwg | .STP | ||
| 325mm x 325mm | 700 m3/hr | IP-V5500 | .dwg | .STP |
- Product code (SKU's)
- 114x114x73 (mm)
- 150x150x86 (mm)
- 204x204x104 (mm)
- 250x250x107 (mm)
- 250x250x128 (mm)
- 325x325x 40 (mm)
Technical Details and Downloads
IP-V1100 Fan Filter – 26m3/hr 114 x 114 x 73 (mm)
Downloads
| Features | Unit | IP-V1100 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 26 (30) |
| Flow rate with exit filter | m³/h | 15 (18) |
| Power supply | V/Hz | 230 / 50-60 |
| Dimensions HxLxP | mm | 114x114x73 |
| Power consumption | W | 13 (12) |
| Current consumption | A | 0.10 (0.08) |
| Overcurrent consumption | – | impedance |
| Electric connection | – | 3-poles spring terminals |
| Duty cycle | – | 100% |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54/Class I |
| Noise level | dB(A) | 30 (35) |
| Flow direction | – | reversible: default factory setting outside-in |
| Bearing | – | ball |
| Filter mat (Eurovent) | – | G2 |
| Service life (at 40°C) | hr | 50 000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.41 (0.46) |
| Package dimensions | mm | 125x125x80 |
| Montaggio | – | fast clip-on |
| Cut-out dimensions | mm | 92×92 |
| Conformity/Approvals | – | CE |
IP-V2200 Fan Filter – 58m3/hr 150 x 150 x 86 (mm)
Downloads
| Features | Unit | IP-V2200 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 58 (64) |
| Flow rate with exit filter | m³/h | 43 (48) |
| Power supply | V/Hz | 230 / 50-60 |
| Dimensions HxLxP | mm | 150x150x86 |
| Power consumption | W | 22 (21) |
| Current consumption | A | 0.14 (0.12) |
| Overcurrent consumption | – | impedance |
| Electric connection | – | 3-poles spring terminals |
| Duty cycle | – | 100% |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54/Class I |
| Noise level | dB(A) | 43 (49) |
| Flow direction | – | reversible: default factory setting outside-in |
| Bearing | – | ball |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | 50 000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.76 (0.83) |
| Package dimensions | mm | 165x165x90 |
| Montaggio | – | fast clip-on |
| Cut-out dimensions | mm | 125×125 |
| Conformity/Approvals | – | CE |
IP-V3200 Fan Filter – 115m3/hr 204 x 204 x 104 (mm)
Downloads
| Features | Unit | IP-V3200 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 115 (125) |
| Flow rate with exit filter | m³/h | 84 (97) |
| Power supply | V/Hz | 230 / 50-60 |
| Dimensions HxLxP | mm | 204x204x104 |
| Power consumption | W | 22 (21) |
| Current consumption | A | 0.14 (0.12) |
| Overcurrent consumption | – | impedance |
| Electric connection | – | 3-poles spring terminals |
| Duty cycle | – | 100% |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54/Class I |
| Noise level | dB(A) | 43 (49) |
| Flow direction | – | reversible: default factory setting outside-in |
| Bearing | – | ball |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | 50 000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 0.98 (1.18) |
| Package dimensions | mm | 220x220x110 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 177×177 |
| Conformity/Approvals | – | CE |
IP-V4200 Fan Filter – 125m3/hr 250 x 250 x 107 (mm)
Downloads
| Features | Unit | IP-V4200 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 125 (135) |
| Flow rate with exit filter | m³/h | 102 (112) |
| Power supply | V/Hz | 230 / 50-60 |
| Dimensions HxLxP | mm | 250x250x107 |
| Power consumption | W | 22 (21) |
| Current consumption | A | 0.14 (0.12) |
| Overcurrent consumption | – | impedance |
| Electric connection | – | 3-poles spring terminals |
| Duty cycle | – | 100% |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54/Class I |
| Noise level | dB(A) | 43 (49) |
| Flow direction | – | reversible: default factory setting outside-in |
| Bearing | – | ball |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | 50 000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 1.30 (1.50) |
| Package dimensions | mm | 270x270x165 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 224×224 |
| Conformity/Approvals | – | CE |
IP-V4300 Fan Filter – 255m3/hr 250 x 250 x 128 (mm)
Downloads
| Features | Unit | IP-V4300 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 255 (290) |
| Flow rate with exit filter | m³/h | 202 (235) |
| Power supply | V/Hz | 230 / 50-60 |
| Dimensions HxLxP | mm | 250x250x128 |
| Power consumption | W | 40 (38) |
| Current consumption | A | 0.17 (0.16) |
| Overcurrent consumption | – | thermal |
| Electric connection | – | 3-poles spring terminals |
| Duty cycle | – | 100% |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54/Class I |
| Noise level | dB(A) | 53 (58) |
| Flow direction | – | reversible: default factory setting outside-in |
| Bearing | – | ball |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | 50 000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 1.72 (1.92) |
| Package dimensions | mm | 270x270x165 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 224×224 |
| Conformity/Approvals | – | CE |

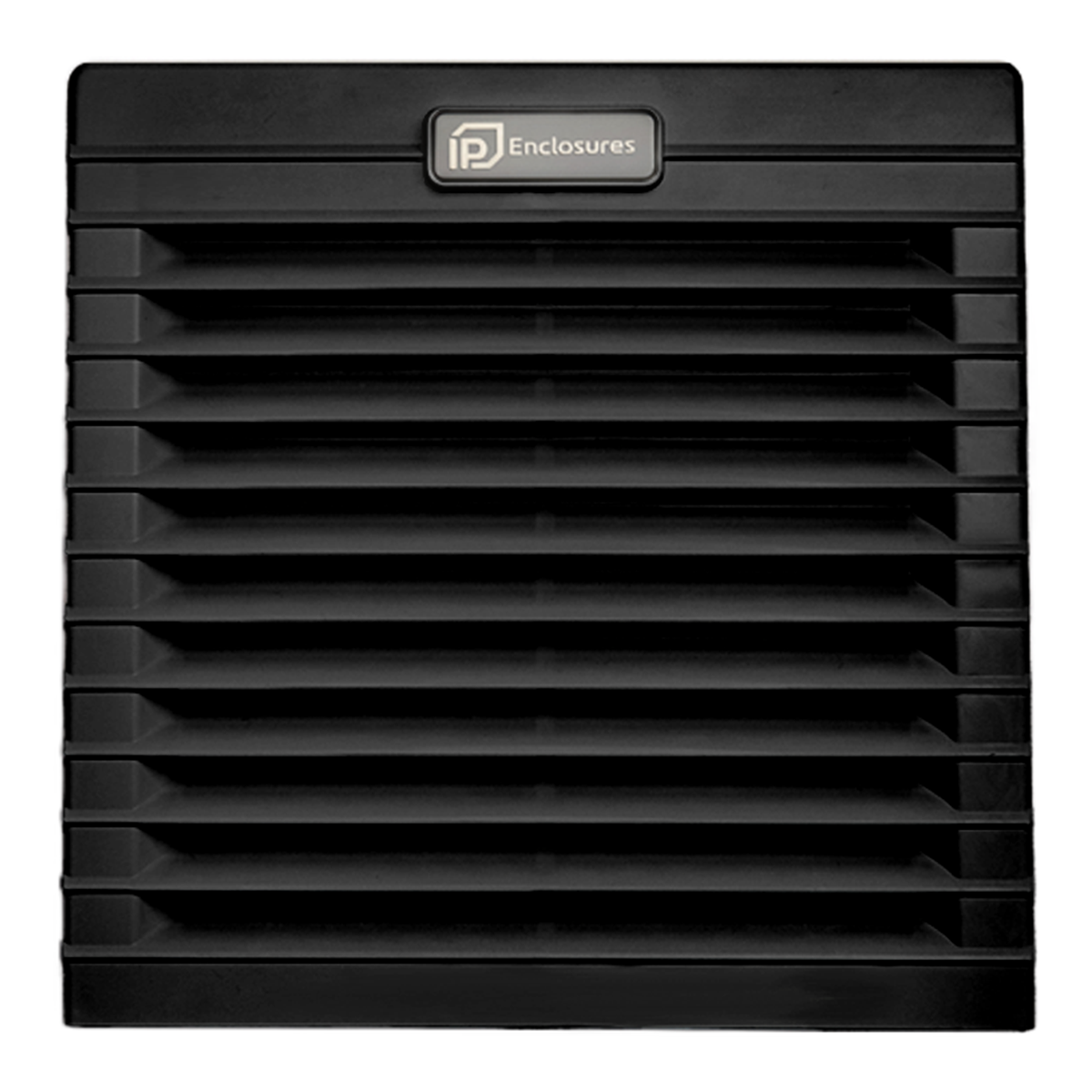

IP-V5400 Fan Filter – 550m3/hr 325 x 325 x 140 (mm)
Downloads
| Features | Unit | IP-V5400 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 550 (620) |
| Flow rate with exit filter | m³/h | 405 (450) |
| Power supply | V/Hz | 230 / 50-60 |
| Dimensions HxLxP | mm | 325x325x140 |
| Power consumption | W | 70 (90) |
| Current consumption | A | 0.40 (0.38) |
| Overcurrent consumption | – | thermal |
| Electric connection | – | 3-poles spring terminals |
| Duty cycle | – | 100% |
| Operating temperature | °C | – 10 / +70 (+14 / +158) |
| Protection degree/class | – | IP54/Class I |
| Noise level | dB(A) | 65 (68) |
| Flow direction | – | reversible: default factory setting outside-in |
| Bearing | – | ball |
| Filter mat (Eurovent) | – | G3 |
| Service life (at 40°C) | hr | 50 000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | – | foam seal gasket |
| Weight (with packaging) | kg | 3.00 (3.25) |
| Package dimensions | mm | 340x340x180 |
| Montaggio | – | fast clip-on |
| Cut-Out dimensions | mm | 291×291 |
| Conformity/Approvals | – | CE |
Replacement Filter Mats
| Size | FILTER MAT | Description |
|---|---|---|
| mm | SKU | |
| 114mm x 114mm | IP-VF1 | Replacement Filter Mat for IP-V1000/1100 114 X 114 Fans & Filters |
| 114mm x 114mm | IP-VF1X | High Efficiency (G3) Filter Mat for IP-V1000/1100 114 X 114 Fans & Filters |
| 150mm x 150mm | IP-VF2 | Replacement Filter Mat for IP-V2000/2200 150 X 150 Fans & Filters |
| 150mm x 150mm | IP-VF2X | High Efficiency (G4) Filter Mat for IP-V2000/2200 150 X 150 Fans & Filters |
| 204mm x 204mm | IP-VF3 | Replacement Filter Mat for IP-V3000/3200 204 X 204 Fans & Filters |
| 204mm x 204mm | IP-VF3X | High Efficiency (G4) Filter Mat for IP-V3000/3200 204 X 204 Fans & Filters |
| 250mm X 250mm | IP-VF4 | Replacement Filter Mat for IP-V4000/4200/4300 250 X 250 Fans & Filters |
| 250mm X 250mm | IP-VF4X | High Efficiency (G4) Filter Mat for IP-V4000/4200/4300 250 X 250 Fans & Filters |
| 325mm x 325mm | IP-VF5 | Replacement Filter Mat for IP-V5000/5400/5500 325 X 325 Fans & Filters |
| 325mm x 325mm | IP-VF5X | High Efficiency (G4) Filter Mat for IP-V5000/5400/5500 325 X 325 Fans & Filters |
Easy Maintenance – Fast Filter Mat Replacement
Step 1. Open Grille
Step 2. Remove Filter Mat
Step 3. Insert New Filter Mat
Step 4. Close Grille

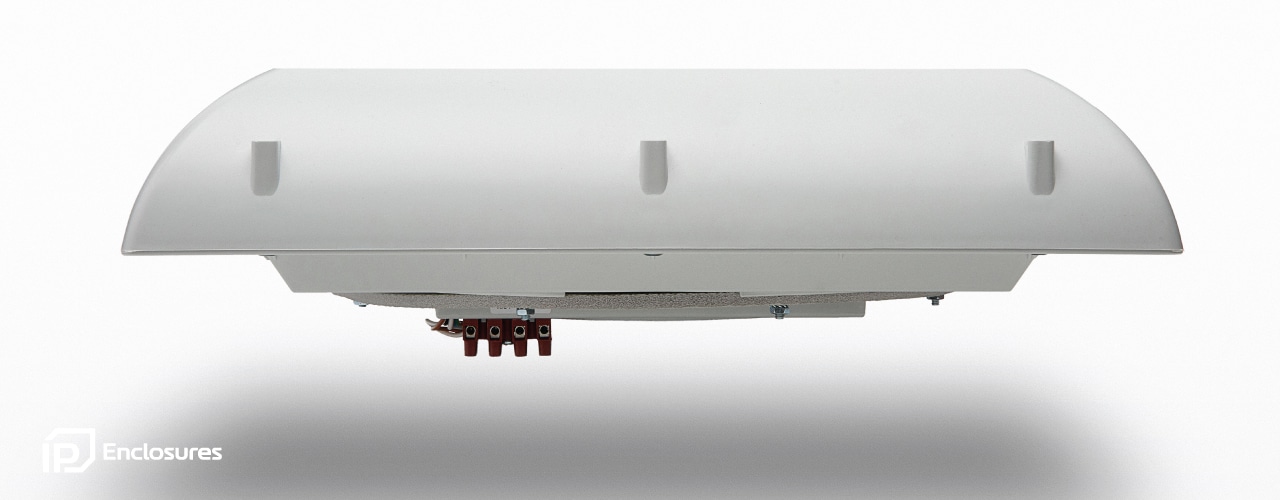

Roof Fans and Vents
IP-RV1 Roof Vent (No Fan) – 400 x 350 x 102 (mm)
| Features | Unit | IP-RV1 |
|---|---|---|
| Air flow rate (free blow) | m³/h | – |
| Flow rate with exit filter | m³/h | – |
| Power supply | V/Hz | – |
| Dimensions HxLxP | mm | 400x350x102 |
| Power consumption | W | |
| Current consumption | A | |
| Overcurrent protection | – | |
| Electric connection | – | |
| Duty cycle | – | |
| Operating temperature | °C | |
| Protection degree enclosure side | – | |
| Protection class | – | |
| Noise level | dB(A) | |
| Flow direction | – | |
| Bearing | – | |
| Service life (at 40°C) | hr | |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Gasket | – | polythene |
| Weight (with packaging) | kg | 2.30(2.50) |
| Package dimensions | mm | 410x360x130 |
| Mounting | – | screws |
| conformity/Approvals | – | CE |
IP-RFV1 Roof Fan and Vent – 600m³/h 400 x 350 x 102 (mm)
| Features | Unit | IP-RFV1 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 600(625) |
| Flow rate with exit filter | m³/h | 430(450) |
| Power supply | V/Hz | 230/50-60 |
| Dimensions HxLxP | mm | 400x350x102 |
| Power consumption | W | 70(90) |
| Current consumption | A | 0.32(0.40) |
| Overcurrent protection | – | thermal |
| Electric connection | – | 4-pole terminal 2.5 mm² |
| Duty cycle | – | 100% |
| Operating temperature | °C | -10/+70 |
| Protection degree enclosure side | – | IP44 |
| Protection class | – | Class I |
| Noise level | dB(A) | 64(65) |
| Flow direction | – | inside-out |
| Bearing | – | ball |
| Service life (at 40°C) | hr | 50.000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Gasket | – | polythene |
| Weight (with packaging) | kg | 3.65(3.85) |
| Package dimensions | mm | 410x360x130 |
| Mounting | – | screws |
| conformity/Approvals | – | CE |
IP-RFV2 Roof Fan and Vent – 860m³/h 400 x 350 x 102 (mm)
| Features | Unit | IP-RFV2 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 860(950) |
| Flow rate with exit filter | m³/h | 580(640) |
| Power supply | V/Hz | 230/50-60 |
| Dimensions HxLxP | mm | 400x350x102 |
| Power consumption | W | 85(115) |
| Current consumption | A | 0.43(0.50) |
| Overcurrent protection | – | thermal |
| Electric connection | – | 4-pole terminal 2.5 mm² |
| Duty cycle | – | 100% |
| Operating temperature | °C | -10/+70 |
| Protection degree enclosure side | – | IP44 |
| Protection class | – | Class I |
| Noise level | dB(A) | 72(73) |
| Flow direction | – | inside-out |
| Bearing | – | ball |
| Service life (at 40°C) | hr | 50.000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Gasket | – | polythene |
| Weight (with packaging) | kg | 4.00(4.20) |
| Package dimensions | mm | 410x360x130 |
| Mounting | – | screws |
| conformity/Approvals | – | CE |
IP-RFV3 Roof Fan and Vent – 1000m³/h 400 x 350 x 102 (mm)
| Features | Unit | IP-RFV3 |
|---|---|---|
| Air flow rate (free blow) | m³/h | 1000(1050) |
| Flow rate with exit filter | m³/h | 700(720) |
| Power supply | V/Hz | 230/50-60 |
| Dimensions HxLxP | mm | 400x350x102 |
| Power consumption | W | 120(170) |
| Current consumption | A | 0.50(0.75) |
| Overcurrent protection | – | thermal |
| Electric connection | – | 4-pole terminal 2.5 mm² |
| Duty cycle | – | 100% |
| Operating temperature | °C | -10/+70 |
| Protection degree enclosure side | – | IP44 |
| Protection class | – | Class I |
| Noise level | dB(A) | 72(73) |
| Flow direction | – | inside-out |
| Bearing | – | ball |
| Service life (at 40°C) | hr | 50.000 |
| Material | – | ABS UL94V-0 Color RAL7035 |
| Gasket | – | polythene |
| Weight (with packaging) | kg | 4.75(4.95) |
| Package dimensions | mm | 410x360x130 |
| Mounting | – | screws |
| conformity/Approvals | – | CE |
Powder-Coated Louvre Vents
Powder-Coated steel louvre vents can be supplied loose or fitted into electrical enclosures.
| Part Number SKU | H x W Description |
|---|---|
| IP-PSLV10075 | 100 x 75 Powder-Coated Louvre Vent |
| IP-PSLV130130 | 130 x 130 Powder-Coated Louvre Vent |
| IP-PSLV250250 | 250 x 250 Powder-Coated Louvre Vent |
Stainless Steel Louvre Vents
Grade 316 Stainless Steel louvre vents can be supplied loose or fitted into electrical enclosures.
| Part Number SKU | H x W Description |
|---|---|
| IP-SSLV10075 | 100 x 75 Stainless Steel Louvre Vent |
| IP-SSLV130130 | 130 x 130 Stainless Steel Louvre Vent |
| IP-SSLV250250 | 250 x 250 Stainless Steel Louvre Vent |
