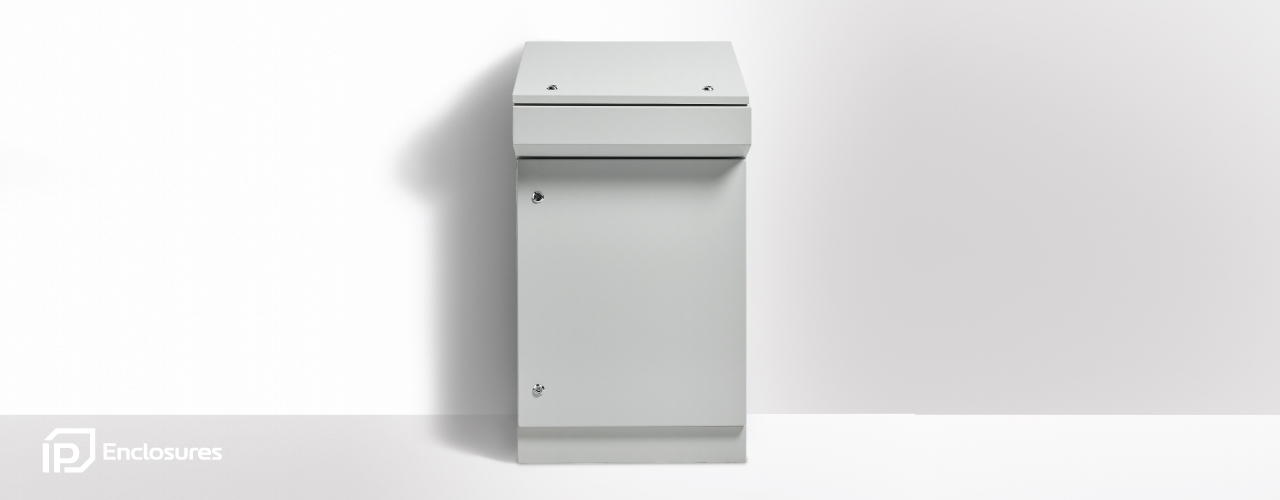

IP Enclosures Consoles

Consoles

IP Enclosures consoles are designed to provide a safe ergonomic housing for electrical equipment and operator controls. Consoles are constructed from a durable steel to protect against damage from impact, corrosion, and harsh environments. They are available in a variety of sizes to accommodate a wide range of equipment and controls.

Feature and Specifications

Material:

– Body: 1.5mm galvanised steel sheet (up to 700x500x250)
– Door: 1.5mm galvanised steel sheet
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Enclosure Body:

The robust monoblock body is fabricated using galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Integral device plate mounts and M6 earth studs are provided. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

Enclosure Door:

The robust surface mounted door is fabricated using 1.5mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. A plan pocket is provided.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

Chrome 5mm double bit insert quarter turn locks with key. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request.

REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

3 + 8 =

IP Enclosures Console
Part NumberDescriptionDownloadDownloadDownload
SKUSizeData SheetDrawing PDFDrawing *.dwg
IP-CON10060451000H X 600W X 450D GREYPDFPDF.dwg
IP-CON100100451000H X 1000W X 450D GREYPDFPDF.dwg

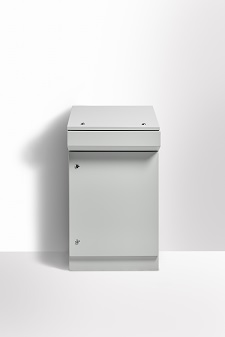

IP Enclosures Console

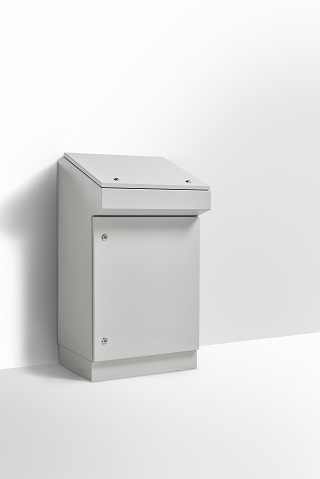

IP Enclosures Console 1

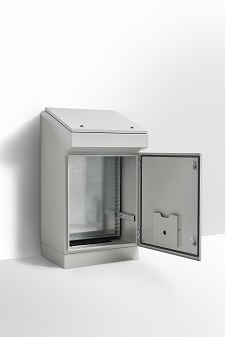

IP Enclosures Console 2

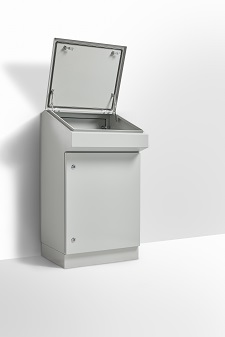

IP Enclosures Console 3

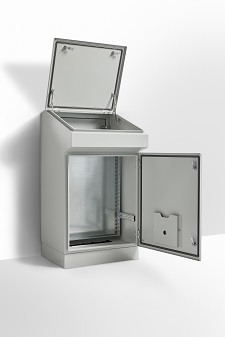

IP Enclosures Console 4

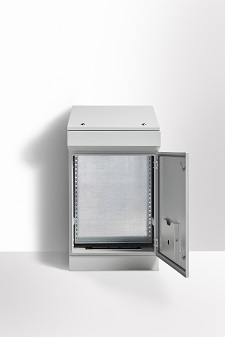

IP Enclosures Console 5

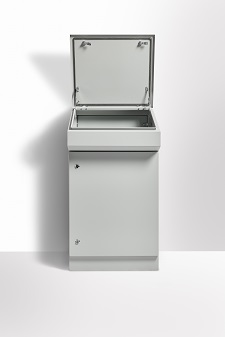

IP Enclosures Console 6

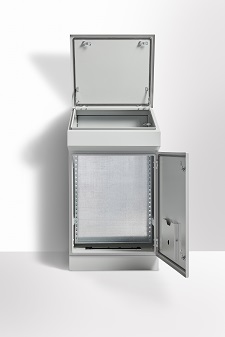

IP Enclosures Console 7
