Field Cabinets

Air-conditioned Field Cabinets

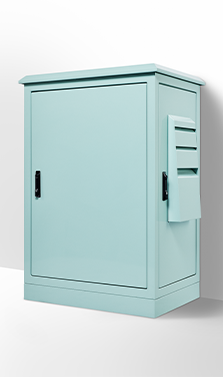

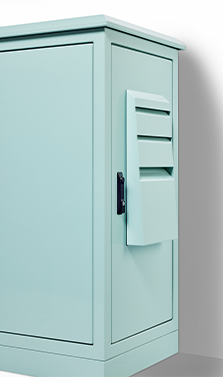

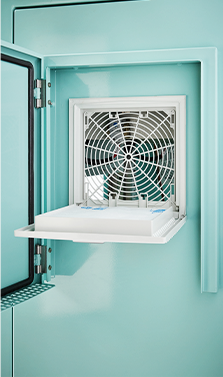

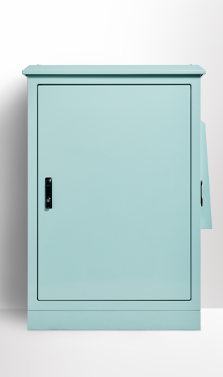

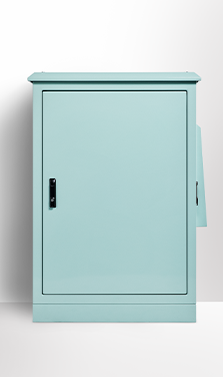

Air-Conditioned Field Cabinets are designed to house and cool sensitive data network and electrical equipment in harsh outdoor environments. They are rated to IP55 and designed to prevent unauthorised access and vandalism while keeping contents cool to ensure protection in the toughest conditions. Our Air-Conditioned Field Cabinets are based on our standard Field Cabinets and incorporate an internally-mounted air-conditioner that is designed for the cooling needs of outdoor electrical cabinets. The air conditioner is housed in a separate compartment from the 19” rack compartment and is accessible via a recessed side door with special louvred vent hood to enhance air flow. The cooled 19” rack compartment is rated to IP55 and is accessible via front and rear doors. The Air-Conditioned Field Cabinet is ideal for a wide variety of applications.

Air conditioned Field Cabinets Brochure

Features and Specifications

Protection: IP55 IK10 NEMA 4.

Standard: IEC62208, IEC/EN/AS60529, EIA-310-D, RoHS, CE, UKCA

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’. For more information regarding design verification for switchboard assemblies, refer to AS/NZS 61439.

Material:

– Body and Plinth: 2.0mm galvanised steel sheet
– Doors: 2.0mm galvanised steel sheet
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Gland Plate: 3.0mm aluminium
– Enclosure Seal: Polyurethane

Body:

The robust monoblock body is fabricated using 2.0mm galvanised steel sheet. The body is fitted with rain hood/sunshield, plinth and 4 x lifting eye bolts. Flat face sealing surfaces are provided to increase seal life. A 3.0 mm galvanised steel split gland plate is also incorporated into the bottom face. A segmented compartment is provided to house the air-conditioner. Precision automated manufacturing equipment ensures accuracy and consistent high quality.

Doors:

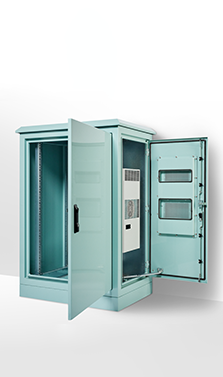

The front and rear doors are fabricated using 2.0mm galvanised steel sheet and are designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The doors incorporate concealed removable hinges with captive pins. They are designed for a 110° opening and are provided with heavy duty door stays.

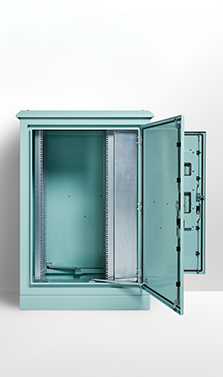

19″ Data Rack Rails:

Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.

Seals:

High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.

Locks:

Each door includes a 3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.

Gland Plate:

3mm aluminium split gland plates are incorporated into the bottom of the enclosure for cable management.

Surface Treatment:

UL approved polyester powder coated with a smooth gloss finish, 80-120 micron average thickness, providing excellent exterior durability and colour retention.

Colour:

T33 Smoke Blue. (A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.)

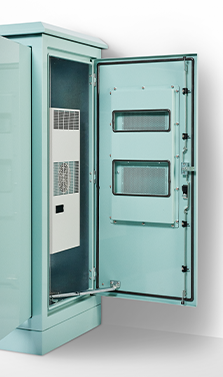

Air Conditioner:

IP Enclosures SAA approved compact air conditioners are designed for the cooling needs of outdoor electrical cabinets. They have been designed for high efficiency and low maintenance and include a condenser fan controller and pressure controller for the compressor.

Standards: AS/NZS 60335.2.40:2019, AS/NZS 60335.1:2020.

Approval Marks: SAA203165

Air conditioners are provided with a digital thermostat. Digital thermostats provide the following functionality:

  • Set temperature of compressor start
  • Set temperature of compressor shutdown
  • Set delay on/off of compressor in terms of temperature
  • Set time of compressor to avoid intermittent on/off
  • Set maximum value for overcoming maximum temperature in the cabinet, after which thermostat emits an alarm
  • Set delay time of alarm switch

REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

13 + 6 =

IP Enclosures Infrastructure Field Cabinet
IP Enclosures Infrastructure Field Cabinet

Field Cabinets (Steel)

Part NumberDescriptionData SheetDrawingAutoCAD
SKUSizePDFPDF.dwg
IP-1079062-AC035-T3318RU Cabinet 1075H x 900W x 620D for 0.35kW Air ConditionerPDF
PDF.dwg
IP-1379062-AC085-T3324RU Cabinet 1375H x 900W x 620D for 0.85kW Air ConditionerPDF
PDF.dwg
IP-1679080-AC145-T3330RU Cabinet 1675H x 900W x 800D for 1.45kW Air ConditionerPDF
PDF.dwg
IP-1979080-AC145-T3336RU Cabinet 1975H x 900W x 800D for 1.45kW Air ConditionerPDF
PDF.dwg
IP-2279080-AC200-T3342RU Cabinet 2275H x 900W x 800D for 2.0kW Air ConditionerPDF
PDF.dwg

Field Cabinets (Aluminium)

Part NumberDescriptionData SheetDrawingAutoCAD
SKUSizePDFPDF.dwg
IP-A1079062-AC035-T3318RU Aluminium Cabinet 1075H x 900W x 620D for 0.35kW Air ConditionerPDF
PDF.dwg
IP-A1379062-AC085-T3324RU Aluminium Cabinet 1375H x 900W x 620D for 0.85kW Air ConditionerPDF
PDF.dwg
IP-A1679080-AC145-T3330RU Aluminium Cabinet 1675H x 900W x 800D for 1.45kW Air ConditionerPDF
PDF.dwg
IP-A1979080-AC200-T3336RU Aluminium Cabinet 1975H x 900W x 800D for 1.45kW Air ConditionerPDF
PDF.dwg
IP-A2279080-AC200-T3342RU Aluminium Cabinet 2275H x 900W x 800D for 2.0kW Air ConditionerPDF
PDF.dwg

Double Bay Field Cabinets (Steel)

Part NumberDescriptionDrawingAutoCAD
SKUSizePDF.dwg
IP-22716580-AC200-T3342RU Aluminium Cabinet 2275H x 1650W x 800D for 2.0kW Air ConditionerPDF.dwg
