Electrical Enclosure Locks

Locking Options – Locks, Handles and Accessories

IP Enclosures’ electrical enclosures are supplied fitted with standard locks. However, to provide maximum flexibility, IP Enclosures also provide a full range of Mesan electrical enclosure locks, handles and keys to provide alternative locking options for your electrical enclosure. These can be supplied fitted upon request.

Steel & Polyamide

IP-L001

1/4 Turn Locks

IP-L001 – 3mm Double Bit
IP-L002 – 8mm Square

FEATURES

– Specially designed internal spring provides 1.5 mm of compression.
– Cam does not rotate beyond quarter turn due to stop lip.

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1 (Optional Polyamide PA6 GFR 30)
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Chrome (Optional Black)
IP RATING: IP66

DRIVERS

IP-L001: 3mm Double Bit
IP-L002: 8mm Square

IP-L005

Keys

IP-L004 – 3mm Double Bit
IP-L005 – 8mm Square

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1
FINISH: Chrome Plated

DRIVER

IP-L004 – 3mm Double Bit
IP-L005 – 8mm Square

IP-L003

Dust Cap

IP-L003 Dust Cap for 1/4 Turn Lock

FEATURES

– Recommended when dust and humidity protection required.

MATERIAL

HOUSING: Polyurethane

IP-L006

Swing Handles

IP-L006 to IP-L010 Swing Handles

PART No.BODYHANDLEFINISHPADLOCKABLE
IP-L006PolyamidePolyamideBlack Coated
IP-L007PolyamideZamacBlack Coated
IP-L008PolyamideZamacChrome
IP-L009PolyamideZamacBlack CoatedYes
IP-L010PolyamideZamacChromeYes



FEATURES

– Sliding dust cover
– Ergonomic handle
– Padlockable version available

MATERIAL

BODY: Polyamide DIN-EN ISO 1043-1 PA6 GFR 30
HANDLE: PA6 GFR 30 or Zamak
CAM: Steel – PA6 GFR 30
SEAL: Polyurethane

Padlockable swing handle

IP-L016

Low Profile Swing Handle

IP-L016 to IP-L017 Low Profile Swing Handle

PART No.BODYHANDLEFINISH
IP-L016PolyamideZamacBlack Coated
IP-L017PolyamideZamacChrome

FEATURES

– Ultra-low external profile, 9 mm, for flush appearance
– Spring-loaded, slam-action swinghandle
– Standard cut-out

MATERIAL

BODY: Polyamide DIN-EN ISO 1043-1 PA6 GFR 30
HANDLE: Zamak DIN-EN 1774-ZnAl4Cu1
CAM: Steel or PA6 GFR 30
SEAL: Polyurethane

IP-L018

Low Profile Swing Handle – Full Metallic

IP-L018 to IP-L019 Low Profile Swing Handle – Full Metallic

PART No.BODYHANDLEFINISH
IP-L018ZamacZamacBlack Coated
IP-L019ZamacZamacChrome

FEATURES

– Full metal construction provides greater strength
– Ultra-low external profile, 9 mm, for flush appearance
– Spring-loaded, slam-action swinghandle
– Standard cut-out

MATERIAL

BODY: Zamak DIN-EN 1774-ZnAl4Cu1
HANDLE: Zamak DIN-EN 1774-ZnAl4Cu1
CAM: Steel
SEAL: Polyurethane

IP-L041

Padlockable Swing Handle – Full Metallic

IP-L041 to IP-L042 Padlockable Swing Handle – Full Metallic

PART No.BODYHANDLEFINISH
IP-L041ZamacZamacBlack Coated
IP-L042ZamacZamacChrome

FEATURES

– Full metal construction provides greater strength
– Padlockable

MATERIAL

BODY: Zamak DIN-EN 1774-ZnAl4Cu1
HANDLE: Zamak DIN-EN 1774-ZnAl4Cu1
CAM: Steel
SEAL: Polyurethane

Padlockable stainless steel swing handle

IP-L011

Rod Latch Swing Handles

IP-L011 to IP-L015 Rod Latch Swing Handle

PART No.BODYHANDLEFINISH
IP-L041ZamacZamacBlack Coated
IP-L042ZamacZamacChrome

FEATURES

– Full metal construction provides greater strength
– Padlockable

MATERIAL

BODY: Zamak DIN-EN 1774-ZnAl4Cu1
HANDLE: Zamak DIN-EN 1774-ZnAl4Cu1
CAM: Steel
SEAL: Polyurethane

Padlockable swing handle
IP-L020

Low Profile Rod Latch Swing Handle

IP-L020 to IP-L021 Low Profile Rod Latch Swing Handle

PART No.BODYHANDLEFINISH
IP-L020PolyamideZamacBlack Coated
IP-L021PolyamideZamacChrome



FEATURES

– Ultra-low external profile, 9 mm, for flush appearance
– Spring-loaded, slam-action swinghandle
– Standard cut-out

MATERIAL

BODY: Polyamide DIN-EN ISO 1043-1 PA6 GFR 30
HANDLE: Zamak DIN-EN 1774-ZnAl4Cu1
CAM: Steel
SEAL: Polyurethane

IP-L022

Low Profile Rod Latch Swing Handle – Full Metallic

IP-L022 to IP-L023 Low Profile Rod Latch Swing Handle – Full Metallic

PART No.BODYHANDLEFINISH
IP-L022ZamacZamacBlack Coated
IP-L023ZamacZamacChrome



FEATURES

– Full metal construction provides greater strength
– Ultra-low external profile, 9 mm, for flush appearance
– Spring-loaded, slam-action swinghandle
– Standard cut-out

MATERIAL

BODY: Zamak DIN-EN 1774-ZnAl4Cu1
HANDLE: Zamak DIN-EN 1774-ZnAl4Cu1
CAM: Steel
SEAL: Polyurethane

IP-L024

Padlockable Rod Latch Swing Handle – Full Metallic

IP-L024 to IP-L025 Padlockable Rod Latch Swing Handle – Full Metallic

PART No.BODYHANDLEFINISH
IP-L024ZamacZamacBlack Coated
IP-L025ZamacZamacChrome

FEATURES

– Full metal construction provides greater strength
– Padlockable

MATERIAL

BODY: Zamak DIN-EN 1774-ZnAl4Cu1
HANDLE: Zamak DIN-EN 1774-ZnAl4Cu1
CAM: Steel
SEAL: Polyurethane

Padlockable stainless steel swing handle

Stainless Steel

IP-L026

Stainless Steel 1/4 Turn Locks

IP-L026 – 3mm Double Bit
IP-L027 – 8mm Square

FEATURES

– Specially designed internal spring provides 1.5 mm of compression.

MATERIAL

HOUSING: Stainless Steel
DRIVER: Stainless Steel
GASKET: Rubber
IP RATING: IP66

DRIVERS

IP-L026: 3mm Double Bit
IP-L027: 8mm Square (Provided as standard with stainless steel wall-mount enclosures)

IP-L028

Stainless Steel Wing Knob

IP-L028 – 316 Stainless Steel Wing Knob – Keyed
IP-L029 – 316 Stainless Steel Wing Knob

FEATURES

– Quarter turn operation
– Grade 316 Stainless Steel

MATERIAL

HOUSING: 316 Stainless Steel
KNOB: 316 Stainless Steel
CAM: 304 Stainless Steel
GASKET: Rubber

DRIVERS

IP-L028: Keyed
IP-L029: Not Keyed

IP-L031

Stainless Steel Padlockable Wing Knob

IP-L031 – 316 Stainless Steel Padlockable Wing Knob

FEATURES

– Quarter turn operation
– Grade 316 Stainless Steel

MATERIAL

HOUSING: 316 Stainless Steel
KNOB: 316 Stainless Steel
CAM: 304 Stainless Steel
NUT: 304 Stainless Steel

IP-L030

IP69K Stainless Steel Hygienic Lock

IP-L030 IP69K Stainless Steel Hygienic Lock

FEATURES

– Dirt resistant and easy to clean
– The lock has been tested according to the GS-NV 6:2015/12 for hygiene requirements
– Specially designed for hygiene requirements

MATERIAL

HOUSING: 316 Stainless Steel
DRIVER: 316 Stainless Steel
CAM: 304 Stainless Steel
O-RING: Silicone

IP-L033

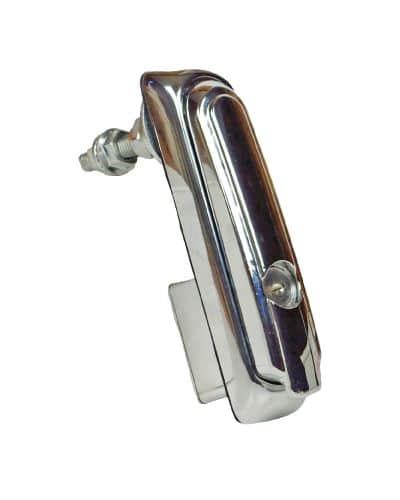

Stainless Steel Swing Handle

IP-L033 Stainless Steel Swing Handle – Keyed (Alike)
IP-L034 Stainless Steel Swing Handle – Not Keyed

FEATURES

– 316 Stainless Steel

MATERIAL

BODY: 316 Stainless Steel
HANDLE: 316 Stainless Steel
CAM: Stainless Steel
SEAL: Polyurethane

BRASS CYLINDER

IP-L033 Stainless Steel Swing Handle – Keyed (Alike)
IP-L034 Stainless Steel Swing Handle – Not Keyed

IP-L033

Stainless Steel Padlockable Swing Handle

IP-L037 Stainless Steel Padlockable Swing Handle – Keyed (Alike)
IP-L038 Stainless Steel Padlockable Swing Handle – Not Keyed

FEATURES

– 316 Stainless Steel
– Padlockable

MATERIAL

BODY: 316 Stainless Steel
HANDLE: 316 Stainless Steel
CAM: Stainless Steel
SEAL: Polyurethane

BRASS CYLINDER

IP-L037 Stainless Steel Padlockable Swing Handle – Keyed (Alike)
IP-L038 Stainless Steel Padlockable Swing Handle – Not Keyed

Padlockable stainless steel swing handle

IP-L035

Stainless Steel Swing Handle – Rod Latch Gearbox Type

IP-L035 Stainless Steel Swing Handle for Rod Latch Gearbox Type – Keyed (Alike)
IP-L036 Stainless Steel Swing Handle for Rod Latch Gearbox Type – Not Keyed

FEATURES

– 316 Stainless Steel

MATERIAL

BODY: 316 Stainless Steel
HANDLE: 316 Stainless Steel
CAM: Stainless Steel
SEAL: Polyurethane

BRASS CYLINDER

IP-L035 Stainless Steel Swing Handle for Rod Latch Gearbox Type – Keyed (Alike)
IP-L035 Stainless Steel Swing Handle for Rod Latch Gearbox Type – Not Keyed

IP-L039

Stainless Steel Padlockable Swing Handle – Rod Latch Gearbox Type

IP-L039 Stainless Steel Padlockable Swing Handle for Rod Latch Gearbox Type – Keyed (Alike)
IP-L040 Stainless Steel Padlockable Swing Handle for Rod Latch Gearbox Type – Not Keyed

FEATURES

– 316 Stainless Steel
– Padlockable

MATERIAL

BODY: 316 Stainless Steel
HANDLE: 316 Stainless Steel
CAM: Stainless Steel
SEAL: Polyurethane

BRASS CYLINDER

IP-L039 Stainless Steel Padlockable Swing Handle for Rod Latch Gearbox Type – Keyed (Alike)
IP-L040 Stainless Steel Padlockable Swing Handle for Rod Latch Gearbox Type – Not Keyed

Padlockable stainless steel swing handle
