IP66 19″ Aluminium Data Racks
IP66 Aluminium 19” data racks are designed for heavy duty outdoor applications to house sensitive data network equipment in harsh environments. They are suitable for internal and external installations. All IP Enclosures are built to precision in Europe to ensure consistent high quality standards.
IP66 19″ Aluminium Data Racks – 4RU to 15RU
Features & Specifications:
Protection: Complies with IP66
Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, EIA-310-D, RoHS, CE, UKCA
Rack Unit Sizes:
– 4RU, 6RU, 9RU, 12RU & 15RU
Material:
– Body: Marine Grade Aluminium
– Door: Marine Grade Aluminium
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Enclosure Seal: Polyurethane
Body:
The robust monoblock body is fabricated from aluminium sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. 19” data rack rails are fitted. 600mm deep racks include front and rear rails.
Door:
The surface mounted door is fabricated from Aluminium. It incorporates concealed removable hinges with captive pins.
19″ Data Rack Rails:
19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.
Seal:
A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).
Lock:
5mm Double Bit Quarter Turn Lock. A full range of locking solutions are available upon request.
Surface Treatment:
UL approved epoxy polyester powder coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035.
Accessories:
A full range of data rack enclosure accessories are available. Refer to accessories menu or contact our team for assistance.
REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.
Aluminium RAL7035 Grey
Part Number | Description | Data Sheet | Drawing | AutoCAD |
---|---|---|---|---|
SKU | U/RU x Depth (mm) | *.dwg | ||
IP-ADW4RU30 | 4RU x 300 Deep 19" Data Rack | .dwg | ||
IP-ADW6RU30 | 6RU x 300 Deep 19" Data Rack | .dwg | ||
IP-ADW6RU45 | 6RU x 450 Deep 19" Data Rack | .dwg | ||
IP-ADW9RU45 | 9RU x 450 Deep 19" Data Rack | .dwg | ||
IP-ADW12RU45 | 12RU x 450 Deep 19" Data Rack | .dwg | ||
IP-ADW12RU60 | 12RU x 600 Deep 19" Data Rack | .dwg | ||
IP-ADW15RU60 | 15RU x 600 Deep 19" Data Rack | .dwg |

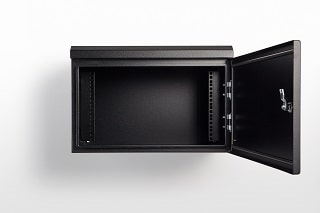

Aluminium RAL9005 Black
Part Number | Description | Data Sheet | Drawing | AutoCAD |
---|---|---|---|---|
SKU | U/RU x Depth (mm) | *.dwg | ||
IP-ADW4RU30-BLK | 4RU x 300 Deep 19" Data Rack, Black | .dwg | ||
IP-ADW6RU30-BLK | 6RU x 300 Deep 19" Data Rack, Black | .dwg | ||
IP-ADW6RU45-BLK | 6RU x 450 Deep 19" Data Rack, Black | .dwg | ||
IP-ADW9RU45-BLK | 9RU x 450 Deep 19" Data Rack, Black | .dwg | ||
IP-ADW12RU45-BLK | 12RU x 450 Deep 19" Data Rack, Black | .dwg | ||
IP-ADW12RU60-BLK | 12RU x 600 Deep 19" Data Rack, Black | .dwg | ||
IP-ADW15RU60-BLK | 15RU x 600 Deep 19" Data Rack, Black | .dwg |
Accessories
Doors & Access Options | Internal Components | Thermal Protection |
---|---|---|

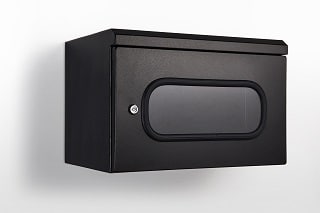

Transparent Doors | Rack-Mounted DIN Rail | Fans, Filters & Vents |
Locks & Handles | Rack-Mounted Shelves | Rack-Mounted Fan Trays |
Electronic Access | LED Lighting | Air Conditioning |
Controllers |
