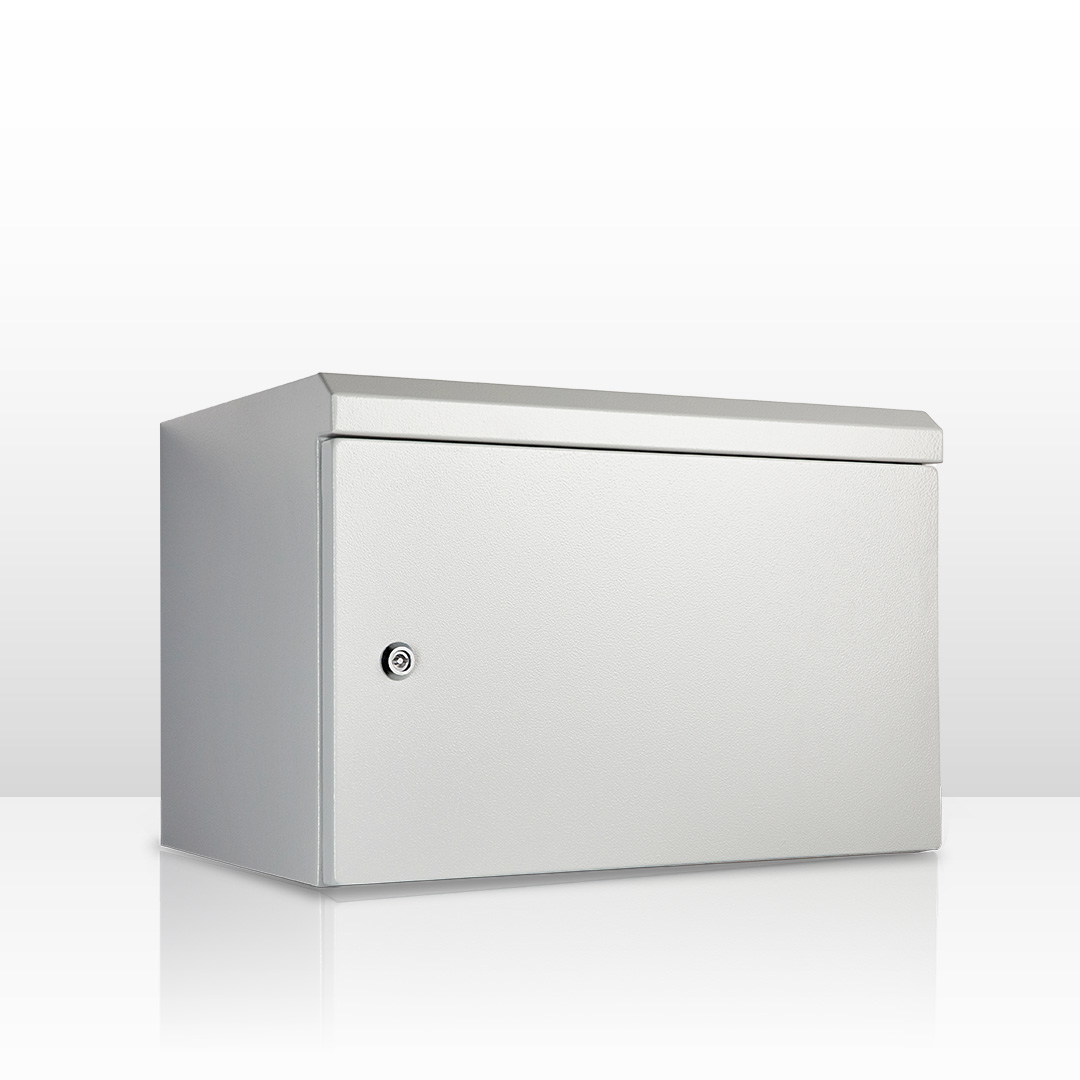

IP-ADW4RU30 19″ Rack Cabinet

19″ Rack Cabinet 4RUx300D

IP66 Aluminium 19” data racks are designed for heavy duty outdoor applications to house sensitive data network equipment in harsh environments. They are suitable for internal and external installations. All IP Enclosures are built to precision in Europe to ensure consistent high quality standards.

Features & Specifications

SKU: IP-ADW4RU30 – MPN: IP-ADW4RU30
Protection: Complies with IP66
Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, EIA-310-D, RoHS, CE, UKCA

Material:

– Enclosure Body: Marine Grade Aluminium
– Enclosure Door: Marine Grade Aluminium
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Enclosure Seal: Polyurethane

Surface Finish:

UL approved AkzoNobel epoxy polyester powder coated with a textured finish. 80-120 micron average thickness.

Body & 19” Rails:

The robust monoblock body is fabricated using marine grade aluminium. Flat face sealing surfaces are provided to increase seal life. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality. 19” data rack rails are fitted. 600mm deep racks include front and rear rails.

Door:

The robust surface mounted door is fabricated using marine grade aluminium and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains a high quality machine-applied foamed in place (FIP) Polyurethane seal.

Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Lock:

5mm Double Bit Quarter Turn Lock.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners.

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 2311.14.01/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate 0366932-TSE-01/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

Warranty:

5 Year manufacturer’s warranty from the date of delivery.
