Field Cabinets – Aluminium

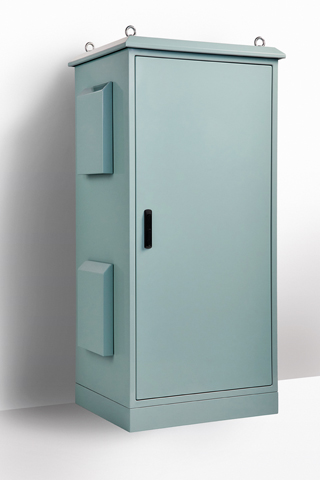

Plinth-Mounted Aluminium Field Cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including road/traffic management and intelligent transport systems.
IP Enclosures – Field Cabinets Brochure
Features and Specifications
Protection: IP66 IK10, NEMA 4 (Non-ventilated range); IP55 IK10 NEMA 4 (Ventilated range).
Standard: IEC62208, IEC/EN/AS60529, EIA-310-D, RoHS, CE, UKCA
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’. For more information regarding design verification for switchboard assemblies, refer to AS/NZS 61439.
Material:
– Body and Plinth: 2.5mm Marine Grade Aluminium
– Doors: 2.5mm Marine Grade Aluminium
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Gland Plate: 5.0mm Aluminium
– Enclosure Seal: Polyurethane
Body:

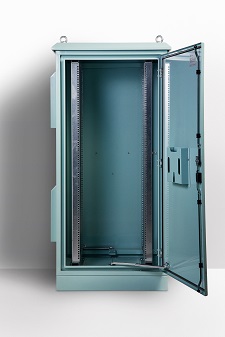

The robust monoblock body is fabricated using 2.5mm marine grade aluminium. The body is fitted with rain hood/sunshield, plinth, vent hoods and 4 x lifting eye bolts. Flat face sealing surfaces are provided to increase seal life. A 5.0 mm aluminium split gland plate is also incorporated into the bottom face. Four cutouts 125mm x 125mm are provided to house fans and filters and each are covered with removable vent hoods. Precision automated manufacturing equipment ensures accuracy and consistent high quality. (Fans and filters and ordered separately).
Doors:

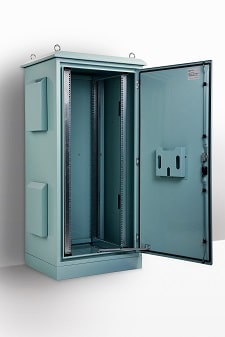

The front and rear doors are fabricated using 2.5mm marine grade aluminium and are designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The doors incorporate concealed removable hinges with captive pins. They are designed for a 110° opening and are provided with heavy duty door stays.
19″ Data Rack Rails:
Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.
Seals:
High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.
Locks:
Each door includes a 3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.
Gland Plate:
5mm aluminium split gland plates are incorporated into the bottom of the enclosure for cable management.
Surface Treatment:
UL approved epoxy polyester powder coated with a smooth finish. 80-120 micron average thickness.
Colour
T33 Smoke Blue. (A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.)
Quick Quote

Aluminium Field Cabinets (Non-Ventilated)
Part Number | Part Number | Description | Data Sheet | Drawing | AutoCAD |
---|---|---|---|---|---|
Standard Wall | Double Wall | Size | .dwg | ||
IP-A1077562-0-T33 | IP-A1077562-0-2-T33 | 18RU 1075H x 750W x 620D (Non-Ventilated) | .dwg | ||
IP-A1077580-0-T33 | IP-A1077580-0-2-T33 | 18RU 1075H x 750W x 800D (Non-Ventilated) | .dwg | ||
IP-A1377562-0-T33 | IP-A1377562-0-2-T33 | 24RU 1375H x 750W x 620D (Non-Ventilated) | .dwg | ||
IP-A1377580-0-T33 | IP-A1377580-0-2-T33 | 24RU 1375H x 750W x 800D (Non-Ventilated) | .dwg | ||
IP-A13775100-0-T33 | IP-A13775100-0-2-T33 | 24RU 1375H x 750W x 1000D (Non-Ventilated) | .dwg | ||
IP-A1677562-0-T33 | IP-A1677562-0-2-T33 | 30RU 1675H x 750W x 620D (Non-Ventilated) | .dwg | ||
IP-A1677580-0-T33 | IP-A1677580-0-2-T33 | 30RU 1675H x 750W x 800D (Non-Ventilated) | .dwg | ||
IP-A16775100-0-T33 | IP-A16775100-0-2-T33 | 30RU 1675H x 750W x 1000D (Non-Ventilated) | .dwg | ||
IP-A1977562-0-T33 | IP-A1977562-0-2-T33 | 36RU 1975H x 750W x 620D (Non-Ventilated) | .dwg | ||
IP-A1977580-0-T33 | IP-A1977580-0-2-T33 | 36RU 1975H x 750W x 800D (Non-Ventilated) | .dwg | ||
IP-A19775100-0-T33 | IP-A19775100-0-2-T33 | 36RU 1975H x 750W x 1000D (Non-Ventilated) | .dwg | ||
IP-A2277562-0-T33 | IP-A2277562-0-2-T33 | 42RU 2275H x 750W x 620D (Non-Ventilated) | .dwg | ||
IP-A2277580-0-T33 | IP-A2277580-0-2-T33 | 42RU 2275H x 750W x 800D (Non-Ventilated) | .dwg |
Aluminium Field Cabinets (Ventilated)
Part Number | Part Number | Description | Data Sheet | Drawing | AutoCAD |
---|---|---|---|---|---|
Standard Wall | Double Wall | Size | .dwg | ||
IP-A1077562-T33 | IP-A1077562-2-T33 | 18RU 1075H x 750W x 620D (Ventilated) | .dwg | ||
IP-A1077580-T33 | IP-A1077580-2-T33 | 18RU 1075H x 750W x 800D (Ventilated) | .dwg | ||
IP-A1377562-T33 | IP-A1377562-2-T33 | 24RU 1375H x 750W x 620D (Ventilated) | .dwg | ||
IP-A1377580-T33 | IP-A1377580-2-T33 | 24RU 1375H x 750W x 800D (Ventilated) | .dwg | ||
IP-A13775100-T33 | IP-A13775100-2-T33 | 24RU 1375H x 750W x 1000D (Ventilated) | .dwg | ||
IP-A1677562-T33 | IP-A1677562-2-T33 | 30RU 1675H x 750W x 620D (Ventilated) | .dwg | ||
IP-A1677580-T33 | IP-A1677580-2-T33 | 30RU 1675H x 750W x 800D (Ventilated) | .dwg | ||
IP-A16775100-T33 | IP-A16775100-2-T33 | 30RU 1675H x 750W x 1000D (Ventilated) | .dwg | ||
IP-A1977562-T33 | IP-A1977562-2-T33 | 36RU 1975H x 750W x 620D (Ventilated) | .dwg | ||
IP-A1977580-T33 | IP-A1977580-2-T33 | 36RU 1975H x 750W x 800D (Ventilated) | .dwg | ||
IP-A19775100-T33 | IP-A19775100-2-T33 | 36RU 1975H x 750W x 1000D (Ventilated) | .dwg | ||
IP-A2277562-T33 | IP-A2277562-2-T33 | 42RU 2275H x 750W x 620D (Ventilated) | .dwg | ||
IP-A2277580-T33 | IP-A2277580-2-T33 | 42RU 2275H x 750W x 800D (Ventilated) | .dwg |
Double Bay Aluminium Field Cabinets (Non-Ventilated)
Part Number | Part Number | Description |
---|---|---|
Standard Wall | Double Wall | Size |
IP-A10715062-0-T33 | IP-A10715062-0-2-T33 | 2 x 18RU (36RU) 1075H x 1500W x 620D (Non-Ventilated) Double Bay |
IP-A10715080-0-T33 | IP-A10715080-0-2-T33 | 2 x 18RU (36RU) 1075H x 1500W x 800D (Non-Ventilated) Double Bay |
IP-A13715062-0-T33 | IP-A13715062-0-2-T33 | 2 x 24RU (48RU) 1375H x 1500W x 620D (Non-Ventilated) Double Bay |
IP-A13715080-0-T33 | IP-A13715080-0-2-T33 | 2 x 24RU (48RU) 1375H x 1500W x 800D (Non-Ventilated) Double Bay |
IP-A16715062-0-T33 | IP-A16715062-0-2-T33 | 2 x 30RU (60RU) 1675H x 1500W x 620D (Non-Ventilated) Double Bay |
IP-A16715080-0-T33 | IP-A16715080-0-2-T33 | 2 x 30RU (60RU) 1675H x 1500W x 800D (Non-Ventilated) Double Bay |
Double Bay Aluminium Field Cabinets (Ventilated)
Part Number | Part Number | Description | Data Sheet | Drawing | AutoCAD |
---|---|---|---|---|---|
Standard Wall | Double Wall | Size | .dwg | ||
IP-A10715062-T33 | IP-A10715062-2-T33 | 2 x 18RU (36RU) 1075H x 1500W x 620D Double Bay | .dwg | ||
IP-A10715080-T33 | IP-A10715080-2-T33 | 2 x 18RU (36RU) 1075H x 1500W x 800D Double Bay | .dwg | ||
IP-A13715062-T33 | IP-A13715062-2-T33 | 2 x 24RU (48RU) 1375H x 1500W x 620D Double Bay | .dwg | ||
IP-A13715080-T33 | IP-A13715080-2-T33 | 2 x 24RU (48RU) 1375H x 1500W x 800D Double Bay | .dwg | ||
IP-A16715062-T33 | IP-A16715062-2-T33 | 2 x 30RU (60RU) 1675H x 1500W x 620D Double Bay | .dwg | ||
IP-A16715080-T33 | IP-A16715080-2-T33 | 2 x 30RU (60RU) 1675H x 1500W x 800D Double Bay | .dwg |

(Non-Ventilated)

(Ventilated)
