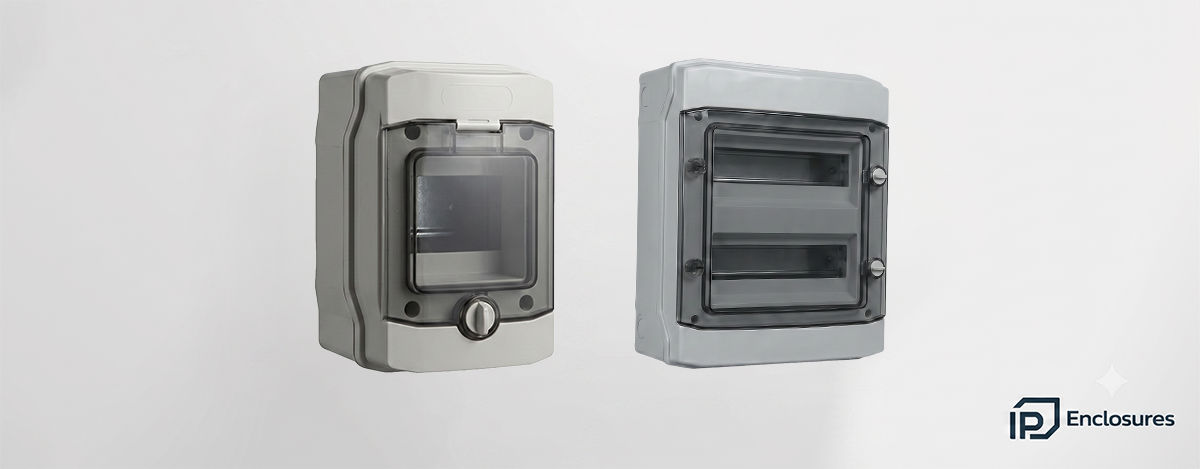

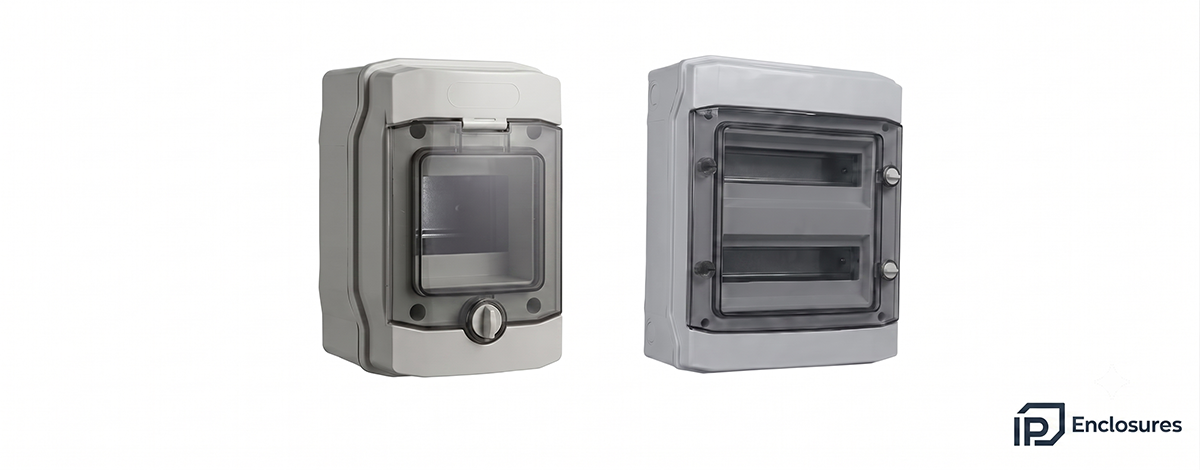

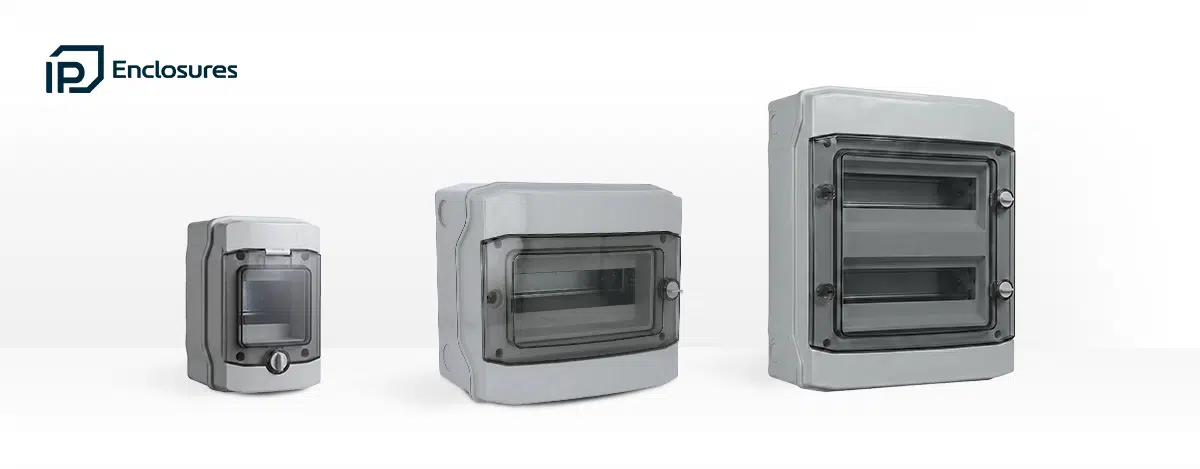

Surface Mount Enclosures
Surface-mount electrical enclosures for shallow-depth installations where standard depth enclosures are impractical — in polycarbonate and steel for DIN-rail modules, metering and small control assemblies.
IP65–IP66 rated for indoor and protected outdoor use.
FIBOX MCE65 Distribution Enclosures
The FIBOX MCE65 series is a premium range of modular component enclosures precision-engineered in Finland from durable thermoplastic, functioning as a robust distribution board for electrical systems. Designed for both indoor and outdoor applications, this fully insulated series ensures superior sealing and reliable environmental protection.
Features & Specifications
Protection: IP65 IK08
Standards (& Conformities): IEC/EN 60529, IEC/EN 62208
Material:
‑ Body: ABS
‑ Door: ABS
‑ Seal: Polyurethane
Enclosure Body: The durable base and frame are constructed from high-strength thermoplastic using ABS material, making them highly suitable for both indoor and outdoor applications. The body provides superior sealing performance, excellent corrosion resistance, full insulation, and a halogen-free construction.
Enclosure Door: The durable door is constructed from high-strength ABS thermoplastic. It is Smoked Grey in colour and transparent, allowing for safe and continuous visual monitoring of the components housed inside the enclosure. It is equipped with a polyurethane seal to maintain protection ratings.
Enclosure Seal: A high-quality Polyurethane seal is utilized to maintain the IP65 rating and ensure reliable environmental protection over the enclosure’s operational life.
Accessories: The enclosure is supplied with a pre-fitted DIN rail, insulated neutral and earth terminals, blanking covers for unused modules, necessary installation accessories, and plastic screw caps.
Standard Colour: The standard enclosure colour is RAL7035 Light Grey.
Operating Parameters:
– Electrical Insulation: Fully Insulated
– Halogen Free (DIN/VDE 0472, Part 815): Yes
– Flammability Rating: UL 94 HB
– Glow Wire Test (IEC 695-2-1): 650°C
– Temperature (long term): -26°C to 60°C
