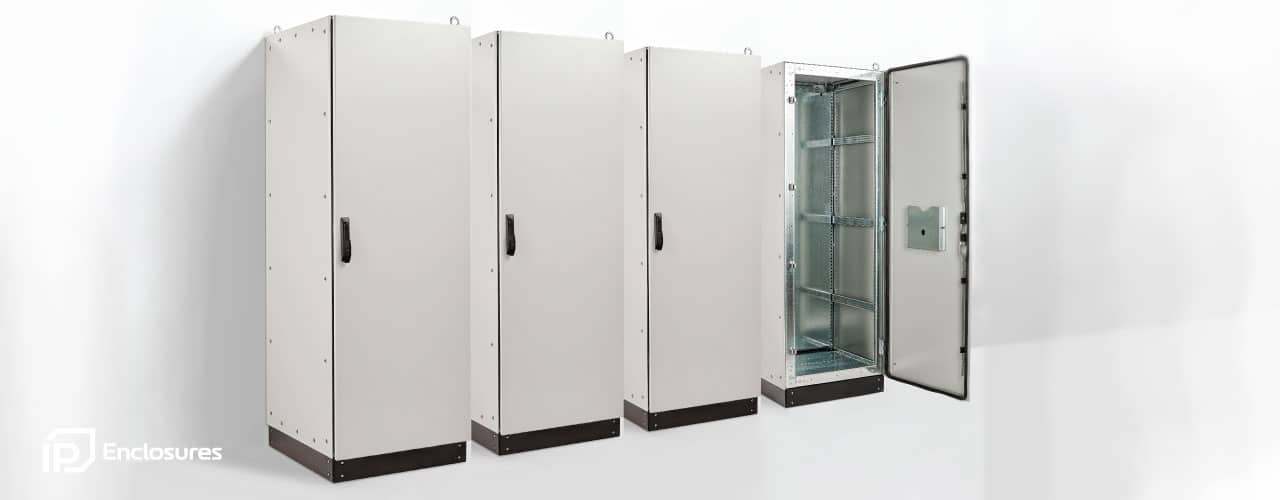

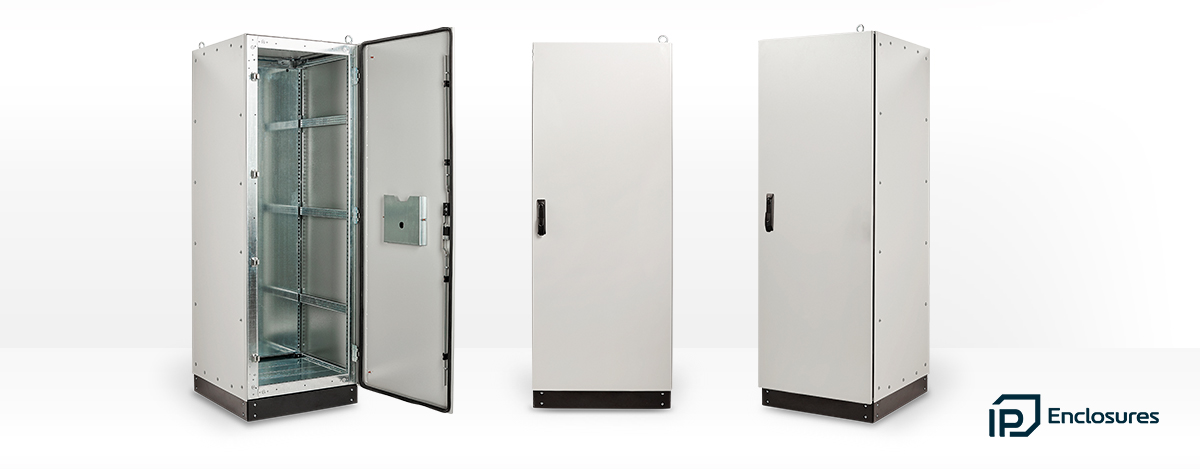

Floor Standing Electrical Cabinets
Floor Standing Electrical cabinets for low voltage switchgear and controlgear assemblies are floor standing and rated to IP55.
IP Enclosures – Electrical Cabinets Brochure

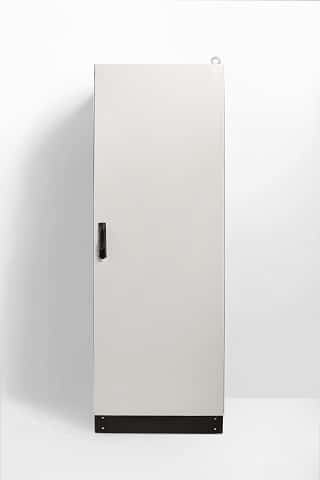

IP55 Floor Standing Electrical Cabinets
The MF1S Range of IP55 floor standing electrical cabinets are suitable for general industrial applications.
Features and Specifications
Protection: Complies with IP55 IK10. (Independent accredited test laboratory)
Standard: IEC 62208, IEC/EN/AS60529, RoHS, CE, UKCA
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’. For more information regarding design verification for switchboard assemblies, refer to AS/NZS 61439.
Material:
– Main Frame: 2.0mm Galvanised Steel W Profile System
– Side, Rear & Roof Panels: 1.2mm Powder-Coated Galvanised Steel Sheet
– Front Door: 2.0mm Powder-Coated Galvanised Steel Sheet
– Mounting Plates: 2.0mm Galvanised Steel Sheet
– Seal: EPDM
Stainless Steel Floor Standing Electrical Cabinets are also available.

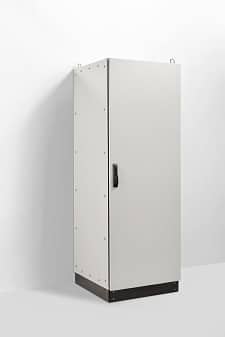

Enclosure Main Frame:
The robust modular main structure is fabricated using 2.0mm galvanised steel sheet W Profile system with 20mm hole pattern.
Enclosure Door:
The robust door is fabricated using 2.0mm powder coated galvanised steel sheet and incorporates four concealed hinges. The door is designed for a 135° opening. Each door contains an M6 earth stud and document pocket.
Enclosure Side, Rear and Roof Panels:
Removable panels are fabricated using 1.2mm powder coated galvanised steel sheet.
Enclosure Base:
Base is 100mm

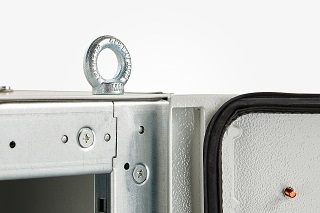

Enclosure Door Seal:
High quality EPDM replaceable door seal

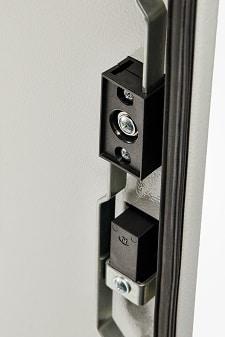

Enclosure Lock:
4 point locking system with key-lock swing handle.

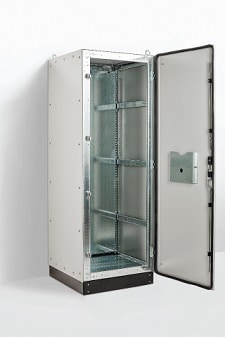

Enclosure Device Mounting Plate:
The device mounting plate is fabricated using 2.0mm mm galvanised steel sheet, pressed to provide additional strength.
Earthing:
All panels are earthed to provide earthing continuity.
Surface Treatment:
UL approved epoxy polyester powder coated with a textured finish. 80-120 micron average thickness.
– Colour: RAL7035 (Other colours available upon request).
– Colour of Base: RAL9005 (Other colours available upon request).
Accessories & Baying Kits:
A full range of accessories are available including baying kits.
– Baying Kit to suit Freestanding Cabinets – IP-MFSBAYKIT.
– Inner Doors to suit Freestanding Cabinets.
– Shelf Kits to suit Freestanding Cabinets.
– Laptop Drawers to suit Freestanding Cabinets.
– Cover Plates & Partial Mounting Plates to suit Freestanding Cabinets.
Floor Standing Electrical Cabinet Sizes
Part Number | Enclosure Size (mm) | Data Sheet | Drawing | Drawing | Accessories |
---|---|---|---|---|---|
SKU | H x W x D | .dwg | Inner Door | ||
IP-MFS1624040-KIT | 1620 x 400 x 400 | .dwg | IP-MFSID16240 | ||
IP-MFS1624060-KIT | 1620 x 400 x 600 | .dwg | IP-MFSID16240 | ||
IP-MFS1624080-KIT | 1620 x 400 x 800 | .dwg | IP-MFSID16240 | ||
IP-MFS1626040-KIT | 1620 x 600 x 400 | .dwg | IP-MFSID16260 | ||
IP-MFS1626060-KIT | 1620 x 600 x 600 | .dwg | IP-MFSID16260 | ||
IP-MFS1626080-KIT | 1620 x 600 x 800 | .dwg | IP-MFSID16260 | ||
IP-MFS1628040-KIT | 1620 x 800 x 400 | .dwg | IP-MFSID16280 | ||
IP-MFS1628060-KIT | 1620 x 800 x 600 | .dwg | IP-MFSID16280 | ||
IP-MFS1628080-KIT | 1620 x 800 x 800 | .dwg | IP-MFSID16280 | ||
IP-MFS16210080-KIT | 1620 x 1000 x 800 | .dwg | IP-MFSID162100 | ||
IP-MFS1864040-KIT | 1860 x 400 x 400 | .dwg | IP-MFSID18640 | ||
IP-MFS1864060-KIT | 1860 x 400 x 600 | .dwg | IP-MFSID18640 | ||
IP-MFS1864080-KIT | 1860 x 400 x 800 | .dwg | IP-MFSID18640 | ||
IP-MFS1866040-KIT | 1860 x 600 x 400 | .dwg | IP-MFSID18660 | ||
IP-MFS1866060-KIT | 1860 x 600 x 600 | .dwg | IP-MFSID18660 | ||
IP-MFS1866080-KIT | 1860 x 600 x 800 | .dwg | IP-MFSID18660 | ||
IP-MFS1868040-KIT | 1860 x 800 x 400 | .dwg | IP-MFSID18680 | ||
IP-MFS1868060-KIT | 1860 x 800 x 600 | .dwg | IP-MFSID18680 | ||
IP-MFS1868080-KIT | 1860 x 800 x 800 | .dwg | IP-MFSID18680 | ||
IP-MFS18610060-KIT | 1860 x 1000 x 600 | .dwg | IP-MFSID186100 | ||
IP-MFS18610080-KIT | 1860 x 1000 x 800 | .dwg | IP-MFSID186100 | ||
IP-MFS18612040-KIT | 1860 x 1200 x 400 | .dwg | - | ||
IP-MFS18612060-KIT | 1860 x 1200 x 600 | .dwg | - | ||
IP-MFS18612080-KIT | 1860 x 1200 x 800 | .dwg | - | ||
IP-MFS2024040-KIT | 2020 x 400 x 400 | .dwg | IP-MFSID20240 | ||
IP-MFS2024060-KIT | 2020 x 400 x 600 | .dwg | IP-MFSID20240 | ||
IP-MFS2024080-KIT | 2020 x 400 x 800 | .dwg | IP-MFSID20240 | ||
IP-MFS2026040-KIT | 2020 x 600 x 400 | .dwg | IP-MFSID20260 | ||
IP-MFS2026060-KIT | 2020 x 600 x 600 | .dwg | IP-MFSID20260 | ||
IP-MFS2026080-KIT | 2020 x 600 x 800 | .dwg | IP-MFSID20260 | ||
IP-MFS2028040-KIT | 2020 x 800 x 400 | .dwg | IP-MFSID20280 | ||
IP-MFS2028060-KIT | 2020 x 800 x 600 | .dwg | IP-MFSID20280 | ||
IP-MFS2028080-KIT | 2020 x 800 x 800 | .dwg | IP-MFSID20280 | ||
IP-MFS20210060-KIT | 2020 x 1000 x 600 | .dwg | IP-MFSID202100 | ||
IP-MFS20210080-KIT | 2020 x 1000 x 800 | .dwg | IP-MFSID202100 | ||
IP-MFS20212060-KIT | 2020 x 1200 x 600 | .dwg | - | ||
IP-MFS20212080-KIT | 2020 x 1200 x 800 | .dwg | - |
