Electrical Enclosure Comparative Heat Test Data

A performance comparison between Standard, Insulated, Ventilated and Fan-Forced-Ventilated Electrical Enclosures.

To mitigate risk of electrical equipment failure, it is important to keep electrical enclosures cool. This can be achieved in several ways. We typically recommend fan-forced ventilation as a minimum for outdoor applications. In some situations, ventilation may suffice by adding vents to the bottom and top of the enclosure. We are also often asked if insulation foam can be added to the inside of an enclosure to avoid the need to add a fan but we typycally advise against this as it risks trapping heat inside the enclosure. These and other methods to reduce heat exist but how do they compare? A performance compasion between standard electrical enclosures, insulated electrical enclosures, ventilated electrical enclosures and fan-forced electrical enclosures is detailed below. In summary, it is evident that a fan is required as a minimum for outdoor installations in direct sunlight.

Comparative Heat Test: Up to 100 Watt Heat Load – Recorded Temperatures

Date: 22 November 2024 | Start Time: 6:30:00 AM | End Time: 6:29:00 PM
Ambient Temperature °C: Minimum: 15.8°C, Maximum: 38.1°C, Mean Average: 30.46°C
Irradiance W/m2: Minimum: 18.3W/m2, Maximum: 1321W/m2, Mean Average: 697.34W/m2
Relative Humidity %: Minimum: 12.4%, Maximum: 81.6%, Mean Average: 34.47%
Internal Heat Load W: < 100 Watts
Location: Melbourne, AU; Outdoor in Direct Sunlight, Stand Alone Installation; East-Facing

Tested Equipment:

Fan Ventilated Enclosure: IP-606030 600Hx600Wx300D Electrical Enclosure fitted with 1 x IP-V2224 Filter Fan and 1 x IP-V2000 Filter Vent.
Ventilated Enclosure: IP-606030 600Hx600Wx300D Electrical Enclosure fitted with 2 x IP-V2000 Filter Vents.
Standard Enclosure: IP-606030 600Hx600Wx300D Electrical Enclosure.
Insulated Enclosure: IP-606030 600Hx600Wx300D Electrical Enclosure fitted internally with 10.0mm Self-Adhesive Foil-Backed 25kg/m3 Polyolefin Thermal Insulation Foam.

Results:

The standard enclosure with no ventilation maintained an elevated mean average of 25.15°C above average ambient temperature. The fan-forced ventilated enclosure performed the best with a mean average of only 10.44°C above average ambient temperature and only 9.6°C above maximum ambient temperature. The enclosure fitted with vents performed similar to the standard enclosure with a mean average of 25.7°C above average ambient temperature. The insulated enclosure performed poorly, capturing heat and preventing heat dissipation, with a mean average 121.63% or 37.05°C above average ambient temperature and with a maximum temperature of 76.5°C.

Fan Ventilated Enclosure	Ventilated Enclosure	Standard Enclosure	Insulated Enclosure
Minimum: 15.0°C	Minimum: 14.2°C	Minimum: 14.0°C	Minimum: 14.3°C
Maximum: 47.7°C	Maximum: 65.8°C	Maximum: 66.0°C	Maximum: 76.5°C
Mean Average: 40.90°C	Mean Average: 56.16°C	Mean Average: 55.61°C	Mean Average: 67.51°C

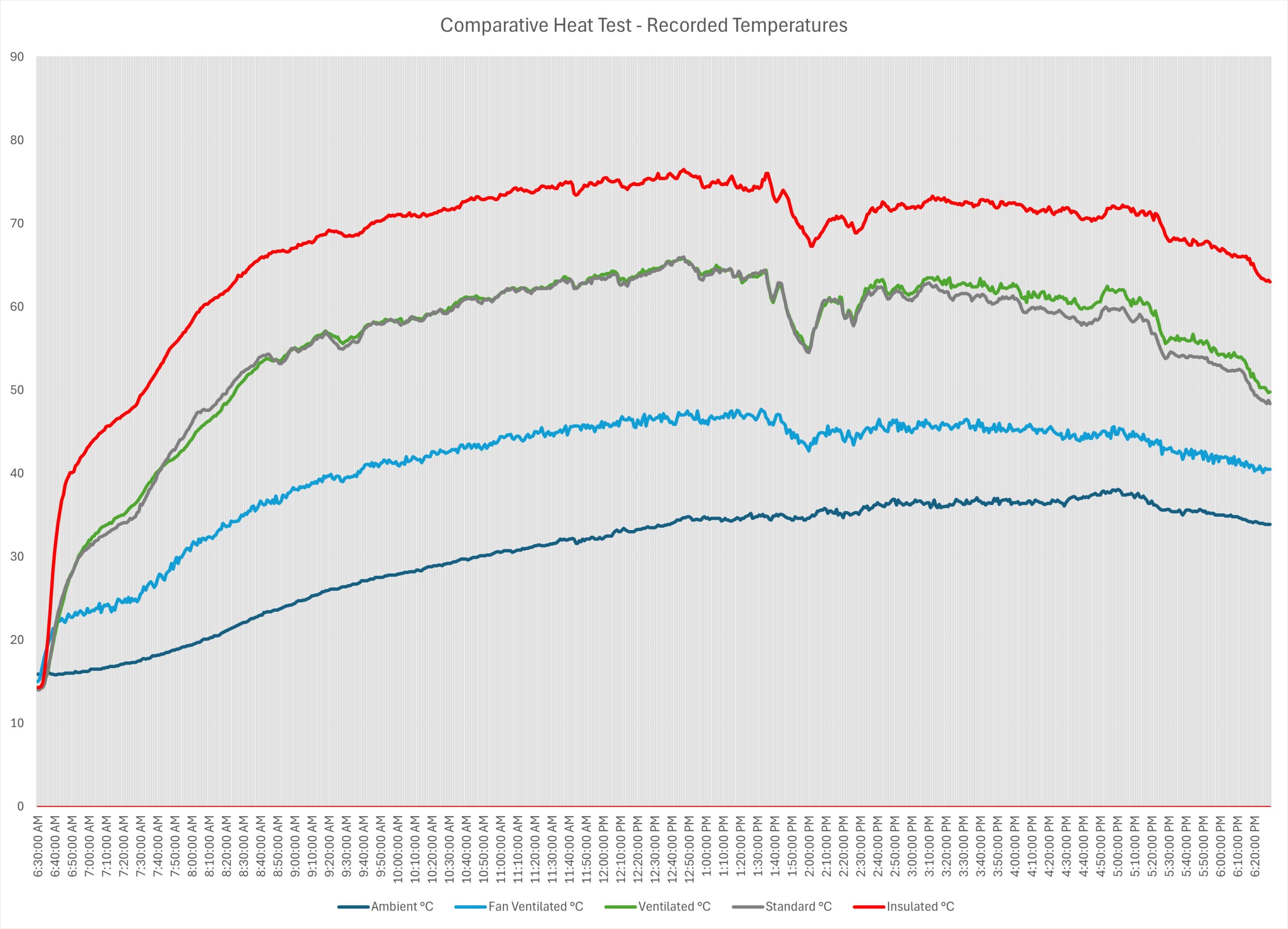

Electrical Enclosure Comparative Heat Test Temperatures 100 Watt

Time	Ambient °C	Fan °C	Vent °C	Standard °C	Insulated °C	Irradiance W/m2	RH %	Barometric (hpa)
6:30:00 AM	15.9	15.00	14.20	14.00	14.30	18.3	80.2	1011.7
6:31:00 AM	15.9	15.20	14.20	14.00	14.30	21.1	80.4	1011.6
6:32:00 AM	15.9	16.10	14.20	14.20	14.40	21	80.5	1011.6
6:33:00 AM	16	17.00	14.40	14.30	14.80	21.9	80.1	1011.7
6:34:00 AM	16	18.00	14.70	14.70	16.10	22	79.9	1011.6
6:35:00 AM	16.2	18.70	15.50	15.60	17.90	22.5	79.5	1011.6
6:36:00 AM	16	19.60	16.30	16.60	20.30	22.9	79.9	1011.6
6:37:00 AM	16	20.10	17.50	17.60	22.90	23.2	80.1	1011.6
6:38:00 AM	15.9	20.50	18.50	18.80	25.70	23.6	80.2	1011.6
6:39:00 AM	15.9	21.40	19.60	20.00	28.50	24	80.4	1011.6
6:40:00 AM	15.8	21.30	20.60	21.40	30.70	24.3	80.6	1011.6
6:41:00 AM	15.8	22.10	21.50	22.30	32.50	24.6	80.8	1011.5
6:42:00 AM	15.9	22.20	22.50	23.30	34.10	25	80.6	1011.6
6:43:00 AM	15.9	22.30	23.40	24.10	35.60	25.2	80.9	1011.6
6:44:00 AM	15.9	22.60	24.10	25.00	36.80	25.6	81.1	1011.6
6:45:00 AM	15.9	22.30	24.80	25.50	37.40	26	81.1	1011.6
6:46:00 AM	16	22.10	25.70	26.20	38.60	26.4	81.1	1011.7
6:47:00 AM	16	22.60	26.40	26.70	39.20	26.8	80.9	1011.8
6:48:00 AM	16	23.10	27.00	27.30	39.60	27.2	81	1011.8
6:49:00 AM	16	22.80	27.70	27.50	40.10	27.6	81.5	1011.8
6:50:00 AM	16	22.70	28.10	28.00	40.10	27.9	81.5	1011.8
6:51:00 AM	16	22.90	28.50	28.50	40.20	28.3	81.5	1011.8
6:52:00 AM	16.2	23.30	29.00	29.10	40.90	28.7	80.9	1011.9
6:53:00 AM	16.1	23.00	29.50	29.50	41.10	29.6	81.2	1011.8
6:54:00 AM	16.1	23.30	30.10	29.90	41.40	29.5	81.3	1011.8
6:55:00 AM	16.1	23.50	30.40	30.10	41.90	29.9	81.2	1011.9
6:56:00 AM	16.2	23.30	30.70	30.40	42.10	30.3	81.5	1011.8
6:57:00 AM	16.2	23.00	31.10	30.70	42.30	30.6	81.3	1011.8
6:58:00 AM	16.2	23.20	31.30	30.80	42.70	31.2	81.6	1011.9
6:59:00 AM	16.2	23.80	31.60	31.00	43.10	31.7	81.3	1011.8
7:00:00 AM	16.3	23.30	32.00	31.10	43.30	32	81.2	1011.8
7:01:00 AM	16.5	23.40	32.00	31.50	43.60	32.4	80.5	1011.8
7:02:00 AM	16.5	23.60	32.40	31.40	43.80	32.8	80.8	1011.8
7:03:00 AM	16.5	23.50	32.50	31.70	44.10	33.3	80.5	1011.9
7:04:00 AM	16.5	23.80	32.80	31.90	44.20	33.6	80.9	1011.8
7:05:00 AM	16.5	23.80	32.90	32.00	44.50	34	80.8	1011.8
7:06:00 AM	16.5	24.40	33.20	32.30	44.80	34.5	80.6	1011.9
7:07:00 AM	16.5	23.30	33.50	32.40	44.90	35.1	80.9	1011.8
7:08:00 AM	16.6	23.90	33.60	32.50	45.10	35.6	80.7	1011.8
7:09:00 AM	16.6	24.20	33.70	32.60	45.20	36.4	80.5	1012
7:10:00 AM	16.7	24.10	33.80	32.70	45.60	37.1	80.4	1011.8
7:11:00 AM	16.7	24.30	33.90	32.90	45.70	37.7	80.2	1011.8
7:12:00 AM	16.8	24.00	34.10	33.00	45.70	38.3	79.9	1011.8
7:13:00 AM	16.8	23.40	34.00	33.20	45.90	39.1	80.1	1011.8
7:14:00 AM	16.8	23.90	34.30	33.30	46.10	39.9	80.1	1011.9
7:15:00 AM	16.8	23.60	34.60	33.40	46.30	40.8	80.2	1011.9
7:16:00 AM	16.9	24.40	34.70	33.50	46.50	41.7	79.8	1011.9
7:17:00 AM	16.9	24.90	34.80	33.80	46.60	42.6	79.9	1011.9
7:18:00 AM	17	24.80	34.90	33.90	46.60	43.5	79.2	1011.9
7:19:00 AM	17.1	24.50	35.00	34.00	46.90	44.6	79.1	1011.7
7:20:00 AM	17.1	24.50	35.00	34.10	47.00	46.4	79	1011.9
7:21:00 AM	17.2	24.90	35.20	34.10	47.20	80	79.1	1011.9
7:22:00 AM	17.2	24.50	35.40	34.10	47.30	149.2	78.5	1011.9
7:23:00 AM	17.2	25.10	35.70	34.30	47.40	202.6	78.8	1011.8
7:24:00 AM	17.2	24.50	35.90	34.60	47.60	200.1	79	1011.7
7:25:00 AM	17.3	25.00	36.10	34.50	47.80	208.7	78.5	1011.8
7:26:00 AM	17.3	24.70	36.20	34.70	48.00	214.3	78.2	1011.9
7:27:00 AM	17.3	24.90	36.40	34.80	48.10	222.6	78.5	1011.7
7:28:00 AM	17.4	24.60	36.60	35.30	48.40	228.3	78.4	1011.8
7:29:00 AM	17.5	24.90	36.90	35.40	48.90	234.2	78.1	1011.9
7:30:00 AM	17.5	25.50	37.20	36.30	49.40	242.6	77.9	1011.8
7:31:00 AM	17.7	25.70	37.50	36.20	49.50	248.3	77.3	1012
7:32:00 AM	17.8	26.40	37.80	36.60	49.80	249.7	77.6	1011.9
7:33:00 AM	17.7	26.00	38.30	37.10	50.10	254.7	77	1011.9
7:34:00 AM	17.8	26.50	38.60	37.50	50.40	261.1	77.1	1012
7:35:00 AM	17.8	26.80	38.90	38.00	50.80	267.2	77.1	1012.1
7:36:00 AM	17.9	27.00	39.00	38.20	51.10	270.5	76.5	1011.9
7:37:00 AM	18.1	26.70	39.40	38.60	51.40	275	75.8	1012
7:38:00 AM	18.1	26.30	39.60	38.90	51.70	280	75.5	1012
7:39:00 AM	18.1	26.60	40.00	39.20	52.00	285.3	75.6	1011.9
7:40:00 AM	18.2	27.30	40.20	39.90	52.40	288.3	75.6	1011.9
7:41:00 AM	18.2	27.90	40.40	40.30	52.70	288.1	75.5	1011.9
7:42:00 AM	18.3	27.80	40.70	40.50	53.10	288.8	75.2	1011.9
7:43:00 AM	18.3	27.40	40.90	41.00	53.30	296	75.5	1011.9
7:44:00 AM	18.4	27.20	41.00	41.30	53.80	302.7	74.8	1011.8
7:45:00 AM	18.5	27.90	41.20	41.60	54.10	305	74.5	1011.8
7:46:00 AM	18.5	28.20	41.40	41.80	54.50	298.8	74.4	1011.8
7:47:00 AM	18.6	28.30	41.50	42.30	54.90	294	74.2	1011.9
7:48:00 AM	18.7	29.20	41.60	42.60	55.20	298.5	74.7	1011.9
7:49:00 AM	18.8	28.50	41.70	42.80	55.40	311.5	73.4	1011.9
7:50:00 AM	18.8	29.30	41.90	42.80	55.60	318.9	73.6	1011.7
7:51:00 AM	18.9	29.90	42.00	43.20	55.80	327.7	73.2	1011.8
7:52:00 AM	18.9	29.20	42.20	43.60	56.00	338.9	73	1011.9
7:53:00 AM	19	29.90	42.50	44.00	56.30	347.3	72.6	1011.8
7:54:00 AM	19.1	29.90	42.70	44.10	56.50	353.1	72.9	1011.9
7:55:00 AM	19.2	30.30	42.80	44.30	56.90	358	72.4	1011.8
7:56:00 AM	19.2	30.70	43.10	44.70	57.00	362.8	72.5	1011.8
7:57:00 AM	19.3	31.00	43.30	45.10	57.40	369	72.4	1011.9
7:58:00 AM	19.3	31.00	43.60	45.30	57.60	377.2	71.6	1011.8
7:59:00 AM	19.4	30.70	43.90	45.70	57.90	383.1	71.7	1011.9
8:00:00 AM	19.4	31.40	44.10	46.00	58.20	386.7	72	1011.8
8:01:00 AM	19.5	31.80	44.40	46.50	58.60	387.2	71.7	1011.7
8:02:00 AM	19.6	31.50	44.90	46.90	59.00	390.1	71.1	1011.8
8:03:00 AM	19.7	31.40	45.10	47.30	59.30	391.8	70.4	1011.8
8:04:00 AM	19.7	32.10	45.30	47.40	59.40	385.8	70.2	1011.8
8:05:00 AM	19.8	31.70	45.50	47.30	59.80	375	69.7	1011.8
8:06:00 AM	20	32.20	45.70	47.60	59.90	378.1	69.4	1011.8
8:07:00 AM	20.1	32.20	45.80	47.70	60.20	384	69.2	1011.8
8:08:00 AM	20.1	32.00	46.00	47.60	60.30	381.3	68.9	1011.8
8:09:00 AM	20.1	32.30	46.20	47.60	60.30	392.5	68.6	1011.7
8:10:00 AM	20.2	32.40	46.30	47.60	60.50	402	69	1011.8
8:11:00 AM	20.3	32.30	46.50	47.80	60.70	402.1	68.4	1011.8
8:12:00 AM	20.3	32.20	46.70	48.00	60.80	405.1	69.2	1011.7
8:13:00 AM	20.5	32.50	46.90	48.20	61.00	404	67.8	1011.7
8:14:00 AM	20.5	32.60	46.90	48.30	61.10	417.7	67.8	1011.8
8:15:00 AM	20.5	33.00	47.20	48.70	61.10	424.2	67.6	1011.7
8:16:00 AM	20.6	33.30	47.40	48.90	61.40	421.2	67.6	1011.7
8:17:00 AM	20.8	33.30	47.60	49.10	61.50	415.3	66.9	1011.7
8:18:00 AM	20.9	34.00	48.10	49.50	61.50	437.2	66.4	1011.6
8:19:00 AM	21	33.80	48.40	49.50	61.80	406.8	66.1	1011.7
8:20:00 AM	21.1	33.60	48.30	49.60	61.90	436.5	65.6	1011.7
8:21:00 AM	21.2	33.70	48.60	50.10	62.00	449.3	65	1011.7
8:22:00 AM	21.3	33.70	48.80	50.30	62.30	455.4	65.1	1011.6
8:23:00 AM	21.4	34.30	49.10	50.50	62.50	464.7	64.9	1011.7
8:24:00 AM	21.5	34.20	49.40	50.90	62.80	469.5	64.9	1011.8
8:25:00 AM	21.6	34.20	49.80	51.20	63.00	471.9	64.5	1011.7
8:26:00 AM	21.7	34.30	50.20	51.40	63.30	476.1	63.9	1011.8
8:27:00 AM	21.8	34.30	50.50	51.60	63.80	479.2	63.6	1011.8
8:28:00 AM	21.9	34.60	50.70	51.80	63.70	484.4	63.1	1011.8
8:29:00 AM	22	35.00	50.90	52.10	63.70	492.1	62.6	1011.8
8:30:00 AM	22.1	34.90	51.10	52.20	64.10	498.8	63	1011.7
8:31:00 AM	22.1	35.20	51.40	52.40	64.10	501.6	62.4	1011.8
8:32:00 AM	22.2	35.10	51.70	52.50	64.40	505.5	62.5	1011.7
8:33:00 AM	22.3	35.50	51.90	52.60	64.60	507.7	62.2	1011.8
8:34:00 AM	22.5	35.50	52.00	52.80	64.90	514.4	60.9	1011.7
8:35:00 AM	22.6	36.00	52.10	52.90	65.00	517.8	60.6	1011.7
8:36:00 AM	22.6	36.10	52.40	52.90	65.20	527.1	61	1011.6
8:37:00 AM	22.7	35.50	52.50	53.20	65.40	535.4	60.9	1011.7
8:38:00 AM	22.8	35.80	52.70	53.50	65.50	540.8	60.2	1011.7
8:39:00 AM	22.9	36.20	53.10	53.90	65.70	541.1	60.1	1011.6
8:40:00 AM	23	36.70	53.30	54.00	65.90	528.4	59.3	1011.8
8:41:00 AM	23	36.40	53.40	54.10	66.00	518.9	58.8	1011.7
8:42:00 AM	23.3	36.20	53.60	54.20	65.90	549.4	58.5	1011.6
8:43:00 AM	23.3	36.30	53.70	54.10	66.10	509.3	58.9	1011.5
8:44:00 AM	23.4	36.80	53.80	54.30	66.00	476	58.9	1011.6
8:45:00 AM	23.4	36.60	53.70	54.30	66.40	455.4	57.4	1011.5
8:46:00 AM	23.4	36.40	53.60	54.00	66.40	492	57.6	1011.6
8:47:00 AM	23.5	36.80	53.50	53.70	66.60	502.9	57.5	1011.7
8:48:00 AM	23.6	36.40	53.50	53.60	66.60	503.2	57.6	1011.6
8:49:00 AM	23.6	37.30	53.70	53.60	66.60	489.4	56.8	1011.5
8:50:00 AM	23.6	36.50	53.60	53.50	66.70	466.5	56.2	1011.6
8:51:00 AM	23.7	36.40	53.50	53.20	66.70	512.6	56.6	1011.7
8:52:00 AM	23.8	36.70	53.60	53.20	66.70	541.8	56.1	1011.6
8:53:00 AM	23.9	37.40	53.80	53.40	66.80	552.4	55.3	1011.6
8:54:00 AM	24	37.30	54.10	53.50	66.70	567	55.6	1011.6
8:55:00 AM	24.1	37.10	54.20	53.80	66.60	571.7	55.6	1011.6
8:56:00 AM	24.1	37.60	54.40	54.20	66.60	587.3	54.9	1011.5
8:57:00 AM	24.2	37.70	54.70	54.60	66.70	583.6	54.8	1011.6
8:58:00 AM	24.2	37.90	54.80	55.00	67.00	590.4	53.7	1011.6
8:59:00 AM	24.3	38.30	54.90	55.00	67.00	582.9	53.9	1011.5
9:00:00 AM	24.4	38.10	55.10	55.00	67.10	572.2	53.1	1011.6
9:01:00 AM	24.6	38.10	54.90	54.80	67.10	558.8	52.7	1011.5
9:02:00 AM	24.7	38.00	54.90	54.60	67.50	573.1	52.8	1011.5
9:03:00 AM	24.7	38.40	54.90	54.70	67.40	588.2	52.9	1011.6
9:04:00 AM	24.7	38.30	55.10	54.90	67.40	586.7	52.3	1011.5
9:05:00 AM	24.8	38.40	55.20	55.00	67.60	593.7	52.1	1011.5
9:06:00 AM	24.8	38.30	55.30	55.00	67.60	590.2	51.4	1011.5
9:07:00 AM	24.9	38.60	55.50	55.20	67.70	594.6	51.6	1011.6
9:08:00 AM	25	38.40	55.60	55.30	67.80	611.6	51.2	1011.6
9:09:00 AM	25.1	38.60	55.60	55.40	67.80	628.1	50.8	1011.5
9:10:00 AM	25.3	38.90	55.80	55.60	67.70	645.9	50.7	1011.4
9:11:00 AM	25.3	38.80	56.10	55.90	67.80	648.9	50.5	1011.5
9:12:00 AM	25.4	39.00	56.40	56.20	68.10	657.7	50.8	1011.5
9:13:00 AM	25.4	38.80	56.50	56.10	68.40	661.6	49.9	1011.5
9:14:00 AM	25.5	39.30	56.60	56.40	68.50	669.3	49.7	1011.5
9:15:00 AM	25.6	39.30	56.60	56.40	68.60	676.4	48.9	1011.5
9:16:00 AM	25.8	39.00	56.70	56.30	68.60	681.1	49.2	1011.4
9:17:00 AM	25.8	39.70	56.90	56.60	68.70	688.4	49.4	1011.4
9:18:00 AM	25.9	39.50	57.10	57.00	68.70	694.3	47.7	1011.5
9:19:00 AM	25.9	39.70	56.90	56.70	69.00	644.9	46.6	1011.3
9:20:00 AM	26	39.70	56.80	56.50	69.20	547.8	46.9	1011.3
9:21:00 AM	26.1	39.90	56.70	56.20	69.10	673.4	46.6	1011.4
9:22:00 AM	26.1	39.40	56.50	56.00	69.10	667.8	46.3	1011.4
9:23:00 AM	26.1	39.30	56.50	55.70	69.00	664.2	46.2	1011.4
9:24:00 AM	26.1	39.60	56.30	55.60	69.10	556.3	46.4	1011.3
9:25:00 AM	26.1	39.70	56.40	55.40	69.00	520.5	46	1011.4
9:26:00 AM	26.2	39.60	56.00	55.00	68.90	635.7	46.1	1011.4
9:27:00 AM	26.3	39.10	55.80	55.00	68.90	695.6	45.8	1011.4
9:28:00 AM	26.4	39.00	55.60	54.90	68.70	705.6	45.7	1011.4
9:29:00 AM	26.4	39.40	55.80	55.10	68.50	638.6	46	1011.3
9:30:00 AM	26.4	39.50	55.90	55.30	68.50	726.2	45.2	1011.3
9:31:00 AM	26.5	39.60	56.00	55.30	68.50	704.6	45.1	1011.3
9:32:00 AM	26.5	39.50	56.20	55.50	68.60	703.8	45.5	1011.3
9:33:00 AM	26.6	39.60	56.40	55.70	68.50	703.2	45.1	1011.4
9:34:00 AM	26.7	39.60	56.30	55.90	68.50	641.3	44.9	1011.3
9:35:00 AM	26.7	39.80	56.30	55.80	68.60	656.9	44.7	1011.2
9:36:00 AM	26.7	39.60	56.40	55.70	68.70	716.6	45.5	1011.3
9:37:00 AM	26.8	40.20	56.60	55.80	68.60	719.6	44.3	1011.2
9:38:00 AM	26.9	40.10	56.80	56.20	68.90	702.9	44	1011.2
9:39:00 AM	27.1	40.50	57.00	56.60	68.90	712.1	44.4	1011.2
9:40:00 AM	27.1	40.60	57.20	57.10	69.10	741.4	43.8	1011.3
9:41:00 AM	27.1	41.00	57.60	57.40	69.40	702.4	43.8	1011.2
9:42:00 AM	27.1	41.10	57.80	57.60	69.50	725.2	43.7	1011.3
9:43:00 AM	27.2	41.10	57.90	57.80	69.70	733.9	43.8	1011.2
9:44:00 AM	27.3	40.90	57.80	57.80	69.90	744	43.9	1011.1
9:45:00 AM	27.3	41.30	58.00	58.00	70.10	747.4	43.7	1011.2
9:46:00 AM	27.3	40.80	58.20	58.10	70.00	765.6	42.8	1011.2
9:47:00 AM	27.5	41.20	58.10	58.00	70.20	751.1	43.2	1011.3
9:48:00 AM	27.5	41.10	58.10	57.90	70.30	752.7	42.5	1011.2
9:49:00 AM	27.5	40.80	58.00	58.00	70.30	753.4	42.3	1011.2
9:50:00 AM	27.5	41.20	58.10	57.90	70.30	775.1	42.1	1011.3
9:51:00 AM	27.5	41.30	58.20	57.90	70.40	776.4	42.2	1011.1
9:52:00 AM	27.6	41.60	58.30	58.00	70.50	774.5	42.1	1011.2
9:53:00 AM	27.7	41.50	58.50	58.20	70.70	773.4	41.6	1011.2
9:54:00 AM	27.7	41.20	58.40	58.30	70.80	795.3	41.8	1011.2
9:55:00 AM	27.8	41.60	58.40	58.40	71.00	792.5	41.8	1011.1
9:56:00 AM	27.8	41.40	58.40	58.50	70.90	792.6	41.1	1011.2
9:57:00 AM	27.8	41.20	58.40	58.40	71.00	786.5	41.3	1011.2
9:58:00 AM	27.8	41.20	58.20	58.30	70.90	786.7	41.1	1011
9:59:00 AM	27.8	41.40	58.40	58.20	71.00	790.9	41.4	1011.2
10:00:00 AM	27.9	41.00	58.40	58.30	71.10	770.3	41.4	1011.2
10:01:00 AM	27.9	40.90	58.50	58.00	71.10	796.3	41.5	1011.2
10:02:00 AM	28	41.20	58.60	57.80	71.10	808.2	41.4	1011
10:03:00 AM	28	41.30	58.10	58.00	70.90	811.3	41.3	1011.1
10:04:00 AM	28.1	41.10	58.10	58.00	70.90	794	41.3	1011
10:05:00 AM	28.1	42.00	58.10	58.30	70.90	798.6	40.5	1011.1
10:06:00 AM	28.1	41.40	58.20	58.20	71.10	820.8	41.2	1011.1
10:07:00 AM	28.2	41.50	58.40	58.60	71.30	818.5	40.6	1011.1
10:08:00 AM	28.2	41.60	58.60	58.80	70.90	817.6	40.4	1011
10:09:00 AM	28.2	42.00	58.60	58.80	71.00	818	40.5	1011
10:10:00 AM	28.2	41.90	58.70	58.50	71.10	835.5	41	1011.1
10:11:00 AM	28.4	41.70	58.60	58.50	70.90	842.6	40.1	1011
10:12:00 AM	28.4	41.60	58.60	58.40	70.80	849.4	40.3	1011
10:13:00 AM	28.3	41.70	58.60	58.30	70.80	857.1	40	1011.1
10:14:00 AM	28.3	41.30	58.50	58.30	71.00	856.7	40.3	1011
10:15:00 AM	28.5	41.60	58.60	58.40	71.20	855.3	40.8	1010.9
10:16:00 AM	28.6	42.00	58.90	58.70	71.10	848.7	40.4	1011
10:17:00 AM	28.7	42.10	59.10	58.90	70.90	837.5	40.2	1010.9
10:18:00 AM	28.8	42.00	59.10	59.10	71.00	810.9	40.1	1010.9
10:19:00 AM	28.8	42.00	59.10	59.00	71.10	834.4	40.6	1010.9
10:20:00 AM	28.8	42.60	59.20	59.20	71.10	857.3	39.8	1010.8
10:21:00 AM	28.9	42.60	59.20	59.40	71.20	871.1	39.5	1010.8
10:22:00 AM	28.9	42.50	59.30	59.20	71.30	871.9	39.2	1011
10:23:00 AM	28.9	42.30	59.30	59.40	71.30	882.2	39.1	1010.9
10:24:00 AM	29	42.40	59.50	59.50	71.50	885.7	39.1	1010.9
10:25:00 AM	29	42.80	59.60	59.70	71.50	892.2	38.9	1010.8
10:26:00 AM	28.9	42.60	59.60	59.30	71.60	895	39.4	1010.9
10:27:00 AM	29.1	42.60	59.40	59.20	71.80	897	38.8	1010.9
10:28:00 AM	29.1	42.40	59.40	59.20	71.70	899.4	38.8	1010.8
10:29:00 AM	29.2	42.50	59.60	59.20	71.60	902.1	39	1010.9
10:30:00 AM	29.2	42.60	59.90	59.50	71.60	905.2	38.1	1011
10:31:00 AM	29.2	42.70	59.80	59.50	71.70	910.1	38.5	1010.9
10:32:00 AM	29.3	42.90	60.00	59.60	71.80	913.5	38.8	1010.8
10:33:00 AM	29.4	42.80	60.30	60.00	71.70	915.4	38.3	1010.9
10:34:00 AM	29.4	42.90	60.50	60.10	71.90	918.3	38.2	1010.9
10:35:00 AM	29.5	42.50	60.40	60.00	72.00	922.1	38.7	1010.9
10:36:00 AM	29.6	43.10	60.70	60.30	71.90	924.7	38.2	1010.8
10:37:00 AM	29.7	43.40	60.90	60.60	72.30	928.9	37.9	1010.9
10:38:00 AM	29.7	43.40	60.90	60.70	72.60	932.8	37.7	1010.9
10:39:00 AM	29.7	43.00	61.10	60.90	72.60	935	37.3	1010.8
10:40:00 AM	29.7	43.10	61.20	60.90	72.70	936.1	37.6	1010.9
10:41:00 AM	29.6	43.50	61.10	61.00	72.80	941.4	38.3	1010.8
10:42:00 AM	29.7	43.50	61.10	61.00	72.90	947.1	37.8	1010.8
10:43:00 AM	29.8	43.00	61.10	60.90	73.10	947.3	37.7	1010.8
10:44:00 AM	29.9	43.30	61.10	60.90	72.90	951	37.6	1010.9
10:45:00 AM	29.9	43.50	61.20	61.00	72.90	949.7	36.7	1010.8
10:46:00 AM	29.9	43.10	61.30	60.90	73.20	944.1	37.5	1010.9
10:47:00 AM	30	43.50	61.10	60.60	73.20	956.3	37.1	1010.9
10:48:00 AM	30.1	43.10	61.00	60.50	73.00	958.1	36.9	1010.9
10:49:00 AM	30.1	42.90	61.00	60.40	72.90	954.5	36.1	1010.9
10:50:00 AM	30.1	43.20	61.00	60.70	72.90	925.6	37	1010.9
10:51:00 AM	30.1	43.50	60.90	60.90	72.90	871.1	36.8	1010.9
10:52:00 AM	30.2	43.00	60.90	60.80	73.00	854.4	36.8	1010.9
10:53:00 AM	30.2	43.30	61.00	60.90	73.10	843.7	36.3	1010.9
10:54:00 AM	30.2	43.60	60.90	60.80	73.10	902.6	36.1	1010.9
10:55:00 AM	30.3	43.40	60.70	60.60	73.10	942.1	36.7	1011
10:56:00 AM	30.4	43.80	60.90	60.80	73.00	973	37	1010.9
10:57:00 AM	30.5	43.60	61.10	61.10	72.90	986.1	36.4	1010.9
10:58:00 AM	30.6	43.70	61.20	61.10	72.90	996	36.9	1010.9
10:59:00 AM	30.6	44.00	61.40	61.30	73.10	994.6	36.2	1010.8
11:00:00 AM	30.5	44.40	61.60	61.60	73.50	994.3	37.4	1011
11:01:00 AM	30.6	44.40	61.80	61.70	73.40	989.2	36.8	1011
11:02:00 AM	30.7	44.30	61.70	61.80	73.40	992.5	36.7	1010.9
11:03:00 AM	30.7	44.40	62.00	62.00	73.40	1000	36.4	1011
11:04:00 AM	30.7	44.60	62.00	62.20	73.70	999.5	35.2	1010.8
11:05:00 AM	30.7	44.60	62.10	62.00	73.70	1009	35.9	1010.9
11:06:00 AM	30.7	44.70	62.20	62.10	73.80	1010	35.5	1010.8
11:07:00 AM	30.5	44.20	62.30	62.30	74.00	1009	36.1	1010.7
11:08:00 AM	30.6	44.10	62.30	62.10	74.20	1007	36.6	1010.8
11:09:00 AM	30.7	44.40	62.10	61.80	74.30	1002	36.4	1010.7
11:10:00 AM	30.8	44.50	62.10	61.90	74.00	1002	36	1010.7
11:11:00 AM	30.8	44.40	62.20	62.00	74.10	1000	35.7	1010.8
11:12:00 AM	30.8	44.10	62.30	62.20	74.20	995.8	35.7	1010.7
11:13:00 AM	31	43.90	62.30	62.20	74.00	1006	35.4	1010.8
11:14:00 AM	30.9	44.00	62.20	62.30	73.90	1011	35.6	1010.8
11:15:00 AM	31	44.40	62.20	61.90	74.00	1016	35.7	1010.7
11:16:00 AM	31	44.70	62.00	61.80	73.90	1016	35.2	1010.6
11:17:00 AM	31.1	44.30	61.90	61.80	73.80	1021	35.4	1010.7
11:18:00 AM	31.1	44.40	61.80	61.60	73.70	1026	34.8	1010.7
11:19:00 AM	31.2	44.50	62.10	61.90	73.70	1026	34.6	1010.8
11:20:00 AM	31.3	45.00	62.20	62.00	73.80	1032	33.4	1010.7
11:21:00 AM	31.3	45.00	62.30	62.30	74.00	1031	33.8	1010.6
11:22:00 AM	31.4	44.80	62.20	62.20	74.00	1034	33.4	1010.6
11:23:00 AM	31.4	45.00	62.30	62.20	74.30	1038	33.4	1010.5
11:24:00 AM	31.3	45.50	62.40	62.20	74.50	1041	33.8	1010.6
11:25:00 AM	31.3	44.80	62.30	62.20	74.50	1039	33.8	1010.5
11:26:00 AM	31.3	44.40	62.20	62.20	74.40	1041	33.5	1010.6
11:27:00 AM	31.4	44.80	62.30	62.20	74.30	1043	33.5	1010.5
11:28:00 AM	31.4	45.00	62.40	62.30	74.40	1045	33.3	1010.5
11:29:00 AM	31.5	44.60	62.60	62.20	74.30	1047	32.9	1010.5
11:30:00 AM	31.5	44.80	62.70	62.40	74.50	1049	32.3	1010.5
11:31:00 AM	31.6	44.50	62.70	62.60	74.30	1052	33	1010.4
11:32:00 AM	31.6	44.90	63.10	62.70	74.20	1051	33.1	1010.4
11:33:00 AM	31.7	44.90	63.10	62.90	74.20	1053	33.6	1010.3
11:34:00 AM	31.9	45.00	63.10	63.10	74.60	1052	32.7	1010.4
11:35:00 AM	32.1	45.20	63.10	63.10	74.80	1052	33.2	1010.3
11:36:00 AM	32	44.90	63.30	63.30	74.60	1056	33.4	1010.3
11:37:00 AM	32.1	45.30	63.60	63.20	74.80	1061	31.5	1010.4
11:38:00 AM	32	45.70	63.60	63.00	75.00	1065	29.5	1010.3
11:39:00 AM	32	44.60	63.30	62.90	74.90	1067	30.6	1010.4
11:40:00 AM	32.1	45.20	63.40	63.20	74.90	1071	30.4	1010.2
11:41:00 AM	32.1	45.60	63.20	63.30	75.00	1072	30.5	1010.3
11:42:00 AM	32.2	45.60	63.00	62.90	74.70	1074	30.7	1010.2
11:43:00 AM	32.1	45.70	62.50	62.20	73.60	1074	30.1	1010.2
11:44:00 AM	31.6	45.70	62.30	62.20	73.40	1074	31.1	1010.2
11:45:00 AM	31.6	45.70	62.40	62.30	73.50	1073	30.3	1010.1
11:46:00 AM	31.9	45.60	62.50	62.70	73.80	1074	30.2	1010.1
11:47:00 AM	31.8	45.20	62.80	62.80	74.00	1072	30.8	1010.1
11:48:00 AM	32.1	45.80	62.80	62.90	74.20	1081	30.2	1010.2
11:49:00 AM	31.9	45.80	62.80	62.90	74.60	1085	30.3	1010.2
11:50:00 AM	32.1	45.40	62.90	62.80	74.50	1081	29.9	1010
11:51:00 AM	32.1	45.80	63.30	63.00	74.50	1079	29.8	1010
11:52:00 AM	32.1	45.40	63.50	63.30	74.90	1079	29.9	1010.1
11:53:00 AM	32.3	45.70	63.50	62.80	74.90	1086	30.6	1010
11:54:00 AM	32.3	45.60	63.50	63.40	74.70	1086	28.8	1010.1
11:55:00 AM	32.1	45.00	63.80	63.50	74.60	1083	29.6	1010.1
11:56:00 AM	32.1	45.50	63.70	63.40	74.70	1087	29.5	1010
11:57:00 AM	32.1	45.70	63.60	63.50	75.00	1093	30.6	1010
11:58:00 AM	32.3	45.50	63.70	63.50	74.90	1089	29.4	1010.1
11:59:00 AM	32.1	46.20	63.90	63.30	75.00	1092	29.5	1010.1
12:00:00 PM	32.2	45.50	63.90	63.50	75.40	1092	29.8	1010.1
12:01:00 PM	32.4	46.10	63.90	63.30	75.50	1090	29.6	1010
12:02:00 PM	32.5	45.90	64.00	63.40	75.50	1086	29.4	1010
12:03:00 PM	32.5	45.90	64.00	63.70	75.20	1090	27.9	1009.9
12:04:00 PM	32.5	45.60	64.00	63.60	75.10	1095	27.4	1009.9
12:05:00 PM	32.5	45.70	64.30	63.90	75.00	1102	28.3	1009.9
12:06:00 PM	32.9	46.00	64.30	63.90	75.00	1104	26.7	1010
12:07:00 PM	33.1	45.80	64.20	63.90	75.10	1109	25.4	1010
12:08:00 PM	33.2	46.20	64.00	63.80	75.20	1117	25.1	1009.9
12:09:00 PM	33	45.70	63.50	62.90	75.20	1117	25.5	1009.9
12:10:00 PM	33	46.40	63.20	62.60	74.80	1119	26.8	1009.9
12:11:00 PM	33.2	46.80	63.40	62.70	74.40	1125	24.4	1009.9
12:12:00 PM	33.4	46.50	63.40	63.00	74.40	1124	23.7	1009.9
12:13:00 PM	33.2	46.40	63.10	62.70	74.30	1122	25.7	1009.8
12:14:00 PM	33.1	46.40	63.00	62.50	74.10	1117	24	1009.8
12:15:00 PM	33	46.70	63.40	63.00	74.40	1119	24.1	1009.8
12:16:00 PM	33	46.40	63.50	63.40	74.60	1115	24.7	1009.8
12:17:00 PM	33	46.50	63.60	63.30	74.70	1111	24.8	1009.8
12:18:00 PM	33	45.60	63.50	63.40	74.80	1113	24.7	1009.8
12:19:00 PM	33.2	45.50	63.70	63.50	74.70	1121	24.5	1009.7
12:20:00 PM	33.3	46.40	63.80	63.60	74.70	1126	25.4	1009.7
12:21:00 PM	33.3	46.00	64.10	63.80	74.70	1129	25.9	1009.8
12:22:00 PM	33.3	45.80	64.00	63.70	74.80	1129	26.5	1009.8
12:23:00 PM	33.4	46.60	64.50	63.90	74.80	1127	26.1	1009.7
12:24:00 PM	33.4	47.10	64.10	63.90	75.20	1132	25.6	1009.8
12:25:00 PM	33.5	45.70	64.20	63.80	75.30	1130	26.2	1009.7
12:26:00 PM	33.6	46.50	64.30	64.10	75.40	1139	26	1009.8
12:27:00 PM	33.5	46.90	64.50	64.00	75.40	1136	25.4	1009.7
12:28:00 PM	33.5	46.60	64.40	64.20	75.30	1143	25.7	1009.8
12:29:00 PM	33.5	46.40	64.60	64.30	75.20	1143	25.7	1009.7
12:30:00 PM	33.5	46.50	64.60	64.30	75.30	1147	25.7	1009.7
12:31:00 PM	33.6	46.70	64.60	64.40	75.50	1149	25.2	1009.6
12:32:00 PM	33.8	46.70	64.60	64.40	76.00	1144	23.7	1009.6
12:33:00 PM	33.7	47.00	64.70	64.50	75.40	1147	22.4	1009.6
12:34:00 PM	33.7	46.20	64.80	64.60	75.40	1142	22.2	1009.7
12:35:00 PM	33.7	47.20	64.90	64.80	75.40	1140	21.1	1009.6
12:36:00 PM	33.8	46.60	65.00	65.00	75.40	1152	21.7	1009.6
12:37:00 PM	33.8	46.80	65.40	65.30	75.50	1149	20.5	1009.6
12:38:00 PM	33.9	46.50	65.50	65.40	75.90	1142	21	1009.5
12:39:00 PM	33.9	46.10	65.40	65.10	76.00	1145	21	1009.5
12:40:00 PM	34	46.20	65.30	65.00	75.80	1145	20.3	1009.6
12:41:00 PM	34.1	45.90	65.50	65.40	75.60	1155	21	1009.5
12:42:00 PM	34.2	45.90	65.50	65.50	75.40	1161	21.7	1009.5
12:43:00 PM	34.4	46.60	65.60	65.60	75.40	1172	20.4	1009.5
12:44:00 PM	34.4	47.30	65.70	65.90	75.80	1180	19.2	1009.6
12:45:00 PM	34.4	47.00	65.70	65.90	76.20	1190	19.7	1009.5
12:46:00 PM	34.6	47.00	65.80	65.90	76.30	1193	19.6	1009.5
12:47:00 PM	34.7	47.00	65.80	66.00	76.50	1196	18.9	1009.4
12:48:00 PM	34.7	47.10	65.60	65.40	76.20	1198	19.2	1009.4
12:49:00 PM	34.8	47.50	65.50	65.40	76.10	1198	19.2	1009.4
12:50:00 PM	34.8	47.00	65.40	65.10	76.00	1195	19.7	1009.4
12:51:00 PM	34.7	47.10	65.20	65.20	75.80	1093	19	1009.3
12:52:00 PM	34.4	46.80	65.00	65.00	75.70	925.6	20.1	1009.3
12:53:00 PM	34.4	46.50	64.60	64.60	75.60	1006	20.4	1009.4
12:54:00 PM	34.5	46.50	64.60	64.30	75.70	949.1	20.9	1009.4
12:55:00 PM	34.5	47.50	64.60	64.50	75.50	688.8	20.4	1009.3
12:56:00 PM	34.4	46.30	64.10	63.40	75.60	964.7	19	1009.3
12:57:00 PM	34.4	46.00	63.90	63.30	75.00	1055	20.7	1009.3
12:58:00 PM	34.7	46.40	63.90	63.20	74.40	1163	20.2	1009.3
12:59:00 PM	34.8	46.00	64.10	63.70	74.30	1172	20.8	1009.3
1:00:00 PM	34.6	46.30	64.20	63.90	74.40	1162	19.6	1009.2
1:01:00 PM	34.7	45.90	64.20	63.80	74.50	1163	20	1009.3
1:02:00 PM	34.5	46.60	64.20	63.90	74.40	1155	19.7	1009.2
1:03:00 PM	34.6	46.90	64.40	63.90	74.90	1166	19.7	1009.3
1:04:00 PM	34.6	46.60	64.50	64.10	75.00	1164	18.6	1009.3
1:05:00 PM	34.6	46.50	64.60	64.60	74.90	1167	19	1009.1
1:06:00 PM	34.6	46.70	65.00	64.40	74.90	1167	18.8	1009.3
1:07:00 PM	34.6	46.70	64.70	64.40	75.20	1167	18.4	1009.1
1:08:00 PM	34.6	46.60	64.70	64.10	74.90	1170	17.8	1009.2
1:09:00 PM	34.3	46.80	64.40	64.40	74.70	1173	17.4	1009.1
1:10:00 PM	34.4	46.70	64.50	64.40	74.70	1168	17.9	1009.1
1:11:00 PM	34.6	47.20	64.30	64.40	74.80	1174	18.5	1009.1
1:12:00 PM	34.4	47.10	64.40	64.40	74.70	1180	18.8	1009
1:13:00 PM	34.4	46.70	64.40	64.50	75.10	1204	17.9	1009
1:14:00 PM	34.3	47.40	64.60	64.60	75.40	219.8	18.9	1008.9
1:15:00 PM	34.3	47.50	64.30	64.40	75.70	1208	18.4	1009
1:16:00 PM	34.4	46.70	63.60	63.60	75.20	1177	19.8	1009
1:17:00 PM	34.5	47.00	63.70	63.60	74.70	1107	18.8	1009
1:18:00 PM	34.7	47.60	63.70	63.80	74.30	1131	18.8	1009
1:19:00 PM	34.6	47.50	63.90	64.30	74.30	183.3	19.1	1009.1
1:20:00 PM	34.4	47.00	63.50	64.00	74.60	392.9	18.1	1009.1
1:21:00 PM	34.6	46.90	62.90	63.20	74.30	1172	17.3	1009
1:22:00 PM	34.6	46.60	63.10	63.40	74.00	1160	18.2	1008.9
1:23:00 PM	34.8	46.90	63.20	63.40	74.30	1156	19	1008.8
1:24:00 PM	34.9	47.10	63.50	63.60	74.00	1151	18.3	1008.9
1:25:00 PM	35	47.10	63.80	63.60	73.90	1160	18.7	1008.9
1:26:00 PM	35.2	47.00	63.70	63.70	74.00	1161	17.3	1008.9
1:27:00 PM	34.6	46.90	63.60	64.00	74.00	1168	17.8	1008.8
1:28:00 PM	34.7	46.70	63.70	64.00	74.50	1175	17	1008.9
1:29:00 PM	34.8	46.40	63.60	64.10	74.30	1186	16.2	1008.7
1:30:00 PM	34.8	46.70	63.60	64.00	74.40	1210	16.8	1008.8
1:31:00 PM	35	47.20	63.80	64.00	74.20	1221	18.2	1008.8
1:32:00 PM	34.9	47.70	63.90	64.30	74.40	1233	16.5	1008.7
1:33:00 PM	35.1	47.50	64.20	64.30	75.30	1262	16.3	1008.7
1:34:00 PM	34.8	47.40	64.10	64.40	75.20	958.1	16.5	1008.7
1:35:00 PM	34.9	46.70	64.40	64.00	76.00	347.5	16.1	1008.7
1:36:00 PM	34.8	46.50	63.10	62.80	76.00	1070	18.1	1008.7
1:37:00 PM	34.5	45.90	62.10	61.90	75.30	291.2	22.1	1008.7
1:38:00 PM	34.4	46.10	61.00	61.30	74.60	1127	22.6	1008.8
1:39:00 PM	34.9	45.80	60.50	60.80	73.40	1316	17	1008.7
1:40:00 PM	34.9	46.40	61.10	61.50	72.90	1317	20.4	1008.8
1:41:00 PM	35.1	47.00	61.80	62.10	72.60	1321	17	1008.7
1:42:00 PM	34.9	47.10	62.30	62.90	72.90	903.3	16.4	1008.6
1:43:00 PM	35.1	47.00	62.60	62.90	73.20	541.4	16.1	1008.6
1:44:00 PM	35.1	46.20	62.40	62.80	73.60	262	16.4	1008.7
1:45:00 PM	35	46.10	61.60	61.70	74.00	304	16.5	1008.7
1:46:00 PM	34.8	45.80	60.60	60.60	73.60	259.9	17.2	1008.7
1:47:00 PM	34.7	44.80	59.70	59.60	73.30	257.4	19.6	1008.8
1:48:00 PM	34.6	45.20	59.10	58.90	72.90	235.3	19.2	1008.7
1:49:00 PM	34.6	45.20	58.60	58.50	72.10	234.8	16.2	1008.6
1:50:00 PM	34.4	44.20	58.10	57.80	71.30	240	18.1	1008.7
1:51:00 PM	34.4	44.90	57.70	57.30	70.80	239.8	21.1	1008.6
1:52:00 PM	34.8	44.30	57.10	56.70	70.70	239.3	17.5	1008.7
1:53:00 PM	34.6	44.60	56.90	56.40	70.10	239.9	17.9	1008.7
1:54:00 PM	34.6	43.60	56.50	56.00	69.80	246	16	1008.6
1:55:00 PM	34.6	43.90	56.50	55.70	69.50	249.4	15.7	1008.6
1:56:00 PM	34.7	43.80	56.20	55.60	69.60	255.4	15.8	1008.7
1:57:00 PM	34.4	43.70	55.50	55.40	68.90	265.5	16.7	1008.7
1:58:00 PM	34.4	43.40	55.30	54.90	68.70	269.7	18.3	1008.7
1:59:00 PM	34.6	43.10	55.10	54.60	68.40	289.3	18.7	1008.6
2:00:00 PM	34.6	42.70	54.90	54.50	68.10	1288	17.2	1008.5
2:01:00 PM	34.8	43.60	55.40	55.20	67.30	1263	18.1	1008.6
2:02:00 PM	35	43.50	56.70	56.40	67.30	1214	15.2	1008.5
2:03:00 PM	34.9	44.20	57.30	57.40	67.80	329.3	15.3	1008.5
2:04:00 PM	35.1	43.60	57.50	57.50	68.20	1249	15	1008.6
2:05:00 PM	35.5	44.40	58.10	58.40	68.20	1231	15.3	1008.5
2:06:00 PM	35.5	44.80	58.70	59.20	68.40	1227	15.3	1008.5
2:07:00 PM	35.6	44.90	59.40	59.80	68.80	1221	16	1008.5
2:08:00 PM	35.6	44.90	60.10	60.60	69.10	258.1	15.9	1008.5
2:09:00 PM	35.8	44.80	60.10	60.80	69.50	938.8	16.2	1008.4
2:10:00 PM	35.7	44.50	60.40	60.70	69.80	1153	16	1008.4
2:11:00 PM	35.2	45.70	60.80	60.80	70.20	1120	16.2	1008.5
2:12:00 PM	35.5	44.70	61.10	60.90	70.50	1114	15.6	1008.4
2:13:00 PM	35.5	45.10	60.60	60.70	70.40	1105	18.1	1008.3
2:14:00 PM	35.3	45.20	60.80	60.80	70.60	1113	16.1	1008.4
2:15:00 PM	35.2	45.00	60.60	60.90	70.50	1092	16.8	1008.3
2:16:00 PM	35.7	45.40	60.60	60.70	70.90	1079	16.1	1008.4
2:17:00 PM	35	45.10	60.40	60.60	70.60	1099	15.7	1008.3
2:18:00 PM	35.2	45.20	61.20	60.70	70.70	1110	15.7	1008.3
2:19:00 PM	35.1	44.80	61.10	60.30	70.90	255.9	18.9	1008.2
2:20:00 PM	34.7	44.00	59.20	59.20	70.70	949	16.2	1008.3
2:21:00 PM	35.3	43.80	58.70	58.60	70.40	1151	16.6	1008.2
2:22:00 PM	35.3	44.40	58.90	58.70	69.80	1178	18.6	1008.3
2:23:00 PM	35.2	45.10	59.60	59.40	69.60	203.5	15.7	1008.3
2:24:00 PM	35	44.40	59.40	59.10	69.80	270.8	16.5	1008.3
2:25:00 PM	35.1	44.20	58.80	58.20	70.10	1114	17.2	1008.2
2:26:00 PM	35.2	43.40	58.20	57.70	69.50	1123	16.9	1008.3
2:27:00 PM	35.3	44.10	58.70	58.20	68.90	1094	17.1	1008.3
2:28:00 PM	35.3	44.80	59.60	59.10	68.90	1096	15.9	1008.3
2:29:00 PM	35.1	44.70	60.20	59.50	69.20	1079	17.6	1008.2
2:30:00 PM	35.5	44.20	60.30	59.90	69.30	1107	16.1	1008.2
2:31:00 PM	35.7	44.70	61.00	60.60	69.50	1126	15.7	1008.3
2:32:00 PM	36	45.00	61.30	60.80	70.00	1122	16	1008.4
2:33:00 PM	35.9	45.30	62.20	61.20	70.40	1115	16	1008.2
2:34:00 PM	36.1	45.50	62.10	61.50	71.10	1096	15.8	1008.3
2:35:00 PM	35.6	45.40	62.20	61.90	71.20	1100	16.9	1008.3
2:36:00 PM	35.8	44.90	62.60	61.40	71.70	1035	17.3	1008.3
2:37:00 PM	35.9	45.40	62.30	61.50	71.90	1064	18	1008.2
2:38:00 PM	36.2	45.50	62.50	61.80	71.50	1028	17.7	1008.3
2:39:00 PM	36.2	45.30	63.10	62.00	71.40	1013	16.3	1008.1
2:40:00 PM	36.5	46.00	63.20	62.40	71.80	1003	16.1	1008.1
2:41:00 PM	36.3	46.50	63.00	62.30	71.90	1036	16	1008.3
2:42:00 PM	36.2	45.70	63.20	62.40	72.00	991.3	16.1	1008.1
2:43:00 PM	36.1	45.60	63.30	62.30	72.60	928.2	16.4	1008.2
2:44:00 PM	36	45.20	62.80	61.80	72.40	829.1	16.3	1008.2
2:45:00 PM	36.4	45.10	61.80	61.30	72.10	770.1	16.3	1008.2
2:46:00 PM	36.3	45.00	61.60	60.90	72.00	919.3	17.4	1008.1
2:47:00 PM	36.4	46.10	61.50	61.00	71.60	820.5	18.5	1008
2:48:00 PM	36.7	45.80	61.70	61.30	71.50	897.1	16.1	1008.2
2:49:00 PM	36.9	46.40	62.10	61.60	71.70	900.6	16.3	1008
2:50:00 PM	36.9	46.10	62.20	61.70	71.70	909.8	15.6	1008
2:51:00 PM	36.2	46.40	62.40	62.00	71.90	927.9	15.4	1008.1
2:52:00 PM	36.8	45.10	62.60	61.80	72.30	933.9	15.5	1007.9
2:53:00 PM	36.5	46.00	62.20	61.80	72.20	932.7	16	1007.9
2:54:00 PM	36.4	45.30	62.50	61.60	72.40	965	15.4	1008.1
2:55:00 PM	36.2	46.00	62.10	61.20	72.30	1001	14.9	1008
2:56:00 PM	36.3	45.60	61.70	61.10	72.10	974.2	15.1	1008
2:57:00 PM	36.5	45.00	61.60	60.90	71.80	972.2	14.9	1008
2:58:00 PM	36.3	45.60	61.40	60.80	71.90	1011	14.9	1008.1
2:59:00 PM	36.2	45.10	61.60	60.90	71.90	1036	14.7	1008
3:00:00 PM	36.4	44.90	61.60	60.70	72.00	1057	15.2	1008
3:01:00 PM	36.5	45.30	61.70	61.00	72.00	1057	14.9	1008
3:02:00 PM	36.8	45.40	61.90	61.20	71.80	1066	15	1008
3:03:00 PM	36.6	45.40	62.20	61.30	72.00	1072	15.4	1008
3:04:00 PM	36.7	46.20	62.50	61.80	72.10	1073	15.5	1007.9
3:05:00 PM	36.7	45.80	62.50	61.90	71.90	1085	15.5	1008
3:06:00 PM	36.5	46.10	62.80	62.40	72.10	1078	15.9	1007.9
3:07:00 PM	36.3	45.60	63.30	62.70	72.50	1076	16.1	1007.9
3:08:00 PM	36.4	46.40	63.30	62.70	72.60	1071	14.8	1007.9
3:09:00 PM	36.5	46.00	63.50	62.80	72.70	1069	14	1008
3:10:00 PM	36.5	46.00	63.50	62.90	72.90	1058	14.3	1007.8
3:11:00 PM	35.9	45.70	63.50	62.70	72.90	1049	14.5	1007.9
3:12:00 PM	36.3	45.40	63.50	62.40	73.30	1033	15.6	1007.8
3:13:00 PM	36.8	45.60	63.20	62.40	73.00	1027	14	1007.9
3:14:00 PM	36.1	45.70	63.30	62.60	72.80	1023	13.7	1007.8
3:15:00 PM	35.9	45.40	63.60	62.30	73.10	1007	14.4	1007.7
3:16:00 PM	36.3	45.20	63.20	62.00	73.00	993.2	13.6	1007.7
3:17:00 PM	35.9	45.80	63.00	61.90	72.80	991	13.7	1007.9
3:18:00 PM	36	46.10	62.70	61.90	72.90	975.8	16.9	1007.8
3:19:00 PM	36	45.80	63.20	61.70	73.10	983	17.1	1007.8
3:20:00 PM	36.1	45.90	62.70	61.80	72.60	979.2	13.5	1007.8
3:21:00 PM	36	45.80	63.30	61.80	72.80	969	13.6	1007.8
3:22:00 PM	36.3	45.60	63.50	61.20	72.70	964	13.6	1007.8
3:23:00 PM	36.2	45.30	62.30	61.00	72.50	955.3	13.3	1007.9
3:24:00 PM	36.2	45.50	62.60	60.80	72.50	960.7	14.9	1007.7
3:25:00 PM	36.5	45.70	62.40	61.20	72.40	965.2	14.1	1007.8
3:26:00 PM	36.9	45.90	62.50	61.40	72.40	974.7	14	1007.7
3:27:00 PM	36.7	45.50	62.70	61.40	72.30	971.9	12.7	1007.8
3:28:00 PM	36.6	46.10	62.70	61.50	72.40	968.1	15	1007.7
3:29:00 PM	36.5	46.00	62.80	61.60	72.20	968.1	15.1	1007.7
3:30:00 PM	36.3	46.10	62.90	61.60	72.30	952.3	16.1	1007.8
3:31:00 PM	36.3	46.40	62.80	61.60	72.60	878.9	16.2	1007.7
3:32:00 PM	36.8	46.50	62.60	61.60	72.60	864.1	14.1	1007.6
3:33:00 PM	36.4	46.30	62.60	61.50	72.50	875.8	12.9	1007.7
3:34:00 PM	36.4	45.40	62.80	61.30	72.40	865	13.6	1007.6
3:35:00 PM	36.7	45.60	62.40	60.70	72.40	854.5	13.1	1007.6
3:36:00 PM	36.7	45.70	62.40	61.00	72.00	901.3	13.2	1007.6
3:37:00 PM	36.8	45.20	62.40	61.20	72.20	941.8	13.1	1007.5
3:38:00 PM	37.1	45.80	62.40	61.40	72.20	917.6	14.1	1007.6
3:39:00 PM	36.7	46.40	62.60	61.40	72.30	920.6	13.4	1007.7
3:40:00 PM	36.7	45.60	63.40	61.20	72.80	942.3	12.4	1007.6
3:41:00 PM	36.4	46.00	62.50	61.50	72.90	955.5	13.6	1007.6
3:42:00 PM	36.5	45.00	63.00	61.40	72.80	771.5	13.2	1007.5
3:43:00 PM	36.2	45.40	62.60	61.20	72.70	938.2	12.8	1007.6
3:44:00 PM	36.4	45.40	62.50	60.70	72.80	951.9	15.5	1007.7
3:45:00 PM	36.5	44.90	62.10	60.50	72.70	937.2	13.6	1007.6
3:46:00 PM	36.4	45.40	61.90	60.60	72.40	930.6	14.7	1007.5
3:47:00 PM	36.4	45.30	62.40	60.30	72.60	940.7	13.6	1007.5
3:48:00 PM	37	45.90	61.70	60.40	72.10	922.2	13.7	1007.5
3:49:00 PM	36.7	45.00	61.60	60.50	71.90	922.1	13.3	1007.5
3:50:00 PM	37	45.30	61.80	60.60	71.90	941.6	13.7	1007.4
3:51:00 PM	36.3	46.00	62.20	61.00	72.10	920	14.1	1007.5
3:52:00 PM	36.7	45.10	62.80	60.90	72.60	898.7	14.2	1007.6
3:53:00 PM	36.8	45.40	62.30	61.20	72.60	857.6	13.9	1007.5
3:54:00 PM	36.8	45.20	62.30	61.00	72.30	851.1	13.8	1007.5
3:55:00 PM	36.9	45.00	62.20	61.20	72.20	844.3	14.1	1007.5
3:56:00 PM	36.7	45.20	62.30	61.00	72.40	844.9	14.1	1007.5
3:57:00 PM	36.9	45.90	62.50	61.00	72.50	827.9	14.2	1007.5
3:58:00 PM	36.3	45.50	62.40	61.10	72.40	820.4	14.1	1007.4
3:59:00 PM	36.5	45.10	62.80	61.30	72.50	846.1	15.8	1007.5
4:00:00 PM	36.5	45.20	62.50	60.90	72.50	860.8	14	1007.4
4:01:00 PM	36.5	45.20	62.60	61.00	72.30	648.6	16.1	1007.3
4:02:00 PM	36.6	45.30	62.30	60.80	72.30	558.3	14.2	1007.5
4:03:00 PM	36.3	45.00	61.80	60.40	72.30	504.3	14.3	1007.3
4:04:00 PM	36.4	45.10	61.10	59.80	72.20	611.2	14.1	1007.4
4:05:00 PM	36.4	45.30	61.00	59.40	72.00	709.5	14.6	1007.5
4:06:00 PM	36.4	45.30	61.20	59.30	71.80	834.9	14.7	1007.5
4:07:00 PM	36.4	45.70	60.50	59.30	71.50	850.2	14.5	1007.5
4:08:00 PM	36.7	45.60	61.80	59.60	71.60	860.6	14.8	1007.5
4:09:00 PM	36.7	45.90	61.20	59.70	71.80	852.8	14.9	1007.5
4:10:00 PM	36.3	45.50	61.10	59.90	71.70	855.9	14.3	1007.5
4:11:00 PM	36.5	45.20	61.80	59.90	71.40	797.3	14.3	1007.4
4:12:00 PM	36.8	45.30	61.50	59.70	71.50	826.1	18.5	1007.5
4:13:00 PM	36.7	44.80	61.20	59.90	71.20	848.6	16.2	1007.4
4:14:00 PM	36.6	45.30	61.10	59.80	71.40	853.1	15.9	1007.4
4:15:00 PM	36.5	45.20	61.60	60.00	71.50	852	14.2	1007.5
4:16:00 PM	36.5	45.30	61.80	59.80	71.60	835.8	14.8	1007.5
4:17:00 PM	36.3	44.90	61.80	59.80	71.70	795.2	16	1007.4
4:18:00 PM	36.3	44.90	61.00	59.60	71.40	770	16.5	1007.3
4:19:00 PM	36.4	45.20	61.00	59.40	71.60	743.2	14.5	1007.3
4:20:00 PM	36.4	45.40	61.40	59.30	72.00	725.7	15.4	1007.3
4:21:00 PM	36.4	45.60	60.90	59.30	71.70	649.6	15.4	1007.4
4:22:00 PM	36.8	45.30	60.80	59.30	71.30	690.3	14.9	1007.3
4:23:00 PM	36.7	45.00	60.80	59.20	71.10	711.8	14.8	1007.3
4:24:00 PM	36.6	44.80	61.20	59.30	71.40	734	14.9	1007.3
4:25:00 PM	36.8	44.70	61.00	59.40	71.40	729	14.5	1007.2
4:26:00 PM	36.6	44.60	61.30	59.60	71.60	749.9	15.2	1007.4
4:27:00 PM	36.5	44.80	61.10	59.40	71.50	718.9	15.4	1007.3
4:28:00 PM	36.4	44.10	61.20	59.20	71.90	444.6	15.2	1007.2
4:29:00 PM	36.1	44.20	60.90	59.00	71.70	660.3	15.5	1007.4
4:30:00 PM	36.5	44.40	61.00	58.80	71.90	605.8	15.2	1007.2
4:31:00 PM	36.8	45.20	60.40	58.70	71.90	596.2	16.3	1007.3
4:32:00 PM	37	44.20	60.50	58.60	71.60	656.7	15.5	1007.1
4:33:00 PM	37.1	44.40	60.40	58.70	71.30	651.6	16	1007.2
4:34:00 PM	37.2	44.60	60.70	58.80	71.50	580.9	15	1007.3
4:35:00 PM	37.2	44.70	61.00	58.70	71.40	604.3	15.3	1007.3
4:36:00 PM	37	44.10	60.40	58.40	71.30	597.3	14.6	1007.3
4:37:00 PM	36.9	44.00	60.20	58.20	71.00	657	14.8	1007.3
4:38:00 PM	37	43.90	59.80	58.10	70.70	655.2	15	1007.3
4:39:00 PM	37	44.40	59.70	57.80	70.50	590.7	15.2	1007.2
4:40:00 PM	37.2	44.10	59.90	58.10	70.50	552.4	15.1	1007.2
4:41:00 PM	37.1	44.80	59.90	58.00	70.60	561.9	15.3	1007.3
4:42:00 PM	37.2	44.20	59.80	57.80	70.70	615.9	15.5	1007.3
4:43:00 PM	37.1	44.70	59.80	58.00	70.60	610.7	15.1	1007.1
4:44:00 PM	37.3	44.20	59.90	58.10	70.60	589	16	1007.1
4:45:00 PM	37.4	44.20	59.90	58.00	70.30	609.7	15.3	1007.1
4:46:00 PM	37.5	44.90	60.20	58.30	70.60	683.9	15.9	1007.2
4:47:00 PM	37.6	44.80	60.40	58.50	70.40	731	15.1	1007.2
4:48:00 PM	37.4	44.30	60.50	58.40	70.60	747.5	15.3	1007.2
4:49:00 PM	37.4	44.60	60.60	58.50	70.80	756.1	15.5	1007.1
4:50:00 PM	37.4	44.70	60.60	58.80	70.70	763.5	15	1007.2
4:51:00 PM	37.8	45.00	61.30	59.50	70.70	777.5	15.2	1007.1
4:52:00 PM	37.9	45.10	61.70	59.70	70.90	747.1	15.2	1007.2
4:53:00 PM	37.6	45.00	62.10	60.00	71.20	450.6	15.5	1007.1
4:54:00 PM	37.8	44.50	62.50	59.80	71.80	698.7	14.9	1007.2
4:55:00 PM	37.7	44.80	62.00	59.50	71.80	770.1	14.8	1007
4:56:00 PM	37.7	44.20	62.00	59.70	71.80	493.1	14.9	1007
4:57:00 PM	38	45.50	62.10	59.70	72.10	268.9	16.1	1007
4:58:00 PM	38	45.60	61.90	59.80	72.10	741.1	15.5	1007
4:59:00 PM	37.9	44.70	61.70	59.70	71.90	743.3	15.3	1007
5:00:00 PM	38.1	44.70	61.90	59.70	71.80	738.4	14.7	1007.1
5:01:00 PM	38	45.40	62.10	59.60	71.80	736.6	15.4	1007.1
5:02:00 PM	37.8	45.30	62.00	59.80	71.90	713.4	15.8	1007
5:03:00 PM	37.4	45.30	62.10	59.90	72.20	385	16.4	1007
5:04:00 PM	37.4	44.80	61.90	59.70	72.00	460.4	16.4	1007
5:05:00 PM	37.4	44.50	61.30	59.30	72.00	375	16.6	1007
5:06:00 PM	37.5	44.10	60.90	59.00	72.00	230.1	16.6	1006.9
5:07:00 PM	37.5	44.70	60.70	58.60	71.80	359.1	16	1006.9
5:08:00 PM	37.6	44.40	60.10	58.30	71.40	711.6	16	1006.9
5:09:00 PM	37.4	45.00	60.90	58.20	71.80	687.7	15.9	1007
5:10:00 PM	37.1	44.40	60.40	58.30	71.40	682	16.3	1006.9
5:11:00 PM	37.4	44.70	60.40	58.50	71.00	626.6	16.3	1006.9
5:12:00 PM	37.6	44.50	60.70	58.70	71.00	689.4	16.5	1006.9
5:13:00 PM	37.2	44.30	61.10	59.10	71.30	329.5	16.7	1006.9
5:14:00 PM	37.1	44.00	60.70	58.80	71.50	264.4	17.2	1006.9
5:15:00 PM	37.3	44.70	60.30	58.30	71.50	632.7	16.6	1006.7
5:16:00 PM	37	44.10	60.30	58.40	71.00	640.9	17.1	1006.9
5:17:00 PM	36.8	43.90	60.50	58.40	71.00	273.1	17.4	1006.8
5:18:00 PM	36.4	44.10	60.40	58.20	71.30	164.1	17.2	1006.7
5:19:00 PM	36.4	43.30	60.00	57.50	71.40	297.7	17.5	1006.8
5:20:00 PM	36.7	43.80	59.30	56.80	71.10	549.5	17.2	1006.9
5:21:00 PM	36.2	43.50	59.00	56.80	70.40	596.4	17.8	1006.7
5:22:00 PM	36.2	43.80	59.50	56.70	71.20	168.6	18	1006.7
5:23:00 PM	36.1	44.00	58.70	56.10	71.10	143.2	18.1	1006.8
5:24:00 PM	35.9	43.50	58.00	55.50	70.70	135.7	18	1006.8
5:25:00 PM	35.7	43.90	57.10	55.00	70.10	174.6	18	1006.8
5:26:00 PM	35.6	42.30	56.60	54.50	69.70	190.6	18.1	1006.7
5:27:00 PM	35.6	43.10	56.30	54.10	69.30	499.2	18.3	1006.9
5:28:00 PM	35.6	42.90	55.60	53.80	68.60	519.1	17.8	1006.7
5:29:00 PM	35.7	42.90	55.80	53.90	68.20	493.7	18.1	1006.7
5:30:00 PM	35.7	43.00	56.00	54.30	67.90	473.6	18	1006.9
5:31:00 PM	35.5	43.10	56.30	54.60	67.90	458.1	18.7	1006.7
5:32:00 PM	35.4	42.60	56.20	54.50	68.10	278.8	18.8	1006.7
5:33:00 PM	35.4	42.60	56.20	54.40	68.30	273.8	19	1006.7
5:34:00 PM	35.4	42.50	56.00	54.20	68.10	483.4	19.1	1006.8
5:35:00 PM	35.4	42.40	56.50	54.10	68.20	502.9	19.2	1006.7
5:36:00 PM	35.6	42.70	55.90	54.00	68.00	449.3	19.2	1006.8
5:37:00 PM	35.3	42.40	56.20	54.10	68.00	425.4	19.2	1006.7
5:38:00 PM	35	41.70	56.10	54.20	68.00	418.5	19.3	1006.8
5:39:00 PM	35.3	42.20	56.20	54.10	68.20	426.3	19.2	1006.8
5:40:00 PM	35.6	42.90	56.00	53.90	67.90	449.7	19.4	1006.7
5:41:00 PM	35.6	42.50	55.90	53.90	67.60	367.4	19.3	1006.8
5:42:00 PM	35.6	42.20	55.90	54.10	67.40	368.6	19.4	1006.9
5:43:00 PM	35.5	42.90	56.00	54.10	67.40	390.3	18.5	1006.7
5:44:00 PM	35.4	41.80	56.70	54.00	68.10	398.7	19	1006.7
5:45:00 PM	35.5	42.70	55.90	54.00	67.90	363.9	18.9	1006.6
5:46:00 PM	35.4	42.30	55.70	54.00	67.80	329	19.2	1006.7
5:47:00 PM	35.5	42.40	55.60	54.00	67.40	415.3	19.6	1006.5
5:48:00 PM	35.7	42.50	55.90	53.90	67.50	374.4	20.3	1006.6
5:49:00 PM	35.6	42.70	55.90	54.00	67.50	300.7	19.9	1006.6
5:50:00 PM	35.4	41.70	55.50	53.90	67.60	336.7	19.8	1006.6
5:51:00 PM	35.5	42.60	55.70	53.80	67.80	379.8	19.9	1006.7
5:52:00 PM	35.2	42.20	55.90	53.90	67.90	341.7	19.9	1006.7
5:53:00 PM	35.3	41.50	55.50	53.40	67.80	336.9	19.8	1006.6
5:54:00 PM	35.2	41.90	54.90	53.30	67.60	348	19.8	1006.8
5:55:00 PM	35.2	42.30	54.60	53.30	67.10	288.3	19.1	1006.8
5:56:00 PM	35.2	41.20	55.10	53.10	67.30	261.6	19.1	1006.8
5:57:00 PM	35	42.10	54.90	53.10	67.20	284.9	18.9	1006.8
5:58:00 PM	35	42.10	54.40	53.00	67.00	249.2	18.8	1006.7
5:59:00 PM	35	41.40	54.20	53.00	66.80	203	18.8	1006.8
6:00:00 PM	35	42.00	54.30	53.00	66.70	161.4	19.2	1006.7
6:01:00 PM	35	41.90	54.30	52.70	67.00	218.8	19.4	1006.8
6:02:00 PM	35	41.90	54.30	52.60	66.90	240.5	19.7	1006.7
6:03:00 PM	34.9	42.00	54.00	52.50	66.70	195.1	19.6	1006.7
6:04:00 PM	34.9	41.90	54.10	52.30	66.40	188.7	19.6	1006.6
6:05:00 PM	34.9	41.20	54.40	52.30	66.40	142.4	19.8	1006.7
6:06:00 PM	35	41.80	53.90	52.30	66.20	160	19.1	1006.7
6:07:00 PM	34.8	41.20	54.10	52.40	66.00	164.2	18.9	1006.6
6:08:00 PM	34.8	42.00	54.50	52.30	66.30	205.4	19.5	1006.7
6:09:00 PM	34.8	41.00	54.10	52.40	66.20	199.1	19.6	1006.7
6:10:00 PM	34.8	41.50	54.00	52.40	66.00	190.2	19.6	1006.7
6:11:00 PM	34.7	41.70	53.90	52.50	66.00	176.3	19.5	1006.7
6:12:00 PM	34.6	41.00	54.00	52.40	66.00	112	19.6	1006.6
6:13:00 PM	34.5	41.20	53.70	52.20	66.10	110.1	19.3	1007
6:14:00 PM	34.5	40.80	53.60	51.90	66.00	110.4	19.4	1006.7
6:15:00 PM	34.4	41.40	53.20	51.30	66.10	109.5	19.4	1006.7
6:16:00 PM	34.3	41.10	52.60	51.00	65.70	108.8	19.3	1006.7
6:17:00 PM	34.2	40.70	52.50	50.80	65.80	108.1	19.7	1006.6
6:18:00 PM	34.2	41.00	51.60	50.10	65.10	107	19.5	1006.8
6:19:00 PM	34.1	40.90	52.00	49.90	65.20	106.5	19.5	1006.7
6:20:00 PM	34.2	40.30	51.30	49.40	64.60	105.9	19.8	1006.6
6:21:00 PM	34.2	40.50	51.10	49.40	64.20	105	20.5	1006.7
6:22:00 PM	34.1	40.50	50.90	49.10	63.90	104.4	20.1	1006.6
6:23:00 PM	34	40.90	50.30	49.00	63.70	102.7	20.1	1006.8
6:24:00 PM	34	40.50	50.30	48.80	63.40	100.9	19.9	1006.8
6:25:00 PM	34	40.10	50.30	48.80	63.40	100.1	19.7	1006.8
6:26:00 PM	33.9	40.60	50.30	48.60	63.20	99	20.2	1006.8
6:27:00 PM	33.9	40.50	50.00	48.40	63.10	98.7	19.5	1006.7
6:28:00 PM	33.9	40.50	49.70	48.80	63.20	97.8	19.9	1006.6
6:29:00 PM	33.9	40.50	49.80	48.40	63.00	96.1	19.8	1006.8

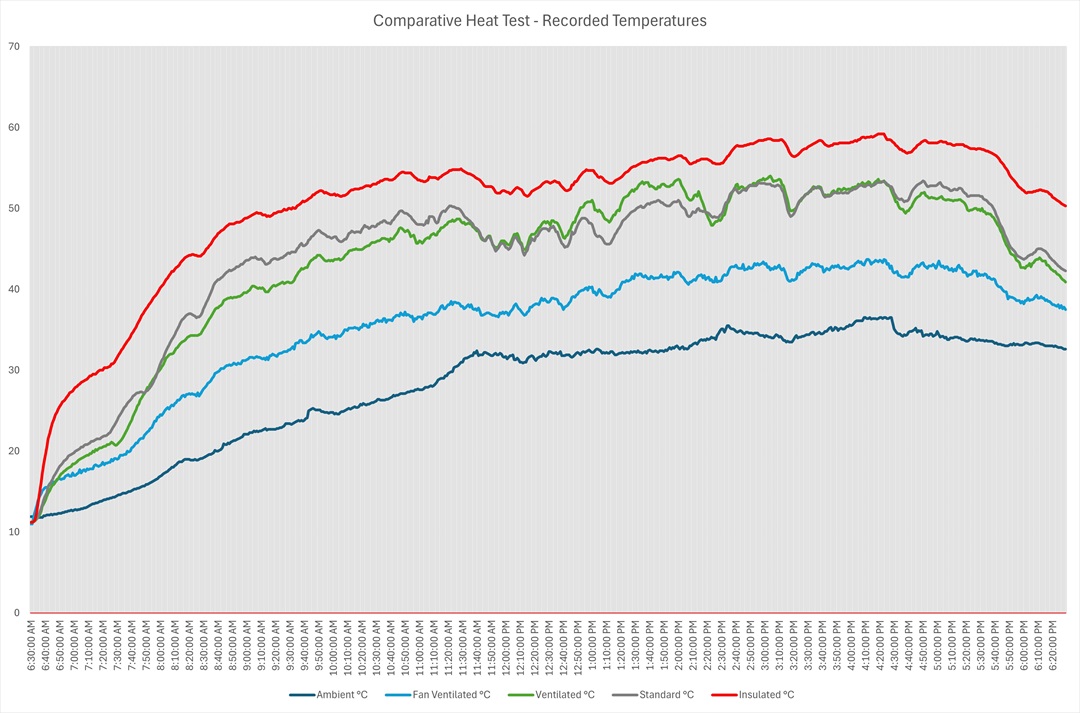

Comparative Heat Test: Up to 50 Watt Heat Load – Recorded Temperatures

Date: 16 November 2024 | Start Time: 6:30:00 AM | End Time: 6:29:00 PM
Ambient Temperature °C: Minimum: 11.8°C, Maximum: 36.5°C, Mean Average: 28.20°C
Irradiance W/m2: Minimum: 20.4W/m2, Maximum: 1282W/m2, Mean Average: 681.26W/m2
Relative Humidity %: Minimum: 12.7%, Maximum: 87.1%, Mean Average: 34.59%
Internal Heat Load W: < 50 Watts
Location: Melbourne, AU; Outdoor in Direct Sunlight, Stand Alone Installation; East-Facing

Tested Equipment:

Fan Ventilated Enclosure: IP-606030 600Hx600Wx300D Electrical Enclosure fitted with 1 x IP-V2224 Filter Fan and 1 x IP-V2000 Filter Vent.
Ventilated Enclosure: IP-606030 600Hx600Wx300D Electrical Enclosure fitted with 2 x IP-V2000 Filter Vents.
Standard Enclosure: IP-606030 600Hx600Wx300D Electrical Enclosure.
Insulated Enclosure: IP-606030 600Hx600Wx300D Electrical Enclosure fitted internally with 10.0mm Self-Adhesive Foil-Backed 25kg/m3 Polyolefin Thermal Insulation Foam.

Results:

The standard enclosure with no ventilation maintained an elevated mean average of 16.26°C above average ambient temperature. The fan-forced ventilated enclosure performed the best with a mean average of only 7.49°C above average ambient temperature and only 7.2°C above maximum ambient temperature. The enclosure fitted with vents performed well with a mean average of 15.5°C above average ambient temperature. The insulated enclosure performed poorly, capturing heat and preventing heat dissipation, with a mean average of 79.72% or 22.48°C above average ambient temperature and 22.7°C above maximum ambient temperature.

Fan Ventilated Enclosure	Ventilated Enclosure	Standard Enclosure	Insulated Enclosure
Minimum: 11.0°C	Minimum: 11.2°C	Minimum: 11.2°C	Minimum: 11.2°C
Maximum: 43.7°C	Maximum: 54.0°C	Maximum: 53.4°C	Maximum: 59.2°C
Mean Average: 35.69°C	Mean Average: 43.7°C	Mean Average: 44.46°C	Mean Average: 50.68°C

Electrical Enclosure Comparative Heat Test Temperatures 50 Watt

Time	Ambient °C	Fan °C	Vent °C	Standard °C	Insulated °C	Irradiance W/m2	RH %	Barometric (hpa)
6:30:00 AM	11.9	11.00	11.20	11.20	11.20	20.4	84	1007.1
6:31:00 AM	11.9	11.00	11.30	11.20	11.20	20.8	83.8	1007.1
6:32:00 AM	11.8	12.00	11.30	11.30	11.30	21.3	85.3	1007
6:33:00 AM	11.8	12.60	11.40	11.50	11.60	21.8	84.8	1007.1
6:34:00 AM	11.8	13.20	11.60	11.60	12.40	22	84.9	1007.2
6:35:00 AM	11.8	13.90	11.80	11.90	13.50	22.7	86	1007.2
6:36:00 AM	11.8	14.40	12.10	12.40	14.90	23.7	85.7	1007.2
6:37:00 AM	11.8	14.70	12.50	12.90	16.00	24.7	84.5	1007.3
6:38:00 AM	11.8	15.10	13.20	13.40	17.30	25.8	87.1	1007.2
6:39:00 AM	12	15.30	13.50	14.00	18.40	26.1	86.3	1007.2
6:40:00 AM	12	15.50	13.90	14.50	19.50	26.5	85.5	1007.2
6:41:00 AM	12.1	15.50	14.40	14.80	20.40	26.9	85.2	1007.3
6:42:00 AM	12.1	15.60	14.80	15.60	21.50	27	84.3	1007.2
6:43:00 AM	12.1	16.00	15.10	15.90	22.20	27.3	84.4	1007.3
6:44:00 AM	12.2	16.00	15.50	16.20	22.90	27.2	84.5	1007.3
6:45:00 AM	12.1	16.10	15.80	16.50	23.50	27.2	84.5	1007.3
6:46:00 AM	12.2	16.20	15.90	16.90	23.90	27.3	84.6	1007.4
6:47:00 AM	12.2	16.20	16.20	17.20	24.50	28.1	84.6	1007.3
6:48:00 AM	12.2	16.40	16.50	17.50	24.80	28.5	84.5	1007.4
6:49:00 AM	12.3	16.60	16.60	17.80	25.20	28.7	84.2	1007.4
6:50:00 AM	12.3	16.60	16.90	18.10	25.50	28.5	84.2	1007.3
6:51:00 AM	12.3	16.50	17.20	18.30	25.80	27.8	84	1007.3
6:52:00 AM	12.4	16.60	17.30	18.50	26.10	27.7	83.9	1007.4
6:53:00 AM	12.4	16.60	17.50	18.80	26.20	28.8	84	1007.4
6:54:00 AM	12.5	16.90	17.60	18.90	26.40	29.1	83.6	1007.3
6:55:00 AM	12.5	17.00	17.80	19.10	26.70	28.8	83.3	1007.4
6:56:00 AM	12.6	17.10	17.90	19.40	26.90	28.8	83.5	1007.3
6:57:00 AM	12.6	16.90	18.00	19.50	27.20	28.8	83.2	1007.2
6:58:00 AM	12.7	16.90	18.10	19.60	27.30	28.7	82.9	1007.3
6:59:00 AM	12.6	17.30	18.40	19.70	27.40	28.1	82.8	1007.2
7:00:00 AM	12.7	17.00	18.40	19.80	27.70	27.4	82.9	1007.3
7:01:00 AM	12.8	17.00	18.50	20.00	27.90	27.8	82.8	1007.2
7:02:00 AM	12.7	17.20	18.70	20.10	28.00	27.9	82.5	1007.2
7:03:00 AM	12.8	17.30	18.90	20.20	28.20	29.1	82.2	1007.3
7:04:00 AM	12.8	17.70	19.00	20.30	28.30	29.2	82.2	1007.3
7:05:00 AM	12.9	17.30	19.10	20.50	28.50	29.4	82.3	1007.3
7:06:00 AM	12.9	17.60	19.20	20.50	28.60	30	81.9	1007.4
7:07:00 AM	13	17.70	19.30	20.70	28.70	30.3	81.6	1007.3
7:08:00 AM	13	17.50	19.40	20.80	28.80	31	81.7	1007.4
7:09:00 AM	13.1	17.80	19.50	20.80	28.90	31.7	81.5	1007.4
7:10:00 AM	13.2	17.70	19.50	20.90	29.10	31.8	81	1007.3
7:11:00 AM	13.3	17.80	19.70	21.00	29.30	32.4	80.6	1007.4
7:12:00 AM	13.4	17.80	19.70	21.20	29.30	32.9	80.4	1007.4
7:13:00 AM	13.5	17.80	20.00	21.20	29.50	33.7	79.9	1007.4
7:14:00 AM	13.5	18.20	19.90	21.30	29.50	34.4	79.7	1007.4
7:15:00 AM	13.6	18.30	20.20	21.40	29.50	34.9	79.4	1007.3
7:16:00 AM	13.6	18.20	20.10	21.50	29.70	35.4	79.1	1007.4
7:17:00 AM	13.7	18.10	20.30	21.50	29.90	35.8	79.1	1007.5
7:18:00 AM	13.8	18.20	20.40	21.50	30.00	36.3	78.8	1007.4
7:19:00 AM	13.8	18.30	20.40	21.70	30.00	36.8	78.6	1007.4
7:20:00 AM	13.9	18.60	20.50	21.80	30.00	37.3	78.3	1007.3
7:21:00 AM	14	18.30	20.60	21.90	30.30	37.6	78.2	1007.5
7:22:00 AM	14	18.50	20.60	21.90	30.30	37.7	77.5	1007.3
7:23:00 AM	14.1	18.50	20.80	22.00	30.30	38.2	77.3	1007.5
7:24:00 AM	14.1	18.60	20.80	22.20	30.40	38.5	77.3	1007.4
7:25:00 AM	14.2	18.60	20.90	22.30	30.50	39	77.2	1007.4
7:26:00 AM	14.2	19.00	21.10	22.60	30.80	39.4	77.2	1007.4
7:27:00 AM	14.3	18.80	21.00	22.90	30.80	39.6	77	1007.4
7:28:00 AM	14.3	19.10	20.80	23.20	31.00	39.9	77	1007.4
7:29:00 AM	14.4	19.10	20.70	23.50	31.30	40.4	76.3	1007.5
7:30:00 AM	14.5	19.00	20.80	23.80	31.60	41	75.7	1007.6
7:31:00 AM	14.6	19.10	21.00	24.20	31.90	41.4	75.3	1007.4
7:32:00 AM	14.6	19.50	21.20	24.50	32.20	42.3	75.1	1007.4
7:33:00 AM	14.7	19.50	21.40	24.80	32.50	65.5	74.9	1007.3
7:34:00 AM	14.8	19.50	21.70	25.10	32.70	163.9	74.3	1007.5
7:35:00 AM	14.8	19.60	22.00	25.40	33.00	255	73.9	1007.5
7:36:00 AM	14.8	19.60	22.40	25.60	33.30	266.1	73.9	1007.4
7:37:00 AM	14.9	20.00	22.70	25.90	33.60	268.4	73.5	1007.4
7:38:00 AM	15	19.90	23.10	26.10	33.80	270	73.7	1007.5
7:39:00 AM	15	20.00	23.50	26.30	34.10	277.2	73.5	1007.5
7:40:00 AM	15.1	20.40	23.80	26.50	34.50	286.4	73	1007.4
7:41:00 AM	15.2	20.50	24.30	26.80	34.70	295.1	73	1007.4
7:42:00 AM	15.3	20.70	24.70	26.90	35.00	300	72.2	1007.5
7:43:00 AM	15.3	21.00	25.10	27.10	35.30	303.9	71.8	1007.3
7:44:00 AM	15.4	21.00	25.60	27.20	35.70	309.4	72.4	1007.4
7:45:00 AM	15.4	21.30	25.80	27.20	36.00	317.7	71.9	1007.4
7:46:00 AM	15.5	21.50	26.30	27.30	36.30	321.5	71	1007.3
7:47:00 AM	15.6	21.60	26.60	27.30	36.80	325.5	70	1007.4
7:48:00 AM	15.7	21.60	26.90	27.20	37.00	328.4	70.2	1007.3
7:49:00 AM	15.7	22.00	27.10	27.20	37.30	334.9	69.3	1007.4
7:50:00 AM	15.9	22.20	27.50	27.40	37.60	339.1	68.6	1007.3
7:51:00 AM	15.9	22.40	27.90	27.50	37.80	346.4	68.3	1007.4
7:52:00 AM	16	22.50	27.90	27.70	38.10	349.5	68.2	1007.4
7:53:00 AM	16.1	22.80	28.30	27.90	38.30	352.4	68.2	1007.3
7:54:00 AM	16.2	22.90	28.60	28.20	38.60	357.8	67.4	1007.4
7:55:00 AM	16.3	23.30	28.90	28.50	38.90	364.1	66.7	1007.3
7:56:00 AM	16.4	23.70	29.10	28.90	39.10	366.2	66.5	1007.3
7:57:00 AM	16.5	23.70	29.40	29.20	39.30	372.8	65.8	1007.4
7:58:00 AM	16.6	24.20	29.70	29.80	39.60	379	64.9	1007.3
7:59:00 AM	16.8	24.20	29.90	30.30	39.90	383.4	64.8	1007.3
8:00:00 AM	16.9	24.50	30.10	30.80	40.20	388.1	64.3	1007.4
8:01:00 AM	17	24.40	30.40	31.20	40.40	390.9	64.1	1007.3
8:02:00 AM	17.2	24.70	30.70	31.50	40.60	400.7	63	1007.5
8:03:00 AM	17.3	25.00	31.10	32.00	40.90	410.2	62.4	1007.3
8:04:00 AM	17.4	25.20	31.50	32.40	41.20	412.5	61.4	1007.4
8:05:00 AM	17.5	25.40	31.70	32.80	41.40	416.3	61.5	1007.3
8:06:00 AM	17.7	25.20	31.90	33.10	41.70	412.3	60.6	1007.5
8:07:00 AM	17.8	25.50	32.00	33.50	41.90	408.7	59.7	1007.3
8:08:00 AM	18	25.70	32.00	33.80	42.20	412.5	59.2	1007.4
8:09:00 AM	18	25.60	32.10	34.10	42.20	414.1	58.5	1007.4
8:10:00 AM	18.2	25.90	32.40	34.40	42.50	417.3	58.4	1007.3
8:11:00 AM	18.3	26.00	32.70	34.80	42.70	428.1	58.1	1007.3
8:12:00 AM	18.5	26.30	32.80	35.10	42.80	433.2	57.6	1007.4
8:13:00 AM	18.7	26.30	33.10	35.50	43.00	431.1	56.6	1007.4
8:14:00 AM	18.7	26.50	33.30	35.90	43.30	432.9	56.1	1007.2
8:15:00 AM	18.7	26.80	33.50	36.20	43.50	436	55	1007.3
8:16:00 AM	18.9	26.90	33.60	36.40	43.70	406	54.8	1007.3
8:17:00 AM	19	26.70	33.70	36.60	43.90	406.9	54.5	1007.3
8:18:00 AM	19	27.00	33.90	36.80	44.00	340.2	54.1	1007.3
8:19:00 AM	19	27.00	34.10	36.90	44.10	362.3	54.3	1007.3
8:20:00 AM	19	27.10	34.20	37.00	44.20	332.7	54.3	1007.3
8:21:00 AM	18.9	27.00	34.30	37.00	44.20	339.5	54.1	1007.3
8:22:00 AM	18.9	27.10	34.30	36.90	44.30	346.1	53.4	1007.4
8:23:00 AM	18.9	27.00	34.30	36.80	44.30	343.4	53.4	1007.3
8:24:00 AM	19	27.00	34.30	36.70	44.20	374.5	54.1	1007.4
8:25:00 AM	18.9	26.80	34.30	36.50	44.20	355.5	54.2	1007.3
8:26:00 AM	18.9	27.20	34.30	36.60	44.10	396.7	53.4	1007.3
8:27:00 AM	19	26.80	34.40	36.60	44.10	483.3	53.4	1007.4
8:28:00 AM	19.1	27.10	34.50	36.80	44.10	502	53.8	1007.4
8:29:00 AM	19.1	27.40	34.80	37.10	44.30	504.8	54.4	1007.3
8:30:00 AM	19.2	27.70	35.10	37.60	44.40	504.3	53.7	1007.4
8:31:00 AM	19.3	27.90	35.40	38.00	44.70	513.9	53	1007.3
8:32:00 AM	19.4	28.10	35.70	38.40	45.00	520.4	52.9	1007.3
8:33:00 AM	19.5	28.40	36.00	38.70	45.10	520	52.9	1007.4
8:34:00 AM	19.6	28.50	36.30	39.10	45.40	525.2	52.4	1007.5
8:35:00 AM	19.6	28.70	36.60	39.60	45.60	526.9	52.4	1007.3
8:36:00 AM	19.7	29.00	36.90	40.00	45.90	524.9	50.8	1007.3
8:37:00 AM	19.8	29.20	37.20	40.50	46.20	525.7	50.6	1007.4
8:38:00 AM	20.1	29.60	37.50	40.80	46.40	532.2	49.5	1007.3
8:39:00 AM	20	29.70	37.70	41.00	46.60	536.3	50	1007.3
8:40:00 AM	20	29.80	37.70	41.20	46.90	534.3	46.4	1007.3
8:41:00 AM	20.1	29.90	37.90	41.20	47.00	541.9	44.5	1007.4
8:42:00 AM	20.2	30.20	38.00	41.40	47.20	552.9	45.5	1007.3
8:43:00 AM	20.4	30.20	38.20	41.50	47.30	560.6	45.1	1007.3
8:44:00 AM	20.9	30.20	38.60	41.70	47.40	568.1	41.7	1007.4
8:45:00 AM	20.8	30.40	38.70	41.90	47.60	573.1	43	1007.4
8:46:00 AM	20.8	30.60	38.80	42.10	47.80	577.9	41.9	1007.4
8:47:00 AM	21	30.60	38.90	42.20	47.90	583.2	41.7	1007.3
8:48:00 AM	20.9	30.70	38.90	42.40	48.10	588.1	41.2	1007.3
8:49:00 AM	21.1	30.60	39.00	42.30	48.10	592.3	41.4	1007.3
8:50:00 AM	21.2	30.70	38.90	42.40	48.10	597	41.3	1007.3
8:51:00 AM	21.3	30.90	39.00	42.50	48.10	602.1	42.1	1007.1
8:52:00 AM	21.3	30.80	39.00	42.60	48.20	607.5	40.8	1007.2
8:53:00 AM	21.4	30.70	39.00	42.80	48.30	612.6	40.7	1007.1
8:54:00 AM	21.5	30.90	39.10	42.80	48.30	617	41.6	1007.2
8:55:00 AM	21.6	30.80	39.10	42.90	48.30	620.7	40.8	1007.1
8:56:00 AM	21.7	30.80	39.20	43.10	48.40	628	41.1	1007.1
8:57:00 AM	21.8	31.20	39.40	43.10	48.50	635.9	41.7	1007.2
8:58:00 AM	22.1	31.20	39.60	43.30	48.70	635.3	40.6	1007
8:59:00 AM	22.1	31.20	39.60	43.50	48.80	645.5	40.1	1007.1
9:00:00 AM	22.1	31.30	39.60	43.60	48.80	648	40.5	1007
9:01:00 AM	22.1	31.40	39.80	43.60	48.90	632.1	40.9	1007.2
9:02:00 AM	22.3	31.60	39.90	43.70	49.00	648.8	41.3	1007.2
9:03:00 AM	22.3	31.60	40.20	43.90	49.10	653	40.4	1007.2
9:04:00 AM	22.3	31.60	40.40	43.90	49.20	636.3	40.6	1007.2
9:05:00 AM	22.5	31.50	40.40	43.90	49.30	613.5	40.3	1007.2
9:06:00 AM	22.4	31.60	40.30	44.00	49.40	614.6	40.3	1007.2
9:07:00 AM	22.5	31.70	40.20	43.80	49.50	625.8	41	1007.1
9:08:00 AM	22.4	31.60	40.10	43.70	49.40	650.8	41.4	1007
9:09:00 AM	22.5	31.60	40.20	43.70	49.40	597.9	41.2	1007.1
9:10:00 AM	22.5	31.50	40.10	43.80	49.40	545.6	40.9	1007.2
9:11:00 AM	22.6	31.40	40.20	43.60	49.20	495.1	41	1007.2
9:12:00 AM	22.7	31.50	40.00	43.40	49.20	609.1	41	1007
9:13:00 AM	22.8	31.30	39.70	43.10	49.20	672.5	40.6	1007
9:14:00 AM	22.6	31.60	39.70	43.10	49.00	674.4	41.2	1007
9:15:00 AM	22.7	31.30	39.70	43.20	49.10	676.4	41.8	1007.1
9:16:00 AM	22.7	31.80	40.00	43.30	49.00	692.1	41.8	1007
9:17:00 AM	22.7	31.80	40.20	43.60	49.10	649.7	42.2	1007
9:18:00 AM	22.7	32.00	40.40	43.70	49.20	657.7	42.1	1007.2
9:19:00 AM	22.7	31.90	40.50	43.80	49.40	665.5	42	1007
9:20:00 AM	22.7	31.80	40.40	43.80	49.40	669.1	42.1	1007
9:21:00 AM	22.8	31.70	40.50	43.70	49.50	656.1	42.5	1007.1
9:22:00 AM	22.8	32.00	40.60	43.70	49.60	648.2	42.2	1007
9:23:00 AM	22.9	32.10	40.70	43.80	49.60	681.7	42.3	1007
9:24:00 AM	22.9	32.10	40.80	43.90	49.60	721.7	42.6	1007
9:25:00 AM	23	32.20	40.90	43.90	49.70	733.4	43.1	1007
9:26:00 AM	23.1	32.30	40.70	44.10	49.90	735.7	42.8	1006.9
9:27:00 AM	23.4	32.30	40.80	44.20	49.80	720.5	43.1	1006.9
9:28:00 AM	23.4	32.30	40.90	44.40	49.80	707.6	43.4	1006.9
9:29:00 AM	23.4	32.50	40.90	44.50	50.00	732.4	43.7	1006.9
9:30:00 AM	23.4	32.50	40.80	44.40	50.00	744	43.6	1006.9
9:31:00 AM	23.3	32.70	40.80	44.60	49.90	745.5	43.5	1007
9:32:00 AM	23.4	32.90	40.90	44.60	50.10	752.7	44	1006.9
9:33:00 AM	23.5	32.60	41.10	44.60	50.00	756.3	43.9	1006.8
9:34:00 AM	23.6	33.30	41.50	44.60	50.00	755.9	44.3	1006.8
9:35:00 AM	23.7	33.40	41.80	45.00	50.30	759.6	44.2	1006.9
9:36:00 AM	23.8	33.40	42.10	45.20	50.40	767.4	44.1	1006.8
9:37:00 AM	23.7	33.70	42.30	45.50	50.50	764.4	43.7	1006.7
9:38:00 AM	23.8	33.70	42.60	45.70	50.70	761.1	43.8	1006.9
9:39:00 AM	23.7	33.40	42.50	45.40	50.90	773.1	44.3	1006.9
9:40:00 AM	23.8	33.40	42.60	45.40	50.80	774.8	44.2	1006.8
9:41:00 AM	24	33.40	42.70	45.50	50.90	778.3	43.7	1007
9:42:00 AM	24.1	33.60	42.70	45.70	51.00	784.1	43.8	1006.9
9:43:00 AM	25	33.70	43.10	46.10	51.20	785.2	40.5	1006.9
9:44:00 AM	25.1	33.90	43.40	46.20	51.30	788.9	36.2	1006.9
9:45:00 AM	25.2	34.40	43.60	46.50	51.40	790	41	1007
9:46:00 AM	25.3	34.10	43.70	46.60	51.70	794	41.7	1006.9
9:47:00 AM	25.2	34.30	43.90	46.80	51.70	799.5	42	1006.9
9:48:00 AM	25.1	34.40	43.90	47.00	51.90	802.3	42.3	1006.9
9:49:00 AM	25.1	34.60	44.20	47.20	52.00	808.5	42.4	1006.9
9:50:00 AM	25.1	34.80	44.20	47.30	52.10	812.1	41.2	1006.8
9:51:00 AM	25.1	34.60	44.20	47.20	52.20	811.4	41.8	1006.9
9:52:00 AM	24.9	34.30	44.00	47.00	52.20	800.1	41.9	1006.9
9:53:00 AM	24.9	34.40	43.80	46.90	52.10	816	41.8	1007
9:54:00 AM	24.8	34.20	43.60	46.80	51.90	820.9	41.6	1006.9
9:55:00 AM	24.8	34.00	43.50	46.70	52.00	824.9	41.6	1006.9
9:56:00 AM	24.8	33.90	43.50	46.50	51.90	827.2	41.3	1007
9:57:00 AM	24.7	34.10	43.60	46.50	51.80	832.1	42	1006.9
9:58:00 AM	24.8	34.10	43.50	46.40	51.70	833.8	42	1007
9:59:00 AM	24.8	34.10	43.60	46.30	51.70	839.1	42.1	1007
10:00:00 AM	24.8	34.10	43.50	46.40	51.70	840.5	41.4	1007.2
10:01:00 AM	24.6	34.30	43.70	46.50	51.80	843.6	41.8	1007.1
10:02:00 AM	24.7	33.90	43.70	46.50	51.60	846.5	42	1007.1
10:03:00 AM	24.6	34.30	43.70	46.20	51.70	850.9	41.5	1007
10:04:00 AM	24.6	34.20	43.80	46.00	51.60	855.9	41.8	1007.1
10:05:00 AM	24.8	34.20	43.60	45.90	51.50	859.5	42	1007
10:06:00 AM	24.9	34.40	43.70	45.90	51.50	861.1	42	1007.1
10:07:00 AM	24.9	34.60	43.80	46.00	51.60	859.2	41.8	1007.1
10:08:00 AM	25	35.00	44.10	46.20	51.60	855.3	42	1007.1
10:09:00 AM	25.1	35.00	44.30	46.20	51.70	856	41.3	1007
10:10:00 AM	25.2	34.90	44.40	46.50	51.80	859.3	41.7	1007.1
10:11:00 AM	25.3	35.20	44.70	46.90	52.00	872.1	41.7	1007.2
10:12:00 AM	25.2	35.20	44.80	47.00	52.20	879.4	41.2	1007.2
10:13:00 AM	25.3	35.20	44.80	47.20	52.30	885.3	40.4	1007.1
10:14:00 AM	25.4	35.20	44.90	47.10	52.30	887.1	40.2	1007.1
10:15:00 AM	25.5	35.30	44.90	47.00	52.40	882.2	40.1	1007
10:16:00 AM	25.4	35.20	45.00	47.10	52.40	874.4	40.2	1007
10:17:00 AM	25.4	35.20	44.90	47.10	52.40	884.8	40.4	1006.9
10:18:00 AM	25.5	35.00	44.90	47.10	52.40	903.8	41	1006.8
10:19:00 AM	25.8	35.30	44.90	47.00	52.50	907.1	40.3	1006.9
10:20:00 AM	25.7	35.30	44.90	47.40	52.50	911.7	40.9	1006.8
10:21:00 AM	25.9	35.70	45.00	47.60	52.60	913.7	40.1	1006.7
10:22:00 AM	25.8	35.50	45.20	47.90	52.70	919.8	39.7	1006.7
10:23:00 AM	25.7	35.60	45.30	47.70	52.80	918.4	39.9	1006.8
10:24:00 AM	25.8	35.30	45.40	47.70	52.80	923.8	39.6	1006.7
10:25:00 AM	25.8	35.30	45.40	47.50	52.80	925.7	40.2	1006.7
10:26:00 AM	25.9	35.80	45.60	47.60	52.70	909.5	39.9	1006.7
10:27:00 AM	26	35.70	45.80	47.80	52.90	876.8	39.6	1006.6
10:28:00 AM	26	35.80	45.80	47.80	53.00	865.1	39.6	1006.6
10:29:00 AM	26.1	35.80	45.80	47.70	53.00	892.4	40.4	1006.6
10:30:00 AM	26.2	36.10	45.90	47.80	53.00	925.4	39.6	1006.6
10:31:00 AM	26.4	36.20	46.00	48.10	53.20	925	39.1	1006.4
10:32:00 AM	26.4	36.00	46.00	48.10	53.20	922.8	39	1006.4
10:33:00 AM	26.3	36.10	46.10	48.30	53.40	930.2	38.1	1006.5
10:34:00 AM	26.3	36.00	46.30	48.30	53.40	932.3	38.3	1006.3
10:35:00 AM	26.3	36.40	46.30	48.50	53.50	933.9	38.7	1006.3
10:36:00 AM	26.3	36.40	46.30	48.50	53.60	935.6	38.5	1006.4
10:37:00 AM	26.4	35.90	46.20	48.30	53.60	882.7	38.5	1006.4
10:38:00 AM	26.4	36.20	46.20	48.20	53.60	966.6	38.6	1006.3
10:39:00 AM	26.5	36.20	45.90	48.20	53.50	967.3	38.9	1006.2
10:40:00 AM	26.6	36.20	46.30	48.10	53.50	975.4	38.7	1006.1
10:41:00 AM	26.7	36.10	46.20	48.50	53.50	974.5	39.1	1006.2
10:42:00 AM	26.9	36.50	46.30	48.60	53.60	980	38.3	1006.2
10:43:00 AM	26.8	36.60	46.60	48.90	53.70	978.3	38.7	1006
10:44:00 AM	26.9	36.80	46.80	49.10	53.90	985.1	38.6	1006.2
10:45:00 AM	26.9	36.80	47.10	49.30	54.10	990.3	38.4	1006.2
10:46:00 AM	27	36.70	47.50	49.60	54.30	989.3	38.7	1006.1
10:47:00 AM	27.1	37.10	47.60	49.70	54.40	994.2	38	1006.2
10:48:00 AM	27.1	36.90	47.50	49.70	54.50	990.6	38.1	1006
10:49:00 AM	27.1	36.80	47.30	49.50	54.50	996.8	38.7	1006.1
10:50:00 AM	27.1	37.20	47.10	49.40	54.40	990.7	39.2	1006.1
10:51:00 AM	27.2	36.80	47.20	49.40	54.40	993.4	38.8	1006
10:52:00 AM	27.3	36.90	47.30	49.30	54.40	989.2	38.7	1006
10:53:00 AM	27.3	36.80	47.00	49.10	54.40	985.7	38.5	1006
10:54:00 AM	27.4	36.60	46.50	49.00	54.40	1000	38	1005.9
10:55:00 AM	27.4	36.70	46.60	48.70	54.20	1013	38.3	1005.9
10:56:00 AM	27.4	36.00	46.70	48.50	54.00	1001	38	1005.8
10:57:00 AM	27.6	36.40	46.20	48.30	53.80	976.8	37.6	1006
10:58:00 AM	27.6	36.30	45.70	48.10	53.70	1029	37.9	1006
10:59:00 AM	27.7	36.60	45.70	48.00	53.50	1036	37.1	1005.9
11:00:00 AM	27.6	36.60	46.00	48.00	53.50	1039	37.3	1005.9
11:01:00 AM	27.6	36.60	45.90	48.00	53.40	1040	37.1	1005.9
11:02:00 AM	27.6	36.30	45.70	48.00	53.40	1037	37.3	1006
11:03:00 AM	27.7	36.80	45.90	47.90	53.30	1041	37.4	1005.9
11:04:00 AM	27.9	36.90	46.20	48.10	53.30	1024	36.9	1005.8
11:05:00 AM	27.9	36.80	46.30	48.50	53.40	1066	37	1006
11:06:00 AM	27.9	37.10	46.40	48.20	53.50	1055	37.3	1005.8
11:07:00 AM	28	37.10	46.30	49.00	53.90	1056	36.7	1005.8
11:08:00 AM	28.1	37.10	46.70	49.00	53.80	980.4	36.4	1005.9
11:09:00 AM	28	37.00	46.80	49.00	53.80	962.7	35.9	1005.8
11:10:00 AM	28.1	36.90	46.90	48.90	53.80	1063	34.6	1005.7
11:11:00 AM	28.3	36.90	46.70	48.40	53.80	987	35	1005.8
11:12:00 AM	28.5	37.10	46.70	48.20	53.70	1062	35.6	1005.7
11:13:00 AM	28.8	37.20	47.10	48.30	53.60	1080	35.1	1005.8
11:14:00 AM	28.9	37.50	47.20	48.90	53.80	1048	34.3	1005.7
11:15:00 AM	29	37.90	47.60	49.40	53.90	1081	34.2	1005.6
11:16:00 AM	29	38.00	47.60	49.60	54.10	1053	33.7	1005.6
11:17:00 AM	29	37.60	47.70	49.70	54.20	1119	33.8	1005.5
11:18:00 AM	29.3	37.60	47.90	49.60	54.30	1155	33.6	1005.5
11:19:00 AM	29.3	37.90	48.00	49.90	54.40	1112	33.8	1005.5
11:20:00 AM	29.6	38.10	48.30	50.10	54.50	980.9	32.9	1005.5
11:21:00 AM	29.7	38.10	48.40	50.30	54.70	1126	32.6	1005.5
11:22:00 AM	29.8	38.50	48.40	50.30	54.70	1085	32.5	1005.4
11:23:00 AM	29.8	38.10	48.60	50.20	54.80	1086	32.2	1005.5
11:24:00 AM	30.3	38.40	48.40	50.20	54.80	1029	32.2	1005.3
11:25:00 AM	30.4	38.40	48.50	50.10	54.80	1003	31.5	1005.4
11:26:00 AM	30.5	38.30	48.70	50.00	54.80	1015	32.1	1005.4
11:27:00 AM	30.6	38.30	48.70	50.00	54.80	965.2	30.9	1005.2
11:28:00 AM	30.8	38.20	48.70	49.90	54.80	888.1	30.2	1005.3
11:29:00 AM	31	37.90	48.40	49.70	54.90	864.7	30.4	1005.1
11:30:00 AM	31	37.90	48.20	49.40	54.70	930.7	30.2	1005.1
11:31:00 AM	31.4	37.60	48.30	49.10	54.60	925.2	30	1005.2
11:32:00 AM	31.5	37.70	48.00	48.90	54.50	892.6	30.1	1005.1
11:33:00 AM	31.5	37.90	48.10	48.80	54.40	842.4	29.6	1005.2
11:34:00 AM	31.6	38.10	48.20	48.60	54.30	824.8	28.8	1005.2
11:35:00 AM	31.7	37.80	48.10	48.50	54.30	820.3	28.4	1005.1
11:36:00 AM	31.8	38.10	48.10	48.30	54.20	818.6	28.7	1005.1
11:37:00 AM	31.8	37.60	47.70	48.10	54.10	806	28.8	1005
11:38:00 AM	32.2	37.50	47.60	47.70	54.00	689.8	28.4	1005
11:39:00 AM	32.1	37.60	47.40	47.60	53.80	649.7	28.7	1005
11:40:00 AM	32.4	37.40	47.20	47.50	53.70	597.4	28.7	1004.9
11:41:00 AM	31.8	37.70	47.20	47.30	53.60	619.8	28.5	1005.1
11:42:00 AM	31.9	37.30	46.70	47.00	53.50	648.9	28.7	1004.9
11:43:00 AM	31.9	36.80	46.30	46.50	53.30	683.3	28.2	1004.9
11:44:00 AM	31.9	36.80	46.10	46.30	53.10	802.6	28.9	1005
11:45:00 AM	32.2	36.90	46.10	46.00	52.80	1033	28.4	1004.9
11:46:00 AM	32.2	37.00	46.10	46.00	52.70	949.6	28.5	1005
11:47:00 AM	32.1	37.10	46.40	46.30	52.70	786.5	27.3	1004.9
11:48:00 AM	32	37.10	46.60	46.50	52.70	605.2	27.7	1004.9
11:49:00 AM	31.9	37.00	46.60	46.40	52.70	571.5	27.9	1005
11:50:00 AM	31.8	36.90	46.10	46.00	52.70	556.1	28.3	1004.9
11:51:00 AM	31.8	36.80	45.50	45.60	52.60	572.5	28	1004.9
11:52:00 AM	32	36.80	45.30	45.10	52.30	697.4	28.2	1004.9
11:53:00 AM	32.1	36.70	45.20	44.70	52.00	868.3	28.1	1005
11:54:00 AM	31.9	36.70	45.20	44.90	51.90	979.6	27.8	1005
11:55:00 AM	31.9	36.60	45.30	45.10	51.90	911.3	27.9	1005
11:56:00 AM	32.1	37.10	45.70	45.50	51.90	820.1	27.5	1004.9
11:57:00 AM	32	37.00	46.00	45.70	52.10	700.7	26.5	1004.9
11:58:00 AM	31.7	37.20	46.00	45.70	52.20	598	23.9	1004.6
11:59:00 AM	31.6	37.00	46.00	45.60	52.20	635.5	24.4	1004.7
12:00:00 PM	31.7	37.20	45.80	45.20	52.10	626.8	24.8	1004.6
12:01:00 PM	31.4	37.10	45.60	45.10	52.00	766.6	24.6	1004.6
12:02:00 PM	31.6	36.80	45.50	44.90	52.00	1139	24.7	1004.7
12:03:00 PM	31.8	37.20	45.60	45.10	51.80	1072	24.4	1004.6
12:04:00 PM	31.8	37.40	46.00	45.50	51.90	1073	24.3	1004.6
12:05:00 PM	31.9	37.60	46.40	46.00	52.10	958.9	24.8	1004.5
12:06:00 PM	31.3	38.00	46.80	46.40	52.30	877.2	24.9	1004.5
12:07:00 PM	31.3	38.20	46.80	46.50	52.50	515.5	26.6	1004.6
12:08:00 PM	31.5	37.90	46.90	46.20	52.60	636.9	25.6	1004.5
12:09:00 PM	31.3	37.60	46.50	45.90	52.50	479.7	26.1	1004.4
12:10:00 PM	31	37.50	45.90	45.70	52.40	384.6	25	1004.5
12:11:00 PM	31	37.20	45.70	45.40	52.30	652.5	24.8	1004.5
12:12:00 PM	30.9	37.00	45.00	44.60	52.00	932.7	24.1	1004.6
12:13:00 PM	31	36.80	44.90	44.20	51.70	1100	24.1	1004.6
12:14:00 PM	31	36.90	45.00	44.60	51.60	1164	24.5	1004.5
12:15:00 PM	31.4	37.20	45.40	44.80	51.50	1131	25.1	1004.6
12:16:00 PM	31.6	37.30	46.00	45.50	51.60	946.7	25.9	1004.7
12:17:00 PM	31.7	37.80	46.50	45.70	51.80	718	24.5	1004.6
12:18:00 PM	31.8	37.80	46.80	46.30	52.10	748.1	25.2	1004.6
12:19:00 PM	31.7	38.00	46.80	46.10	52.20	1181	25.5	1004.5
12:20:00 PM	31.4	38.10	46.80	46.00	52.30	1138	23.9	1004.5
12:21:00 PM	31.2	38.20	47.00	46.50	52.40	1126	23.8	1004.6
12:22:00 PM	31.5	38.20	47.30	46.60	52.50	1132	23.7	1004.5
12:23:00 PM	31.6	38.10	47.60	46.90	52.60	1228	23.9	1004.5
12:24:00 PM	31.7	38.50	47.70	47.20	52.70	1140	24.1	1004.5
12:25:00 PM	31.7	38.90	48.00	47.40	52.90	1013	23.6	1004.4
12:26:00 PM	32	38.60	48.30	47.50	53.10	969.7	24.4	1004.5
12:27:00 PM	31.8	38.80	48.40	47.50	53.20	943.4	23.4	1004.4
12:28:00 PM	31.7	38.60	48.20	47.50	53.30	1027	23.7	1004.5
12:29:00 PM	31.9	38.40	48.40	47.40	53.30	1078	23.6	1004.4
12:30:00 PM	32.3	38.40	48.20	47.20	53.20	1196	24.3	1004.4
12:31:00 PM	32.3	38.60	47.90	47.60	53.10	1000	23.4	1004.5
12:32:00 PM	32.2	38.90	48.50	47.60	53.20	930.1	23.7	1004.5
12:33:00 PM	32.1	38.90	48.50	47.80	53.30	764.1	23.5	1004.4
12:34:00 PM	32.1	38.80	48.30	47.50	53.40	779.2	24.2	1004.4
12:35:00 PM	32.2	38.80	48.30	47.10	53.30	651.9	23.8	1004.4
12:36:00 PM	32	38.70	48.20	47.10	53.20	513.3	23.9	1004.4
12:37:00 PM	32.1	38.20	47.80	46.50	53.20	597.6	23.7	1004.5
12:38:00 PM	32.3	38.20	47.40	46.10	52.90	572.6	24.4	1004.3
12:39:00 PM	31.8	38.00	47.00	45.70	52.70	804.2	23.2	1004.3
12:40:00 PM	31.8	37.50	46.40	45.50	52.50	834.7	23.4	1004.4
12:41:00 PM	31.8	37.80	46.30	45.20	52.30	911.3	22.8	1004.4
12:42:00 PM	31.9	37.90	46.60	45.30	52.20	1182	23.7	1004.3
12:43:00 PM	31.9	38.00	46.70	45.30	52.20	1134	23.7	1004.3
12:44:00 PM	31.9	38.30	47.20	45.70	52.30	1069	24.2	1004.3
12:45:00 PM	31.7	38.50	47.40	46.20	52.40	947.3	24.2	1004.2
12:46:00 PM	31.6	39.00	47.90	47.10	52.90	1216	23.7	1004.3
12:47:00 PM	31.7	39.10	48.30	46.80	52.90	1247	23.8	1004.2
12:48:00 PM	31.9	39.00	48.30	47.00	53.30	1271	24	1004.3
12:49:00 PM	32.1	39.30	48.90	47.50	53.30	1276	23.3	1004.2
12:50:00 PM	32.2	39.40	49.20	47.90	53.50	1282	24.6	1004.2
12:51:00 PM	32.1	39.70	49.60	48.30	53.80	1266	23.1	1004.3
12:52:00 PM	31.9	39.80	50.10	48.60	54.10	1265	22.6	1004.2
12:53:00 PM	32.2	39.90	50.10	48.80	54.30	1091	23.9	1004.1
12:54:00 PM	32.3	39.90	50.20	48.80	54.50	1230	22.2	1004.1
12:55:00 PM	32.2	40.10	50.60	48.80	54.60	1169	22	1004.1
12:56:00 PM	32.3	40.20	50.70	48.70	54.80	1145	22	1004.1
12:57:00 PM	32.4	39.90	50.80	48.50	54.70	1107	22.8	1004.1
12:58:00 PM	32.5	40.30	50.80	48.20	54.70	1037	21.8	1004
12:59:00 PM	32.3	40.20	50.80	48.20	54.70	778	20.9	1004.2
1:00:00 PM	32.2	40.30	51.00	48.00	54.70	653.1	19.9	1004
1:01:00 PM	32.2	39.60	50.60	47.50	54.70	946.3	20	1004.1
1:02:00 PM	32.4	39.70	49.80	46.90	54.40	975.3	19.5	1004
1:03:00 PM	32.6	39.30	49.80	46.60	54.20	884.9	19.7	1004
1:04:00 PM	32.6	39.60	49.60	46.50	53.90	841.9	20	1004
1:05:00 PM	32.5	40.00	49.80	46.60	53.80	677.2	20.8	1004
1:06:00 PM	32.4	39.80	49.60	46.50	53.90	871.1	20.9	1004
1:07:00 PM	32.1	39.40	49.40	46.30	53.80	602	20.8	1004
1:08:00 PM	32.2	39.20	49.00	46.00	53.60	823.8	21.7	1004
1:09:00 PM	32.1	39.20	48.70	45.70	53.40	748.3	21.5	1003.9
1:10:00 PM	32.2	39.10	48.60	45.60	53.30	593.7	21.9	1004
1:11:00 PM	32.1	39.00	48.50	45.60	53.20	823.2	20.6	1003.8
1:12:00 PM	32.1	39.10	48.30	45.60	53.10	1054	21.1	1003.9
1:13:00 PM	32.3	39.00	48.50	45.70	53.10	1084	21.8	1003.8
1:14:00 PM	32.3	39.50	48.90	46.10	53.10	1107	21.7	1003.9
1:15:00 PM	32.1	39.50	49.20	46.40	53.20	1201	21.6	1004
1:16:00 PM	31.9	39.60	49.20	46.80	53.40	1234	20.5	1003.8
1:17:00 PM	31.9	39.90	49.60	47.00	53.50	1258	21.1	1003.9
1:18:00 PM	32	40.00	49.80	47.40	53.60	1254	21.3	1004
1:19:00 PM	32.1	40.00	49.70	47.60	53.70	1225	21.4	1003.8
1:20:00 PM	32.1	40.50	50.40	47.90	53.80	1231	21.3	1003.8
1:21:00 PM	32.2	40.90	50.90	48.40	54.00	1217	21.8	1003.9
1:22:00 PM	32.1	40.90	51.30	48.60	54.20	1202	20.8	1003.8
1:23:00 PM	32.1	40.90	51.40	48.70	54.40	1196	21.9	1004
1:24:00 PM	32.2	41.10	51.50	48.90	54.50	1197	21.1	1003.8
1:25:00 PM	32.2	41.00	51.60	49.10	54.60	1189	22	1003.9
1:26:00 PM	32.1	41.10	51.90	49.30	54.80	1193	22	1003.7
1:27:00 PM	32.3	41.20	52.10	49.50	55.00	1181	20.6	1003.7
1:28:00 PM	32.2	41.60	52.30	49.60	55.10	1181	20.2	1003.7
1:29:00 PM	32.3	41.30	52.10	49.70	55.20	1173	21.3	1003.8
1:30:00 PM	32.3	41.90	52.40	49.80	55.20	1160	21.1	1003.8
1:31:00 PM	32.2	41.80	52.40	50.00	55.30	1157	21.1	1003.7
1:32:00 PM	32.4	41.70	52.70	50.10	55.40	1141	21.7	1003.6
1:33:00 PM	32.2	41.90	53.00	50.20	55.50	1094	21.4	1003.6
1:34:00 PM	32.2	41.90	53.10	50.30	55.60	1068	21.1	1003.7
1:35:00 PM	32.1	41.60	53.30	50.10	55.70	1137	21.8	1003.6
1:36:00 PM	32.2	41.50	53.00	50.10	55.70	1159	22.9	1003.6
1:37:00 PM	32.3	41.70	53.20	50.30	55.70	1118	23.7	1003.7
1:38:00 PM	32.1	41.50	53.20	50.50	55.70	1133	22.8	1003.4
1:39:00 PM	32.4	41.30	53.20	50.60	55.80	1134	23	1003.4
1:40:00 PM	32.5	41.30	52.70	50.50	55.90	1120	22.9	1003.4
1:41:00 PM	32.4	41.60	52.80	50.70	56.00	1128	22.6	1003.4
1:42:00 PM	32.3	41.50	52.70	50.70	55.90	1125	22.3	1003.3
1:43:00 PM	32.3	41.30	52.60	50.80	56.00	1112	22.9	1003.3
1:44:00 PM	32.4	41.40	52.40	50.80	56.10	1125	23	1003.2
1:45:00 PM	32.3	41.40	52.40	50.90	56.10	1102	21.6	1003.2
1:46:00 PM	32.2	41.40	52.70	51.00	56.20	1103	22.7	1003.2
1:47:00 PM	32.4	41.50	52.60	50.90	56.20	1114	20.7	1003.1
1:48:00 PM	32.4	41.80	52.90	50.70	56.20	1123	19.9	1003.1
1:49:00 PM	32.4	41.50	53.00	50.70	56.20	1107	20.7	1003.1
1:50:00 PM	32.3	41.50	53.00	50.50	56.20	1117	20.4	1003.2
1:51:00 PM	32.5	41.50	52.80	50.40	56.20	1125	19.8	1003.2
1:52:00 PM	32.4	41.60	52.70	50.30	56.10	1120	19.9	1003.1
1:53:00 PM	32.6	41.20	52.70	50.30	56.00	1127	20.6	1003
1:54:00 PM	32.8	41.50	52.70	50.30	56.00	1127	20.9	1003
1:55:00 PM	32.6	41.50	52.90	50.50	56.10	1131	22.1	1003.1
1:56:00 PM	32.8	41.50	52.90	50.70	56.10	1144	22	1003
1:57:00 PM	32.7	42.10	53.20	50.80	56.20	1141	19.9	1003
1:58:00 PM	32.9	41.90	53.40	50.80	56.30	1146	20.6	1003.1
1:59:00 PM	33	42.10	53.50	50.80	56.40	991.9	19.3	1003.2
2:00:00 PM	32.8	42.10	53.60	51.00	56.50	591	19.4	1003.1
2:01:00 PM	32.6	42.00	53.50	50.80	56.50	965.8	20.4	1003
2:02:00 PM	32.8	41.60	52.90	50.30	56.50	957.9	20.1	1003
2:03:00 PM	32.9	41.50	52.60	50.10	56.30	711.6	19.5	1002.9
2:04:00 PM	32.6	41.30	52.30	50.00	56.20	571.4	20.7	1003
2:05:00 PM	32.7	41.00	52.00	49.80	56.20	659.4	20.7	1003
2:06:00 PM	32.6	40.80	51.40	49.20	55.90	815.5	20.7	1002.9
2:07:00 PM	32.7	40.60	51.20	49.00	55.70	828.1	20.9	1002.9
2:08:00 PM	33	40.90	51.00	49.00	55.50	953.8	21	1003
2:09:00 PM	33	40.90	51.00	49.20	55.50	909.1	20.9	1002.9
2:10:00 PM	33.2	41.10	51.20	49.60	55.60	970.7	20.7	1003
2:11:00 PM	33.3	41.20	51.60	49.50	55.70	1045	21	1003
2:12:00 PM	33.4	41.10	51.70	49.50	55.70	987.3	20.8	1002.9
2:13:00 PM	33.2	41.50	51.50	49.90	55.90	940.8	20.5	1002.8
2:14:00 PM	33.5	41.70	52.10	50.00	55.90	887	21.2	1003
2:15:00 PM	33.7	41.70	51.60	49.70	56.00	812.1	20.7	1002.8
2:16:00 PM	33.8	41.80	51.10	49.70	56.10	831.4	20.8	1002.8
2:17:00 PM	33.7	41.40	50.60	49.60	56.10	892.3	20	1002.7
2:18:00 PM	33.8	41.70	50.10	49.70	56.10	843.1	20.1	1002.7
2:19:00 PM	33.7	41.20	49.50	49.50	56.10	849.7	20	1002.8
2:20:00 PM	33.9	41.40	49.20	49.50	56.10	692.5	19.9	1002.9
2:21:00 PM	33.8	41.50	48.70	49.40	56.00	622.5	19.5	1002.8
2:22:00 PM	33.9	41.10	48.40	49.20	55.90	740.7	19.7	1002.6
2:23:00 PM	34.1	41.20	47.90	49.00	55.80	825.9	19.7	1002.6
2:24:00 PM	34	40.90	47.90	48.90	55.60	792.3	20.2	1002.6
2:25:00 PM	34	40.90	48.20	49.00	55.60	786.7	19.5	1002.6
2:26:00 PM	33.8	41.50	48.40	48.90	55.50	881.1	20.2	1002.6
2:27:00 PM	34.3	40.90	48.40	48.90	55.50	887.8	19.5	1002.6
2:28:00 PM	34.6	41.00	48.60	48.90	55.50	843.9	18.7	1002.6
2:29:00 PM	34.9	41.00	48.50	49.20	55.50	948.1	19.5	1002.7
2:30:00 PM	35.1	41.10	48.70	49.30	55.60	1200	19.6	1002.6
2:31:00 PM	35.1	41.60	49.10	49.60	55.60	1141	18.3	1002.7
2:32:00 PM	34.7	41.80	49.20	50.30	55.90	1068	18.5	1002.7
2:33:00 PM	35.1	41.70	49.80	50.70	56.10	1179	19.2	1002.6
2:34:00 PM	35.5	41.80	50.60	50.80	56.40	1091	19.5	1002.7
2:35:00 PM	35.5	42.30	50.80	51.20	56.50	963.6	19.1	1002.6
2:36:00 PM	35.2	42.70	51.30	51.80	56.80	1119	18.7	1002.5
2:37:00 PM	35.1	42.80	51.80	52.00	57.10	1103	18.8	1002.4
2:38:00 PM	35.1	42.80	52.20	52.10	57.30	1025	19.2	1002.4
2:39:00 PM	35	42.80	52.30	52.50	57.50	949	18.3	1002.5
2:40:00 PM	34.8	43.00	52.90	52.40	57.70	1047	18.3	1002.5
2:41:00 PM	34.7	42.70	53.00	52.10	57.80	1084	20.7	1002.3
2:42:00 PM	34.8	42.60	52.40	51.90	57.70	1039	18.2	1002.3
2:43:00 PM	34.9	42.60	52.60	52.00	57.70	1022	18.6	1002.3
2:44:00 PM	34.8	42.60	52.70	52.20	57.70	978.1	17.9	1002.3
2:45:00 PM	34.6	43.10	52.60	52.30	57.70	1125	17.4	1002.3
2:46:00 PM	34.5	42.40	52.30	52.30	57.80	1111	17.3	1002.3
2:47:00 PM	34.7	42.50	52.50	52.20	57.80	1095	17.9	1002.3
2:48:00 PM	34.7	42.50	52.60	52.50	57.90	1086	18.1	1002.3
2:49:00 PM	34.6	42.80	52.80	52.70	57.90	1066	17.7	1002.2
2:50:00 PM	34.6	42.60	52.80	52.90	58.00	1067	18.5	1002.3
2:51:00 PM	34.6	42.60	52.80	52.80	58.00	1062	18	1002.2
2:52:00 PM	34.5	42.80	53.10	52.80	58.00	1047	18.4	1002.2
2:53:00 PM	34.6	43.20	53.10	52.80	58.10	1044	18.6	1002
2:54:00 PM	34.6	43.00	53.00	52.80	58.20	1039	18.6	1002.2
2:55:00 PM	34.6	43.20	53.30	53.00	58.30	1032	19	1002.1
2:56:00 PM	34.4	43.00	53.40	53.20	58.40	1032	18	1002.2
2:57:00 PM	34.3	43.10	53.50	53.10	58.40	1027	18.1	1002.1
2:58:00 PM	34.3	43.20	53.50	53.10	58.40	1025	19	1002.1
2:59:00 PM	34.3	43.40	53.70	53.10	58.40	1023	17.3	1002
3:00:00 PM	34.1	43.10	53.50	53.10	58.50	1024	18	1001.9
3:01:00 PM	34.3	43.20	53.60	53.00	58.50	1018	18	1002.1
3:02:00 PM	34.2	42.70	53.70	53.00	58.60	1003	17.8	1002
3:03:00 PM	34.1	42.80	53.90	53.00	58.60	1018	17.5	1001.9
3:04:00 PM	34.1	42.40	54.00	53.00	58.60	1015	17.9	1002.1
3:05:00 PM	34	42.60	53.70	52.80	58.50	1010	17.6	1001.9
3:06:00 PM	34	42.50	53.30	52.80	58.40	1006	17.5	1001.7
3:07:00 PM	34.2	42.80	53.40	52.70	58.40	914.5	18.1	1001.9
3:08:00 PM	34.4	42.60	53.40	52.80	58.40	894.8	18.2	1001.8
3:09:00 PM	34.3	42.80	53.50	52.90	58.40	866.4	18.6	1001.9
3:10:00 PM	34.1	43.00	53.60	52.80	58.40	559	18.4	1001.8
3:11:00 PM	34.2	42.60	53.50	52.70	58.50	553.4	18.1	1001.6
3:12:00 PM	34	42.40	53.00	52.30	58.50	468.7	18.5	1001.8
3:13:00 PM	33.7	42.60	52.80	52.00	58.30	531	18.5	1001.7
3:14:00 PM	33.7	42.20	52.20	51.30	58.10	336.7	18.4	1001.7
3:15:00 PM	33.5	41.70	51.60	50.60	57.80	399.2	18.3	1001.8
3:16:00 PM	33.6	41.20	51.00	49.80	57.50	745.8	18.2	1001.6
3:17:00 PM	33.5	41.00	50.00	49.30	57.00	820.7	18.2	1001.8
3:18:00 PM	33.5	41.00	49.70	49.00	56.70	980.2	18.6	1001.8
3:19:00 PM	33.5	41.20	49.70	49.10	56.50	960	18.7	1001.8
3:20:00 PM	33.8	41.10	49.80	49.30	56.40	957.5	18	1001.8
3:21:00 PM	34.1	41.20	49.90	49.60	56.40	1004	18	1001.6
3:22:00 PM	34.3	41.30	50.10	50.00	56.50	1012	17.8	1001.8
3:23:00 PM	34	42.00	50.40	50.50	56.60	990.9	17.7	1001.7
3:24:00 PM	34.1	41.80	50.80	50.90	56.80	969.8	18	1001.5
3:25:00 PM	34.1	42.20	50.90	51.10	57.00	930.4	18.8	1001.5
3:26:00 PM	34.2	42.10	51.20	51.30	57.20	943.5	18.5	1001.6
3:27:00 PM	34.2	42.40	51.40	51.40	57.30	934.6	18.1	1001.6
3:28:00 PM	34.3	42.40	51.70	51.60	57.40	921.3	18.5	1001.6
3:29:00 PM	34.4	42.70	51.80	51.80	57.40	916.6	18.5	1001.4
3:30:00 PM	34.4	42.70	51.80	51.90	57.60	886.7	19	1001.4
3:31:00 PM	34.4	42.70	52.10	52.00	57.70	878.9	19.9	1001.4
3:32:00 PM	34.6	42.90	52.10	52.30	57.80	884.9	18.7	1001.4
3:33:00 PM	34.7	43.20	52.50	52.40	57.90	868.1	18.9	1001.4
3:34:00 PM	34.7	43.10	52.70	52.40	58.00	841.4	19.9	1001.3
3:35:00 PM	34.4	43.10	52.60	52.60	58.10	806.9	18.4	1001.4
3:36:00 PM	34.5	42.90	52.50	52.60	58.20	826	18.3	1001.3
3:37:00 PM	34.6	43.10	52.70	52.60	58.30	811.8	18.5	1001.4
3:38:00 PM	34.7	42.90	52.70	52.50	58.40	582.8	17.9	1001.3
3:39:00 PM	34.5	42.80	52.60	52.40	58.40	483.3	18.1	1001.3
3:40:00 PM	34.5	42.80	52.00	52.10	58.30	730	19.8	1001.3
3:41:00 PM	34.6	42.10	51.60	51.60	58.10	738.2	19.5	1001.2
3:42:00 PM	34.8	42.30	51.70	51.40	57.90	810.7	18.5	1001.3
3:43:00 PM	34.8	42.60	51.60	51.50	57.80	721.6	18.3	1001.2
3:44:00 PM	35	42.50	51.70	51.50	57.70	820.9	19.2	1001.1
3:45:00 PM	35.2	42.40	51.60	51.50	57.70	863.8	18.6	1001.2
3:46:00 PM	35.3	42.70	51.80	51.60	57.80	883.1	18	1001.2
3:47:00 PM	34.9	42.90	52.10	51.80	57.80	870	17.7	1001.1
3:48:00 PM	35	42.70	52.20	51.90	58.00	849.9	17.7	1001
3:49:00 PM	35.3	42.90	52.00	52.00	58.00	835.2	17.9	1001.1
3:50:00 PM	35.2	42.80	52.00	51.90	58.00	826.8	17.2	1001
3:51:00 PM	34.9	43.00	52.40	51.90	58.00	864.7	17.5	1001
3:52:00 PM	35.1	42.70	52.40	51.90	58.10	849.7	18.2	1001
3:53:00 PM	35.2	42.60	52.30	52.00	58.10	848.2	17.7	1001
3:54:00 PM	35.1	42.70	52.30	51.90	58.10	839.1	17.8	1001
3:55:00 PM	35.1	42.80	52.50	51.90	58.10	835.5	17.4	1001
3:56:00 PM	35.2	42.60	52.40	52.00	58.10	831	17.6	1001
3:57:00 PM	35.4	42.60	52.30	51.90	58.10	826.8	17.6	1001
3:58:00 PM	35.4	42.50	52.40	51.90	58.10	833.1	17.8	1001
3:59:00 PM	35.6	42.70	52.40	52.10	58.10	815.4	17.5	1000.9
4:00:00 PM	35.5	42.80	52.40	52.20	58.20	814.1	18.6	1001
4:01:00 PM	35.6	42.90	52.60	52.30	58.20	784	17.6	1000.7
4:02:00 PM	35.8	42.90	52.60	52.40	58.30	794.9	18	1000.9
4:03:00 PM	36	43.20	52.70	52.40	58.40	793.9	18.9	1000.8
4:04:00 PM	36.1	43.30	52.60	52.50	58.30	772.5	18	1000.8
4:05:00 PM	36.1	43.50	53.00	52.70	58.50	780.4	18.3	1000.9
4:06:00 PM	36.1	43.30	52.90	52.80	58.50	766.9	17.8	1000.7
4:07:00 PM	36.1	43.40	53.00	52.90	58.70	775.8	18.3	1000.7
4:08:00 PM	36.1	43.10	53.20	52.80	58.80	791.9	18.2	1000.7
4:09:00 PM	36.5	43.00	53.00	52.70	58.80	792.4	18.1	1000.7
4:10:00 PM	36.5	43.40	53.00	52.70	58.70	750.3	19.3	1000.7
4:11:00 PM	36.4	43.70	53.10	52.90	58.80	741.6	17.6	1000.7
4:12:00 PM	36.4	43.70	53.30	52.90	58.80	757.3	16.8	1000.7
4:13:00 PM	36.5	43.50	53.20	52.90	58.80	765.5	16.4	1000.7
4:14:00 PM	36.3	43.10	52.70	52.80	58.90	760.6	15.1	1000.5
4:15:00 PM	36.4	43.30	52.90	52.80	58.80	748.5	13.6	1000.5
4:16:00 PM	36.4	43.40	53.10	52.90	58.90	755.6	13.2	1000.5
4:17:00 PM	36.4	43.60	53.30	53.00	59.00	751.3	13.3	1000.5
4:18:00 PM	36.3	43.50	53.40	53.20	59.10	740	13.4	1000.5
4:19:00 PM	36.4	43.40	53.60	53.20	59.20	744	12.7	1000.3
4:20:00 PM	36.5	43.60	53.20	53.20	59.20	749.2	13.9	1000.5
4:21:00 PM	36.5	43.50	53.30	53.20	59.20	742.3	15.5	1000.5
4:22:00 PM	36.4	43.30	53.30	53.30	59.20	741.8	14.5	1000.4
4:23:00 PM	36.5	43.70	53.40	53.30	59.20	647	15.6	1000.3
4:24:00 PM	36.5	43.60	53.10	53.20	58.80	678.4	17	1000.4
4:25:00 PM	36.4	43.10	52.90	53.00	58.50	606.2	17.6	1000.2
4:26:00 PM	36.4	43.20	52.80	52.90	58.50	667.3	17.3	1000.2
4:27:00 PM	36.5	42.60	52.70	52.70	58.50	469.2	17.8	1000.1
4:28:00 PM	36.5	42.90	52.20	52.70	58.40	400.4	18.5	1000
4:29:00 PM	35.8	42.20	51.80	52.40	58.20	489	18.7	1000.4
4:30:00 PM	35.1	42.00	51.40	51.90	58.10	457	18.7	1000.4
4:31:00 PM	34.8	42.10	50.80	51.60	57.80	513	19.5	1000.2
4:32:00 PM	34.6	42.20	50.80	51.30	57.70	508.1	19.5	1000.2
4:33:00 PM	34.5	41.70	50.30	51.20	57.50	602	19.5	1000.2
4:34:00 PM	34.5	41.70	50.00	51.10	57.30	557.9	19.9	1000.2
4:35:00 PM	34.3	41.50	49.90	51.20	57.30	529.4	20.3	1000.1
4:36:00 PM	34.2	41.50	49.90	51.00	57.10	553.6	20.4	1000.2
4:37:00 PM	34.4	41.50	49.60	50.80	57.10	613.6	20.2	1000.1
4:38:00 PM	34.3	41.60	49.40	50.90	56.90	680.6	20.3	1000.2
4:39:00 PM	34.4	41.50	49.70	50.90	56.80	716.9	20.2	1000
4:40:00 PM	34.7	41.50	49.70	51.10	56.90	721.3	20	1000.1
4:41:00 PM	34.8	42.00	50.00	51.50	56.90	721.7	20	1000
4:42:00 PM	34.8	41.90	50.20	52.00	57.00	717.4	20.4	999.9
4:43:00 PM	34.9	42.50	50.60	52.30	57.20	696.1	20	1000.1
4:44:00 PM	35	42.60	50.90	52.50	57.40	639.2	20.3	1000
4:45:00 PM	35.2	42.80	51.20	52.70	57.50	634.2	20.5	1000
4:46:00 PM	34.7	43.00	51.40	52.90	57.80	655.2	20	1000
4:47:00 PM	34.9	42.80	51.50	53.00	57.90	640.3	20.4	1000.1
4:48:00 PM	34.8	43.00	51.60	53.10	58.00	631.8	20.6	999.9
4:49:00 PM	34.9	43.20	51.90	53.20	58.20	579.1	20.3	1000
4:50:00 PM	34.2	43.30	51.90	53.40	58.30	519.3	20.3	999.9
4:51:00 PM	34.3	42.90	52.00	53.30	58.40	544.9	20.8	1000
4:52:00 PM	34.4	42.80	51.60	53.00	58.40	571.3	20.8	1000
4:53:00 PM	34.4	42.60	51.50	52.70	58.20	580.6	20.5	999.8
4:54:00 PM	34.3	42.90	51.30	52.70	58.10	559.4	20.4	999.9
4:55:00 PM	34.5	42.90	51.30	52.80	58.10	552	21.1	999.8
4:56:00 PM	34.5	42.90	51.40	52.80	58.10	555	19.9	999.9
4:57:00 PM	34.2	43.10	51.30	52.80	58.10	581.8	19.6	999.8
4:58:00 PM	34.3	42.90	51.30	52.80	58.10	603.5	19.6	999.8
4:59:00 PM	34.4	42.60	51.20	52.80	58.10	577.4	19.8	999.7
5:00:00 PM	34.8	43.00	51.20	52.90	58.10	564.4	19.7	1000
5:01:00 PM	34.4	43.50	51.30	53.10	58.20	506	19.5	999.9
5:02:00 PM	34.1	43.00	51.40	53.20	58.30	470.9	20	999.7
5:03:00 PM	34.2	42.80	51.50	52.90	58.30	531.7	20.1	999.8
5:04:00 PM	34.2	42.90	51.20	52.70	58.20	556.3	20.1	999.8
5:05:00 PM	34	42.60	51.10	52.60	58.20	536.1	20.1	999.8
5:06:00 PM	34.1	42.80	51.00	52.60	58.20	533.9	19.7	999.7
5:07:00 PM	33.8	42.80	51.10	52.50	58.00	518.5	19.5	999.6
5:08:00 PM	33.8	42.40	51.10	52.40	58.00	583.6	19.8	999.6
5:09:00 PM	34	42.40	51.00	52.20	58.00	551.3	20	999.7
5:10:00 PM	34	42.60	51.00	52.20	57.90	555.5	19.8	999.6
5:11:00 PM	34	42.20	50.90	52.30	57.80	499	19.7	999.7
5:12:00 PM	34.1	42.50	51.00	52.40	57.80	555	19.8	999.7
5:13:00 PM	34.1	42.30	51.00	52.30	57.90	546.7	19.9	999.6
5:14:00 PM	34.1	42.80	51.00	52.30	57.90	556.9	19.8	999.7
5:15:00 PM	34	43.00	51.10	52.50	57.90	462.7	20	999.6
5:16:00 PM	34	42.60	51.10	52.50	57.90	464.2	20	999.6
5:17:00 PM	33.8	42.60	50.90	52.40	57.90	477.2	20.2	999.7
5:18:00 PM	33.8	42.10	50.80	52.10	57.90	512.9	20.1	999.6
5:19:00 PM	33.7	42.10	50.60	51.90	57.70	528.9	19.8	999.6
5:20:00 PM	33.6	42.00	50.30	51.80	57.70	533.3	20	999.5
5:21:00 PM	33.6	41.60	49.80	51.50	57.60	520.6	19.9	999.5
5:22:00 PM	33.7	41.80	49.70	51.50	57.50	240.8	20.4	999.5
5:23:00 PM	33.9	41.80	49.80	51.60	57.40	249.6	20.2	999.5
5:24:00 PM	33.9	41.90	49.80	51.60	57.40	190.2	20.4	999.5
5:25:00 PM	33.8	42.30	49.90	51.60	57.40	323.8	20.1	999.5
5:26:00 PM	33.9	42.20	50.00	51.60	57.40	296	20.3	999.5
5:27:00 PM	33.7	42.30	50.00	51.60	57.30	460.5	20.1	999.4
5:28:00 PM	33.7	41.60	49.80	51.60	57.40	452.7	20.7	999.4
5:29:00 PM	33.8	41.90	49.90	51.60	57.40	484.8	20.5	999.4
5:30:00 PM	33.7	41.70	49.70	51.50	57.40	438.9	20.4	999.4
5:31:00 PM	33.7	41.80	50.00	51.50	57.30	438.3	20.9	999.4
5:32:00 PM	33.7	41.70	49.60	51.20	57.30	478.1	21.4	999.4
5:33:00 PM	33.6	41.90	49.60	51.10	57.20	452.1	21.2	999.4
5:34:00 PM	33.7	41.80	49.30	51.00	57.10	428.5	21.1	999.3
5:35:00 PM	33.6	41.40	49.40	50.80	57.10	388.2	21.3	999.3
5:36:00 PM	33.6	41.50	49.30	50.60	57.00	345.5	21.3	999.3
5:37:00 PM	33.6	41.30	49.30	50.50	56.90	323	21.5	999.5
5:38:00 PM	33.6	41.20	49.00	50.30	56.80	238.9	21.4	999.3
5:39:00 PM	33.5	41.30	48.90	50.00	56.70	215.3	21.6	999.4
5:40:00 PM	33.3	41.20	48.60	49.70	56.60	184.5	21.8	999.4
5:41:00 PM	33.4	40.70	48.30	49.20	56.50	211.4	21.9	999.3
5:42:00 PM	33.2	40.40	47.90	48.80	56.30	225.5	21.9	999.2
5:43:00 PM	33.2	40.30	47.70	48.30	56.10	245.5	22	999.1
5:44:00 PM	33.2	40.30	47.20	47.90	55.80	223.1	21.9	999.2
5:45:00 PM	33.1	40.00	46.90	47.60	55.60	223.3	21.6	999
5:46:00 PM	33.1	39.80	46.30	47.20	55.40	191.9	21.8	999.1
5:47:00 PM	33	39.70	45.90	46.70	55.10	184.2	21.4	999
5:48:00 PM	33	39.70	45.50	46.40	54.90	201.7	21.3	999
5:49:00 PM	33	38.80	45.20	45.90	54.60	206.8	21.4	999
5:50:00 PM	33.1	39.10	44.80	45.50	54.20	224	21.4	999.1
5:51:00 PM	33.2	39.00	44.40	45.20	53.90	196.9	21.4	999
5:52:00 PM	33.1	39.00	44.30	45.00	53.70	185.3	21.2	999
5:53:00 PM	33.3	38.90	44.20	44.80	53.50	186.2	21.4	999
5:54:00 PM	33.1	38.80	44.00	44.60	53.30	189.2	21.7	999
5:55:00 PM	33.2	38.60	43.60	44.30	53.10	203.7	21.7	998.9
5:56:00 PM	33.2	38.60	43.50	44.10	52.80	221.2	21.8	998.9
5:57:00 PM	33.1	38.60	43.30	44.00	52.60	245	21.8	998.8
5:58:00 PM	33.1	38.30	42.70	43.90	52.50	302.4	21.9	998.9
5:59:00 PM	33.1	38.50	42.70	43.80	52.30	300.5	21.8	998.8
6:00:00 PM	33.2	38.20	42.70	43.70	52.20	395.3	22.2	998.9
6:01:00 PM	33.4	38.60	42.60	43.80	52.00	357.2	22	999
6:02:00 PM	33.4	38.60	42.90	43.90	51.90	338.5	22.1	998.9
6:03:00 PM	33.3	38.90	42.90	44.10	52.00	341.8	21.8	998.9
6:04:00 PM	33.2	38.60	43.20	44.20	52.00	340.3	21.9	998.9
6:05:00 PM	33.2	38.70	42.80	44.30	52.00	322.1	21.9	998.9
6:06:00 PM	33.3	38.70	43.20	44.30	52.00	353.3	22	998.8
6:07:00 PM	33.3	38.80	43.30	44.50	52.10	376.5	22	998.8
6:08:00 PM	33.4	39.10	43.60	44.60	52.10	327.6	22.2	998.8
6:09:00 PM	33.4	39.30	43.70	44.90	52.20	248.1	22.4	998.8
6:10:00 PM	33.4	38.90	43.70	45.00	52.20	203.4	22.3	998.9
6:11:00 PM	33.3	38.90	43.90	45.00	52.30	211	22.4	998.9
6:12:00 PM	33.2	39.10	43.70	45.00	52.30	230.9	22.4	999
6:13:00 PM	33.2	38.90	43.50	44.90	52.20	220.8	22.6	999
6:14:00 PM	33.1	38.90	43.50	44.80	52.20	176.9	22.6	998.7
6:15:00 PM	33	38.60	43.50	44.70	52.10	155.1	22.7	999
6:16:00 PM	33	38.70	43.00	44.50	52.10	147.3	22.7	998.8
6:17:00 PM	33	38.50	43.00	44.30	52.00	145.3	22.6	998.9
6:18:00 PM	33	38.50	42.80	44.00	51.80	147.5	22.7	998.7
6:19:00 PM	33	38.30	42.50	43.80	51.70	153.9	22.8	998.7
6:20:00 PM	33	38.10	42.40	43.60	51.40	155	22.6	998.8
6:21:00 PM	32.9	38.10	42.20	43.50	51.30	149.9	23	998.8
6:22:00 PM	33	38.00	42.20	43.30	51.20	144.4	23	998.8
6:23:00 PM	32.9	37.90	41.90	43.10	51.00	138.5	22.6	998.8
6:24:00 PM	32.8	38.10	41.80	42.90	50.90	132.1	22.5	998.6
6:25:00 PM	32.8	37.70	41.70	42.80	50.80	128.7	22.6	998.7
6:26:00 PM	32.8	38.00	41.40	42.60	50.60	131.8	22.8	998.7
6:27:00 PM	32.7	37.60	41.20	42.50	50.50	122.9	23	998.6
6:28:00 PM	32.6	37.80	41.10	42.40	50.40	120.9	23.2	998.6
6:29:00 PM	32.6	37.50	40.90	42.30	50.30	115.9	23.3	998.7
								998.8
								998.8
								998.7
								998.7
								998.7
								998.6

Explore Enclosure Cooling Solutions

Electrical Enclosure Comparative Heat Test Data

A performance comparison between Standard, Insulated, Ventilated and Fan-Forced-Ventilated Electrical Enclosures.

Comparative Heat Test: Up to 100 Watt Heat Load – Recorded Temperatures

Fan Ventilated Enclosure

Ventilated Enclosure

Standard Enclosure

Insulated Enclosure

Comparative Heat Test: Up to 50 Watt Heat Load – Recorded Temperatures

Fan Ventilated Enclosure

Ventilated Enclosure

Standard Enclosure

Insulated Enclosure
