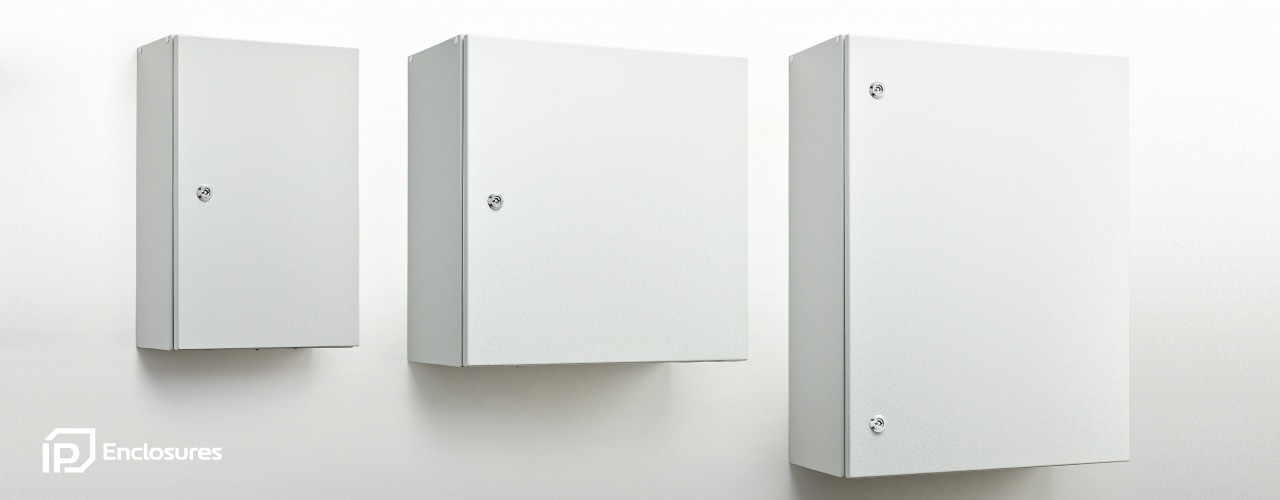

Aluminium Electrical Enclosures are designed to house low voltage electrical equipment including switchgear and controlgear assemblies. Our aluminium electrical enclosures are manufactured to the highest standards using world-class international manufacturing facilities in Europe. The aluminium range is fabricated using Marine Grade Aluminium and powder coated. They comply to IEC62208 and IEC/EN/AS60529 up to IP66. IP Enclosures electrical enclosures incorporate many advanced design features as standard inclusions and have been chosen by many organisations as their standard electrical enclosure system.

IP Enclosures – Electrical Enclosures Brochure

IP66 Aluminium Electrical Enclosures

The A1 range of aluminium electrical enclosures are fabricated from marine grade aluminium and are rated for protection up to IP66. They are suitable for heavy duty applications.

Features & Specifications

Protection: Complies with IP66

Electrical Enclosure Standard: IEC 62208, IEC/EN/AS60529, RoHS, CE, UKCA

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’. For more information regarding design verification for switchboard assemblies, refer to AS/NZS 61439.

Material:

– Body: 2.5mm marine grade aluminium
– Door: 2.5mm marine grade aluminium
– Device Mounting Plate: 1.5mm galvanised steel sheet
– Seal: Polyurethane

Enclosure Body:

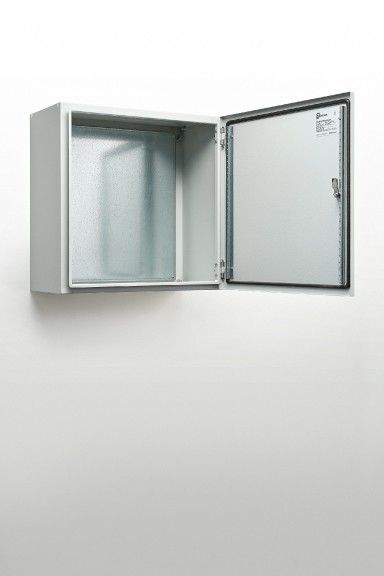

The robust monoblock body is fabricated using 2.5mm marine grade aluminium. Flat face sealing surfaces are provided to increase seal life. Integral device plate mounts, M6 earth studs and welded mounting feet are incorporated. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

Enclosure Door:

The robust surface mounted door is fabricated using 2.5mm marine grade aluminium and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

Stainless Steel 8mm square drive quarter turn lock with key. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Quick Quote

Please select “State” to send to local Distributor.

1 + 1 =

IP66 Aluminium Electrical Enclosure Sizes



Part NumberEnclosure Size (mm)Data SheetDrawingDrawing
SKUH x W x DPDFPDF.dwg
IP-A302015300 x 200 x 150 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A302515300 x 250 x 150 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A303015300 x 300 x 150 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A303020300 x 300 x 200 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A403015400 x 300 x 150 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A403020400 x 300 x 200 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A404020400 x 400 x 200 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A404030400 x 400 x 300 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A504020500 x 400 x 200 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A504025500 x 400 x 250 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A505020500 x 500 x 200 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A505025500 x 500 x 250 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A505030500 x 500 x 300 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A604020600 x 400 x 200 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A604025600 x 400 x 250 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A606020600 x 600 x 200 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A606030600 x 600 x 300 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A606040600 x 600 x 400 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A804030800 x 400 x 300 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A806030800 x 600 x 300 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A806040800 x 600 x 400 Aluminium Electrical EnclosurePDFPDF.dwg
IP-A808030800 x 800 x 300 Aluminium Electrical EnclosurePDFPDF.dwg

Colours

Aluminium electrical enclosures are available in a range of standard colours. All enclosures are supplied as RAL7035 Light Grey unless requested otherwise. To order colours, simply add the SKU colour suffix to the part number.

White Electrical Enclosure

RAL9016
Traffic White
SKU Suffix: -WT

RAL7035 Grey Enclosure

RAL7035
Light Grey
(Standard)

Black Enclosure

RAL9005
Jet Black
SKU Suffix: -BLK

T33 Smoke Blue Enclosure

T33
Smoke Blue
SKU Suffix: -T33

Orange RAL2000 Enclosure

RAL2000
Orange
SKU Suffix: -OR

Red Enclosure

R13
Signal Red
SKU Suffix: -RED
