FIBOX Euronord Terminal Box 1

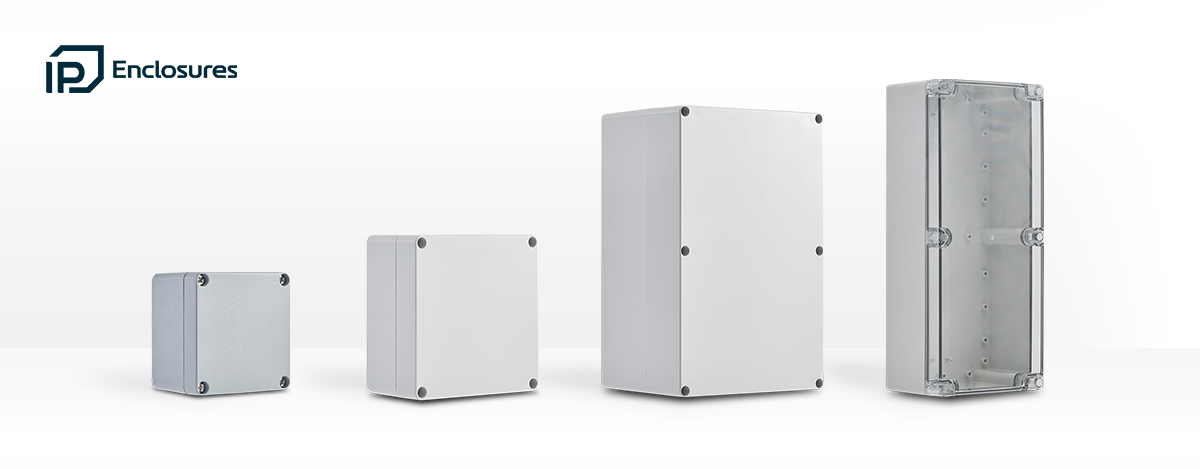

FIBOX Terminal Boxes

IP Enclosures has partnered with FIBOX to provide the highest quality ABS & Polycarbonate Terminal Boxes available. The full range of FIBOX’s Euronord Terminal Box products are now available via IP Enclosures distributors.

LATEST NEWS: ALL CUSTOMERS in Western Australia can now access stock of all FIBOX products at Power Control Products in Canning Vale, Perth WA.

FIBOX is a global leader in electrical enclosure solutions. For almost 60 years, FIBOX have been pioneering electrical enclosure solutions. FIBOX developed the world’s first modular polycarbonate enclosure and continue to design and innovate. Today, FIBOX are one of the largest electrical enclosure manufacturers in the world and are the leading manufacturer of non-metallic electrical enclosure solutions. FIBOX and IP Enclosures have partnered together to serve customers in Australia with a full range of premium-quality terminal boxes packed with features, all for the protection of electrical and electronic components and systems that help keep the world operating.

FIBOX Euronord Terminal Boxes

Features & Specifications

Protection: IP66, IP67 (Polycarbonate & ABS); IP66 (Polyester)
Impact Resistance: IK07/IK08 (Polycarbonate); IK07 (ABS); IK08 (Polyester)
Standards: IEC/EN 60529, IEC/EN 62208, IEC/EN 61439

Parameters:

Electrical Insulation: Fully Insulated
Halogen Free (DIN/VDE 0472, Part 815): Yes
UV Resistance: UL 746C (Polycarbonate & Polyester)
Flammability Rating: UL 94 V0 (Polycarbonate & Polyester); UL 94 HB (ABS)
Glow Wire Test (IEC 60695): 960C (Polycarbonate & Polyester); 650C (ABS)
Temperature °C: -40 to 80 (Polycarbonate); -40 to 60 (ABS); -20 to 95 (Polyester)
Colour: RAL7035 Grey
Seal Material: Polyurethane

Polycarbonate Terminal Boxes

Enclosure SizeStandard Grey CoverTransparent CoverAccessories
HxWxD (mm)SKUData SheetSKUData SheetMounting PlateMounting DIN Rail
52x50x40PC050504PDF--TM0505-
50x65x45PC050705PDFPCT050705PDFTM0507TRM0507
80x82x55PC080806PDFPCT080806PDFTM0808TRM0808
80x82x65PC080807PDFPCT080807PDFTM0808TRM0808
80x120x60PC081206HPDF--TM0812ARH12
80x160x65PC081607PDFPCT081607PDFTM0816TRH1216
120x120x75PC121208PDF--TM1212TRH1212
120x122x105PC121211PDF--TM1212TRH1212
120x160x90PC121609PDFPCT121609PDFTM1216TRH1216
120x200x90PC122009PDFPCT122009PDFTM1220TRH1220
160x250x90PC162509PDF--TM1625TRH24
160x250x125--PCT162513PDFTM1625TRH24
160x250x150PC162515PDF--TM1625TRH24
200x360x151PC203615PDFPCT203615PDFTM2036TRH2036
230x300x110PC233011PDFPCT233011PDFTM2330TRH2330

ABS Terminal Boxes

Enclosure SizeStandard Grey CoverAccessories
HxWxD (mm)SKUData SheetMounting PlateMounting DIN Rail
52x50x40AB050504PDFTM0505-
50x65x45AB050705PDFTM0507TRM0507
80x82x55AB080806PDFTM0808TRM0808
80x82x65AB080807PDFTM0808TRM0808
80x120x60AB081206HPDFTM0812ARH12
80x160x65AB081607PDFTM0816TRH1216
120x120x75AB121208PDFTM1212TRH1212
120x122x105AB121211PDFTM1212TRH1212
120x160x90AB121609PDFTM1216TRH1216
120x200x90AB122009PDFTM1220TRH1220
160x250x90AB162509PDFTM1625TRH24
160x250x150AB162515PDFTM1625TRH24
200x360x151AB203615PDFTM2036TRH2036
230x300x110AB233011PDFTM2330TRH2330

Polyester Terminal Boxes

Enclosure SizeStandard Grey CoverAccessories
HxWxD (mm)SKUData SheetMounting PlateMounting DIN Rail
75x80 x55P0808PDFPM0808TRM0808
75x110x55P0811PDFPM0811PRM0811
75x160x55P0816PDFPM0816TRH0816
75x190x55P0819PDFPM0819PRM0819
120x122x90P1212PDFAM1212ARH12
120x220x90P1222PDFAM1222ARH22
160x160x90P1616PDFPM1616ARH16
160x260x90P1626PDFPM1626ARH26
160x360x90P1636PDFAM1636ARH36
250x255x120P2526PDFPM2526PRH2526
250x400x120P2540PDFPM2540ARH40
405x400x120P4040PDFPM4040ARH40
