IP66 19" Data Racks

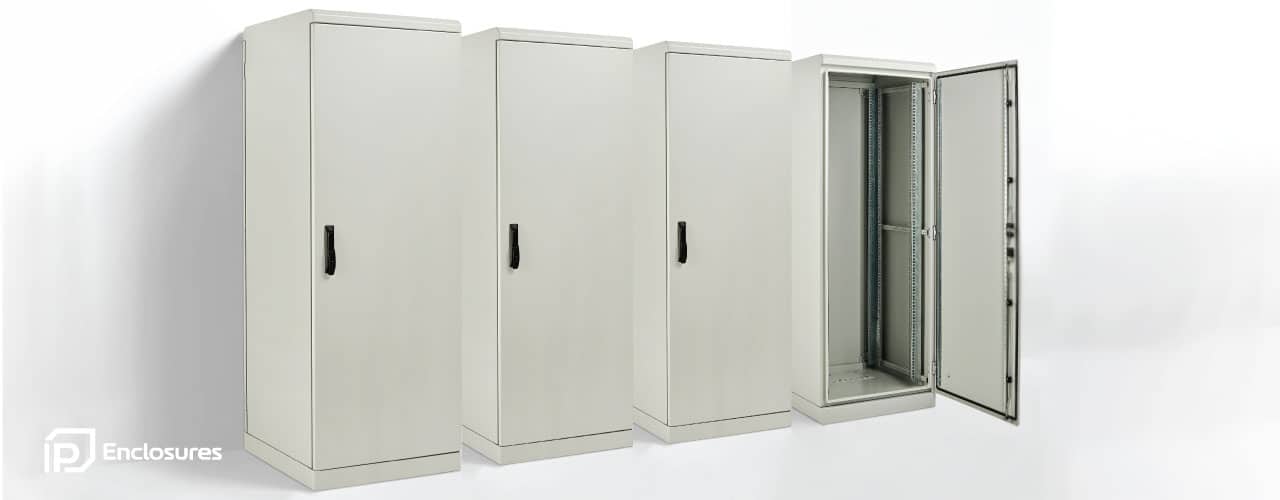

IP66 19″ Rack Cabinets – Floor Mounted

IP66 19” data racks are designed for heavy duty outdoor applications to house sensitive data network equipment in harsh environments. They are suitable for internal and external installations. All IP Enclosures are built to precision in Europe to ensure consistent high quality standards.

IP66 19″ Data Racks – 16RU to 42RU

Feature & Specifications:

Protection: IP66 IK10

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, EIA-310-D, RoHS, CE, UKCA

Rack Unit Sizes:

– 16RU, 24RU, 30RU (Heavy Duty), 32RU, 36RU (Heavy Duty), 42RU

Material:

– Enclosure Body: 1.5mm galvanised steel sheet
– Enclosure Door: 1.5mm galvanised steel sheet
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Enclosure Seal: Polyurethane

Body:

The robust monoblock body is 1.5mm galvanised steel sheet. Precision automated manufacturing equipment ensures accuracy and consistent high quality. Flat face sealing surfaces increase seal life. A galvanised steel gland plate is also incorporated into the bottom face.

Door:

The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening. Each door contains integral cable management rail studs and an M6 earth stud. The cable management rails are removable to provide more space for control components. (Standard range includes front door only, with fixed rear panel; Extra Heavy Duty range includes front and rear door).

Seal:

A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).

Lock:

3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Accessories:

A full range of data rack enclosure accessories are available. Refer to accessories menu or contact our team for assistance.

Grade 316 Stainless Steel Data Racks are also available.

Certificates:

IEC 60529 Degrees of protection provided by enclosures: Certificate AB-0386-T 2311.14.01/00
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate
0366932-TSE-01/01
CE Certificate of Compliance: Certificate SZL-21 MA 13338-1
UKCA Certificate of Compliance: Certificate SZU-22MA19560-1

Products are manufactured to Quality, Safety and Environmental standards.

Download the Certificate of Conformity for Wall Mounted Data Racks.

REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

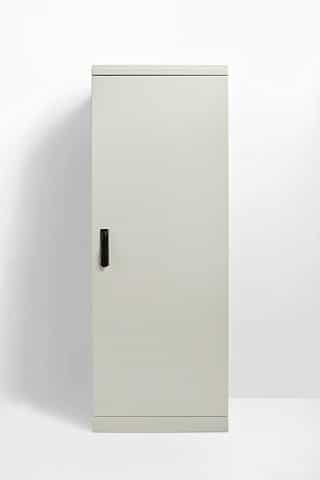

data rack

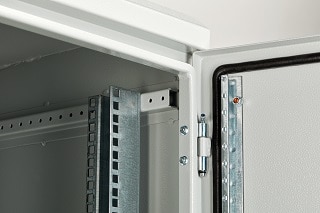

data rack detail 2
Colour: GreyColour: BlackSizeNo. of U (RU)Enclosure Size (mm)Data SheetDrawingAutoCAD
Part Number SKUPart Number SKU19"U/RUH x W x DPDFPDFDWG
IP-SD606040IP-SD606040-BLK19"12RU650 x 600 x 400PDFPDFDWG
IP-SD806040IP-SD806040-BLK19"16RU850 x 600 x 400PDFPDFDWG
IP-SD806060IP-SD806060-BLK19"16RU850 x 600 x 600PDFPDFDWG
IP-SD806080IP-SD806080-BLK19"16RU850 x 600 x 800PDFPDFDWG
IP-SD1206040IP-SD1206040-BLK19"24RU1200 x 600 x 400PDFPDFDWG
IP-SD1206060IP-SD1206060-BLK19"24RU1200 x 600 x 600PDFPDFDWG
IP-SD1606060IP-SD1606060-BLK19"32RU1550 x 600 x 600PDFPDFDWG
IP-SD2006060IP-SD2006060-BLK19"42RU2000 x 600 x 600PDFPDFDWG
IP-SD2006080IP-SD2006080-BLK19"42RU2000 x 600 x 800PDFPDFDWG

Heavy Duty IP55 19″ Data Racks

The Heavy Duty range is based on the standard range above except:

  • The enclosure body and rails have been constructed to withstand heavy loads associated with heavy equipment such as heavy battery storage. Heavy duty shelves are available to suit up to 250kg per shelf to accommodate heavy battery storage and UPS.
  • Front and rear access doors are provided. (The standard range has front door only, with a fixed rear panel).
Part Number SizeNo. of U (RU)Enclosure Size (mm)Data SheetDrawingAutoCAD
SKU19"U/RUH x W x DPDFPDFDWG
IP-SD167608019"30RU1670 x 600 x 800PDFPDFDWG
IP-SD1671258019" x 2 (Double Bay)30RU1670 x 1250 x 800PDFPDFDWG
IP-SD1676010019"30RU1670 x 600 x 1000PDFPDFDWG
IP-SD197608019"36RU1970 x 600 x 800PDFPDFDWG
IP-SD1971258019" x 2 (Double Bay)36RU1970 x 1250 x 800PDFPDFDWG
IP-SD1976010019"36RU1970 x 600 x 1000PDFPDFDWG
