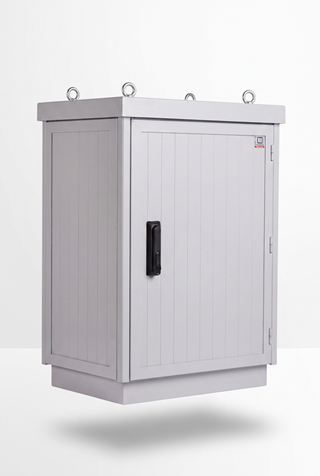

Almatec Double-Wall Aluminium Cabinet

Almatec Double-Wall Aluminium Cabinets

Reduce heat inside electrical cabinets by eliminating solar heat gain with Double-Wall Aluminium Electrical Cabinets. IP Enclosures and Almatec Switzerland have partnered together to serve customers in Australia with the highest quality Double-Wall Aluminium Electrical Cabinets in the world. Extreme weather and climate events including extreme heat are increasing in frequency and severity which often results in energy and communications equipment failures. Double-Wall Aluminium Electrical Cabinets offer reliable protection from extreme heat and direct sunlight to protect critical infrastructure. The double-wall aluminium construction eliminates solar heat gain while providing passive heat dissipation through natural convection. The high-performance passive heat dissipation provides the best protection from heat in the harshest sun.

Features and Specifications

Protection: IP55 IK10; Shock, Transport & Vibration ETS EN 300-01; Seizmic/Earthquake ETS EN 300-019-2-4

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, IEC/EN 61439, RoHS, REACH, WEEE

Material:

– Body: Double-Wall Aluminium
– Doors: Double-Wall Aluminium
– Seal: EPDM

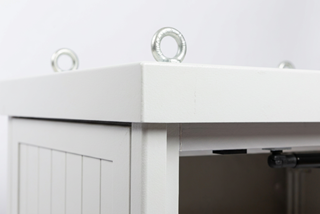

Cabinet Frame and Panels:

The Almatec double-wall construction is an innovative design to eliminate solar heat gain while providing passive heat dissipation through natural convection. The robust frame is constructed from torsion-free hollow aluminium profiles. The double-walled filler profiles provide reliable stability while the baseplate with cable feedthrough permanently protects the inside of the cabinet from ground moisture. The powder-coated aluminium construction provides protection against corrosion in harsh conditions including coastal saltwater environments. The double-walled construction also assists to reduce noise emissions. The cabinet is made in Switzerland to the highest standards.

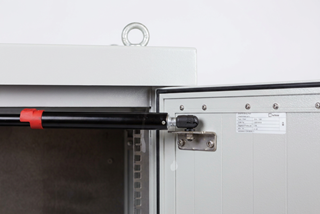

Doors:

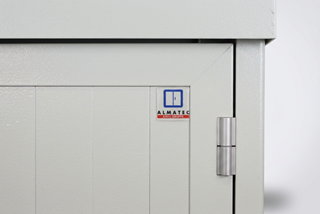

The robust doors are fabricated using hollow aluminium profiles that eliminate solar heat gain wile providing passive heat dissipation through natural convection. The doors are designed with semi-concealed hinges for 180° opening.

Seal:

An Elastomer EPDM Synthetic Seal is inserted into the aluminium profile to provide a high quality full perimeter seal. The EPDM seal provides excellent resistance to chemicals, ozone and UV.

Lock:

Each door is fitted with a 3-point bar lock and swivel lever handle.

Surface Treatment:

Powder-coated RAL7035.

Accessories:

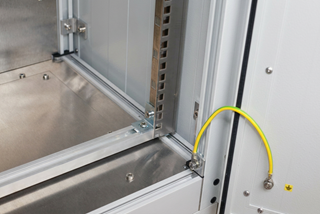

A range of accessories are available including Device Mounting Plates and adjustable 19″ Rack Mounting Kits.

Certificates:

IEC/EN 60529 Degrees of protection provided by enclosures: Certificate P50-10-0085
IEC/EN 62208 Empty Enclosures for low-voltage switchgear and controlgear assemblies: Certificate IK-2631
IEC/EN 61439, Low voltage switchgear and controlgear assemblies: Certificate IK-4028
ETS EN 300-019-2-4 (Seizmic/Earthquake): Certificate (CoC Almatec) 16-12-09
ETS 300-01 (Transport & Vibration): Certificate P50-10-0034

Download the Certificate of Conformity for ALMATEC ANK Double Wall Aluminium Electrical Cabinets.

REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

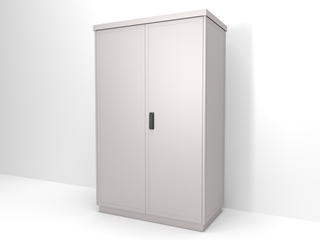

Almatec Double-Wall Aluminium Cabinet ALM-ANK20013070

Pole-Mounted Double-Wall Aluminium Cabinets

Size H x W x D (mm)CabinetData SheetDrawingDevice Mounting Plate19" Rack Kit
450 x 350 x 350ALM-ANK453535PDFPDFALM-ANK453535MP-
650 x 450 x 350ALM-ANK654535PDFPDFALM-ANK654535MP-

Floor-Mounted Double-Wall Aluminium Cabinets

Size H x W x D (mm)CabinetData SheetDrawingDevice Mounting Plate19" Rack Kit
800 x 600 x 450ALM-ANK806045PDFPDFALM-ANK806045MPALM-ANK806045RK
1000 x 600 x 600ALM-ANK1006060PDFPDFALM-ANK1006060MPALM-ANK1006060RK
1000 x 1000 x 450ALM-ANK10010045PDFPDFALM-ANK10010045MPALM-ANK10010045RK
1000 x 1200 x 600ALM-ANK10012060PDFPDFALM-ANK10012060MPALM-ANK10012060RK
1200 x 800 x 450ALM-ANK1208045PDFPDFALM-ANK1208045MPALM-ANK1208045RK
1200 x 1500 x 450ALM-ANK12015045PDFPDFALM-ANK12015045MPALM-ANK12015045RK
1200 x 1500 x 600ALM-ANK12015060PDFPDFALM-ANK12015060MPALM-ANK12015060RK
1600 x 800 x 600ALM-ANK1608060PDFPDFALM-ANK1608060MPALM-ANK1608060RK
1600 x 1500 x 800ALM-ANK16015080PDFPDFALM-ANK16015080MPALM-ANK16015080RK
1800 x 800 x 800ALM-ANK1808080PDFPDFALM-ANK1808080MPALM-ANK1808080RK
2000 x 700 x 700ALM-ANK2007070PDFPDFALM-ANK2007070MPALM-ANK2007070RK
2000 x 1300 x 700ALM-ANK20013070PDFPDFALM-ANK20013070MPALM-ANK20013070RK

Floor-Mounted Double-Wall Aluminium Cabinets (Modular Bayed Cabinets)

Size H x W x D (mm)CabinetData SheetDrawingDevice Mounting Plate19" Rack Kit
2200 x 1500 x 1800ALM-ANK220150180-KITPDFPDF--
2200 x 3000 x 1800ALM-ANK220300180-KITPDFPDF--
2200 x 4500 x 1800ALM-ANK220450180-KITPDFPDF--
2200 x 6000 x 1800ALM-ANK220600180-KITPDFPDF--
