Vented Doors for Electrical Enclosures

Vented Doors for Electrical Enclosures

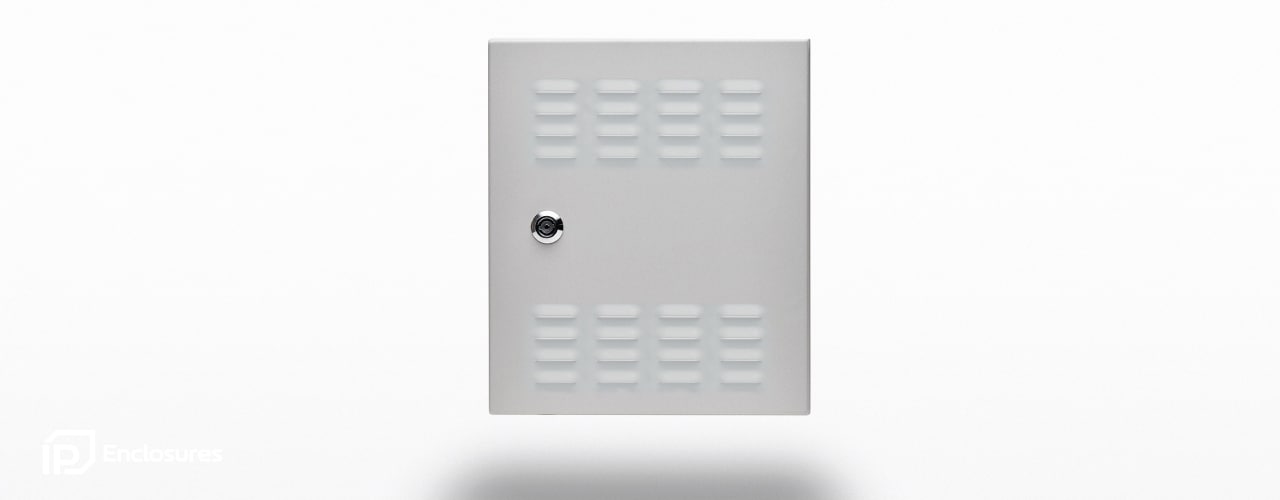

IP Enclosures provide a range of vented doors for electrical enclosures. Vented doors feature pressed louvre vents to enable ventilation. The pressed louvre vents are located at the bottom and top of the door to enable improved air circulation. Vented Doors are optional inter-changeable door that can be easily fitted to new or existing IP Enclosures electrical enclosures. The construction of the door and seal is identical to the standard door and seal.

Powder-Coated Steel

Steel vented doors are fabricated using 1.2mm to 1.5mm galvanised steel sheet, powder-coated with a textured finish 80-120 micron average thickness. The standard colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Marine Grade Aluminium

Aluminium vented doors are fabricated using 2.5mm marine grade aluminium sheet, powder-coated with a textured finish 80-120 micron average thickness. The standard colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Grade 316 Stainless Steel

Stainless Steel vented doors are fabricated using 1.5mm Grade 316/316L Stainless Steel.

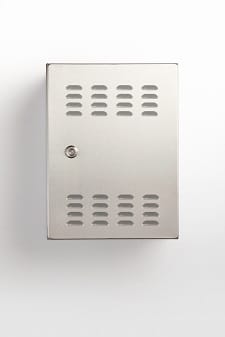

Stainless Steel Vented Door
DescriptionPart Number
Enclosure H x W (mm)SteelAluminiumStainless Steel
400 x 300IP-4030VENTDOORIP-A4030VENTDOORIP-SS4030VENTDOOR
400 x 400IP-4040VENTDOORIP-A4040VENTDOORIP-SS4040VENTDOOR
500 x 500IP-5050VENTDOORIP-A5050VENTDOORIP-SS5050VENTDOOR
600 x 400IP-6040VENTDOORIP-A6040VENTDOORIP-SS6040VENTDOOR
600 x 600IP-6060VENTDOORIP-A6060VENTDOORIP-SS6060VENTDOOR
800 x 600IP-8060VENTDOORIP-A8060VENTDOORIP-SS8060VENTDOOR

Vented Doors for Pole-Mounted Field Cabinets

IP Enclosures provide a range of vented doors for Pole-mounted Field Cabinets. Vented doors feature pressed louvre vents to enable ventilation. The pressed louvre vents are located at the bottom and top of the door to enable improved air circulation. Vented Doors are optional inter-changeable door that can be easily fitted to new or existing IP Enclosures pole-mounted field cabinets. (To be used with Non-Ventilated Field Cabinets).

Powder-Coated Steel

Steel vented doors are fabricated using 1.2mm to 1.5mm galvanised steel sheet, powder-coated with a smooth finish 80-120 micron average thickness. The standard colour is T33-Smoke Blue. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

Marine Grade Aluminium

Aluminium vented doors are fabricated using 2.5mm marine grade aluminium sheet, powder-coated with a smooth finish 80-120 micron average thickness. The standard colour is T33-Smoke Blue. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

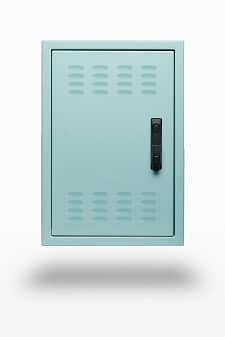

Field Cabinet Vented Door

Vented Doors for Field Cabinets

IP Enclosures provide a range of vented doors for Field Cabinets. Vented doors feature pressed louvre vents to enable ventilation. The pressed louvre vents are located at the bottom and top of the door to enable improved air circulation.

DescriptionPart Number
Enclosure H x W (mm)SteelAluminium Steel
450 x 350IP-4535VENTDOOR-T33IP-A4535VENTDOOR-T33
650 x 450IP-6545VENTDOOR-T33IP-A6545VENTDOOR-T33
700 x 600IP-7060VENTDOOR-T33IP-A7060VENTDOOR-T33
