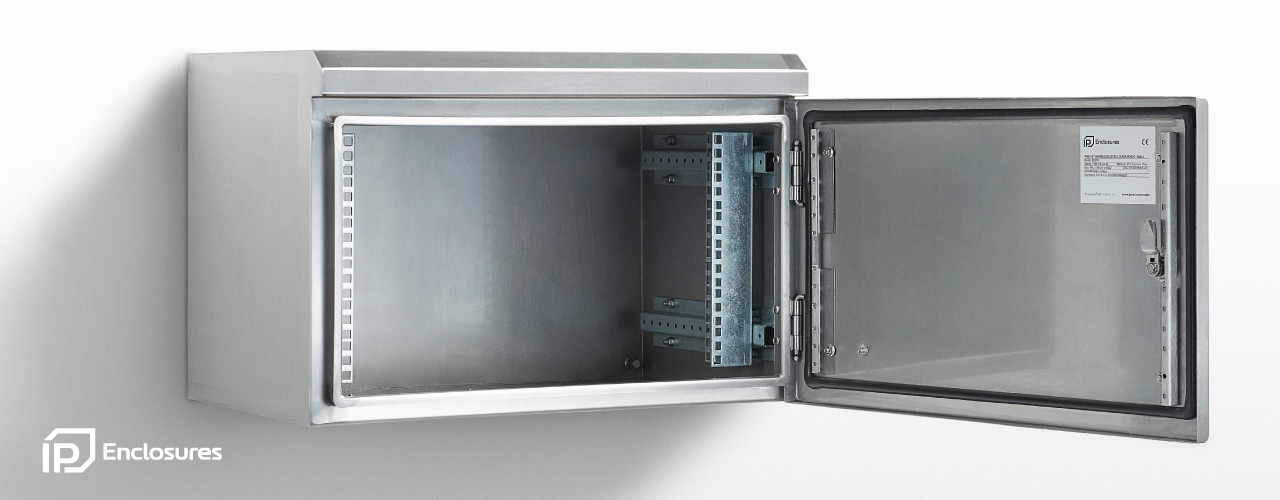

Stainless Steel Wall Mounted Data Racks

IP66 Stainless Steel 19″ Data Racks – Wall Mounted

IP66 stainless steel data racks are designed for extreme duty to house sensitive data network equipment in harsh environments. They are suitable for internal and external installations. All IP Enclosures are built to precision in Europe to ensure consistent high quality standards.

Stainless Steel 19″ Data Racks – 4RU to 12RU

Features & Specifications:

Protection: Complies with IP66 IK10, Nema 4x

Standard: AS60529, EIA-310-D, RoHS

Rack Unit Sizes:

– 4RU, 6RU, 9RU, 12RU

Material:

– Enclosure Body: 1.5mm Grade 316/316L Stainless Steel
– Enclosure Door: 1.5mm Grade 316/316L Stainless Steel
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Enclosure Seal: Polyurethane

Body & 19″ Rails:

The robust monoblock body is fabricated using 1.5mm Grade 316/316L Stainless Steel. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment to ensure accuracy and consistent high quality. Flat face sealing surfaces are provided to increase seal life. A stainless steel gland plate is also incorporated into the bottom face. Adjustable 19” data rack rails are provided fitted.

Door:

The robust surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening and contains integral cable management rail studs, M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. Two internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.

Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Lock:

Grade 316 Stainless Steel 8mm square drive quarter turn lock with key. A full range of locking solutions are available upon request.

Quick Quote

10 + 6 =

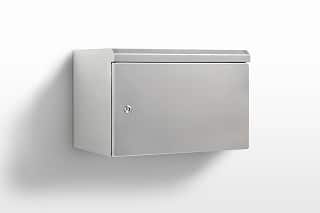

Stainless Steel Data Rack - Wall Mounted

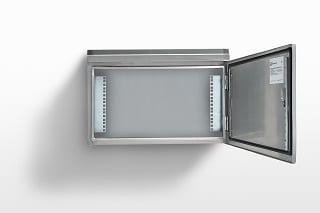

Stainless Steel Data Rack - Wall Mounted - Open

Grade 316 Stainless Steel

Part NumberDescription
SKUU/RU x Depth (mm)
IP-SSDW4RU304RU x 300 Deep 316ss 19" Data Rack
IP-SSDW6RU306RU x 300 Deep 316ss 19" Data Rack
IP-SSDW6RU456RU x 450 Deep 316ss 19" Data Rack
IP-SSDW9RU459RU x 450 Deep 316ss 19" Data Rack
IP-SSDW12RU4512RU x 450 Deep 316ss 19" Data Rack
IP-SSDW12RU6012RU x 600 Deep 316ss 19" Data Rack

Grade 304 Stainless Steel

Part NumberDescription
SKUU/RU x Depth (mm)
IP-304-DW4RU304RU x 300 Deep 304ss 19" Data Rack
IP-304-DW6RU306RU x 300 Deep 304ss 19" Data Rack
IP-304-DW6RU456RU x 450 Deep 304ss 19" Data Rack
IP-304-DW9RU459RU x 450 Deep 304ss 19" Data Rack
IP-304-DW12RU4512RU x 450 Deep 304ss 19" Data Rack
IP-304-DW12RU6012RU x 600 Deep 304ss 19" Data Rack
