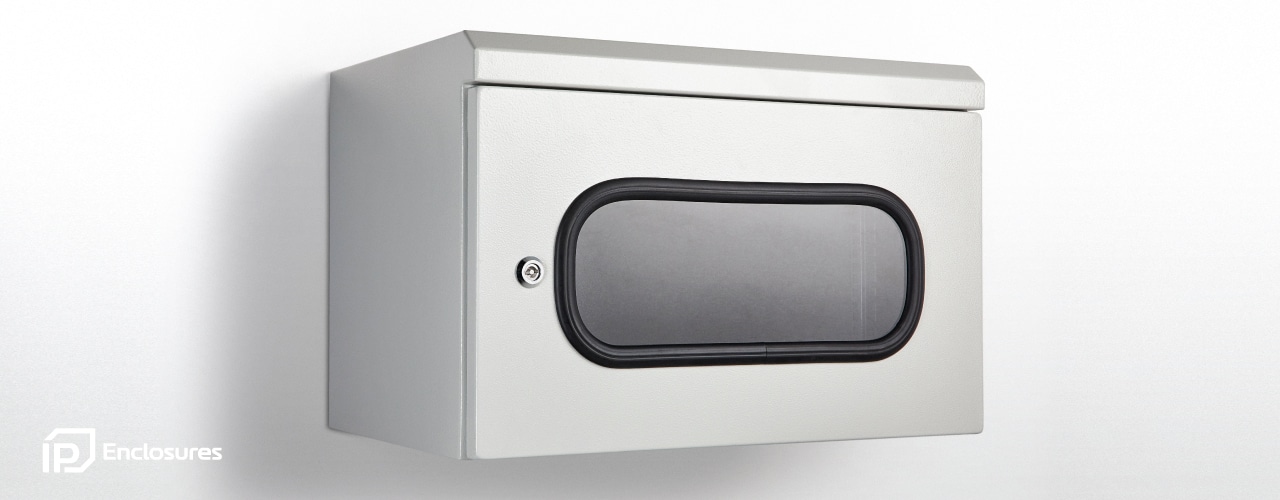

Transparent Doors
IP Enclosures provide a range of Transparent Glazed Doors that can be easily fitted to our range of electrical enclosures. Transparent Doors are provided as a standard accessory. Simply remove the existing door and replace with a transparent door.
Features and Specifications
Protection: Complies with IP66
Standard: AS60529, RoHS, CE, UKCA

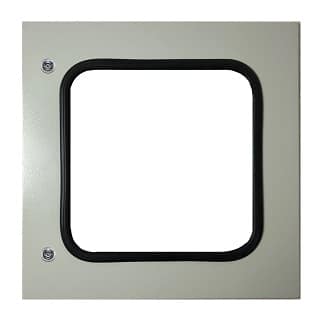

WINDOORS – Powder-Coated Steel
Material:
– Enclosure Door: 1.5mm galvanised steel sheet
– Enclosure Seal: Polyurethane
Door:
The surface mounted door is 1.5mm galvanised steel sheet. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening.
Seal:
A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).
Lock:
Chrome 5mm Double Bit Quarter Turn Lock. A full range of locking solutions are available upon request.
Surface Treatment:
UL approved epoxy polyester powder coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.
| Part Number | Enclosure Size (mm) | Lock |
|---|---|---|
| SKU | H x W | Quantity |
| IP-4030WINDOOR | 400 x 300 IP66 Enclosure Door with Window | 1 |
| IP-4040WINDOOR | 400 x 400 IP66 Enclosure Door with Window | 1 |
| IP-5030WINDOOR | 500 x 300 IP66 Enclosure Door with Window | 1 |
| IP-5040WINDOOR | 500 x 400 IP66 Enclosure Door with Window | 1 |
| IP-5050WINDOOR | 500 x 500 IP66 Enclosure Door with Window | 1 |
| IP-6040WINDOOR | 600 x 400 IP66 Enclosure Door with Window | 2 |
| IP-6060WINDOOR | 600 x 600 IP66 Enclosure Door with Window | 2 |
| IP-7050WINDOOR | 700 x 500 IP66 Enclosure Door with Window | 2 |
| IP-8040WINDOOR | 800 x 400 IP66 Enclosure Door with Window | 2 |
| IP-8060WINDOOR | 800 x 600 IP66 Enclosure Door with Window | 2 |
| IP-8080WINDOOR | 800 x 800 IP66 Enclosure Door with Window | 2 |
| IP-10060WINDOOR | 1000 x 600 IP66 Enclosure Door with Window | 2 |
| IP-10080WINDOOR | 1000 x 800 IP66 Enclosure Door with Window | 2 |
| IP-12060WINDOOR | 1200 x 600 IP66 Enclosure Door with Window | 2 |
| IP-12080WINDOOR | 1200 x 800 IP66 Enclosure Door with Window | 2 |

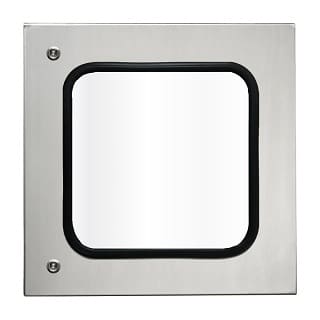

WINDOORS – Grade 316 Stainless Steel
Material:
– Enclosure Door: 1.5mm Grade 316/316L Stainless Steel
– Enclosure Seal: Polyurethane
Door:
The surface mounted door is 1.5mm Grade 316/316L Stainless Steel. It incorporates concealed removable hinges with captive pins. Doors are also designed for a 110° opening.
Seal:
A high quality full perimeter seal provides excellent sealing over a long life. It is machine applied Polyurethane foamed in place (FIP).
Lock:
Grade 316 Stainless Steel 8mm Square Drive Quarter Turn Lock. A full range of locking solutions are available upon request.
| Part Number | Enclosure Size (mm) | Lock |
|---|---|---|
| SKU | H x W | Quantity |
| IP-SS4030WINDOOR | 400 x 300 IP66 316ss Enclosure Door with Window | 1 |
| IP-SS4040WINDOOR | 400 x 400 IP66 316ss Enclosure Door with Window | 1 |
| IP-SS5030WINDOOR | 500 x 300 IP66 316ss Enclosure Door with Window | 1 |
| IP-SS5040WINDOOR | 500 x 400 IP66 316ss Enclosure Door with Window | 1 |
| IP-SS5050WINDOOR | 500 x 500 IP66 316ss Enclosure Door with Window | 1 |
| IP-SS6040WINDOOR | 600 x 400 IP66 316ss Enclosure Door with Window | 2 |
| IP-SS6060WINDOOR | 600 x 600 IP66 316ss Enclosure Door with Window | 2 |
| IP-SS7050WINDOOR | 700 x 500 IP66 316ss Enclosure Door with Window | 2 |
| IP-SS8040WINDOOR | 800 x 400 IP66 316ss Enclosure Door with Window | 2 |
| IP-SS8060WINDOOR | 800 x 600 IP66 316ss Enclosure Door with Window | 2 |
| IP-SS8080WINDOOR | 800 x 800 IP66 316ss Enclosure Door with Window | 2 |
| IP-SS10060WINDOOR | 1000 x 600 IP66 316ss Enclosure Door with Window | 2 |
| IP-SS10080WINDOOR | 1000 x 800 IP66 316ss Enclosure Door with Window | 2 |
| IP-SS12060WINDOOR | 1200 x 600 IP66 316ss Enclosure Door with Window | 2 |
| IP-SS12080WINDOOR | 1200 x 800 IP66 316ss Enclosure Door with Window | 2 |
