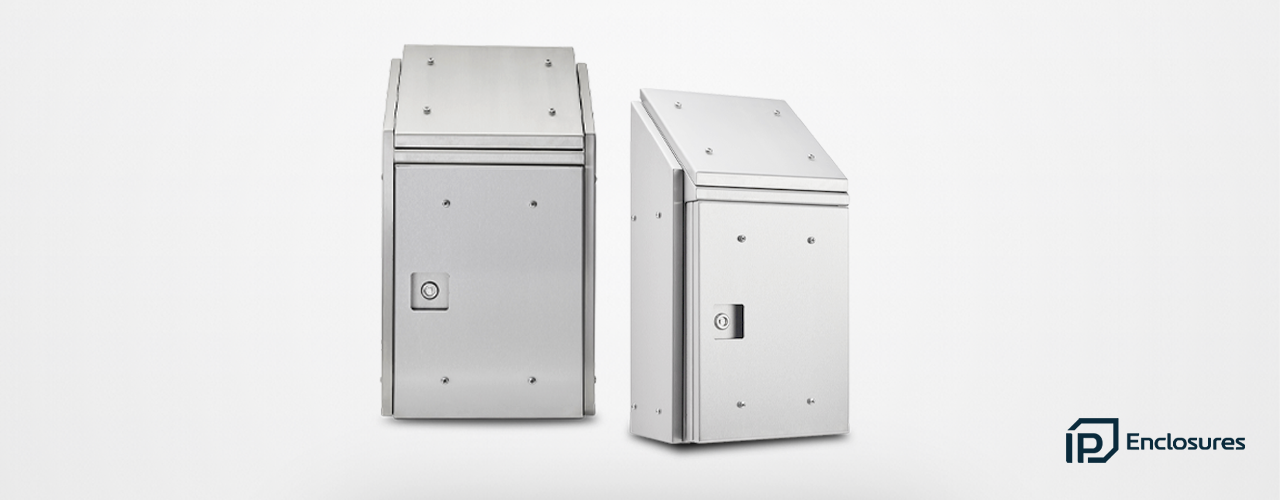

Sun Shields

Sun Shields

IP Enclosures provide sun shields in Steel and Grade 316 Stainless Steel to suit all sizes of electrical enclosures and cabinets.

Features and Benefits

Sun shields (solar shields) are fitted to external surfaces to assist in controlling the internal temperature of the electrical enclosure or electrical cabinet. Generally, the temperature range of the electrical enclosure must maintain an internal temperature below the operating temperature range of internal components.

Materials and Fabrication of Sun Shields

Sun shields are fabricated using precision automated manufacturing equipment to ensure accuracy and consistent high quality. Steel sun shields are fabricated using 1.2mm – 1.5mm galvanised steel sheet. UL approved epoxy polyester powder-coated with a textured RAL7035 finish to 80-120 micron average thickness. Coloured sun shields are available if required. Stainless Steel sun shields are fabricated using 1.5mm Grade 316/316L Stainless Steel.

Available Sizes of IP Enclosures Sun Shields

A range of sizes of steel and stainless steel sun shields are available.

Powder-Coated Steel Sun Shields

IP-SUN504020 – Sun Shield Kit for 500x400x200 Steel Enclosure

IP-SUN606030 – Sun Shield Kit for 600x600x300 Steel Enclosure

IP-SUN806030 – Sun Shield Kit for 800x600x300 Steel Enclosure

Grade 316 Stainless Steel Sun Shields

IP-SUNSS504020 – Sun Shield Kit for 500x400x200 Stainless Steel Enclosure

IP-SUNSS606030 – Sun Shield Kit for 600x600x300 Stainless Steel Enclosure

IP-SUNSS806030 – Sun Shield Kit for 800x600x300 Stainless Steel Enclosure

Other sizes are made-to-order.

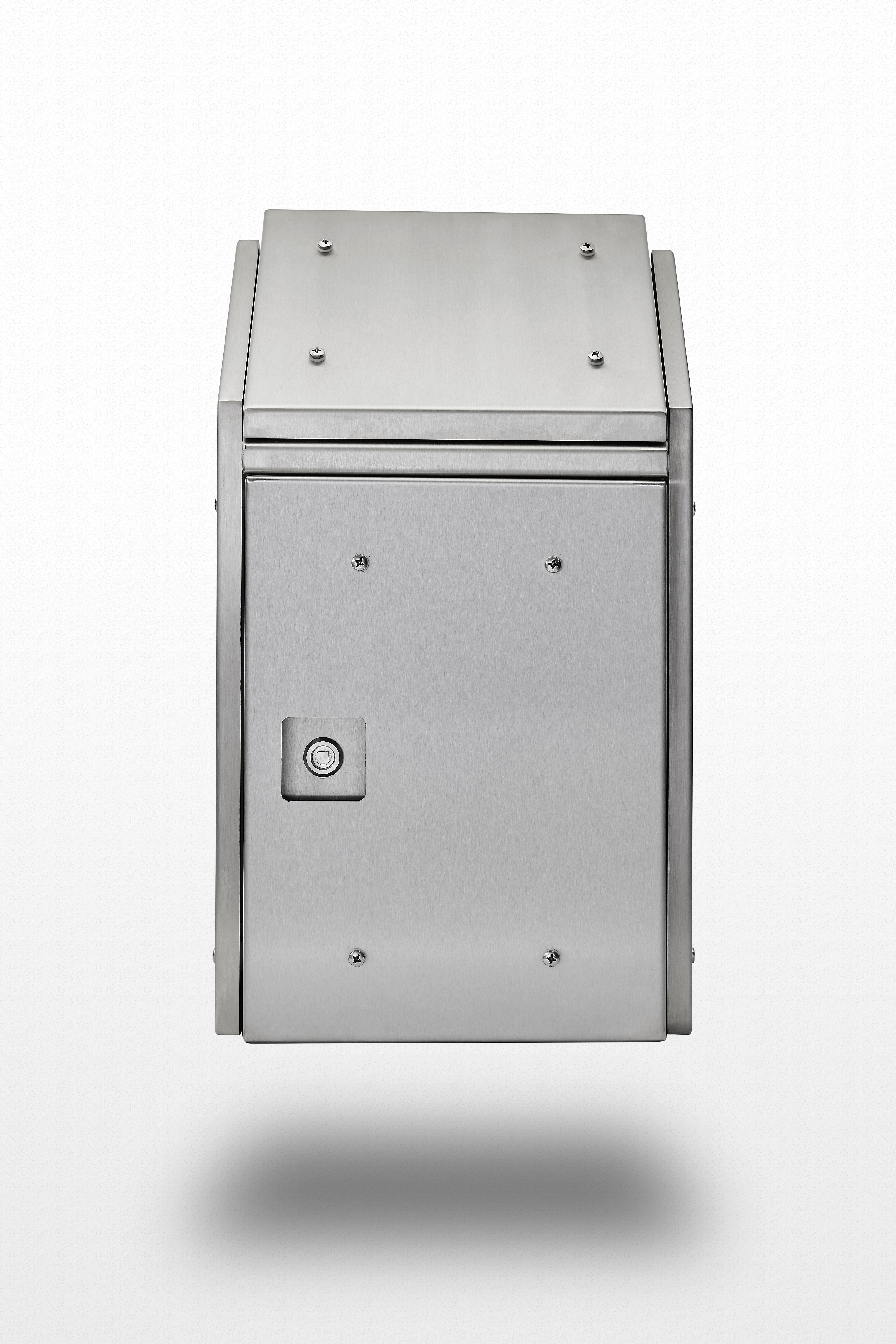

Sun Shields Assembly

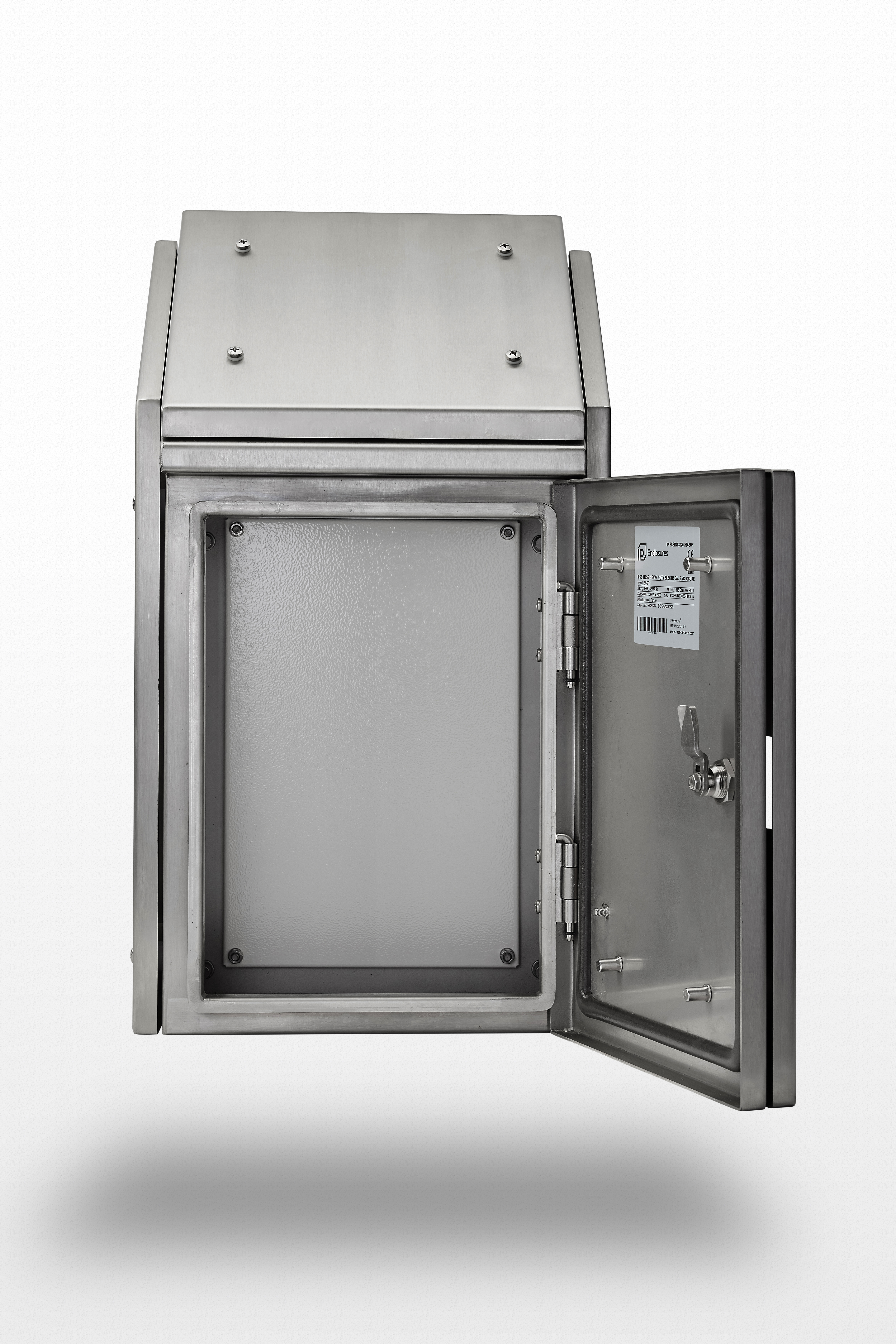

Sun Shields Right View

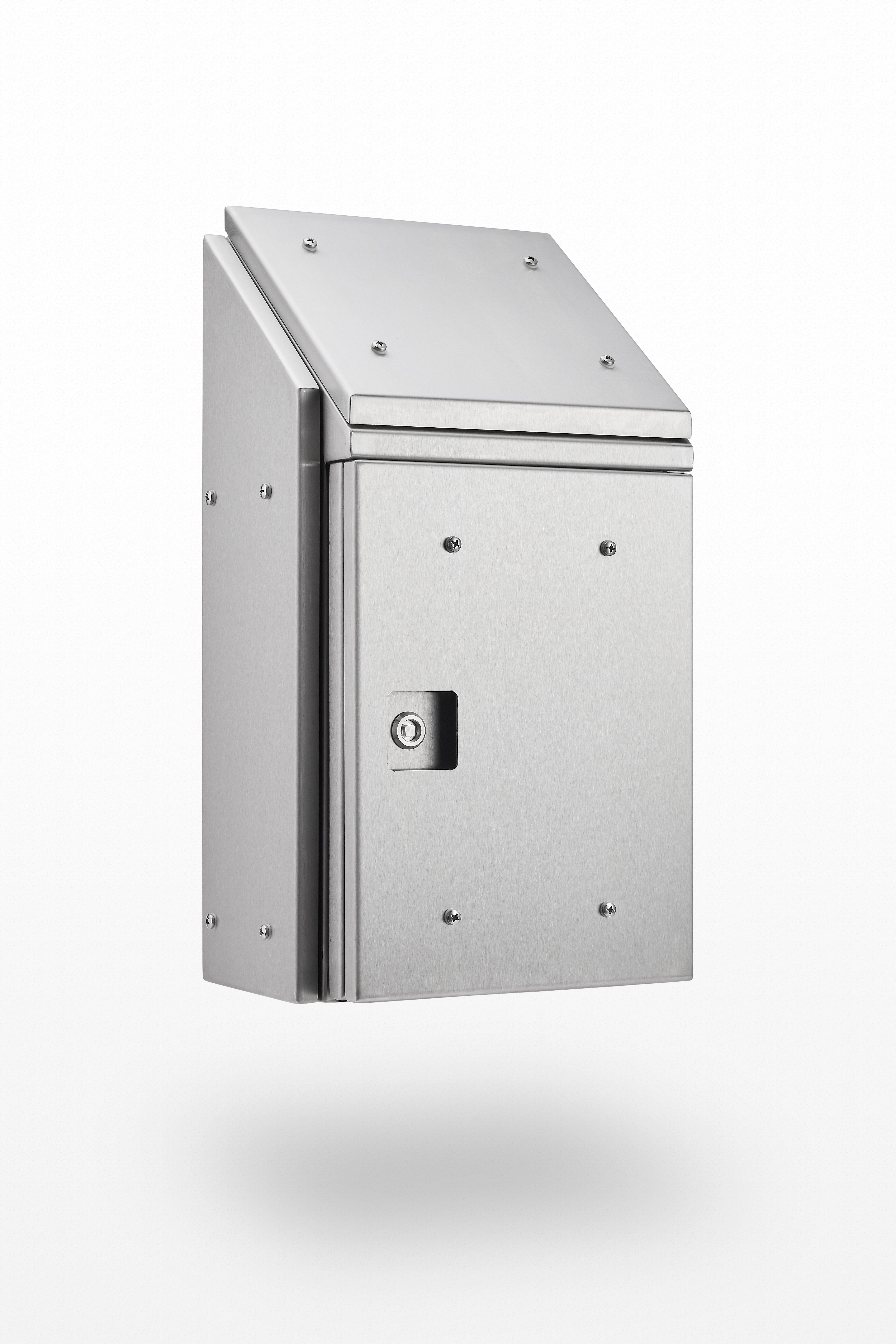

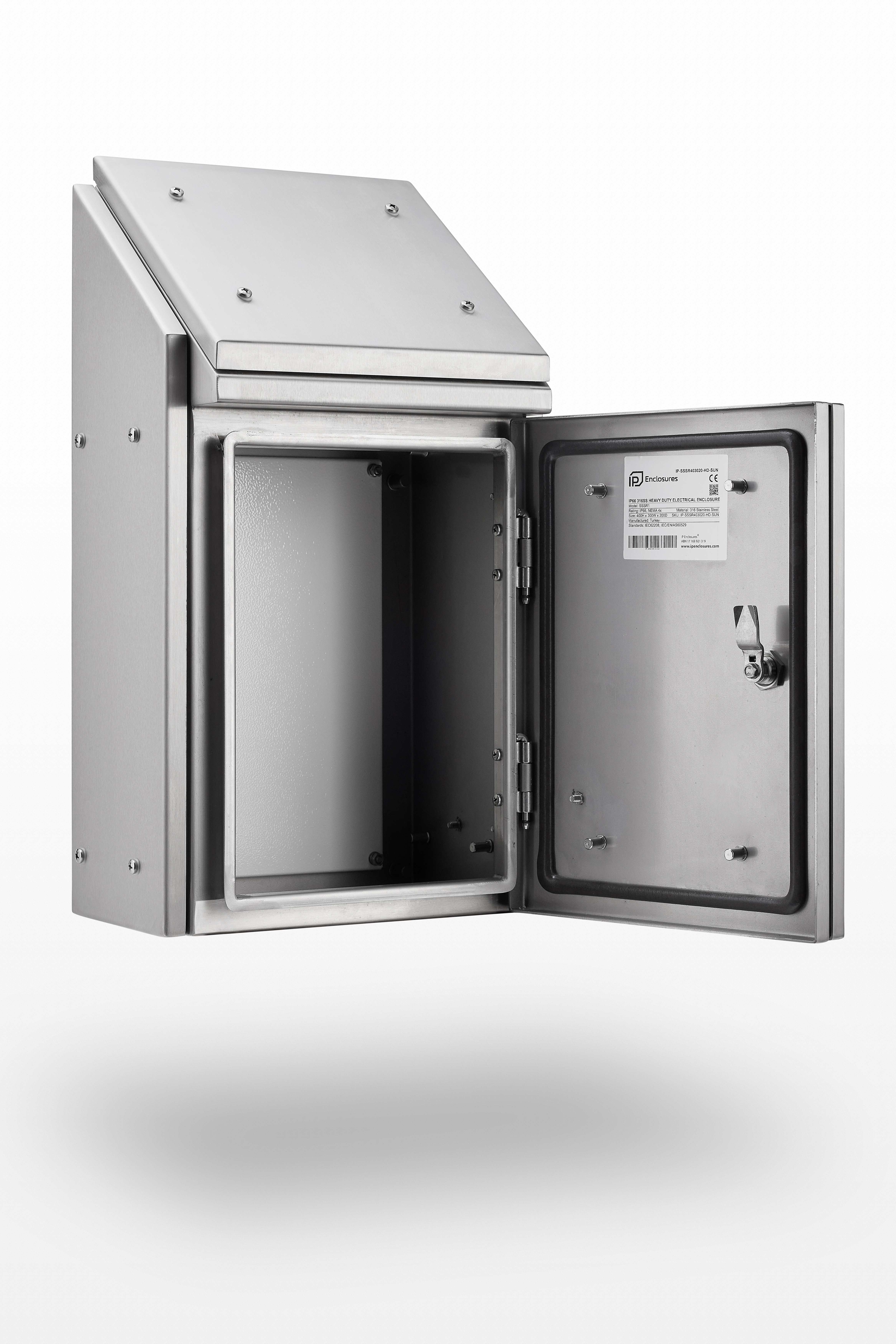

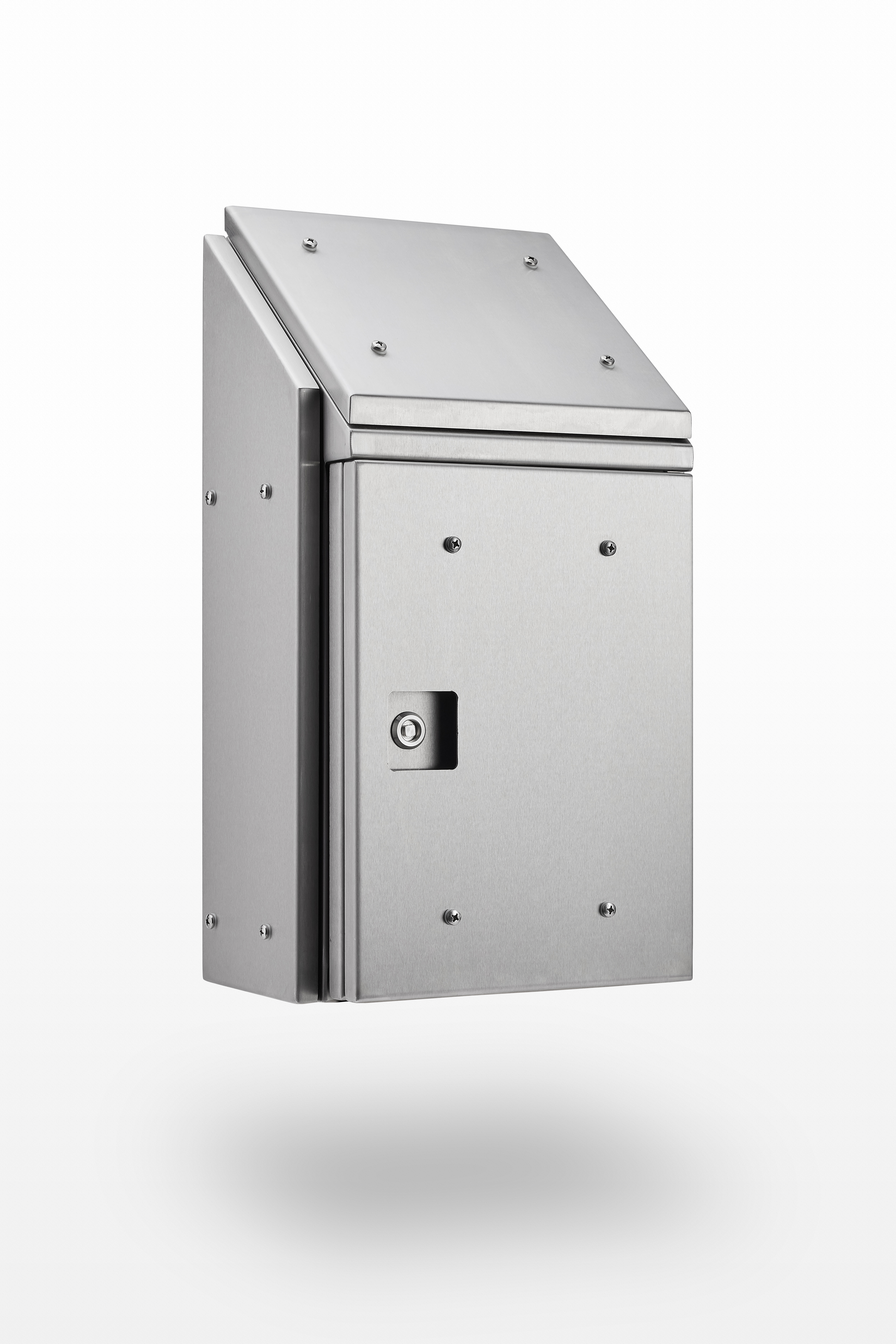

Sun Shields Left View
