Electrical Enclosure Pole Mounting Brackets
IP Enclosures provide pole mount brackets in steel and stainless steel to suit all sizes of electrical enclosures.

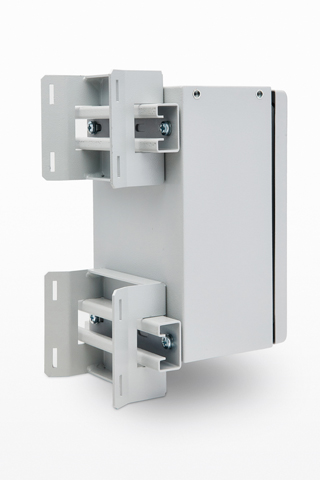

IP-PMB & IP-SSPMB Pole Mounting Brackets are to suit large diameter timber and steel poles of varying diameters. These are designed to suit standard Bandit strapping
Powdercoated Steel
UL approved epoxy polyester powder coated with a textured finish. 80-120 micron average thickness to suit standard electrical enclosure colour RAL7035.
| Part Number | Description |
|---|---|
| SKU | |
| IP-PMP200 | U-Channel Profile 200mm Long - Powdercoated |
| IP-PMP300 | U-Channel Profile 300mm Long - Powdercoated |
| IP-PMP400 | U-Channel Profile 400mm Long - Powdercoated |
| IP-PMP500 | U-Channel Profile 500mm Long - Powdercoated |
| IP-PMP600 | U-Channel Profile 600mm Long - Powdercoated |
| IP-PMP1200 | U-Channel Profile 1200mm Long - Powdercoated |
| IP-PMB | Pole Mount Bracket to Suit Large Diameter Poles (Use with Bandit Strap) |

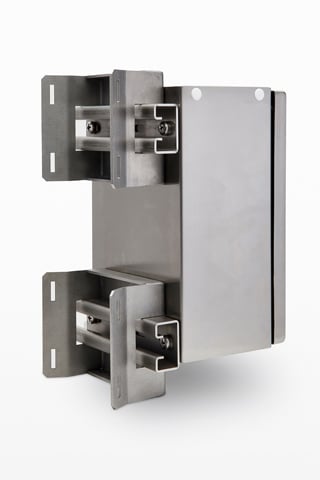

316 Stainless Steel
| Part Number | Description |
|---|---|
| SKU | |
| IP-SSPMP200 | U-Channel Profile 200mm Long - 316 Stainless Steel |
| IP-SSPMP300 | U-Channel Profile 300mm Long - 316 Stainless Steel |
| IP-SSPMP400 | U-Channel Profile 400mm Long - 316 Stainless Steel |
| IP-SSPMP500 | U-Channel Profile 500mm Long - 316 Stainless Steel |
| IP-SSPMP600 | U-Channel Profile 600mm Long - 316 Stainless Steel |
| IP-SSPMP1200 | U-Channel Profile 1200mm Long - 316 Stainless Steel |
| IP-SSPMB | Pole Mount Bracket to Suit Large Diameter Poles (Use with Bandit Strap) - 316ss |
Electrical Enclosure Mounting Clamps
IP Enclosures provide Mounting Clamps in steel and stainless steel to suit all sizes of electrical enclosures.

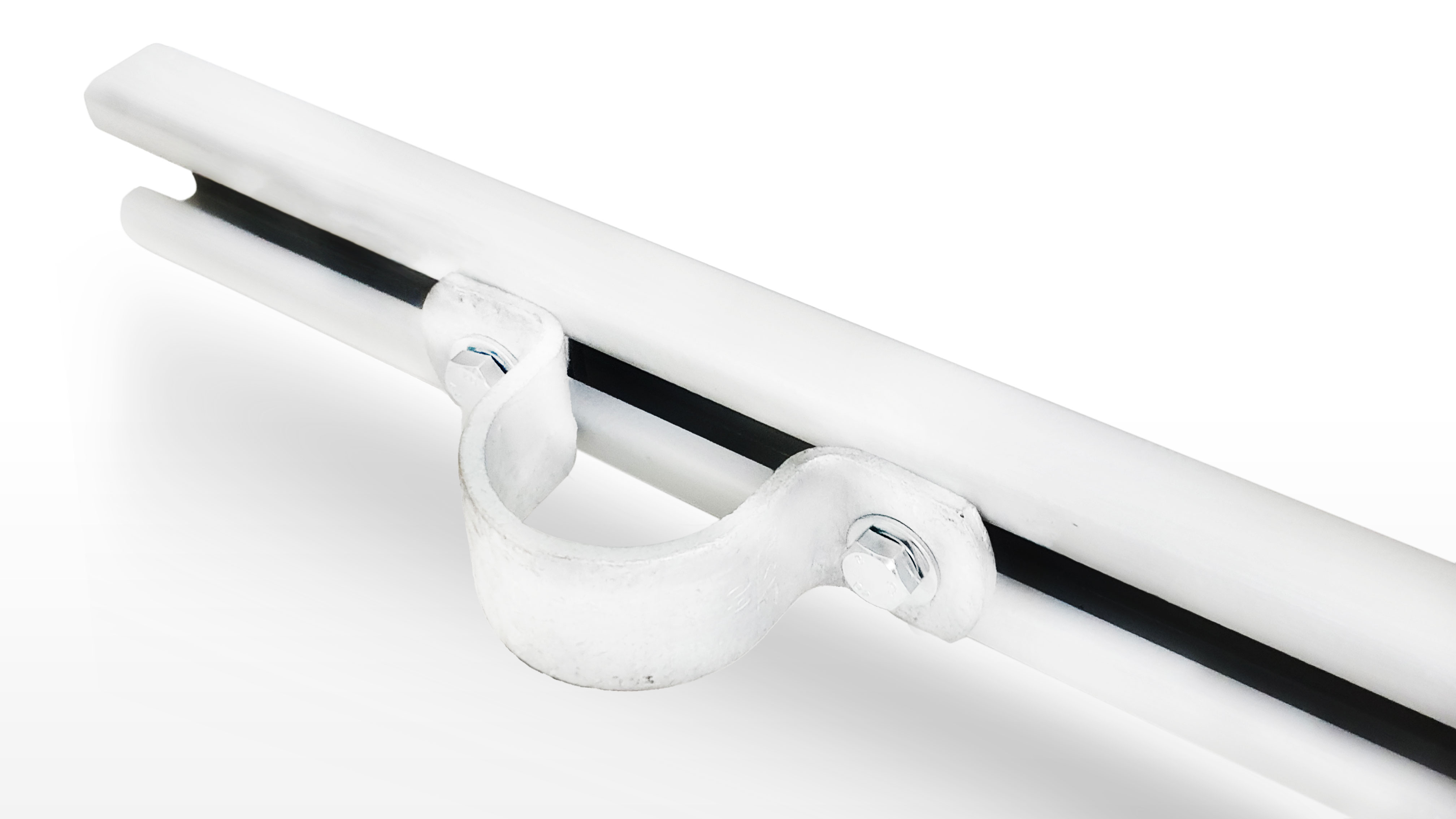

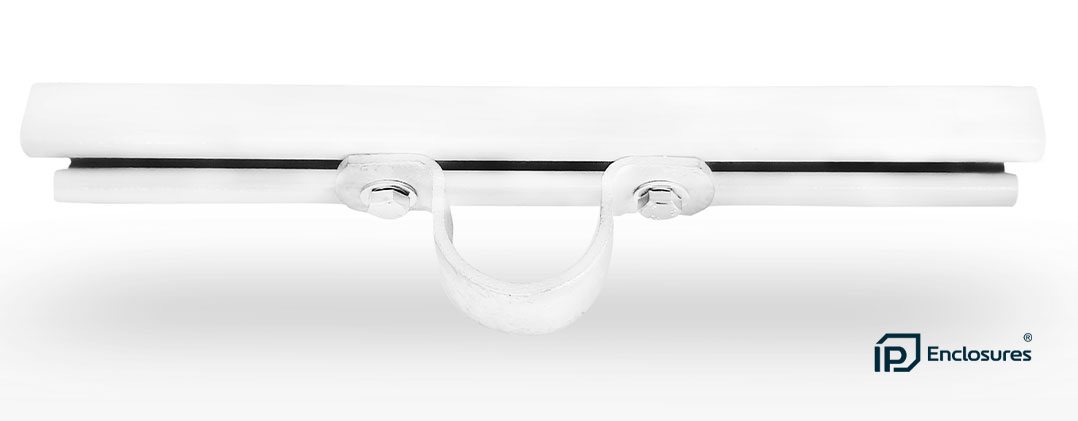

Each kit includes 2 x Spring Channel Nuts to suit U-Channel; 2 x Saddle Clamps; and 2 x Flat Washers. Mounting Clamps are available in a wide range of sizes to suit most standard pipe sizes.
Hot Dip Galvanised Steel
| Part Number (Steel) | Description |
|---|---|
| IP-PMSC43 | ø43 Pole Mount Saddle Kit to suit 32NB Pipe HDG |
| IP-PMSC48 | ø48 Pole Mount Saddle Kit to suit 40NB Pipe HDG |
| IP-PMSC60 | ø60 Pole Mount Saddle Kit to suit 50NB Pipe HDG |
| IP-PMSC89 | ø89 Pole Mount Saddle Kit to suit 80NB Pipe HDG |
| IP-PMSC115 | ø115 Pole Mount Saddle Kit to suit 100NB Pipe HDG |
| IP-PMSC140 | ø140 Pole Mount Saddle Kit to suit 125NB Pipe HDG |
| IP-PMSC168 | ø168 Pole Mount Saddle Kit to suit 150NB Pipe HDG |
| IP-PMSC220 | ø220 Pole Mount Saddle Kit to suit 200NB Pipe HDG |
316 Stainless Steel
| Part Number (Stainless Steel) | Description |
|---|---|
| IP-SSPMSC43 | ø43 Pole Mount Saddle Kit to suit 32NB Pipe 316ss |
| IP-SSPMSC48 | ø48 Pole Mount Saddle Kit to suit 40NB Pipe 316ss |
| IP-SSPMSC60 | ø60 Pole Mount Saddle Kit to suit 50NB Pipe 316ss |
| IP-SSPMSC89 | ø89 Pole Mount Saddle Kit to suit 80NB Pipe 316ss |
| IP-SSPMSC115 | ø115 Pole Mount Saddle Kit to suit 100NB Pipe 316ss |
| IP-SSPMSC140 | ø140 Pole Mount Saddle Kit to suit 125NB Pipe 316ss |
| IP-SSPMSC168 | ø168 Pole Mount Saddle Kit to suit 150NB Pipe 316ss |
| IP-SSPMSC220 | ø220 Pole Mount Saddle Kit to suit 200NB Pipe 316ss |
Note: Consult with your design engineer before mounting electrical enclosures to ensure structure has been adequately designed to withstand required forces.
