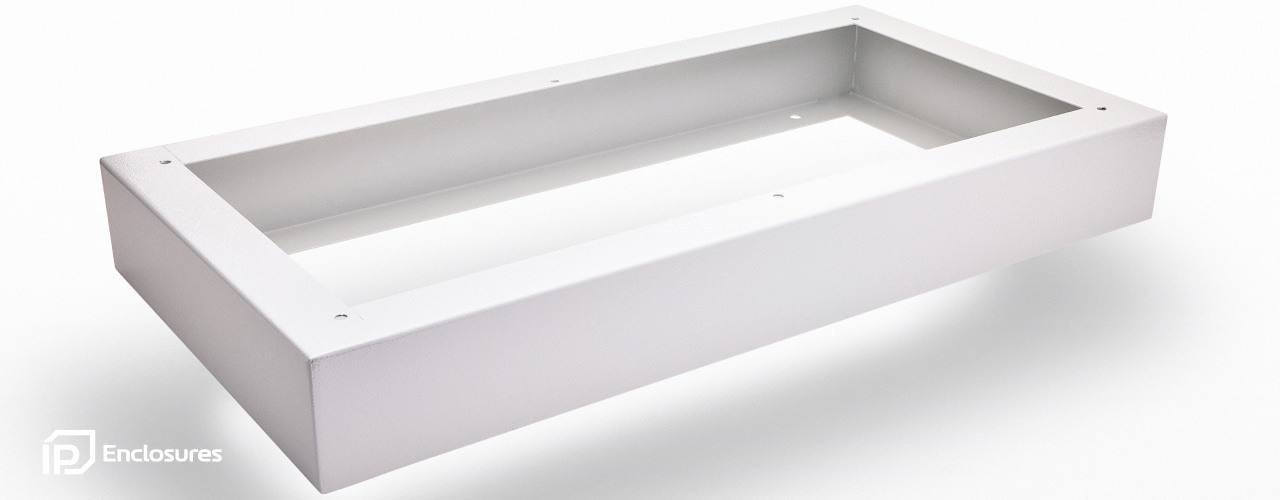

Plinths (Bases)
IP Enclosures provide a range of plinths (bases) for steel and stainless steel electrical enclosures. Plinths are 100mm high and sized to suit standard wall-mounted electrical enclosures. They are provided with holes in the top flange to fasten to electrical enclosures, and holes in the bottom flange to anchor into concrete.
Plinths – Powder Coated Steel
Steel plinths are fabricated using galvanised steel sheet and powder coated with a textured RAL7035 finish to 80-120 micron average thickness. Coloured plinths including T33 Smoke Blue, Black, Orange and Red are also available to suit coloured electrical enclosures. Refer to Electrical Enclosure Colours.
Plinths – Marine Grade Aluminium
Aluminium plinths are fabricated using marine grade aluminium sheet and powder coated with a textured RAL7035 finish to 80-120 micron average thickness. Coloured aluminium plinths including T33 Smoke Blue, Black, Orange and Red are also available to suit coloured aluminium electrical enclosures.
Plinths – Grade 316 Stainless Steel
Stainless Steel plinths are fabricated using Grade 316/316L Stainless Steel.
Size WxD (mm) | Steel | Aluminium | 316 Stainless Steel |
---|---|---|---|
600Wx300D | IP-PLINTH6030 | IP-APLINTH6030 | IP-SSPLINTH6030 |
600Wx400D | IP-PLINTH6040 | IP-APLINTH6040 | IP-SSPLINTH6040 |
800Wx300D | IP-PLINTH8030 | IP-APLINTH8030 | IP-SSPLINTH8030 |
800Wx400D | IP-PLINTH8040 | IP-APLINTH8040 | IP-SSPLINTH8040 |
1000Wx300D | IP-PLINTH10030 | IP-APLINTH10030 | IP-SSPLINTH10030 |
1000Wx400D | IP-PLINTH10040 | IP-APLINTH10040 | IP-SSPLINTH10040 |
1200Wx300D | IP-PLINTH12030 | IP-APLINTH12030 | IP-SSPLINTH12030 |
1200Wx400D | IP-PLINTH12040 | IP-APLINTH12040 | IP-SSPLINTH12040 |
