Solar Panel Brackets for Electrical Enclosures

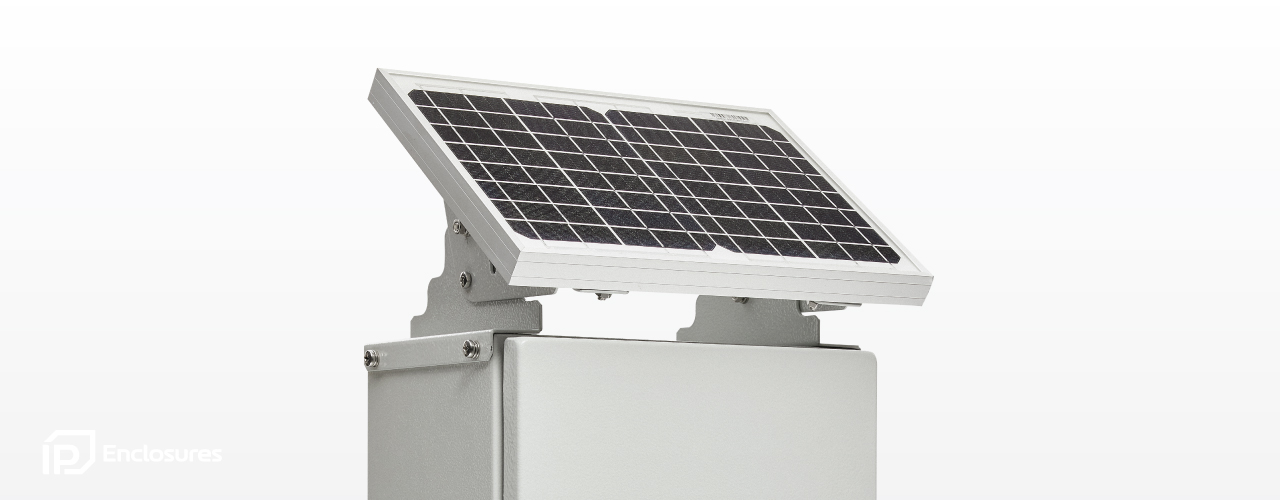

IP Enclosures provide a range of solar panel brackets for electrical enclosures. Solar panel brackets are designed to fit existing encapsulated nutserts that are provided on standard IP Enclosures electrical enclosures to enable ease of fitting without drilling. The angle of the solar panel can be adjusted to allow for optimum solar panel performance.

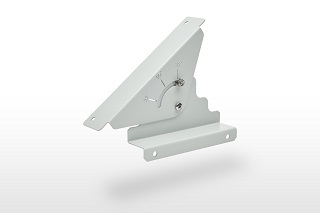

Powder-Coated Steel
Steel solar panel brackets are fabricated using galvanised steel sheet, powder-coated with a textured finish 80-120 micron average thickness. The standard colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.
| Part Number | Description | To suit Enclosure* | To suit Solar Panel** |
|---|---|---|---|
| SKU | W x D (mm) | Part Number | |
| IP-SOL2515 | Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 250 x 150 | SY2-M5W-8M |
| IP-SOL3015 | Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 300 x 150 | SY2-M10W-8M |
| IP-SOL3020 | Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 300 x 200 | SY2-M10W-8M |
| IP-SOL4020 | Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 400 x 200 | SY2-M20W-5M |
| IP-SOL6030 | Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 600 x 300 | SY2-M30W-5M |
* Depth of enclosure is fixed based on hole centres of bracket. Width is recommendation only to suit nominated solar panel.
** Nominated solar panel only. Other solar panels may be used but hole centres of other solar panels may vary.

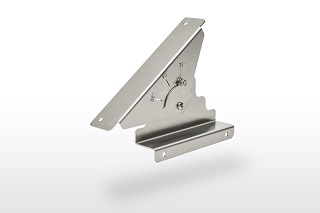

Grade 316 Stainless Steel
Stainless Steel solar panel brackets are fabricated using Grade 316/316L Stainless Steel.
| Part Number | Description | To suit Enclosure* | To suit Solar Panel** |
|---|---|---|---|
| SKU | W x D (mm) | Part Number | |
| IP-SOLSS2515 | 316ss Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 250 x 150 | SY2-M5W-8M |
| IP-SOLSS3015 | 316ss Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 300 x 150 | SY2-M10W-8M |
| IP-SOLSS3020 | 316ss Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 300 x 200 | SY2-M10W-8M |
| IP-SOLSS4020 | 316ss Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 400 x 200 | SY2-M20W-5M |
| IP-SOLSS6030 | 316ss Solar Panel Bracket Set (Including 2 Brackets and Fasteners) | 600 x 300 | SY2-M30W-5M |
* Depth of enclosure is fixed based on hole centres of bracket. Width is recommendation only to suit nominated solar panel.
** Nominated solar panel only. Other solar panels may be used but hole centres of other solar panels may vary.
