Gland Plates

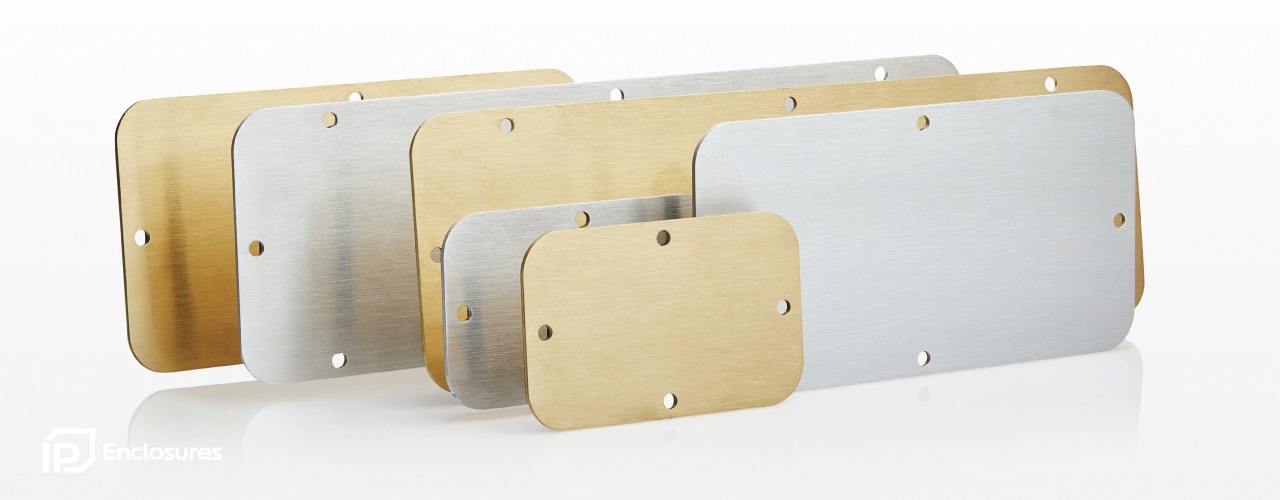

IP Enclosures provide a range of electrical enclosure gland plates. These gland plates are to designed to replace existing standard gland plates with gland plates with cutouts to suit Icotek cable entry systems, brass gland plates or aluminium gland plates to meet specification requirements. They are available in various thicknesses including 3mm and 5mm. Simply remove the standard gland plate and replace it with the optional brass or aluminium gland plate. Gland plates are provided with a polyurethane seal, similar to standard gland plates, to ensure integrity of the electrical enclosure IP rating is maintained.
Material:
– Gland Plate: 3mm to 5mm Galv Steel; Brass; and Aluminium
– Seal: Machine-applied full perimeter UL listed Polyurethane seal foamed in place. Temperature resistance -40°C to 80°C (160°C short term loading).
Gland Plates with Cutouts to Suit Icotek Cable Entry Systems
Part Number SKU | Opening Size and Description |
---|---|
IP-GPSE2-1 | 110x56x3mm Powdercoated Steel Gland Plate with 43 x 24 Cutout to Suit ICOTEK Cable Entry Systems eg. KEL-ER-E2 |
IP-GPSE3-1 | 110x56x3mm Powdercoated Steel Gland Plate with 65 x 24 Cutout to Suit ICOTEK Cable Entry Systems eg. KEL-ER-E3 |
IP-GPS24-2 | 214x95x3mm Powdercoated Steel Gland Plate with 126 x 30 Cutout to Suit ICOTEK Cable Entry Systems eg. KEL-ER 24, KEL-DPU 24 |
IP-GPS24-3 | 364x95x3mm Powdercoated Steel Gland Plate with 126 x 30 Cutout to Suit ICOTEK Cable Entry Systems eg. KEL-ER 24, KEL-DPU 24 |
Brass Gland Plates
Part Number SKU | Opening Size and Description |
---|---|
IP-GPB3-1 | 110x56x3mm Brass Gland Plate |
IP-GPB3-2 | 214x95x3mm Brass Gland Plate |
IP-GPB3-3 | 364x95x3mm Brass Gland Plate |
Aluminium Gland Plates
Part Number SKU | Opening Size and Description |
---|---|
IP-GPA3-1 | 110x56x3mm Aluminium Gland Plate |
IP-GPA3-2 | 214x95x3mm Aluminium Gland Plate |
IP-GPA3-3 | 364x95x3mm Aluminium Gland Plate |
IP-GPA5-1 | 110x56x5mm Aluminium Gland Plate |
IP-GPA5-2 | 214x95x5mm Aluminium Gland Plate |
IP-GPA5-3 | 364x95x5mm Aluminium Gland Plate |
Size Selection Table
Enclosure Size (mm) | Opening Size (mm) | Quantity | 3mm Steel with ICOTEK Cutout | 3mm Brass | 3mm Aluminium | 5mm Aluminium |
---|---|---|---|---|---|---|
WxD | WxD | QTY | SKU | SKU | SKU | SKU |
200x150 | 110x56 | 1 | - | IP-GPB3-1 | IP-GPA3-1 | IP-GPA5-1 |
250x150 | 110x56 | 1 | - | IP-GPB3-1 | IP-GPA3-1 | IP-GPA5-1 |
300x150 | 110x56 | 1 | - | IP-GPB3-1 | IP-GPA3-1 | IP-GPA5-1 |
300x200 | 214x95 | 1 | IP-GPS24-2 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
400x200 | 214x95 | 1 | IP-GPS24-2 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
400x250 | 214x95 | 1 | IP-GPS24-2 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
500x200 | 364x95 | 1 | IP-GPS24-3 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
600x200 | 364x95 | 1 | IP-GPS24-3 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
600x300 | 364x95 | 1 | IP-GPS24-3 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
600x400 | 364x95 | 1 | IP-GPS24-3 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
800x200 | 214x95 | 2 | IP-GPS24-2 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
800x300 | 214x95 | 2 | IP-GPS24-2 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
800x400 | 214x95 | 2 | IP-GPS24-2 | IP-GPB3-2 | IP-GPA3-2 | IP-GPA5-2 |
1000x300 | 364x95 | 2 | IP-GPS24-3 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
1000x400 | 364x95 | 2 | IP-GPS24-3 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
1200x300 | 364x95 | 2 | IP-GPS24-3 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
1200x400 | 364x95 | 2 | IP-GPS24-3 | IP-GPB3-3 | IP-GPA3-3 | IP-GPA5-3 |
