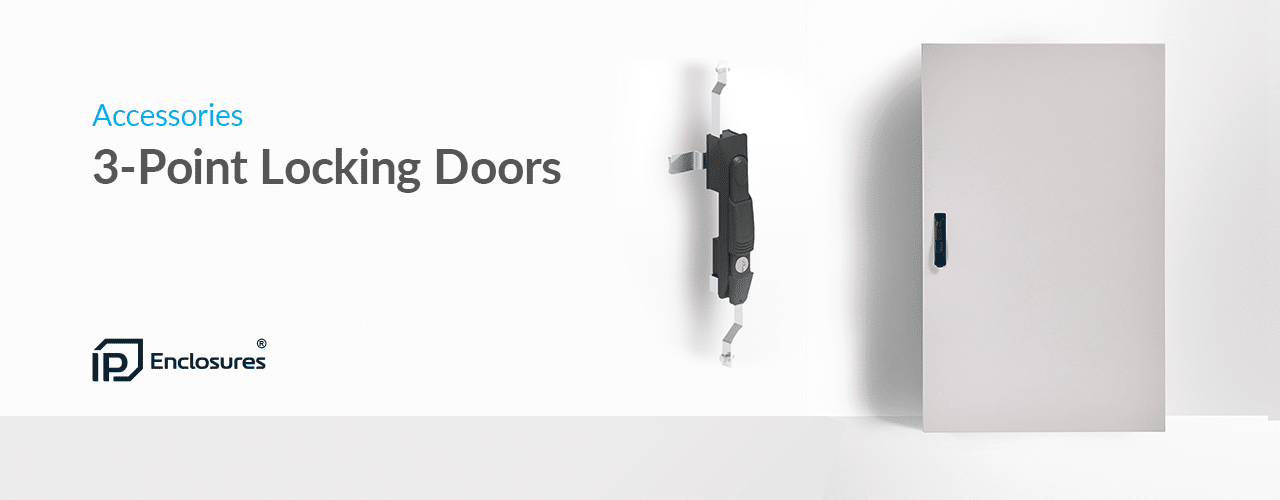

3-Point Locking Doors for Electrical Enclosures
IP Enclosures provide a range of steel and stainless steel doors for electrical enclosures incorporating a 3-point locking system with key-lock swing handle. 3-point locking doors are optional interchangeable doors that can be easily fitted to new or existing IP Enclosures electrical enclosures. The construction of the door and seal is identical to the existing door to maintain the existing IP rating
3-Point Locking Doors – Powder-Coated Steel
3-Point Locking Doors are fabricated using a 1.5mm galvanised steel sheet. Lock is a 3-point locking system with key-lock swing handle. UL approved epoxy polyester powder coated with a textured RAL7035 finish to 80-120 micron average thickness. Optional Coloured 3 Point Locking Doors are available on request. Refer to Electrical Enclosure Colours guide. Lock is a 3-point locking system with key-lock swing handle.
| Part Number/SKU | Description |
|---|---|
| IP-6040DOOR3PL | 600H x 400W Door with 3-Point Locking and Key-Lock Swing Handle |
| IP-6060DOOR3PL | 600H x 600W Door with 3-Point Locking and Key-Lock Swing Handle |
| IP-8060DOOR3PL | B00H x 600W Door with 3-Point Locking and Key-Lock Swing Handle |
| IP-8080DOOR3PL | B00H x B00W Door with 3-Point Locking and Key-Lock Swing Handle |
3-Point Locking Doors – Grade 316 Stainless Steel
Stainless Steel inner doors are fabricated using 1.5mm Grade 316/316L (Optional 304) Stainless Steel. Lock is a 3-point locking system with a key-lock swing handle.
| Part Number/SKU | Description | |
|---|---|---|
| IP-SS6040DOOR3PL | 600H x 400W 316SS Door with 3-Point Locking and Key-Lock Swing Handle | |
| IP-SS6060DOOR3PL | 600H x 600W 316SS Door with 3-Point Locking and Key-Lock Swing Handle | |
| IP-SS8060DOOR3PL | B00H x 600W 316SS Door with 3-Point Locking and Key-Lock Swing Handle | |
| IP-SS8080DOOR3PL | B00H x B00W 316SS Door with 3-Point Locking and Key-Lock Swing Handle |
