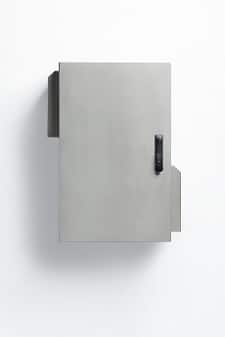

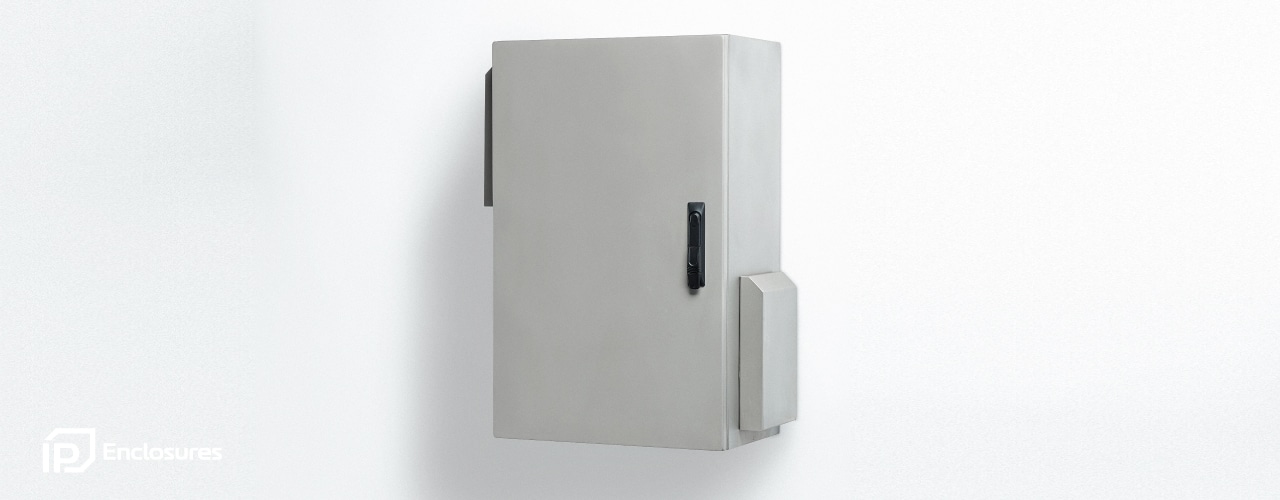

Pole-Mounted Field Cabinets – Stainless Steel, Matte Finish
Stainless Steel Pole-Mounted Field Cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including infrastructure, rail, road/traffic management and general industrial applications. A stainless steel field cabinet includes the device mounting plate, inner door escutcheon, 3 point locking, plan pocket, cutouts and vent hoods for fans and filters and a matte finish to prevent glare and reflection.
Features and Specifications
Protection: Complies with IP66 (Excluding cutouts for fans/filters. Vent hoods covering fan/filter cutouts IP55)
Standard: IEC62208, IEC/EN/AS60529, RoHS, CE, UKCA
Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’. For more information regarding design verification for switchboard assemblies, refer to AS/NZS 61439.
– Body: 1.5mm Grade 316/316L Stainless Steel – Matte Finish
– Door & Inner Door: 1.5mm Grade 316/316L Stainless Steel – Matte Finish on outer door
– Device Mounting Plate: 1.5mm Galvanised Steel Sheet
– Seal: Polyurethane
The robust monoblock body is fabricated using 1.5mm Grade 316/316L Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality. Fan/filter cutouts and vent hoods are provided as standard. (Fans and filters and ordered separately). Matte Finish (To provide an anti-glare, non-reflective finish)
Door & Inner Door:

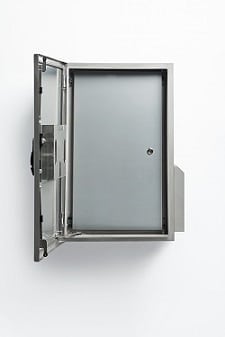

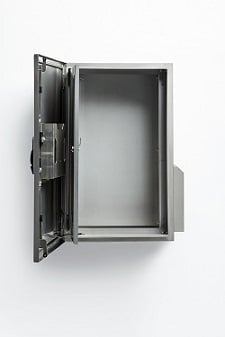

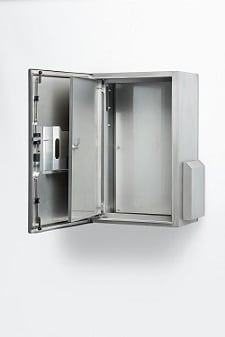

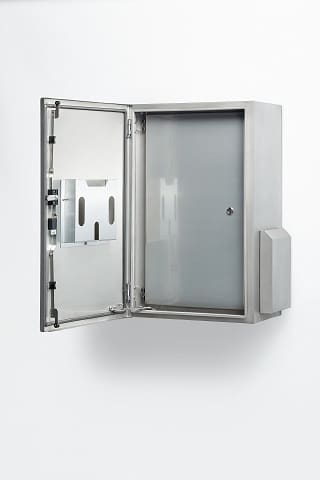

The robust surface mounted door is fabricated using 1.5mm Grade 316/316L Stainless Steel and incorporates concealed removable hinges with captive pins. It includes an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. A door stay is and an A4 plan pocket are provided with the outer door. An Inner Door is provided fitted. The outer door is provided with a Matte Finish (To provide an anti-glare, non-reflective finish).
A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
The outer door includes a 3 point locking system with key-lock swing handle. The inner door includes a standard grade 316 stainless steel 8mm square quarter turn lock.
Device Mounting Plate:
The device mounting plate is 1.5mm galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
Matte Finish to provide an anti-glare non-reflective finish to minimise and prevent glare and reflection.
|SKU||Size||Data Sheet||Drawing PDF||Drawing *.dwg|
|IP-SSFC603032||600H x 300W x 325D Grade 316 Stainless Steel Pole-Mount Field Cabinet||.dwg|
|IP-SSFC605032||600H x 500W x 325D Grade 316 Stainless Steel Pole-Mount Field Cabinet||.dwg|
|IP-SSFC805032||800H x 500W x 325D Grade 316 Stainless Steel Pole-Mount Field Cabinet||.dwg|
