Field Cabinets – Steel

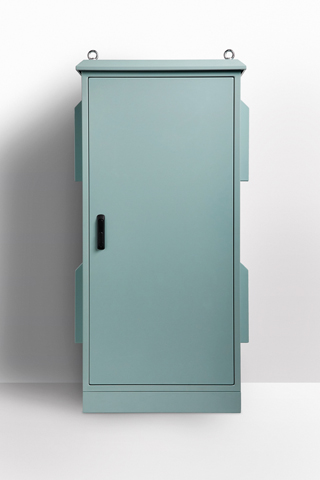

Plinth-Mounted Field Cabinets are designed to house sensitive data network and electrical equipment for a variety of heavy duty outdoor applications including road/traffic management and intelligent transport systems.
Features and Specifications
Protection: Complies with IP66 IK10, NEMA 4 (Excluding cutouts for fans/filters. Vent hoods covering fan/filter cutouts IP55)
Standard: IEC62208, IEC/EN/AS60529, EIA-310-D
– Body and Plinth: 2.0mm galvanised steel sheet
– Doors: 2.0mm galvanised steel sheet
– 19” Data Rack Rails: 1.5mm galvanised steel sheet
– Gland Plate: 3.0mm aluminium
– Enclosure Seal: Polyurethane
The robust monoblock body is fabricated using 2.0mm galvanised steel sheet. The body is fitted with rain hood/sunshield, plinth, vent hoods and 4 x lifting eye bolts. Flat face sealing surfaces are provided to increase seal life. A 3.0 mm galvanised steel split gland plate is also incorporated into the bottom face. Four cutouts 125mm x 125mm are provided to house fans and filters and each are covered with removable vent hoods. Precision automated manufacturing equipment ensures accuracy and consistent high quality. (Fans and filters and ordered separately).
The front and rear doors are fabricated using 2.0mm galvanised steel sheet and are designed to provide flush recessed mounting to prevent vandalism and unauthorised access. The doors incorporate concealed removable hinges with captive pins. They are designed for a 110° opening and are provided with heavy duty door stays.
19″ Data Rack Rails:
Front and rear 19″ data rack rails are fabricated from 1.5mm galvanised steel sheet.
High quality Polyurethane foamed in place (FIP) full perimeter door seals provide excellent sealing over a long life.
Each door includes a 3 point locking system with key-lock swing handle. A full range of locking solutions are available upon request.
3mm aluminium split gland plates are incorporated into the bottom of the enclosure for cable management.
UL approved epoxy polyester powder-coated with a smooth finish. 80-120 micron average thickness.
T33 Smoke Blue. (A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.)
|SKU||Size||Data Sheet||Drawing PDF||Drawing *.dwg|
|IP-1377562-T33||24RU IP66 Field Cabinet 1370H x 750W x 620D - T33 Smoke Blue||.dwg|
|IP-1377580-T33||24RU IP66 Field Cabinet 1370H x 750W x 800D - T33 Smoke Blue|
|IP-1677562-T33||30RU IP66 Field Cabinet 1675H x 750W x 620D - T33 Smoke Blue||.dwg|
|IP-1677580-T33||30RU IP66 Field Cabinet 1675H x 750W x 800D - T33 Smoke Blue|
|IP-1977562-T33||36RU IP66 Field Cabinet 1975H x 750W x 620D - T33 Smoke Blue||.dwg|
|IP-1977580-T33||36RU IP66 Field Cabinet 1975H x 750W x 800D - T33 Smoke Blue|
|IP-2277562-T33||42RU IP66 Field Cabinet 2275H x 750W x 620D T33 Smoke Blue||.dwg|
|IP-2277580-T33||42RU IP66 Field Cabinet 2275H x 750W x 800D T33 Smoke Blue|
|Part Number -SKU||Description|
|IP-FCSHL7562||Shelf to suit Field Cabinet, White|
|IP-FCDRAWER||Laptop Drawer to suit Field Cabinet, White|
|IP-FCPPA3-T33||A3 Plan Pocket for Field Cabinets, T33 Smoke Blue|
|IP-13762-DP||Device Plate to suit 1375H x620D Field Cabinet|
|IP-16762-DP||Device Plate to suit 1675H x620D Field Cabinet|
|IP-19762-DP||Device Plate to suit 1975H x620D Field Cabinet|
