Support Arm Systems

HMI Enclosure Support Arm Systems

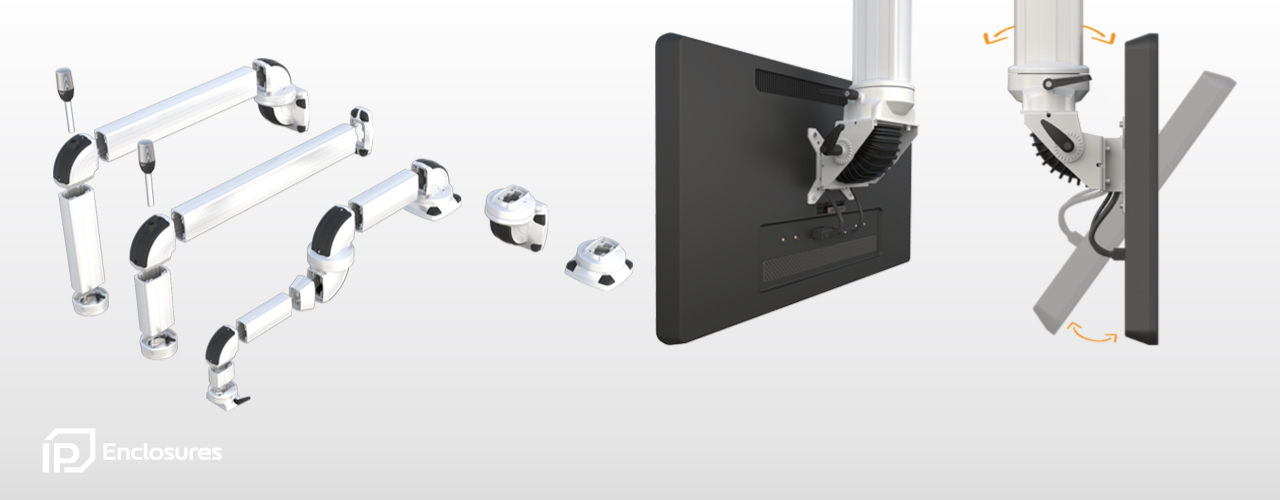

IP Enclosures provide Support Arm Systems for Operator Interfaces, HMI Enclosures & Pushbutton Enclosures. We serve the needs of industry by providing modern high quality modular products specifically designed for ease of assembly and operator accessibility. Support Arm Systems enable safe operator access to HMI’s and enable strategic positioning of visual display outputs.

IP Enclosures – Support Arm Systems Brochure

Features & Specifications:

– Designed for loads 40kg to 120kg
– Modern design
– Easy assembly
– IP65

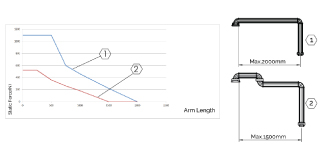

Light Duty Load Table

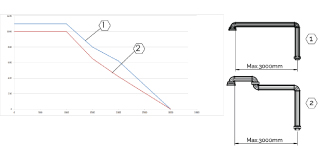

Medium Duty Load Table

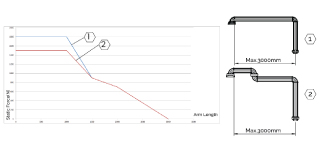

Heavy Duty Load Table

IP-045 – Light Duty Support Arm System

Designed for light loads and short spans. It has a modular structure and modern design. Consists of a wide range of components for for various configurations. it has a carrying capacity of 40kg for a 1m profile length.

IP-045-25
45-025_2

45mm x 72mm Support Profile x 250mm Long

Code: IP-045.025
Weight: 550g
Length: 250mm
Color: RAL7035

45mm x 72mm Support Profile x 500mm Long

Code: IP-045.050
Weight: 1100g
Length: 500mm
Color: RAL7035

45mm x 72mm Support Profile x 750mm Long

Code: IP-045.075
Weight: 1650g
Length: 750mm
Color: RAL7035

Connection Components

IP-045-400
IP-045-400_2

Rotating Panel 90° Angle Coupling

Code: IP-045.400
Weight: 920g
Length:
Color: RAL7035
Package: 1
Movement: 350°
IP-045-420
IP-045-420_2

90° Angle

Code: IP-045.420
Weight: 480g
Length:
Color: RAL7035
Package: 1
Movement: Fixed
IP-045-500
IP-045-500_2

Rotating Intermediate Hinge

Code: IP-045.500
Weight: 1800g
Length:
Color: RAL7035
Package: 1
Movement: 310°
IP-045-600
IP-045-600_2

Rotating Top Mounted 90° Angle Joint

Code: IP-045.600
Weight: 1750g
Length:
Color: RAL7035
Package: 1
Movement: 310°
IP-045-700
IP-045-700_2

Rotating Wall-Mounted Hinge Horizontal Outlet

Code: IP-045.700
Weight: 1950g
Length:
Color: RAL7035
Package: 1
Movement: 310°
IP-045-800
IP-045-800_2

Wall-Socket Mounting Bracket

Code: IP-045.800
Weight: 220g
Length:
Color: RAL7035
Package: 1
Movement: Fixed
IP-045-830
IP-045-830_2

Rotating Panel Adaptor Vertical

Code: IP-045.830
Weight: 570g
Length:
Color: RAL7035
Package: 1
Movement: 310°

IP-060 – Medium Duty Support Arm System

Designed for medium loads and long spans. It has a modular structure and modern design. Consists of a wide range of components for for various configurations. It has a carrying capacity of 60kg for a 1m profile length. It is suitable for VESA Mounting also known as VESA Mounting Interface Standard or Flat Display Mounting Interface (FDMI) for mounting monitors.

IP-060-025
IP-060-025_2

53mm x 85mm Support Profile x 500mm Long

Code: IP-060.050
Weight: 1900g
Length: 500mm
Color: 7035

53mm x 85mm Support Profile x 1000mm Long

Code: IP-060.100
Weight: 3770g
Length: 1000mm
Color: 7035

53mm x 85mm Support Profile x 1500mm Long

Code: IP-060.150
Weight: 5670g
Length: 1500mm
Color: 7035

Connection Components

IP-060-400
IP-060-400_2

Rotating Panel 90° Angle Coupling

Code: IP-060.400
Weight: 1700g
Length:
Color: 7035 /7016
Diameter:  Ø 130
Angle:  310 °
IP-060-420
IP-060-420_2

90° Angle

Code: IP-060.420
Weight: 654g
Length:
Color: RAL7035
Angle: Fixed
IP-060-500
IP-060-500_2

Rotating Intermadiate Hinge

Code: IP-060.500
Weight: 2075g
Length:
Color: RAL7035
Angle: 315 °
IP-060-600
IP-060-600_2

Rotating Top Mounted 90° Angle Joint

Code: IP-060.600
Weight: 2110g
Length:
Color: RAL7035
Angle: 315 °
IP-060-610
IP-060-610_2

Rotating Top Mounted Vertical Outlet

Code: IP-060.610
Weight: 1763g
Length:
Color: RAL7035
Angle: 315 °
IP-060-700
IP-060-700_2

Rotating Wall-Mounted Hinge Horizontal Outlet

Code: IP-060.700
Weight: 2440g
Length:
Color: RAL7035
Angle: 315 °
IP-060-800
IP-060-800_2

Wall / Socket Mounting Bracket

Code: IP-060.800
Weight: 320g
Length:
Color: RAL7035
Angle: Fixed
IP-060-835
IP-060-835_2

10° Angle Piece

Code: IP-060.835
Weight: 460g
Length:
Color: RAL7035
Angle: (30°) / (-40°)
IP-060-836
IP-060-836_2

Panel Tilting Adaptor Moving

Code: IP-060.836
Weight: 550g
Length:
Color: RAL7035
Angle: (30°) / (-40°)
