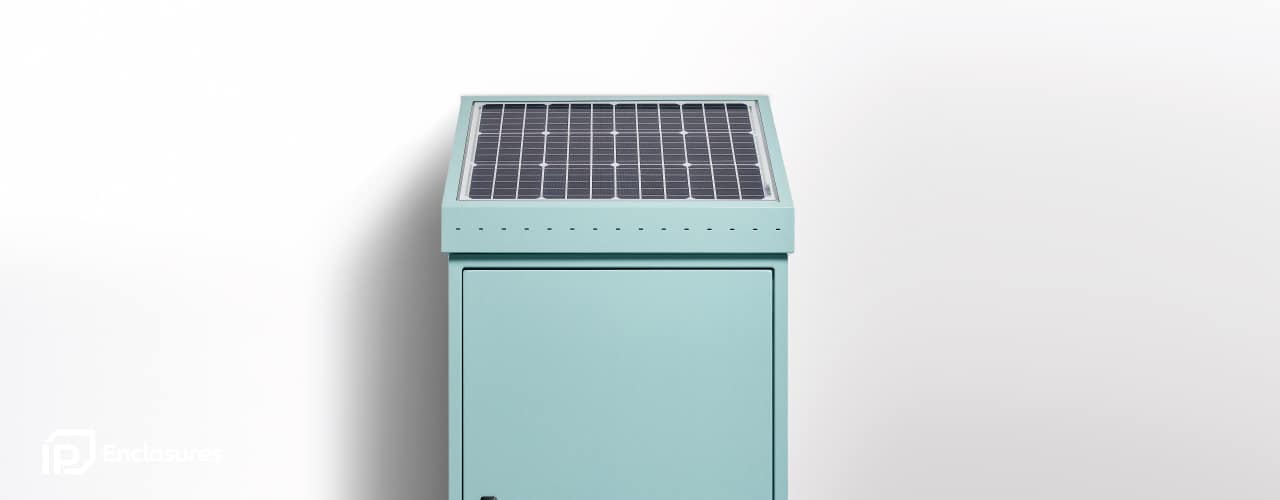

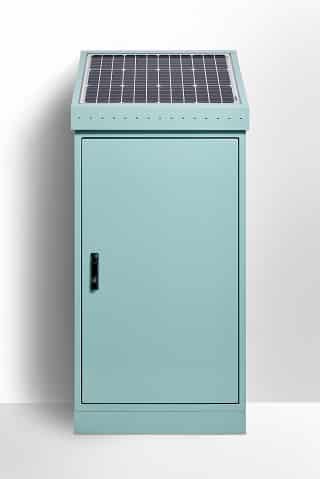

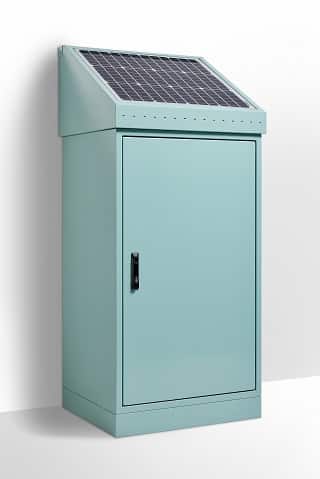

Solar Roof for Field Cabinets
IP Enclosures provide a Solar Roof for Field Cabinets. Solar Roofs are designed to fit standard IP Enclosures Field Cabinets to enable ease of fitting solar panels without drilling. The solar panel is angled to enhance solar panel performance. The roof is designed to encapsulate the solar panel to ensure security of the panel and a protective polycarbonate sheet is positioned to protect the panel from vandalism. A hinged lockable rear access door is provided.
Powder-Coated Steel
Steel solar panel roofs are fabricated using galvanised steel sheet, powder-coated with a textured finish 80-120 micron average thickness. The standard colour is T33 Smoke Blue. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.
| Part Number | Description | To suit Field Cabinet* | To suit Solar Panel** |
|---|---|---|---|
| SKU | W x D (mm) | ||
| IP-FCSR7562-T33 | Solar Roof | 750 x 620 | SY2-M80W/LH4 |
| IP-FCSR7580-T33 | Solar Roof | 750 x 800 | SY2-M80W/LH4 |
* Depth of enclosure is fixed based on hole centres of bracket. Width is recommendation only to suit nominated solar panel.
** Nominated solar panel only. Other solar panels may be used but hole centres of other solar panels may vary.
Marine Grade Aluminium
Marine grade aluminium solar panel roofs are fabricated using marine grade aluminium sheet, powder-coated with a textured finish 80-120 micron average thickness. The standard colour is T33 Smoke Blue. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.
| Part Number | Description | To suit Field Cabinet* | To suit Solar Panel** |
|---|---|---|---|
| SKU | W x D (mm) | ||
| IP-FCASR7562-T33 | Aluminium Solar Roof | 750 x 620 | SY2-M80W/LH4 |
| IP-FCASR7580-T33 | Aluminium Solar Roof | 750 x 800 | SY2-M80W/LH4 |
* Depth of enclosure is fixed based on hole centres of bracket. Width is recommendation only to suit nominated solar panel.
** Nominated solar panel only. Other solar panels may be used but hole centres of other solar panels may vary.
