Partitioned Electrical Enclosures

Partitioned Electrical Enclosures

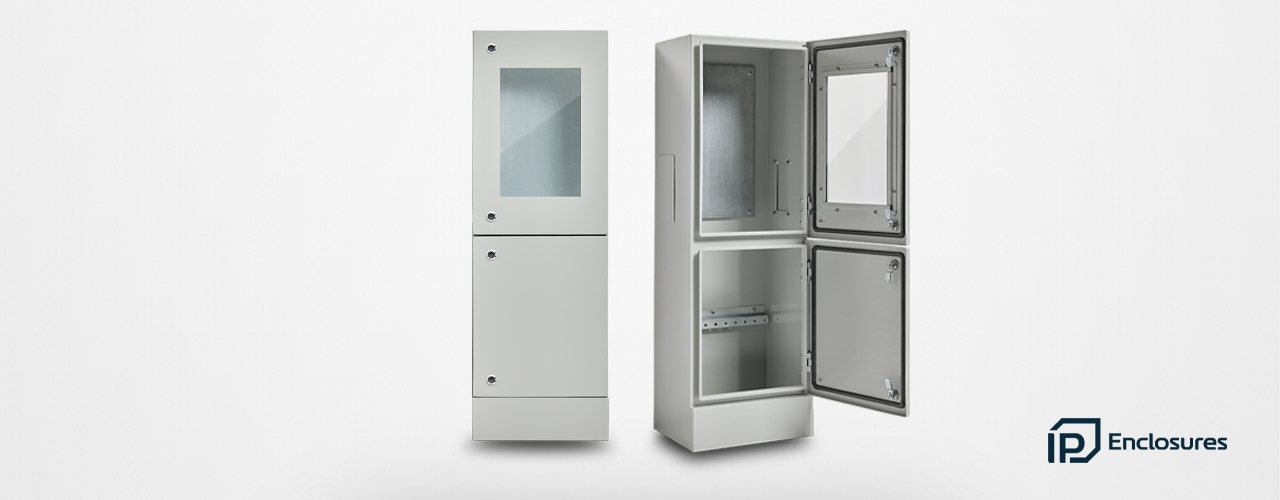

Partitioned Electrical Enclosures or Segmented Electrical Enclosures are designed to house low voltage electrical equipment including switchgear and controlgear assemblies. They are are based on our standard range but are provided in a range of various configurations to allow partitioning and separation of components into two separate IP rated compartments.

IP66 Partitioned Electrical Enclosures

The range of standard partitioned electrical enclosures are rated for protection of each compartment up to IP66. They are powder-coated galvanised steel, suitable for heavy duty applications.

Features & Specifications

Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional), RoHS, CE, UKCA

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’. For more information regarding design verification for switchboard assemblies, refer to AS/NZS 61439.

Material:

– Body: 1.2mm galvanised steel sheet (up to 700x500x250) 1.5mm galvanised steel sheet (800x600x200 and above)
– Gland Plate: 1.5mm galvanised steel sheet
– Doors: 1.5mm galvanised steel sheet
– Device Mounting Plates: 1.5mm galvanised steel sheet
– Seals: Polyurethane

Enclosure Body:

The robust monoblock body is fabricated using galvanised steel sheet (1.2mm-1.5mm) and consist of two separate fully sealed IP rated compartments. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounts and accessory fasteners to eliminate drilling and retain IP rating. Integral device plate mounts and M6 earth studs are provided. A galvanised steel gland plate is incorporated into the bottom face. Cutting, pressing and full continuous seam welding using precision automated manufacturing equipment ensures accuracy and consistent high quality.

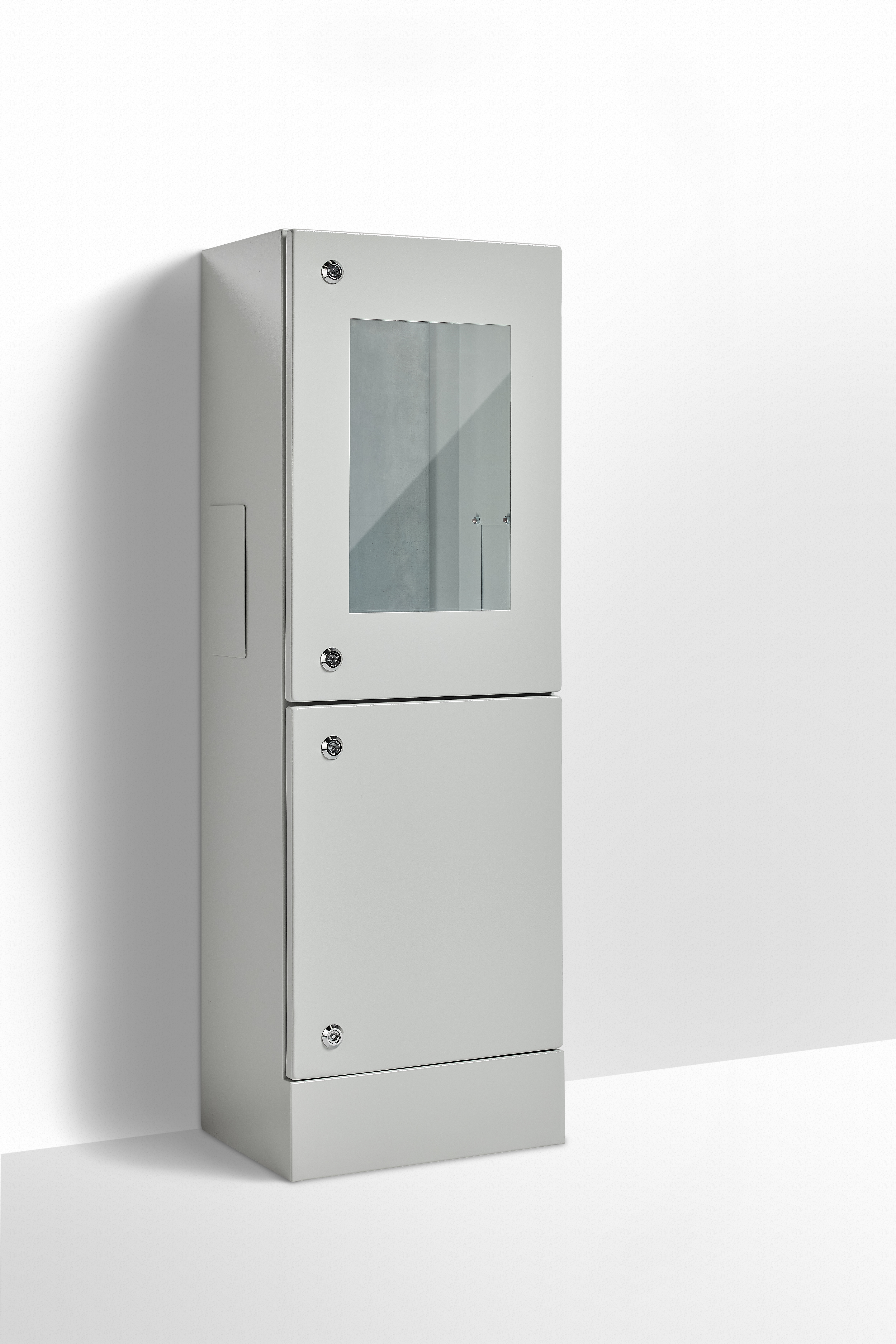

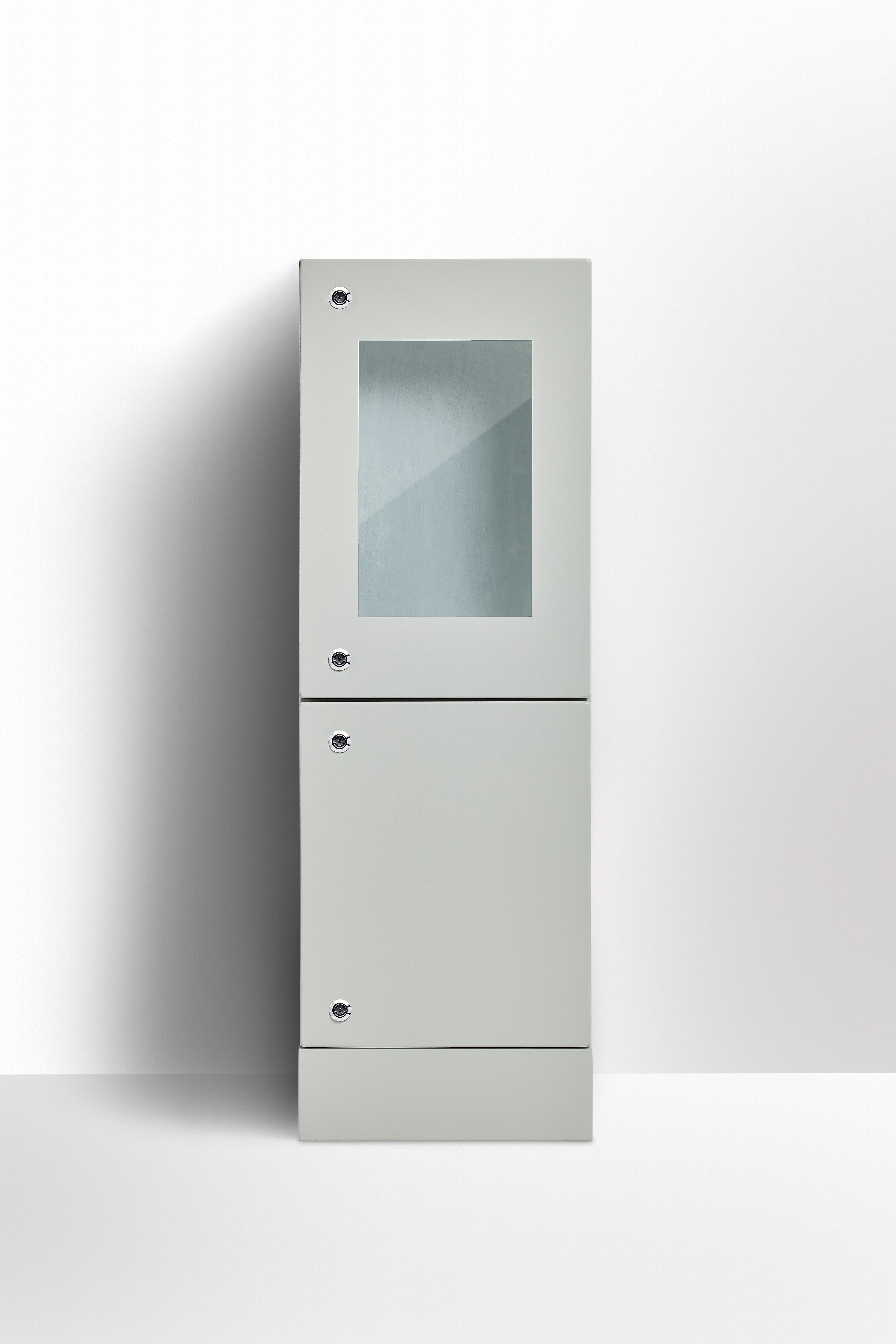

Enclosure Doors:

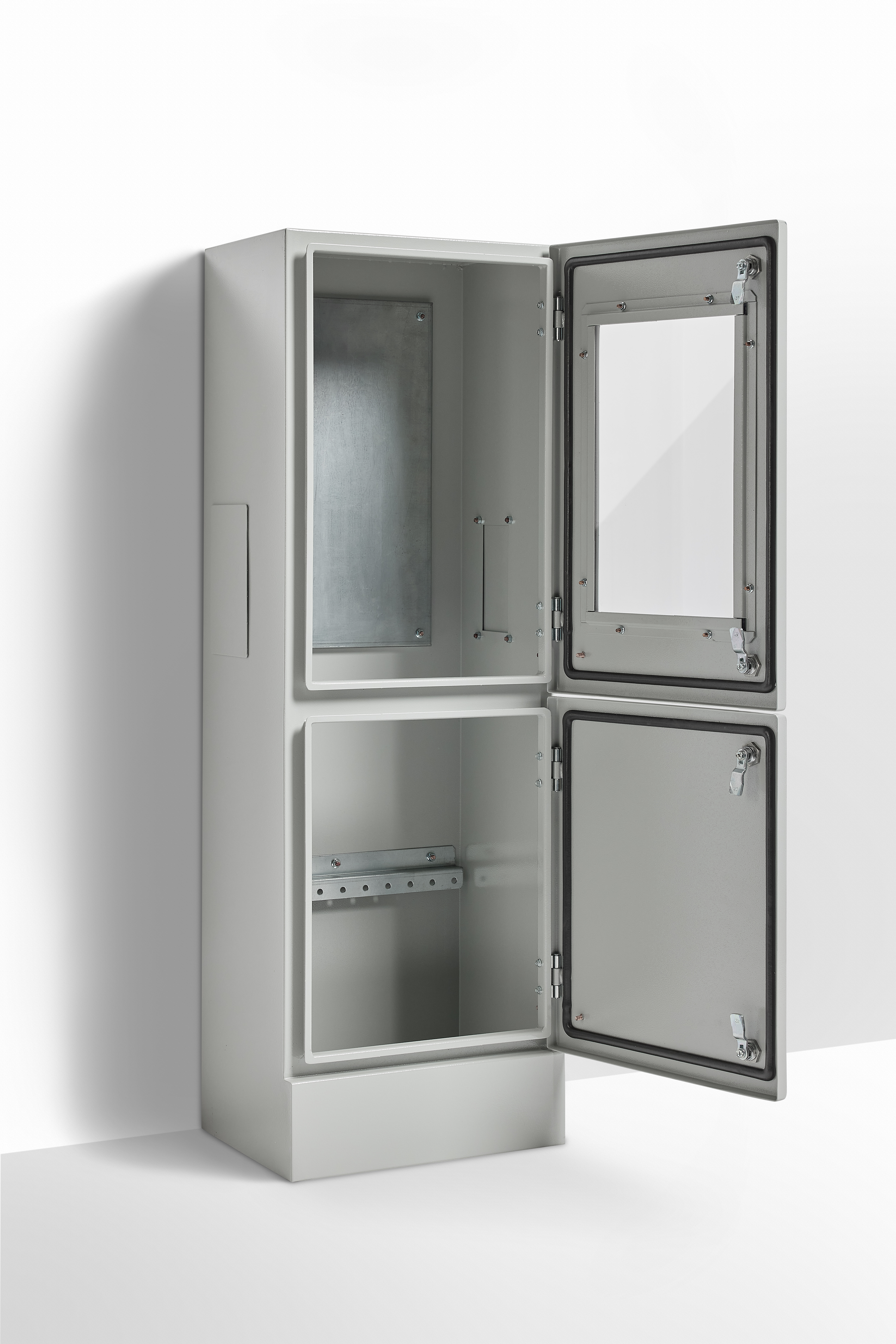

Two robust surface mounted doors are fabricated using 1.5mm galvanised steel sheet and incorporate concealed removable hinges with captive pins. The doors are designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal. The internal cable management rails can be removed to provide additional space for equipment, duct and door mounted control components.

Enclosure Seals:

High quality machine-applied full perimeter UL listed Polyurethane foamed in place (FIP) seals provide excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Locks:

Chrome 5mm double bit insert quarter turn locks with key. A full range of locking solutions are available upon request.

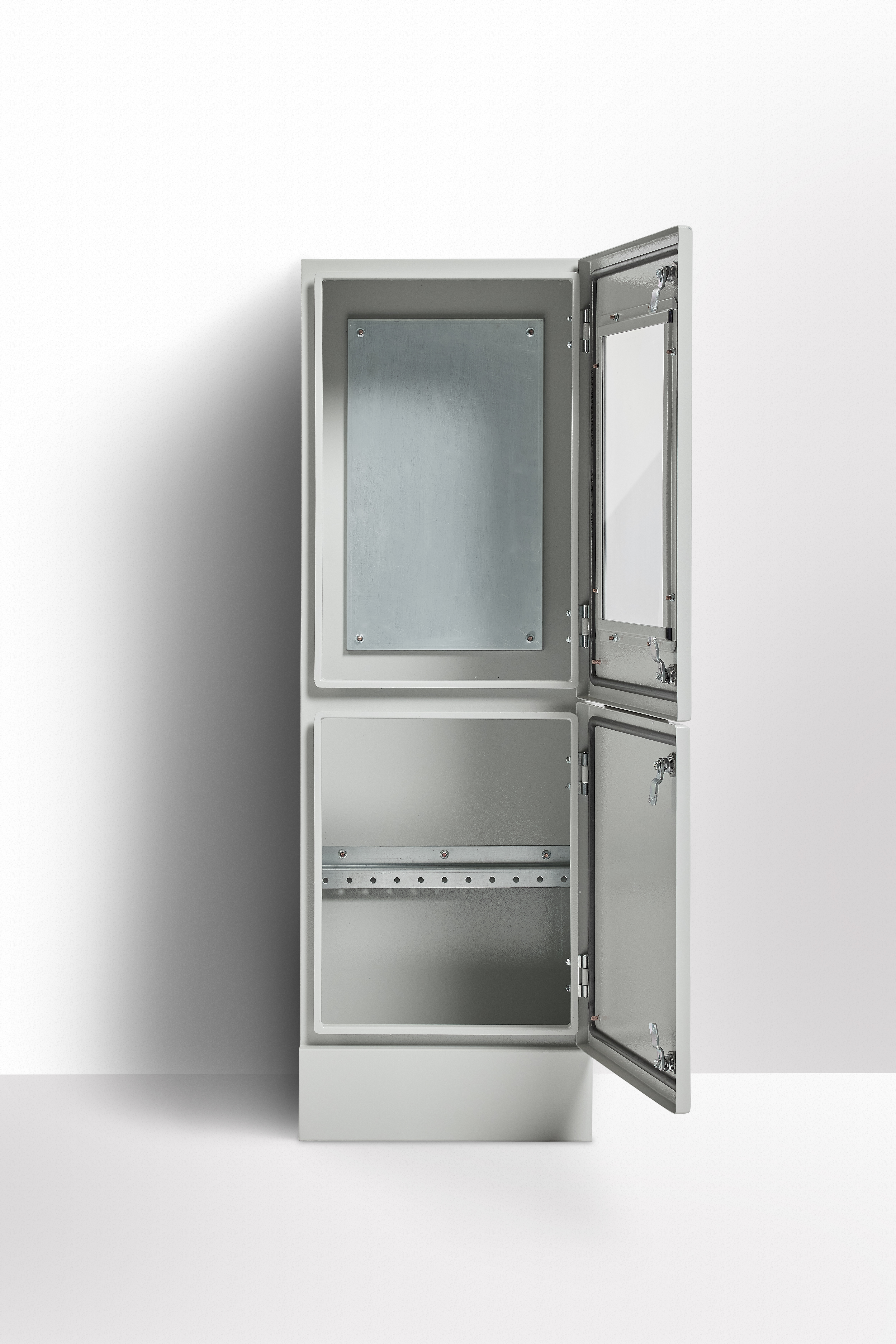

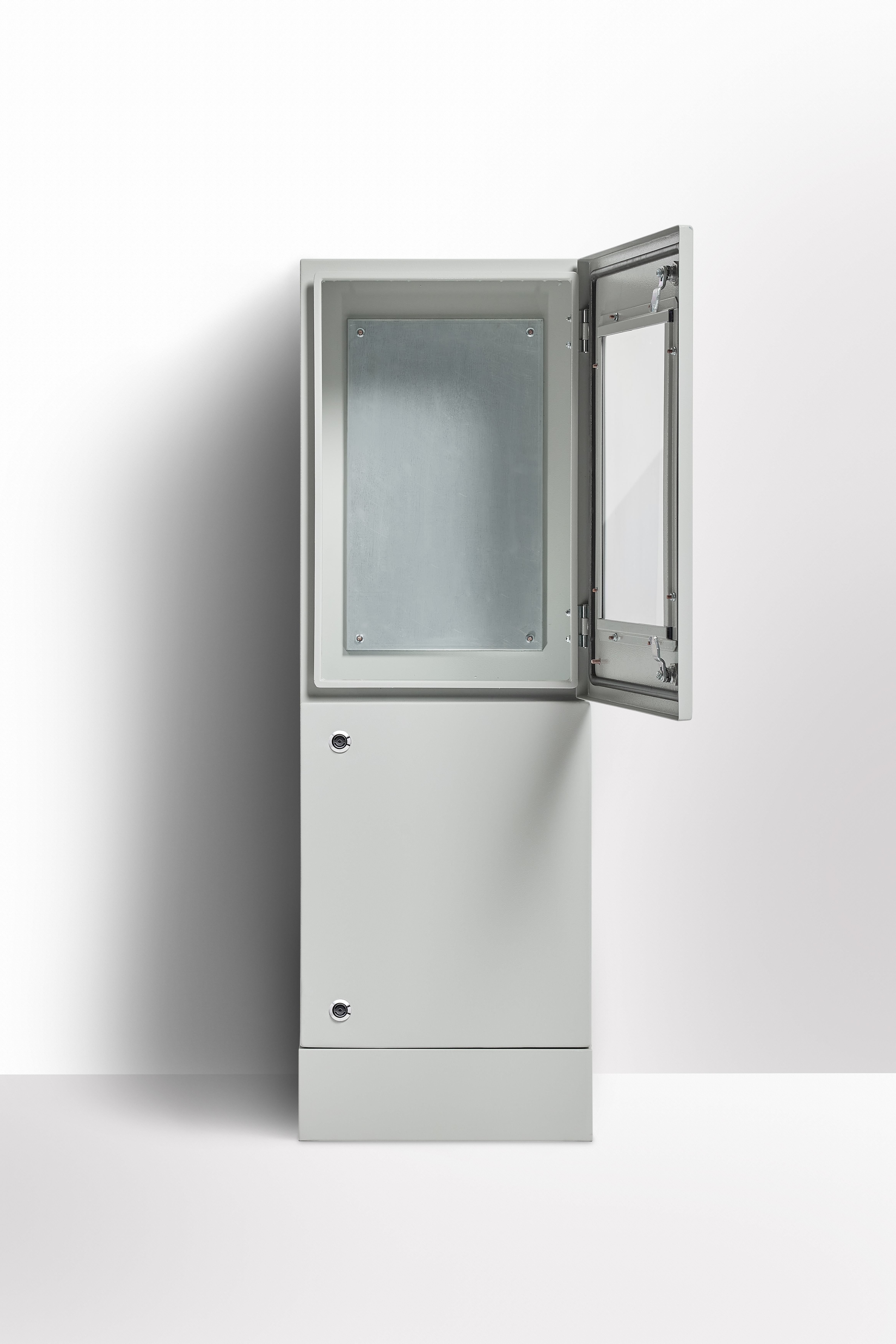

Device Mounting Plates:

A device mounting plate is located in each separate compartment and is fabricated using 1.5mm galvanised steel sheet. They are pressed to provide strength and are pre-fitted into the enclosure as standard.

Gland Plate:

Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. The standard electrical enclosure colour is RAL7035. A full range of other colour options are available upon request. Refer to Electrical Enclosure Colours.

REQUEST PRICE & AVAILABILITY
Our local distributor sales team will send a quote for this product. Please complete details below and a quote will be sent as soon as possible. Thankyou.

15 + 8 =

Partitioned Electrical Enclosure
Part NumberEnclosure Size (mm)DownloadDownloadDownloadAccessory - Base
SKUH x W x DData SheetDrawing PDFDrawing DWGSKU
IP-80P4040800 x 400 x 400PDFPDF.dwgIP-PLINTH4040
IP-100P50501000 x 500 x 500PDFPDF.dwgIP-PLINTH5050
IP-120P60601200 x 600 x 600PDFPDF.dwgIP-PLINTH6060
