Auer Signal Tower Lights (Stack Lights)
IP Enclosures has partnered with Auer Signal to provide Signal Tower Stack Lights in Australia. Auer Signal is based in Austria and since 1910 has delivered among the best quality signalling devices for industrial purposes in the world.
Electrical enclosures are often installed with externally-mounted signalling devices including signal towers or stack lights. Maintaining the integrity of the IP rating of electrical enclosures while ensuring the safety of equipment and people is critical. For this reason, IP Enclosures recommends the use of Auer Signal when signalling devices are to be integrated into electrical enclosures and field cabinet solutions. Auer Signal is one of the world’s leading manufacturers of signalling equipment. Made in Austria, Auer Signal provide the best quality signalling devices for industrial purposes. IP Enclosures has partnered with Auer Signal to provide modular and pre-assembled Ø50, Ø60 and Ø70 signal towers for fitting to electrical enclosures that can be configured to offer full flexibility to meet individual needs. A signal tower can be mounted onto an electrical enclosure to provide safe, reliable and efficient information about the status of a machine or to indicate a hazardous situation. Choose from various signal towers to include steady beacons, flashing beacons, strobe beacons or multifunction beacons. If you would like to draw attention to a certain situation with a signal tone, select a signal tower with a multi-tone sounder. Please contact us to request a quote or if you require assistance with product selection.
Stack Light CT5
Stack Light MT60
Stack Light PC7

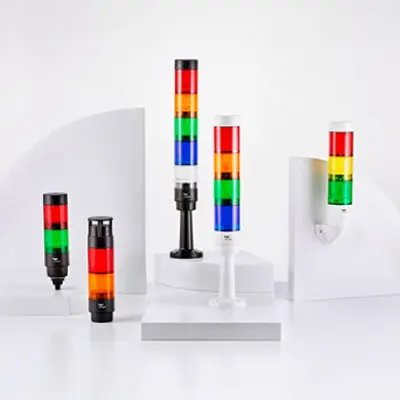

CT5 Ø50mm Modular Signal Tower (Stack Lights)

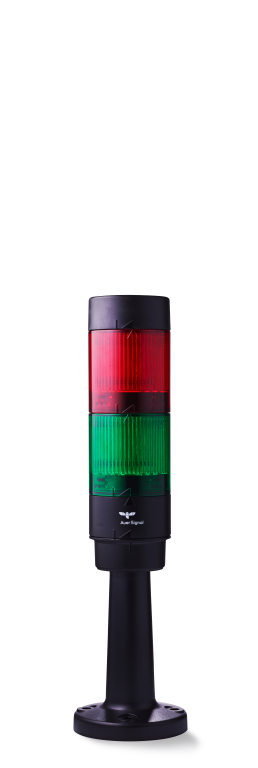

CT5-Q02 Signal Tower
Colours: red/green
Function: LED steady beacon
Nominal voltage: 24 V DC
Type of mounting: Tube mounting (100 mm tube length)

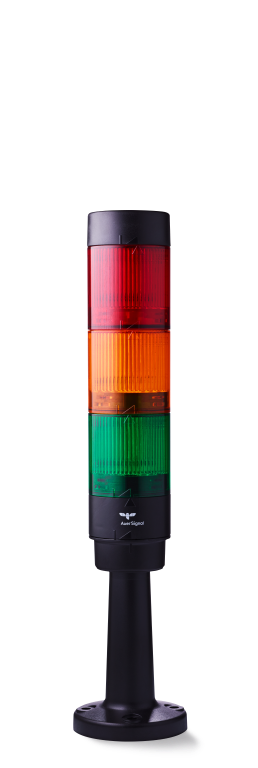

CT5-Q01 Signal Tower
Colours: red/amber/green
Function: LED steady beacon
Nominal voltage: 24 V DC
Type of mounting: Tube mounting (100 mm tube length)

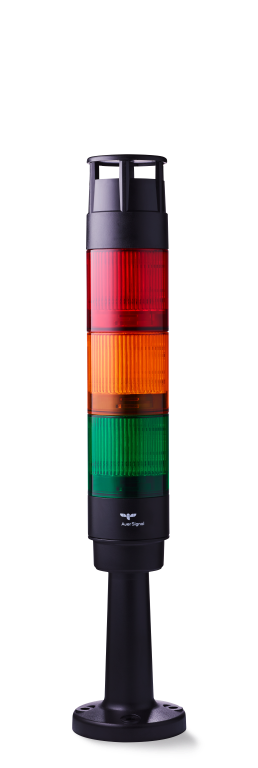

CT5-Q31 Signal Tower
Colours: red/amber/green
Function: LED steady beacon, Piezo buzzer module, one of eight tones can be selected with a dip switch
Nominal voltage: 24 V DC
Type of mounting: Tube mounting (100 mm tube length)

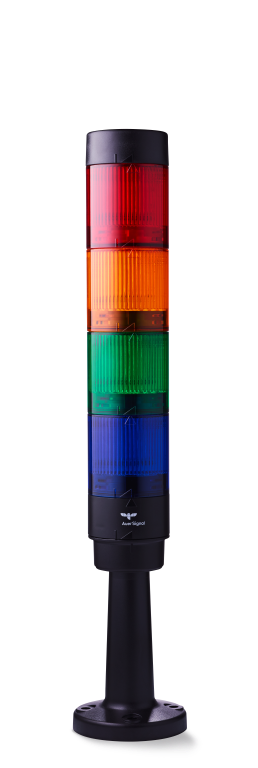

CT5-Q05 Signal Tower
Colours: red/amber/green
Colours: red/amber/green/blue
Function: LED steady beacon
Nominal voltage: 24 V DC
Type of mounting: Tube mounting (100 mm tube length)
| Technical Data | |
|---|---|
| Housing | Ø 50 mm, white or black |
| Lens | Polycarbonate, ribbed inside |
| Type of mounting | horizontal, vertical, Tube mounting or NPT 1/2″ |
| Beacon type | LED steady light, flashing light, strobe light and double strobe light |
| Light source | LEDs |
| Tone | see tone table |
| Volume | 95- dB |
| Duty cycle | 100 % |
| Service life | Light source: 100.000 h |
| Number of possible modules | max. 5 |
| Operating temperature | -30 °C / +60 °C |
| Degree of protection | IP65 & UL Type 4/4x/13 |
| Impact resistance | IK07 |
| Weight (modules) | 26-149 g |
Request Quote for CT5

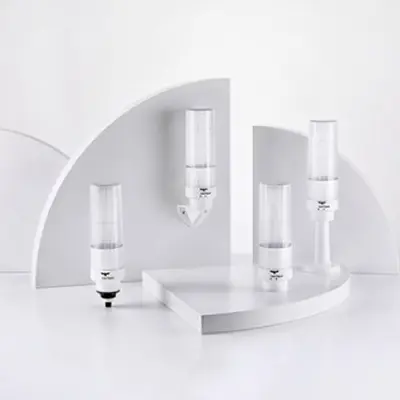

MT60 Ø60mm Monolithic Signal Tower (Stack Lights)
MT60-W-24VDC Signal Tower
Colours: red/yellow/green
Function: LED steady & flashing (red)
Nominal voltage: 24 V DC
Type of mounting: Vertical (with bracket)
MT60-W-230VAC Signal Tower
Colours: red/yellow/green
Function: LED steady & flashing (red)
Nominal voltage: 230 V AC
Type of mounting: Vertical (with bracket)
MT60-F100-24VDC Signal Tower
Colours: red/yellow/green
Function: LED steady & flashing (red)
Nominal voltage: 24 V DC
Type of mounting: Tube base (100mm)
MT60-F100-230VAC Signal Tower
Colours: red/yellow/green
Function: LED steady & flashing (red)
Nominal voltage: 230 V AC
Type of mounting: Tube base (100mm)
| Technical Data | |
|---|---|
| Housing | Ø 60 mm, white |
| Lens | Polycarbonate, clear |
| Type of mounting | Tube base (100 mm), vertical (with bracket) |
| Beacon type | LED steady and / or flashing (red) |
| Light source | LEDs |
| Tone | NA |
| Volume | NA |
| Duty cycle | 100 % |
| Number of possible modules | – |
| Operating temperature | -25 °C / +50 °C |
| Degree of protection | IP66 |
| Impact resistance | IK07 |
Request Quote for MT60

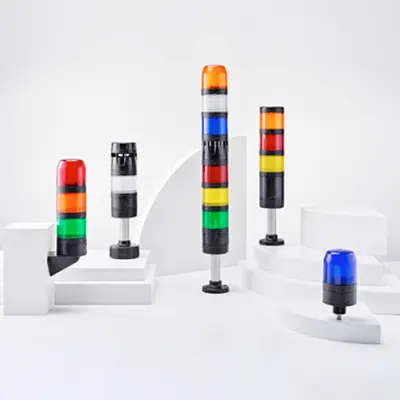

PC7 Ø70mm Modular Signal Tower (Stack Lights)

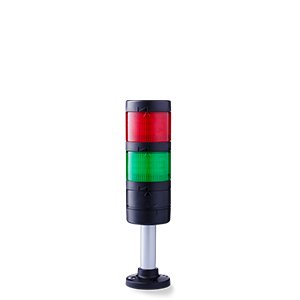

PC7-Q02 Signal Tower
Colours: red/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: Tube mounting (100 mm tube length)

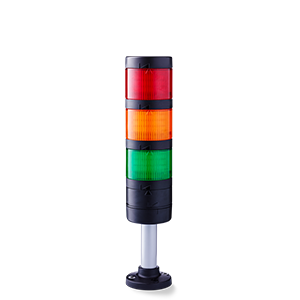

PC7-Q01 Signal Tower
Colours: red/amber/green
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: Tube mounting (100 mm tube length)
PC7-Q07 Signal Tower
Colours: red/amber/green
Function: Top LED steady/flashing beacon (red) + LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: Tube mounting (100 mm tube length)

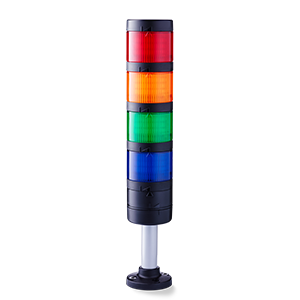

PC7-Q05 Signal Tower
Colours: red/amber/green/blue
Function: LED steady beacon
Nominal voltage: 24 V AC/DC
Type of mounting: Tube mounting (100 mm tube length)
| Technical Data | |
|---|---|
| Housing | Ø 70 mm, Polycarbonate |
| Lens | Polycarbonate, amber, red, clear, blue, green, yellow or magenta |
| Leakage current | 0,003 A |
| Beacon type | LED steady, LED flashing, LED strobe, LED multi strobe |
| Light source | LEDs |
| Tone | see tone table |
| Volume | 100-105 dB (depending on module) |
| Duty cycle | 100 % |
| Service life | Light source: LED 100,000 hours |
| Number of possible modules | max. 7 |
| Operating temperature | -30 °C / +70 °C |
| Degree of protection | IP66, IP67 & UL Type 4/4x/13 |
| Impact resistance | IK08 |
| Weight (modules) | 48-166 g |
Request Quote for PC7
