Auer Signal Panel-Mount Lights & Beacons
IP Enclosures has partnered with Auer Signal to provide high quality Panel-Mount Lights and Beacons. The full range of Auer Signal products are now available via IP Enclosures in Australia. Contact us for product selection and pricing.
Electrical enclosures and field cabinets are often installed with externally-mounted signalling devices including beacons and sounders. Maintaining the integrity of the IP rating of electrical enclosures while ensuring the safety of equipment and people is critical. For this reason, IP Enclosures recommends the use of Auer Signal beacons and sounders when signalling devices are to be integrated into electrical enclosures and field cabinet solutions. Auer Signal is one of the world’s leading manufacturers of signalling equipment. Made in Austria, Auer Signal provide the best quality signalling devices for industrial purposes. Panel-mount indicator lights and beacons are provided to install into electrical cabinets and control panels. The small indicator lights are designed to signal technical faults or to indicate the operating status. In most cases, panel indicator lights are usually installed by means of a simple single mounting hole. They are available in 12V, 24V and 230V in a range of colours.
Auer Signal Panel-Mount Lights & Beacons
ISS LED strobe beacon M22 Ø30
Ø30mm LED Strobe Beacon
Ø22.5mm/M22 Panel size
IP65 Protection
Plug-in screw terminal
Modern LED technology
Request Quote for ISS
Housing | Ø 30 mm, Polycarbonate black (RAL 9005) or grey (RAL 7035) |
Lens | Polycarbonate, ribbed inside amber or red |
Type of mounting | any |
Panel size | 22×1,5 (M22) and 30.5 mm (with adapter), mounting depth 47 mm |
Connection technology | Screw/plug-in terminal 2,5 mm² |
Leakage current | 0,003 A |
Beacon type | LED strobe beacon |
Light source | 6 LEDs |
Strobe/flash frequency | 1 Hz |
Duty cycle | 100 % |
Service life | Light source: 100.000 h |
Operating temperature | -25 °C / +60 °C |
Degree of protection | IP65 & UL Type 4/4x/13 |
Impact resistance | IK08 |
ICM LED Multi-Strobe Beacon M22 Ø45
Ø45mm LED multi-strobe beacon
Ø22.5mm/M22 Panel Mount
IP65 Protection
Plug-in screw terminal
Modern LED technology
2 different strobe patterns
Request Quote for ICM
Housing | Ø 45 mm, Polycarbonate black (RAL 9005) or grey (RAL 7035) |
Lens | Polycarbonate, ribbed inside amber or red |
Type of mounting | any |
Panel size | 22×1,25 mm (M22) and 30.5 mm (with adapter), mounting depth 34 mm |
Cable entry | pre-wired at customer’s request |
Connection technology | Screw/plug-in terminal 2,5 mm² |
Leakage current | 0,003 A |
Beacon type | LED multi strobe beacon |
Light source | 9 LEDs |
Strobe/flash frequency | Double strobe and 6x strobe |
Duty cycle | 100 % |
Service life | Light source: 100.000 h |
Operating temperature | -25 °C / +60 °C |
Degree of protection | IP65 & UL Type 4/4x/13 |
Impact resistance | IK08 |
UDFP LED Multi-Strobe Beacon 37mm Ø60
Ø60mm LED multi-strobe beacon
Ø37mm Panel Mount
IP66 IK10 Protection
Tamper and vandal-proof
Modern LED technology
2 different strobe patterns
Request Quote for UDFP
Housing | Ø 60 mm, Polycarbonate |
Lens | Polycarbonate, ribbed inside amber, red, clear, blue, green or yellow |
Type of mounting | any |
Panel size | 37 mm |
Connection technology | Screw/plug-in terminal |
Leakage current | 0,003 A |
Beacon type | LED multi strobe beacon |
Light source | 12 |
Strobe/flash frequency | 6x strobe/multi strobe 1 Hz |
Duty cycle | 100 % |
Service life | Light source: >50.000 h |
Operating temperature | -30 °C / +60 °C |
Degree of protection | IP66 & UL Type 4/4x/13 |
Impact resistance | IK10 |
Weight | 103 g |

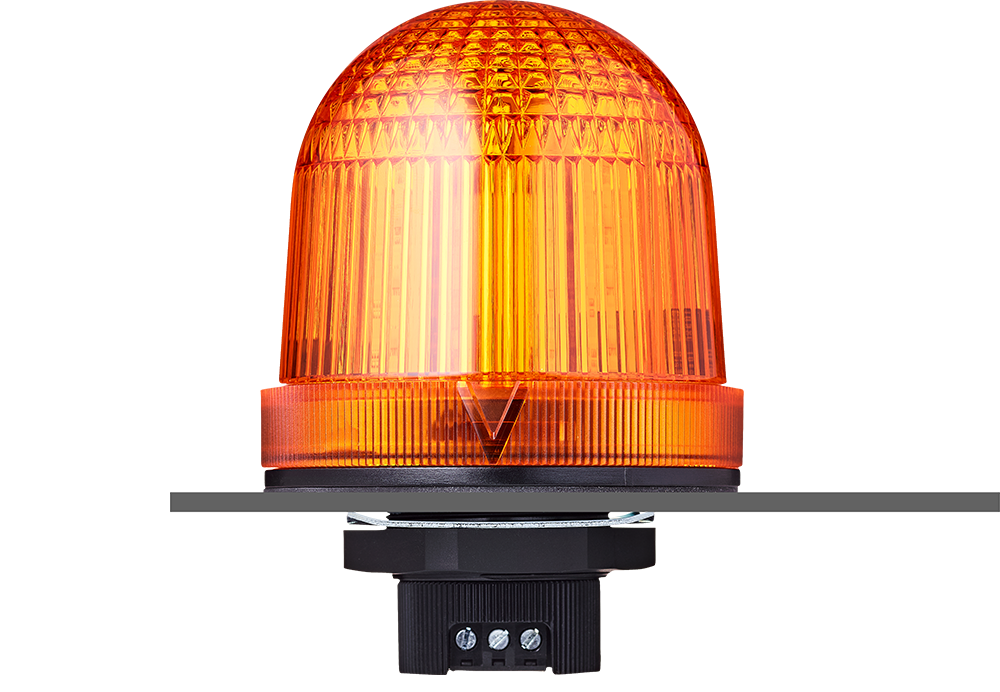

TDFP LED Multi-Strobe Beacon 37mm Ø75
Ø75mm LED multi-strobe beacon
Ø37mm Panel Mount
IP66 IK10 Protection
Tamper and vandal-proof
Modern LED technology
2 different strobe patterns
Request Quote for TDFP
Housing | Ø 75 mm, Polycarbonate |
Lens | Polycarbonate, ribbed inside amber, red, clear, blue, green or yellow |
Type of mounting | any |
Panel size | 37 mm |
Connection technology | Screw/plug-in terminal |
Leakage current | 0,003 A |
Beacon type | LED multi strobe beacon |
Light source | 16 |
Strobe/flash frequency | 6x strobe/multi strobe 1 Hz |
Duty cycle | 100 % |
Service life | Light source: >50.000 h |
Operating temperature | -30 °C / +60 °C |
Degree of protection | IP66 & UL Type 4/4x/13 |
Impact resistance | IK10 |
Weight | 148 g |

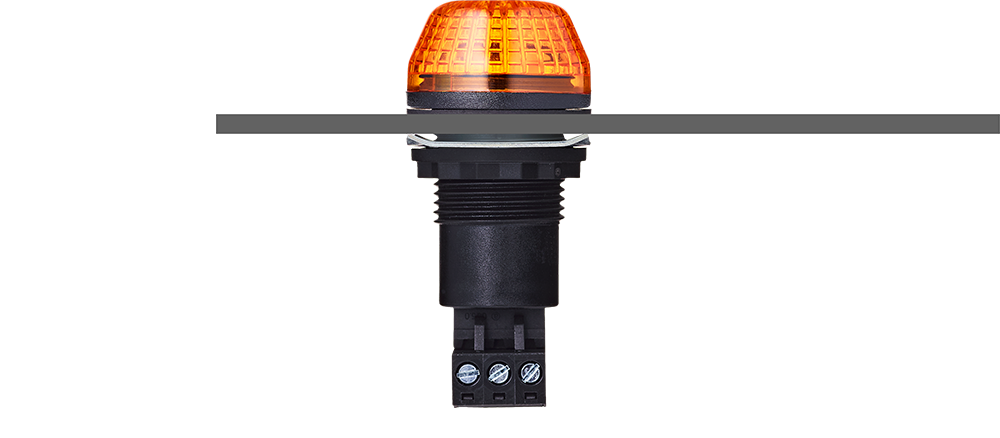

IBS LED Steady/Flashing Beacon M22 Ø30
Ø30mmLED steady/flashing beacon
Ø22.5mm/M22 Panel Mount
IP65 Protection
User-friendly connection technology
Modern LED technology
Steady/flashing light
Request Quote for IBS
Housing | Ø 30 mm, Polycarbonate black (RAL 9005) or grey (RAL 7035) |
Lens | Polycarbonate, ribbed inside amber, red, clear, blue, green or yellow |
Type of mounting | any |
Panel size | 22×1,5 (M22) and 30.5 mm (with adapter), mounting depth 47 mm |
Connection technology | Screw/plug-in terminal 2,5 mm² |
Leakage current | 0,003 A |
Beacon type | LED steady beacon or LED flashing beacon |
Light source | 6 LEDs |
Strobe/flash frequency | 2 Hz |
Duty cycle | 100 % |
Service life | Light source: 100.000 h |
Operating temperature | -25 °C / +60 °C |
Degree of protection | IP65 & UL Type 4/4x/13 |
Impact resistance | IK08 |
Weight | 30 g |

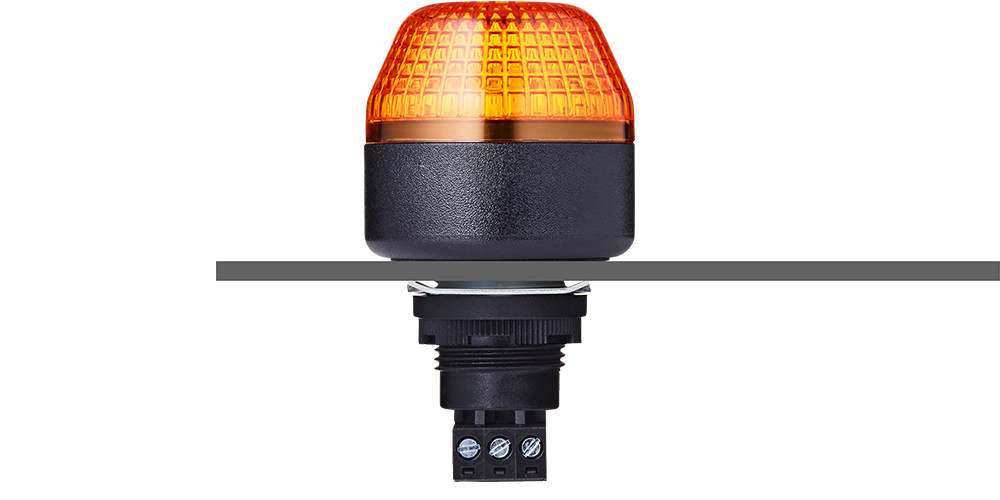

IBM LED Steady/Flashing Beacon M22 Ø45
Ø45mm LED steady/flashing beacon
Ø22.5mm/M22 Panel Mount
IP65 Protection
User-friendly connection technology
Modern LED technology
Steady/flashing light
Request Quote for IBM
Housing | Ø 45 mm, Polycarbonate black (RAL 9005) or grey (RAL 7035) |
Lens | Polycarbonate, ribbed inside amber, red, clear, blue, green or yellow |
Type of mounting | any |
Panel size | 22×1,25 mm (M22) and 30.5 mm (with adapter), mounting depth 34 mm |
Connection technology | Screw/plug-in terminal 2,5 mm² |
Leakage current | 0,003 A |
Beacon type | LED steady beacon or LED flashing beacon |
Light source | 9 LEDs |
Strobe/flash frequency | 2 Hz |
Duty cycle | 100 % |
Service life | Light source: 100.000 h |
Operating temperature | -25 °C / +60 °C |
Degree of protection | IP65 & UL Type 4/4x/13 |
Impact resistance | IK08 |
Weight | 55 g |
UDCP LED Steady/Flashing Beacon 37mm Ø60
Ø60mm LED steady/flashing beacon
Ø37mm Panel Mount
IP66 IK10 Protection
Tamper and vandal-proof
Modern LED technology
Steady/flashing light
Request Quote for UDCP
Housing | Ø 60 mm, Polycarbonate |
Lens | Polycarbonate, ribbed inside amber, red, clear, blue, green or yellow |
Panel size | 37 mm |
Connection technology | Screw/plug-in terminal |
Leakage current | 0,003 A |
Beacon type | LED steady beacon or LED flashing beacon |
Light source | 12 |
Strobe/flash frequency | 2 Hz |
Duty cycle | 100 % |
Service life | Light source: >50.000 h |
Operating temperature | -30 °C / +60 °C |
Degree of protection | IP66 & UL Type 4/4x/13 |
Impact resistance | IK10 |
Weight | 103 g |
TDCP LED Steady/Flashing Beacon 37mm Ø75
Ø75mm LED steady/flashing beacon
Ø37mm Panel Mount
IP66 IK10 Protection
Tamper and vandal-proof
Modern LED technology
Steady/flashing light
Request Quote for TDCP
Housing | Ø 75 mm, Polycarbonate |
Lens | Polycarbonate, ribbed inside amber, red, clear, blue, green or yellow |
Type of mounting | any |
Panel size | 37 mm |
Connection technology | Screw/plug-in terminal |
Leakage current | 0,003 A |
Beacon type | LED steady beacon or LED flashing beacon |
Light source | 16 |
Strobe/flash frequency | 2 Hz |
Duty cycle | 100 % |
Service life | Light source: >50.000 h |
Operating temperature | -30 °C / +60 °C |
Degree of protection | IP66 & UL Type 4/4x/13 |
Impact resistance | IK10 |
Weight | 149 g |
