Isolation Cabinet

Transparent Isolation Cabinets

The IP Enclosures range of IP55-IP66 transparent isolation cabinets are suitable for industrial applications where isolation, containment and controlled ventilation of hazardous processes are required. Front and top access doors enable operators to access machine components or equipment in a safe manner. Viewing windows on every side and top enable operators to safely observe processes from every direction without opening access doors. Equipment, machines and components can be mounted to the removable base plate for ease of installation.

Features & Specifications

Protection: Complies with IP55 to IP66 IK10, NEMA 4

Standard: IEC62208, IEC/EN/AS60529

Material:

– Body: 1.2mm galvanised steel sheet
– Gland / Device Mounting Plate: 1.5mm galvanised steel sheet
– Door: 1.5mm galvanised steel sheet
– Seal: Polyurethane
– Windows: 4mm transparent tempered glass

Body:

The robust monoblock body is fabricated using 1.2mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. M6 earth studs are provided. The floor gland plate is removable to enable cutting and fitting of equipment.

Base:

The base is fabricated using 1.2mm galvanised steel sheet. The base is provided with four adjustable rubber mounting feet.

Front and Top Doors:

The robust surface mounted doors are fabricated using 1.5mm galvanised steel sheet and incorporate concealed removable hinges with captive pins. The doors are designed for a 110° opening. Each door contains M6 earth studs. The top door is provided with gas struts and handle on larger sizes for ease of operation.

Seals:

High quality machine-applied full perimeter Polyurethane foamed in place (FIP) seals provide excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Locking Handles:

Quarter turn cast alloy L handles coated black are provided.

Surface Treatment:

UL approved epoxy polyester powder coated with a textured finish. 80-120 micron average thickness.

Part NumberSize (H x W x D)
IP-ISO606060-WT600H x 600W x 600D
IP-ISO608060-WT600H x 800W x 600D
IP-ISO6010060-WT600H x 1000W x 600D
IP-ISO6012060-WT600H x 1200W x 600D
IP-ISO806060-WT800H x 600W x 600D
IP-ISO808060-WT800H x 800W x 600D
IP-ISO8010060-WT800H x 1000W x 600D
IP-ISO8012060-WT800H x 1200W x 600D

Quick Quote

3 + 13 =

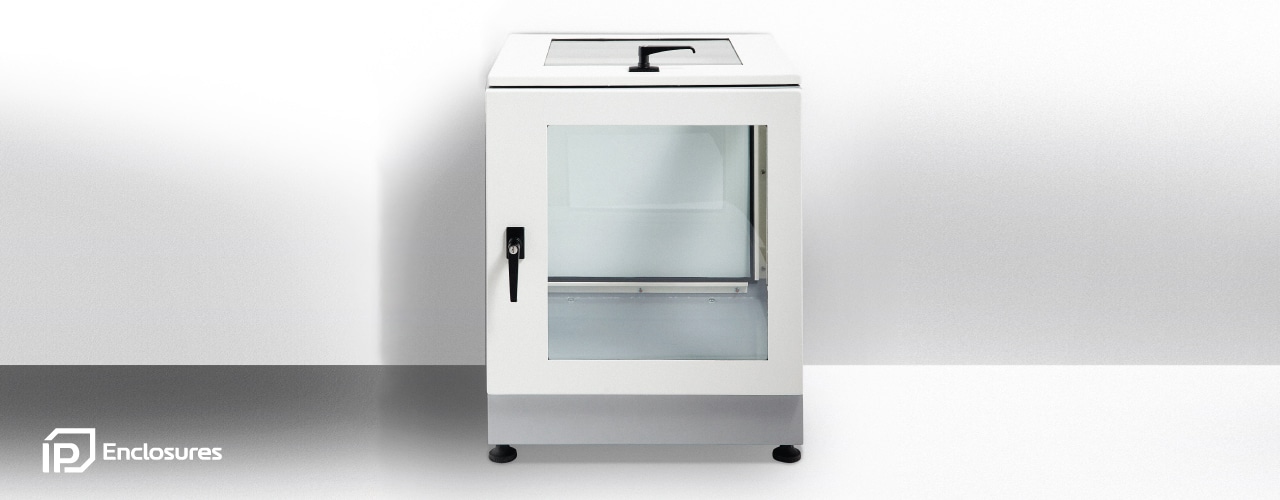

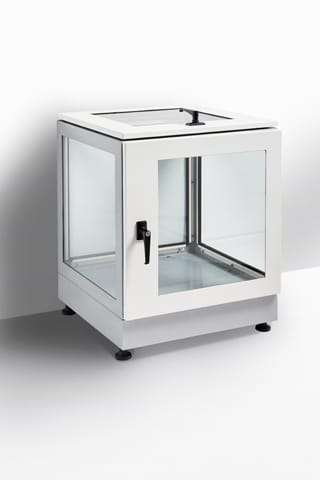

Isolation Cabinet

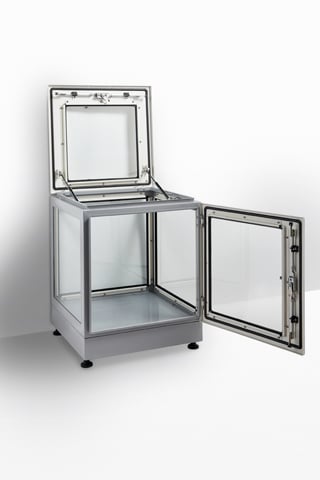

Isolation Cabinet Open
