Electrical Cabinet Modular Accessories

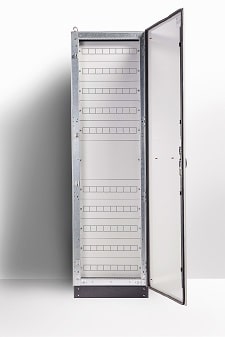

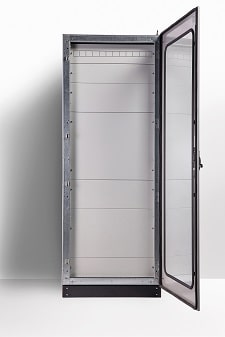

Cover Plates
| Part Number SKU | Height (mm) xDescription | To Suit Width of Cabinet (mm) |
|---|---|---|
| IP-CP1640 | 160mm High Cover Plate | 400mm Wide Cabinet |
| IP-CPMCB1640 | 160mm High with MCB Cutouts | 400mm Wide Cabinet |
| IP-CP1660 | 160mm High Cover Plate | 600mm Wide Cabinet |
| IP-CPMCB1660 | 160mm High with MCB Cutouts | 600mm Wide Cabinet |
| IP-CP1680 | 160mm High Cover Plate | 800mm Wide Cabinet |
| IP-CPMCB1680 | 160mm High with MCB Cutouts | 800mm Wide Cabinet |
| IP-CP2440 | 240mm High Cover Plate | 400mm Wide Cabinet |
| IP-CP2460 | 240mm High Cover Plate | 600mm Wide Cabinet |
| IP-CP2480 | 240mm High Cover Plate | 800mm Wide Cabinet |
| IP-CP3240 | 320mm High Cover Plate | 400mm Wide Cabinet |
| IP-CP3260 | 320mm High Cover Plate | 600mm Wide Cabinet |
| IP-CP3280 | 320mm High Cover Plate | 800mm Wide Cabinet |
| IP-CP4040 | 400mm High Cover Plate | 400mm Wide Cabinet |
| IP-CP4060 | 400mm High Cover Plate | 600mm Wide Cabinet |
| IP-CP4080 | 400mm High Cover Plate | 800mm Wide Cabinet |
| IP-CP4840 | 480mm High Cover Plate | 400mm Wide Cabinet |
| IP-CP4860 | 480mm High Cover Plate | 600mm Wide Cabinet |
| IP-CP4880 | 480mm High Cover Plate | 800mm Wide Cabinet |
| IP-CP5640 | 560mm High Cover Plate | 400mm Wide Cabinet |
| IP-CP5660 | 560mm High Cover Plate | 600mm Wide Cabinet |
| IP-CP5680 | 560mm High Cover Plate | 800mm Wide Cabinet |
| IP-CP6440 | 640mm High Cover Plate | 400mm Wide Cabinet |
| IP-CP6460 | 640mm High Cover Plate | 600mm Wide Cabinet |
| IP-CP6480 | 640mm High Cover Plate | 800mm Wide Cabinet |
To fit Cover Plates, 1xset of Cover Brackets are required. Select 1xset of Cover Brackets below to suit the height of the electrical cabinet.
| Part Number SKU | Height (mm)xDescription | To Suit Height of Cabinet (mm) |
|---|---|---|
| IP-CPP1620 | 1620mm High Cover Brackets | 1620mm High Cabinet |
| IP-CPP1860 | 1860mm High Cover Brackets | 1860mm High Cabinet |
| IP-CPP2020 | 2020mm High Cover Brackets | 2020mm High Cabinet |
Contactor Brackets
| Part Number SKU | DescriptionxWidth (mm) | To Suit Width of Cabinet (mm) |
|---|---|---|
| IP-MP1540 | Contactor Mounting Plate - 400mm W | 400mm Wide Cabinet |
| IP-MP1560 | Contactor Mounting Plate - 600mm W | 600mm Wide Cabinet |
| IP-MP1580 | Contactor Mounting Plate - 800mm W | 800mm Wide Cabinet |
To attach Contactor Bracket, 1xDepth Slide Kit is required (if existing Depth Slides are not suitably positioned). Select 1xDepth Slide Kit to suit depth of electrical cabinet.
| Part Number SKU | Depth Slide (mm) to suit Depth of Electrical Cabinet |
|---|---|
| IP-DS400-KIT | 400mm Depth Slide Kit |
| IP-DS600-KIT | 600mm Depth Slide Kit |
| IP-DS800-KIT | 800mm Depth Slide Kit |
DIN Rail Brackets
To mount DIN Rail (without the use of a mounting plate) a Mounting Bracket and a DIN Rail is required.
| Mounting Bracket - SKU | DIN Rail - SKU | To Suit Width of Cabinet (mm) |
|---|---|---|
| IP-MCBP0040 | IP-MCBR0040 | 400mm Wide Cabinet |
| IP-MCBP0060 | IP-MCBR0060 | 600mm Wide Cabinet |
| IP-MCBP0080 | IP-MCBR0080 | 800mm Wide Cabinet |
Partial Mounting Plates
| Part Number SKU | Height (mm)xDescription | To Suit Width of Cabinet (mm) |
|---|---|---|
| IP-MP160400 | 160mm High Mounting Plate | 400mm Wide Cabinet |
| IP-MP160600 | 160mm High Mounting Plate | 600mm Wide Cabinet |
| IP-MP160800 | 160mm High Mounting Plate | 800mm Wide Cabinet |
| IP-MP240400 | 240mm High Mounting Plate | 400mm Wide Cabinet |
| IP-MP240600 | 240mm High Mounting Plate | 600mm Wide Cabinet |
| IP-MP240800 | 240mm High Mounting Plate | 800mm Wide Cabinet |
| IP-MP320400 | 320mm High Mounting Plate | 400mm Wide Cabinet |
| IP-MP320600 | 320mm High Mounting Plate | 600mm Wide Cabinet |
| IP-MP320800 | 320mm High Mounting Plate | 800mm Wide Cabinet |
| IP-MP400400 | 400mm High Mounting Plate | 400mm Wide Cabinet |
| IP-MP400600 | 400mm High Mounting Plate | 600mm Wide Cabinet |
| IP-MP400800 | 400mm High Mounting Plate | 800mm Wide Cabinet |
| IP-MP560400 | 560mm High Mounting Plate | 400mm Wide Cabinet |
| IP-MP560600 | 560mm High Mounting Plate | 600mm Wide Cabinet |
| IP-MP560800 | 560mm High Mounting Plate | 800mm Wide Cabinet |
| IP-MP640400 | 640mm High Mounting Plate | 400mm Wide Cabinet |
| IP-MP640600 | 640mm High Mounting Plate | 600mm Wide Cabinet |
| IP-MP640800 | 640mm High Mounting Plate | 800mm Wide Cabinet |
| IP-MP720400 | 720mm High Mounting Plate | 400mm Wide Cabinet |
| IP-MP720600 | 720mm High Mounting Plate | 600mm Wide Cabinet |
| IP-MP720800 | 720mm High Mounting Plate | 800mm Wide Cabinet |
To attach Mounting Plates to cabinet, select 1xBracket Kit below. (Note that several Mounting Plates can be attached to 1xBracket Kit providing the total height of Mounting Plates does not exceed height of Bracket Kit.)
| Part Number SKU | Height (mm)xDescription |
|---|---|
| IP-MPB400-KIT | 400mm High Mounting Plate Bracket Kit |
| IP-MPB600-KIT | 600mm High Mounting Plate Bracket Kit |
| IP-MPB800-KIT | 800mm High Mounting Plate Bracket Kit |
| IP-MPB1000-KIT | 1000mm High Mounting Plate Bracket Kit |
To attach Mounting Plate Bracket Kit, 1xDepth Slide Kit is required (if existing Depth Slides are not suitably positioned). Select 1xDepth Slide Kit to suit depth of electrical cabinet.
| Part Number SKU | Depth Slide (mm) to suit Depth of Electrical Cabinet |
|---|---|
| IP-DS400-KIT | 400mm Depth Slide Kit |
| IP-DS600-KIT | 600mm Depth Slide Kit |
| IP-DS800-KIT | 800mm Depth Slide Kit |
