Electrical Cabinet Inner Door Escutcheons

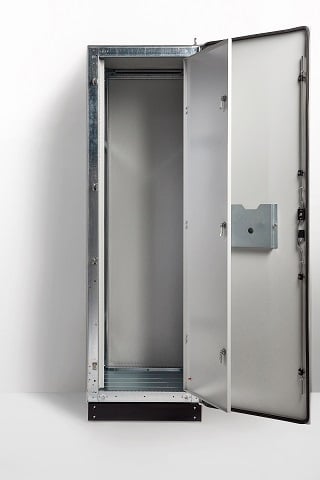

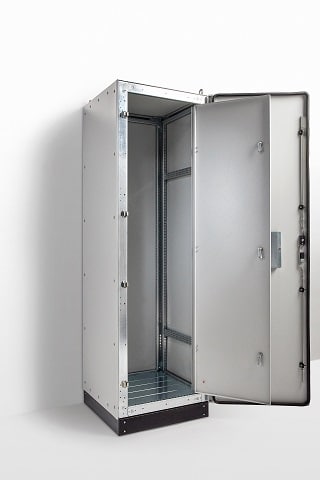

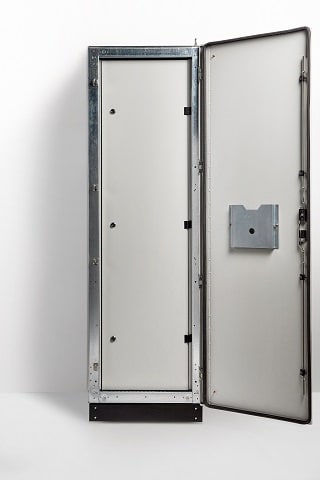

IP Enclosures provide a range of inner door escutcheons for floor standing electrical cabinets. Inner doors enable operators to access control equipment inside an electrical cabinet while maintaining separation of hazardous voltage equipment within the hazardous voltage area behind the inner door. Hinged escutcheon plates accommodate control components such as circuit breaker handles, pushbuttons, indicator lights and HMI’s. Inner door escutcheons are an optional feature that can be easily fitted into new or existing IP Enclosures floor standing electrical cabinets. Each inner door kit is provided with the inner door, two vertical rails and fasteners for easy assembly into the cabinet.

Inner Doors – Powder-Coated Steel

Steel inner doors are fabricated using 1.5mm galvanised steel sheet. UL approved AkzoNobel epoxy polyester powder coated with a textured RAL7035 finish to 80-120 micron average thickness.

Inner Doors – Grade 316 Stainless Steel

Stainless Steel inner doors are fabricated using 1.5mm Grade 316/316L Stainless Steel.
