Stainless Steel Pushbutton Enclosures

Stainless Steel Pushbutton Enclosures

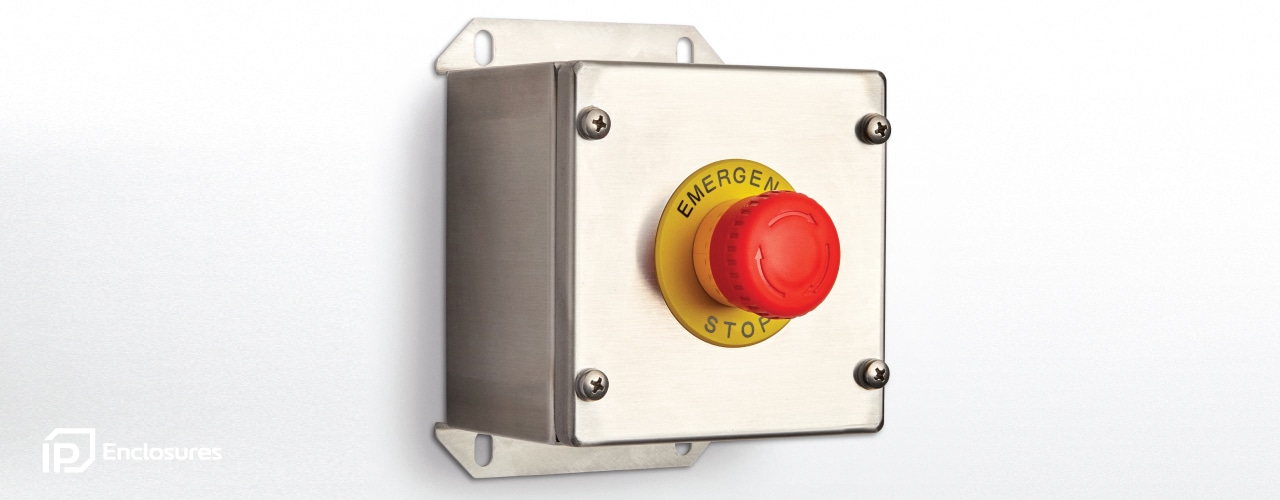

IP Enclosures IP-SSPB Range of grade 316/316L stainless steel pushbutton enclosures are suitable for extreme duty heavy industrial applications. They are available in 1 hole, 2 hole, 3 hole, 4 hole and 6 hole configurations with a flat roof or a sloping roof. We can also provide them with no hole for custom applications if required.

Features & Specifications

Protection: Complies with IP66

Standard: IEC/EN/AS60529

Material:

– Body: Grade 316/316L Stainless Steel
– Lid/Door: Grade 316/316L Stainless Steel
– Seal: Polyurethane

Surface Finish:

0.4 micron Ra surface brushed finish

Body:

The robust monoblock body is fabricated using Grade 316/316L Stainless Steel. Flat face sealing surfaces are provided to increase seal life. Integral mounting feet to suit M6 fasteners are provided.

Lid/Door:

The robust door is fabricated using grade 316/316L stainless steel and incorporates a polyurethane seal and M5 fasteners.

Seal:

A high quality machine-applied full perimeter Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life.

Pushbutton Enclosure
1 Hole Pushbutton Enclosure
2 Hole Pushbutton Enclosure
3 Hole Pushbutton Enclosure
4 Hole Pushbutton Enclosure

Sizes and Ordering Information – With Diameter 22mm Holes

Part NumberDescriptionEnclosure Size (mm)DownloadDownloadDownload
SKUH x W x DData SheetDrawing*.dwg
IP-SSPB11 Hole IP66 316ss Pushbutton Enclosure120 x 120 x 95---
IP-SSPB22 Hole IP66 316ss Pushbutton Enclosure160 x 120 x 95---
IP-SSPB33 Hole IP66 316ss Pushbutton Enclosure220 x 120 x 95---
IP-SSPB44 Hole IP66 316ss Pushbutton Enclosure280 x 120 x 95---
IP-SSPB66 Hole IP66 316ss Pushbutton Enclosure
(2 columns of 3)
220 x 180 x 95---

Sizes and Ordering Information – No Holes (Blank)

Part NumberDescriptionEnclosure Size (mm)DownloadDownloadDownload
SKUH x W x DData SheetDrawing*.dwg
IP-SSPBSize 1 IP66 316ss Pushbutton Enclosure120 x 120 x 95---
IP-SSPB2-0Size 2 IP66 316ss Pushbutton Enclosure160 x 120 x 95---
IP-SSPB3-0Size 3 IP66 316ss Pushbutton Enclosure220 x 120 x 95---
IP-SSPB4-0Size 4 IP66 316ss Pushbutton Enclosure280 x 120 x 95---
IP-SSPB6-0Size 6 IP66 316ss Pushbutton Enclosure220 x 180 x 95---

Sizes and Ordering Information – Sloped Roof 316ss Pushbutton Enclosures with Diameter 22mm Holes

Part NumberDescriptionDownloadDownloadDownload
SKUData SheetDrawing*.dwg
IP-SSSRPB11 Hole IP66 316ss Pushbutton Enclosure with Sloping Roof---
IP-SSSRPB22 Hole IP66 316ss Pushbutton Enclosure with Sloping Roof---
IP-SSSRPB33 Hole IP66 316ss Pushbutton Enclosure with Sloping Roof---
IP-SSSRPB44 Hole IP66 316ss Pushbutton Enclosure with Sloping Roof---
IP-SSSRPB66 Hole IP66 316ss Pushbutton Enclosure with Sloping Roof---
