IP69K Pushbutton Enclosures
The HPB range of IP69K Hygienic Pushbutton Enclosures are designed for applications within the food & beverage, pharmaceutical and other industries that require high hygienic standards.
Stainless Steel IP69K Pushbutton Enclosures
IP69K hygienic pushbutton enclosures are designed to prevent contamination and are suitable for the food & beverage, pharmaceutical and other industries that require high hygienic standards.
Features & Specifications
Protection: IP66 IK08, IP69K, Nema Type 1, 12, 4, 4x.
Standard: EN/AS60529, ISO20653, UL508A, RoHS, CE, UKCA
– Enclosure Body: 1.0mm Grade 304 Stainless Steel
– Enclosure Door: 1.0mm Grade 304 Stainless Steel
– Enclosure Seal: Silicon FD Compliant

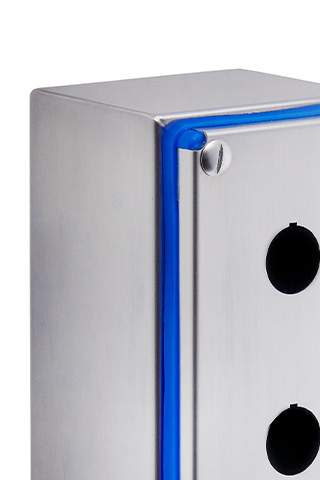

The body is fabricated using 1.0mm Grade 304 Stainless Steel. It is designed to be completely smooth and without crevices and without concave angles to facilitate cleaning and avoid deposits. The body is designed to promote self draining for ease of hygienic cleaning.
The cover is fabricated using 1.0mm Grade 304 Stainless Steel and includes a clip-in silicone seal
Blue silicone seal, FDA compliant for food production areas.
Hygienic Wall Mounting Brackets. SKU: IP-HWMB (Set of 2)

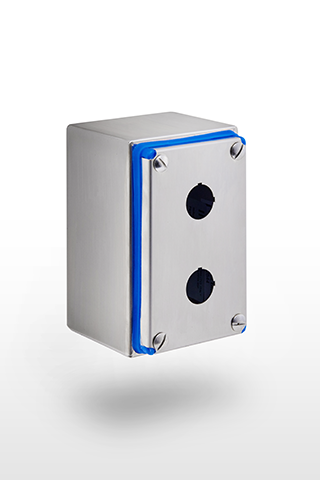

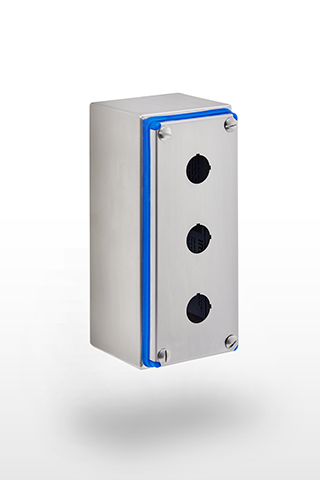

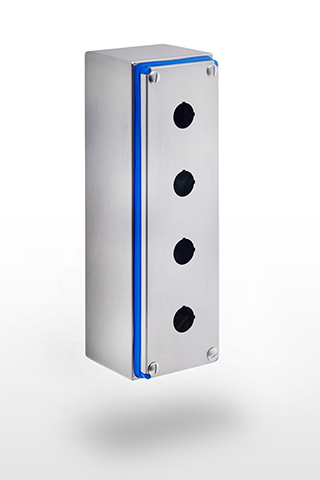

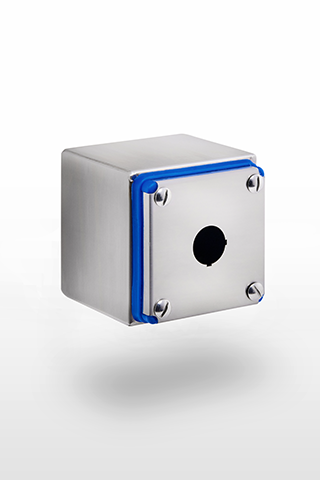

IP69K Pushbutton Enclosure Sizes
